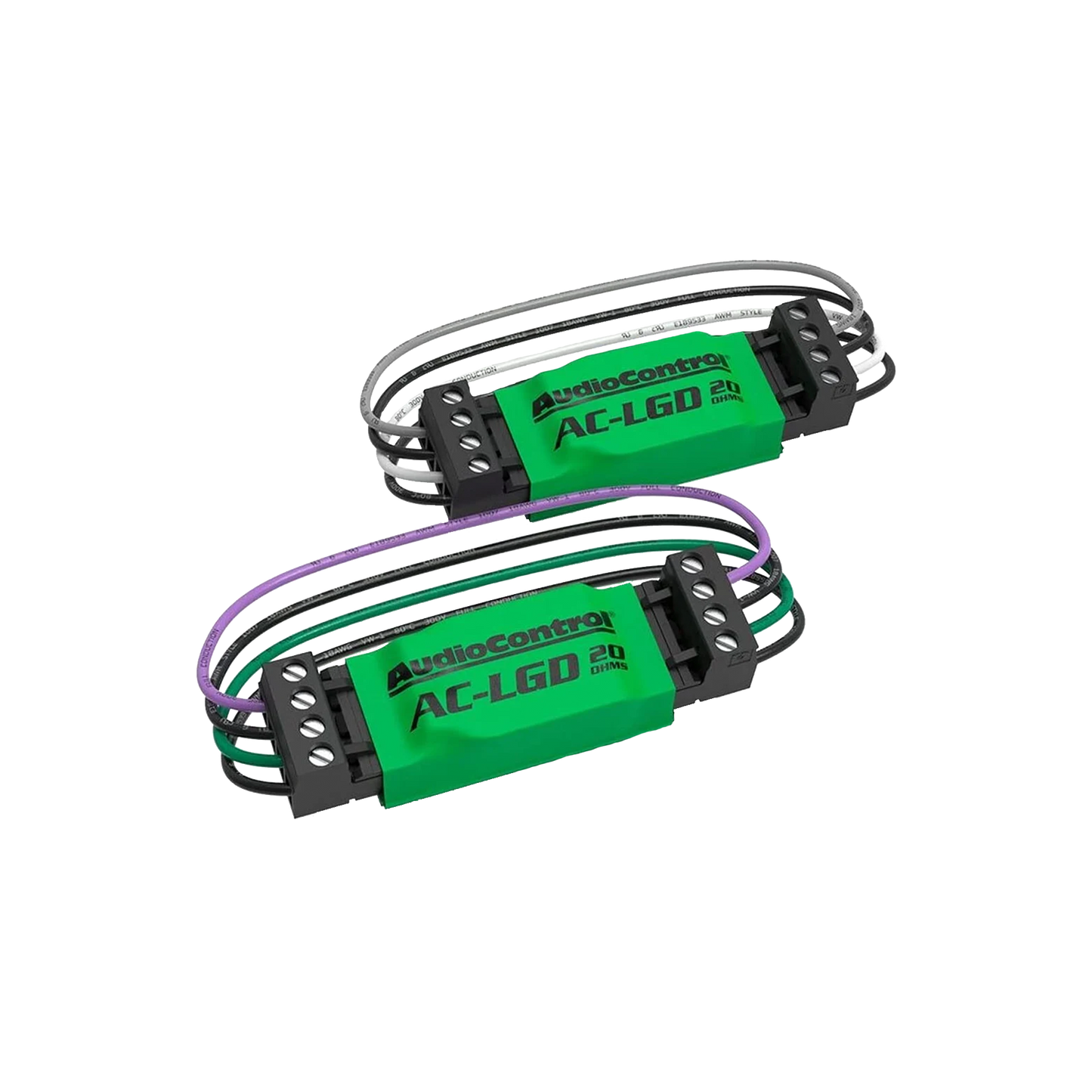

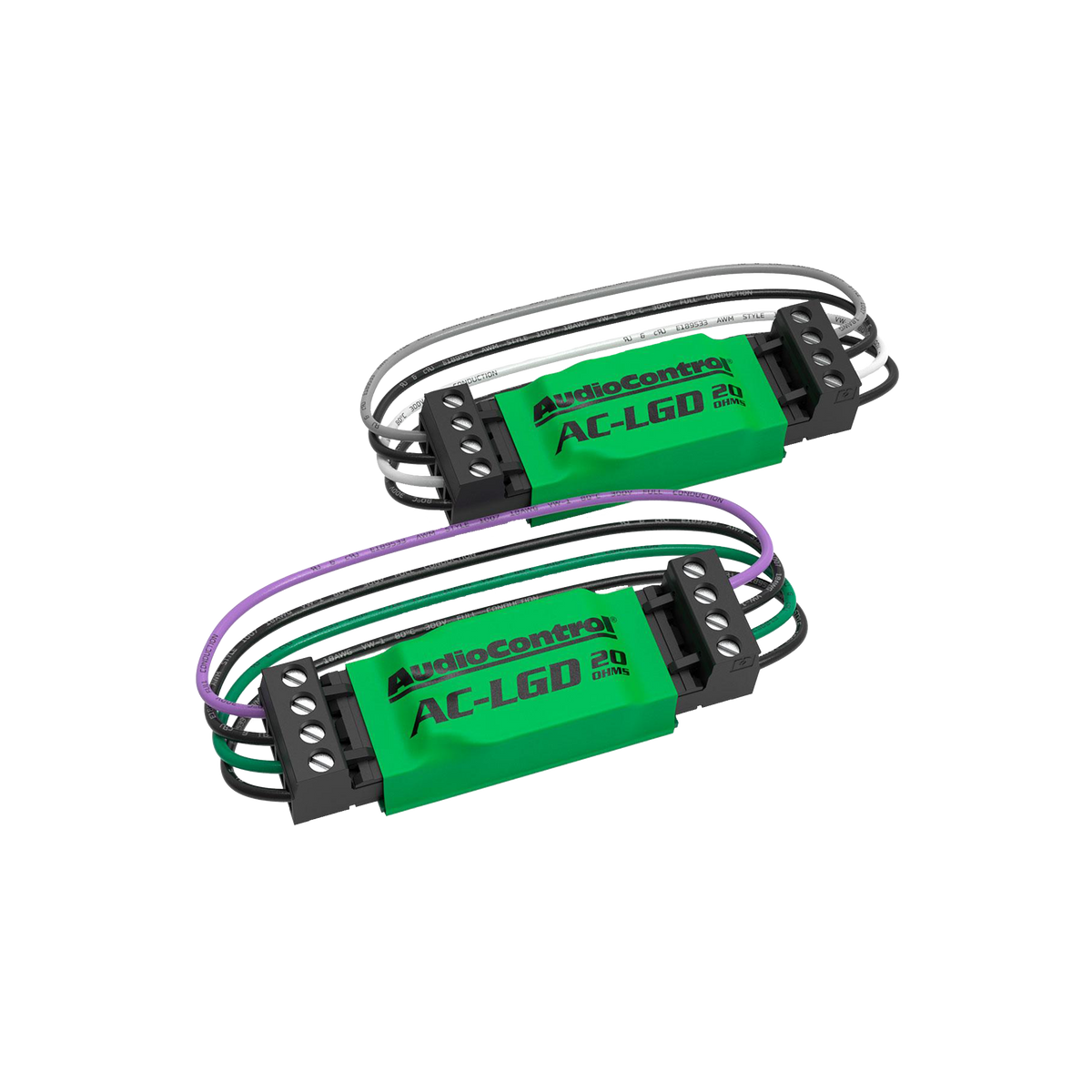

• AC-LGD-20 Load Generating Device

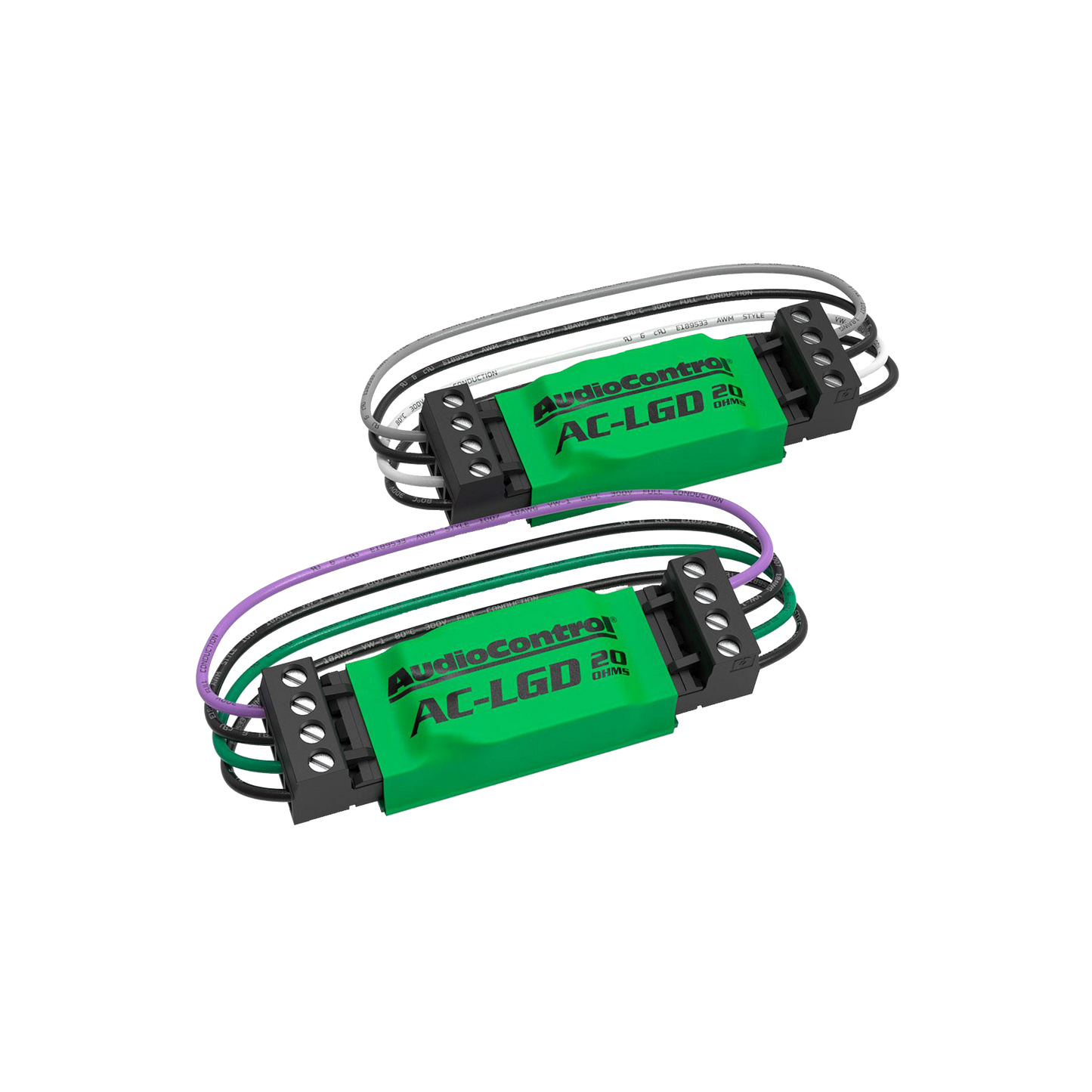

  • AC-LGD-20 Load Generating Device

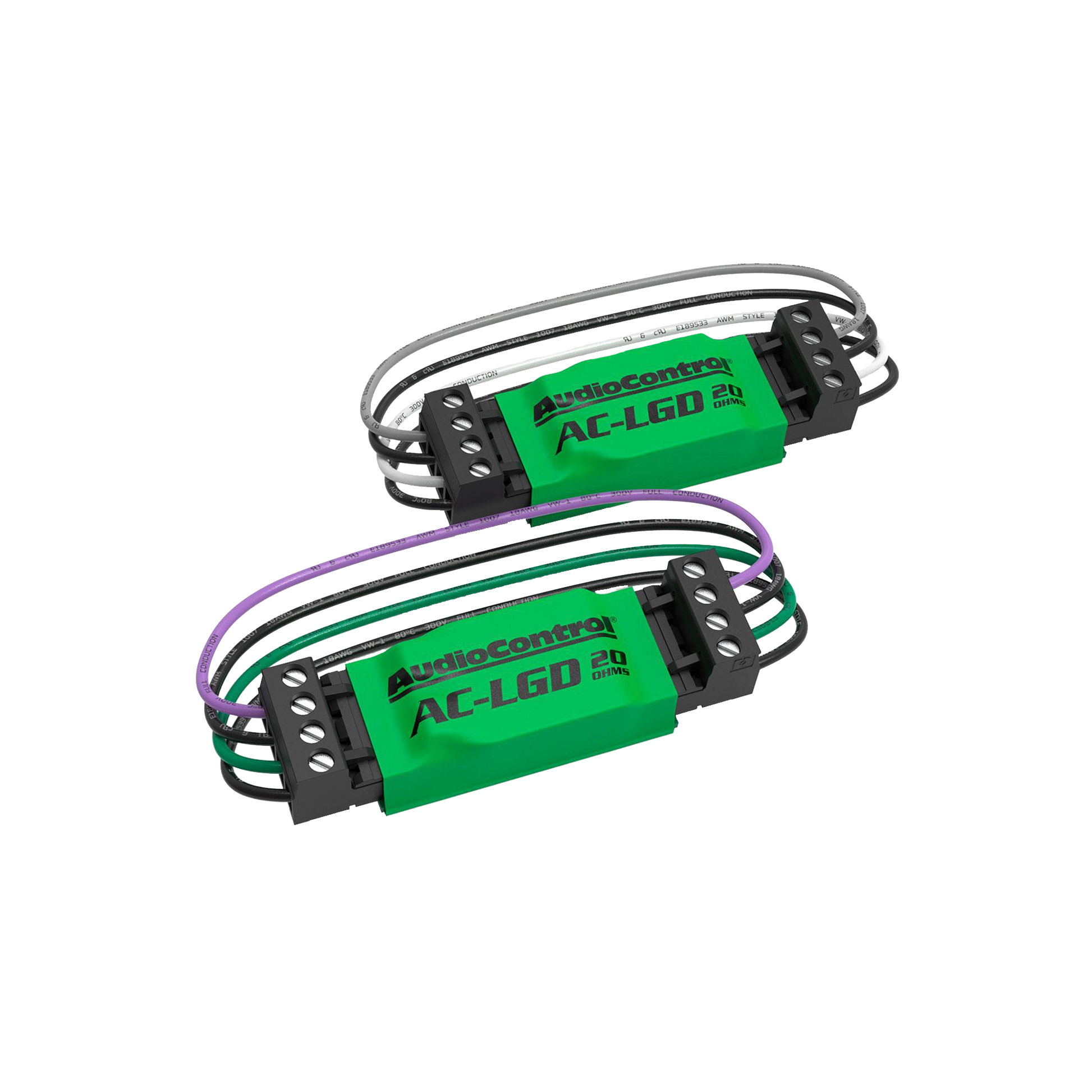

  • AC-LGD-20 Load Generating Device
1 3

AudioControl

AudioControl Audio AC-LGD-20

AudioControl Audio AC-LGD-20

$41.99 USD
$41.99 USD
Sale Sold out
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

AudioControl Audio AC-LGD-20

WOS Pick What you're getting in 10 seconds — expand for full details.

  • BrandAudioControl
  • SKUAC-LGD-20
Mei says

"Match gear to your install and power budget. Do it once, do it right."

The stuff you'll actually notice
  • IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMSToday’s factory amplifiers feature built-in protection circuits that can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed t...
Product description

IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMS

Today’s factory amplifiers feature built-in protection circuits that can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed to generate load and stabilize signal from the amplified factory system to ensure the best possible audio.

The AC-LGD 20s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with pre-wired connectors. The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections.

User Manual


SPECIFICATIONS

GENERAL

  • Maximum Input Voltage: 15 Vrms (50 watts)
  • Input Impedance: 20 Ohms

WEIGHT & DIMENSIONS

  • Dimensions (without wires/connectors): 2.3″L x 1.0″W x .06″H
  • Dimensions (with wires/connectors): 9.75″L x 1.0″D x .06″H
  • Weight (single LGD): 1.4oz (39g)

IN THE BOX: One pair of prewired AC-LGD 20s
