AudioControl Audio EPICSIX
WOS Pick What these speakers do in 10 seconds — expand for full specs.
- BrandAudioControl
- SKUEPICSIX
- RMS1200
- Ohms2
Mei says"Speakers are where the sound actually happens. Right size + power match = instant upgrade."
The stuff you'll actually notice
- RMS: 1200.
Product description

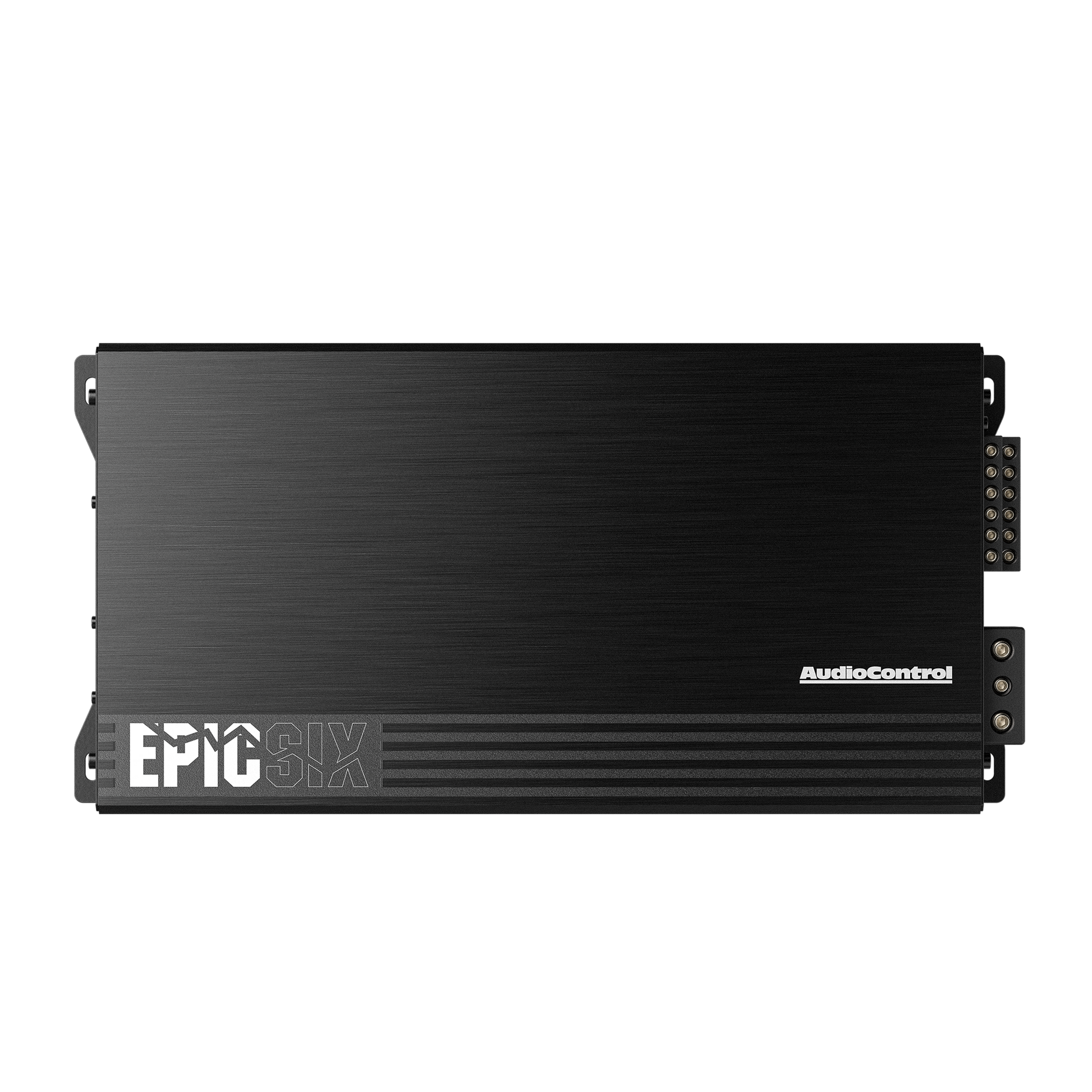

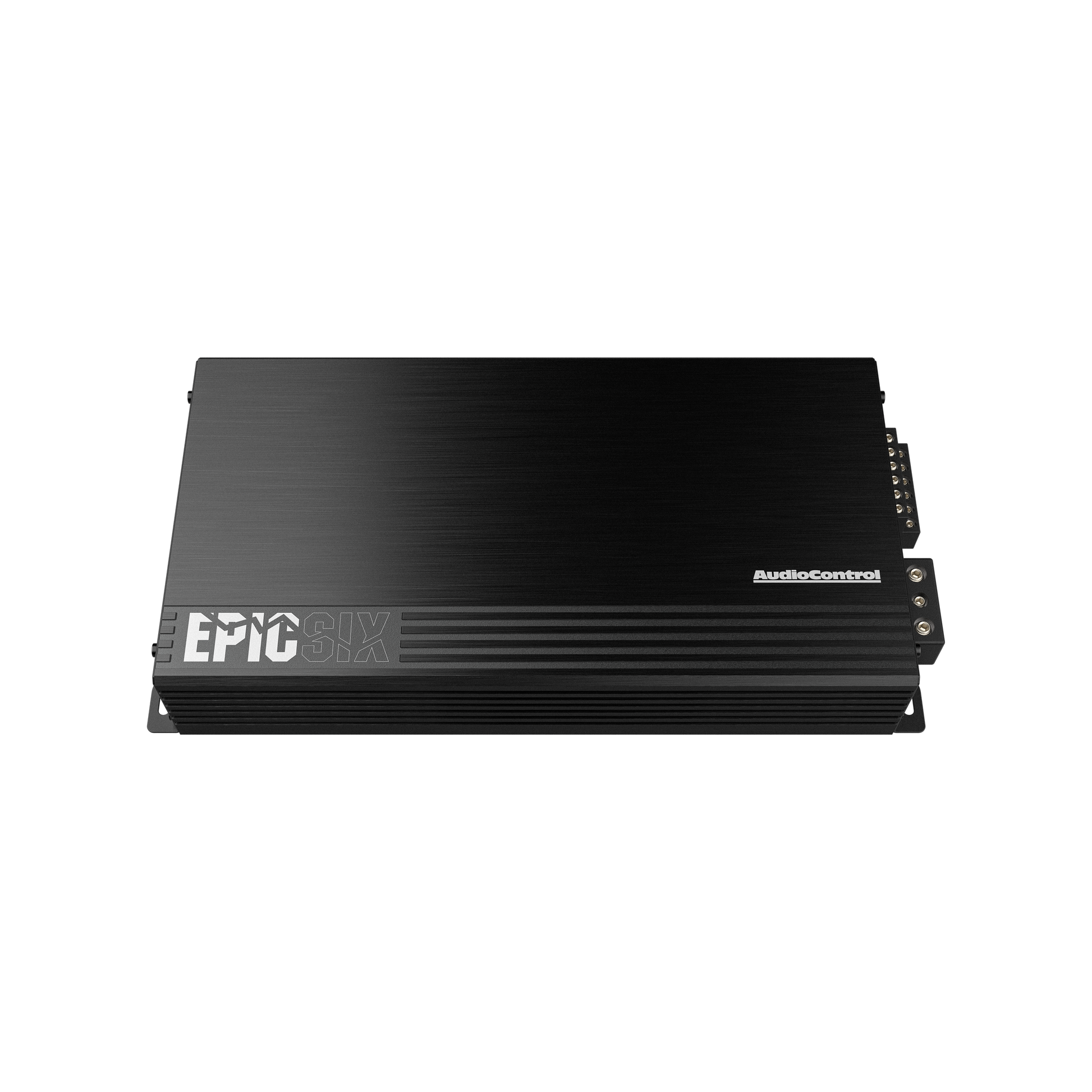

The AudioControl EPIC Series 6-Channel 1200 Watt RMS Amplifier is a compact, full range class D amplifier engineered for flexibility, output, and reliability. Its high-current design delivers serious performance, while the Smart Auto-Reset Protection Circuit keeps everything running smoothly, even under demanding conditions.
Built for those who demand options—active 3-way front stage, 5-channel, active 6-channel, or a powerful bridged configuration. Whatever your design calls for, EPICSIX fits the plan and delivers. One amplifier delivers so many possibilities, giving you the freedom to build, tune and evolve your system, not limit it.
This crossover configuration ensures proper frequency distribution, improved sound clarity, and reliable speaker protection, while offering exceptional flexibility for a wide range of system designs. With adjustable high-pass and low-pass filters across multiple channels, EPICSIX allows precise tuning for active or passive setups, making it easy to adapt the amplifier to your design.
FEATURES
• Compact High-Power Class D Amplifier
• High-Current Design, 2 ohms Stable
• 6 x 100 Watts @ 4 ohms
• 6 x 200 Watts @ 2 ohms
• 2 x 400 Watts @ 4 ohms Bridged (Ch. 3/4 & 5/6)
• Smart Auto-Reset Protection Circuit

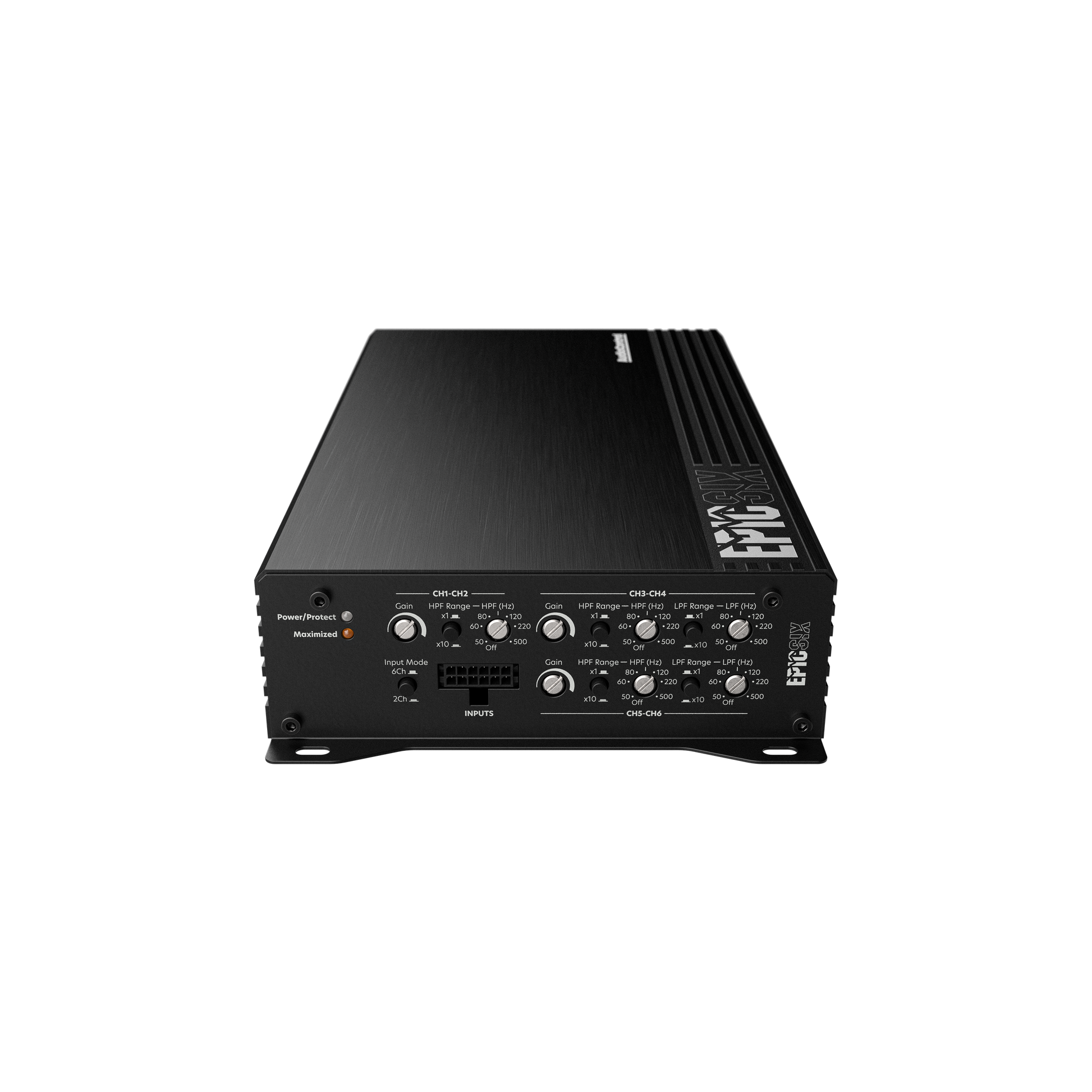

• 12 dB/octave Linkwitz-Riley Variable High Pass (Ch 1-6) & Low Pass Filters (Ch 3-6)

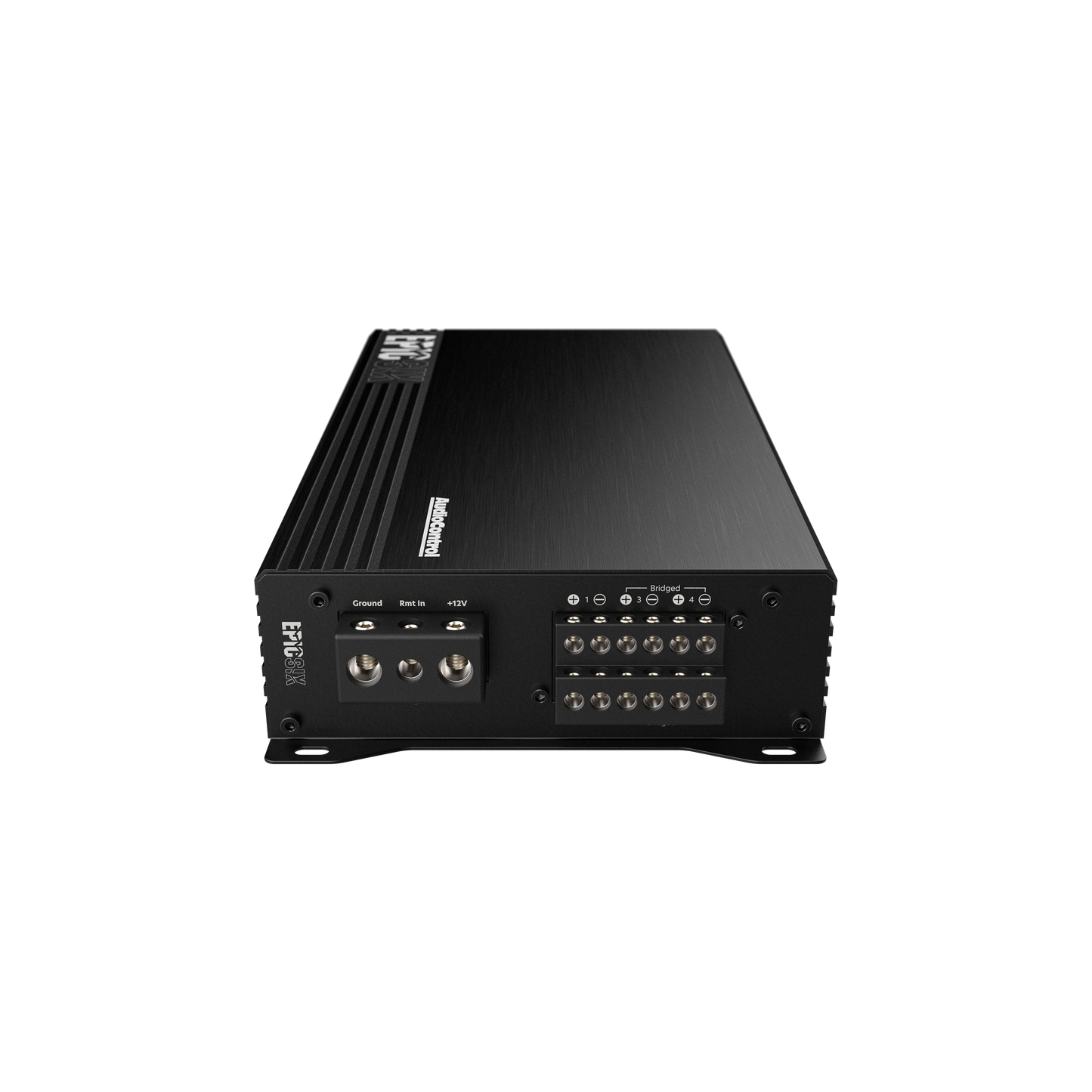

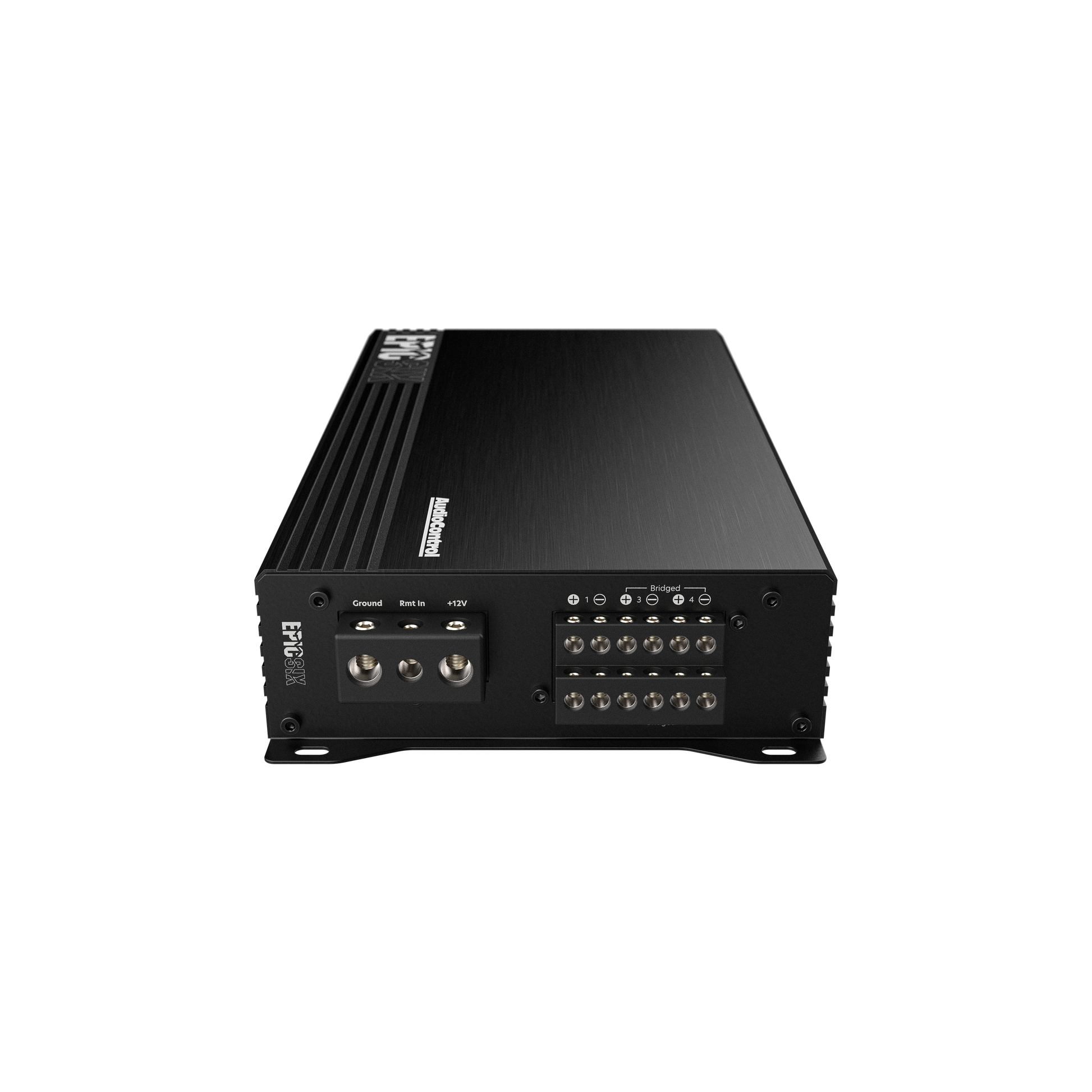

• Solid Power/Speaker Terminals with Hex Screws
SPECIFICATIONS
INPUTS
- Line-Level Inputs: 500mV – 12V RMS
OUTPUTS
-
Continuous Power (RMS) @ 14.4V, <1% THD
-
6 x 100 Watts @ 4 ohms
-
6 x 200 Watts @ 2 ohms
- 2 x 400 Watts @ 4 ohms Bridged
-
WEIGHTS & DIMENSIONS
- DIMENSIONS (WxLxH): 6.1″ x 12.56″ x 2.01″ / 155mm x 319mm x 51mm
PERFORMANCE
- Frequency Response (+/- 3 dB): 10 Hz – 24 kHz
- S/N Ratio: 98 dBa, Ref 100 Watts @ 4 ohms
- Power / Ground Wire Gauge: 4 AWG
- Recommended Fuse Rating: 125 Amps
- High Pass Filter: 12dB/octave Linkwitz-Riley, Off, 50 Hz to 5000 Hz
- Low Pass Filter: 12dB/octave Linkwitz-Riley, 50 Hz to 5000 Hz
- Speaker Terminal Wire Gauge: 10 AWG
Speaker specs
| Impedance | 2 |
|---|---|
| RMS Power | 1200 |
