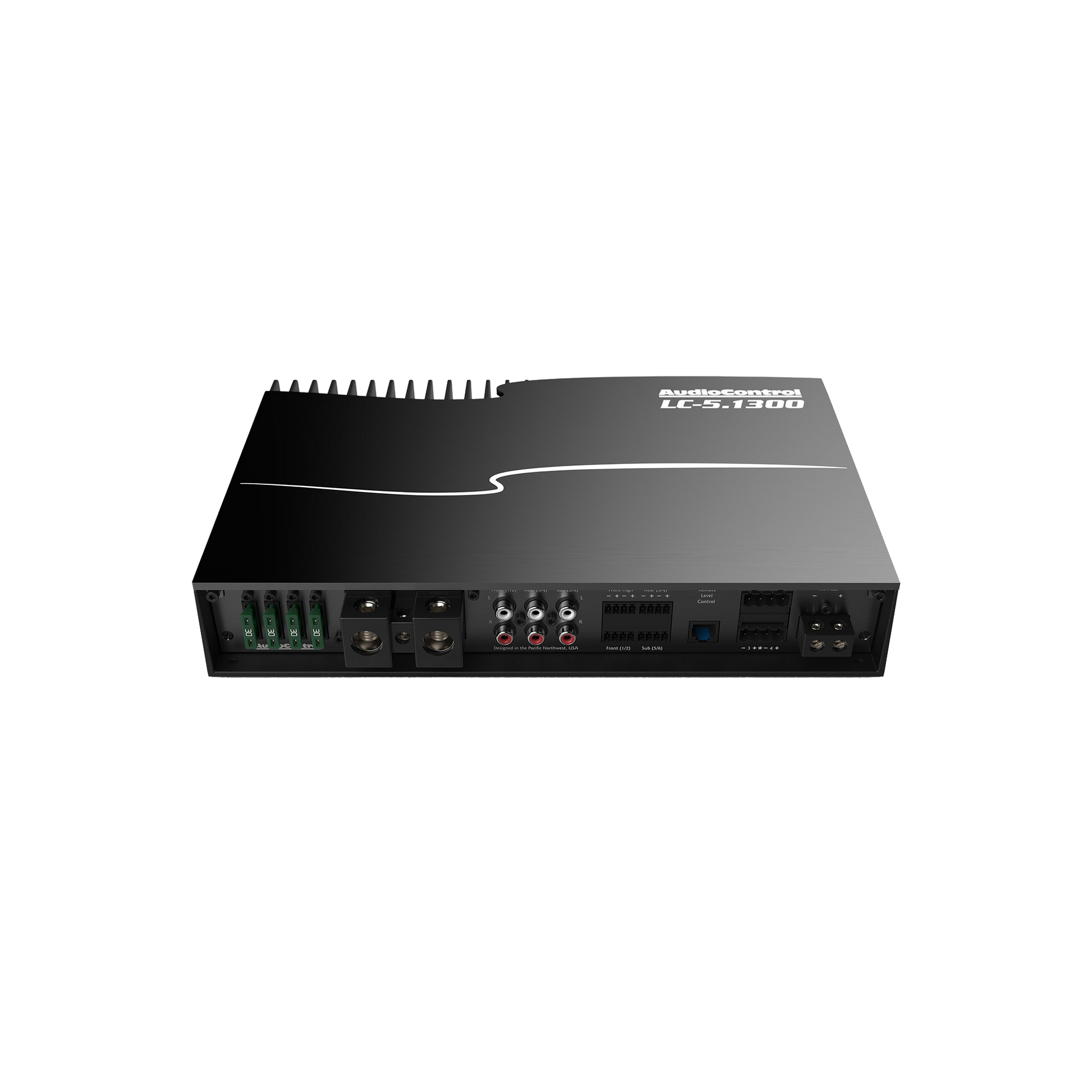

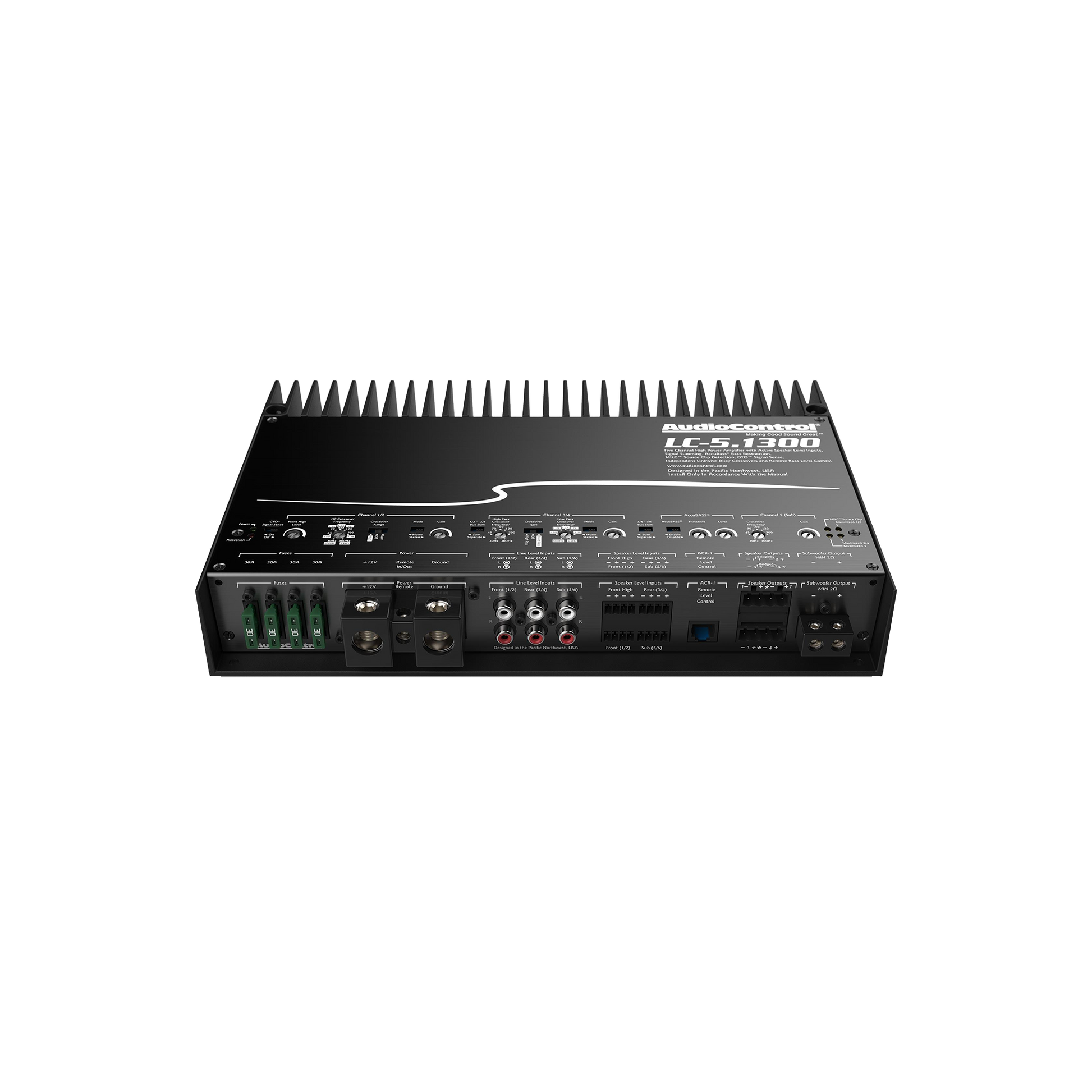

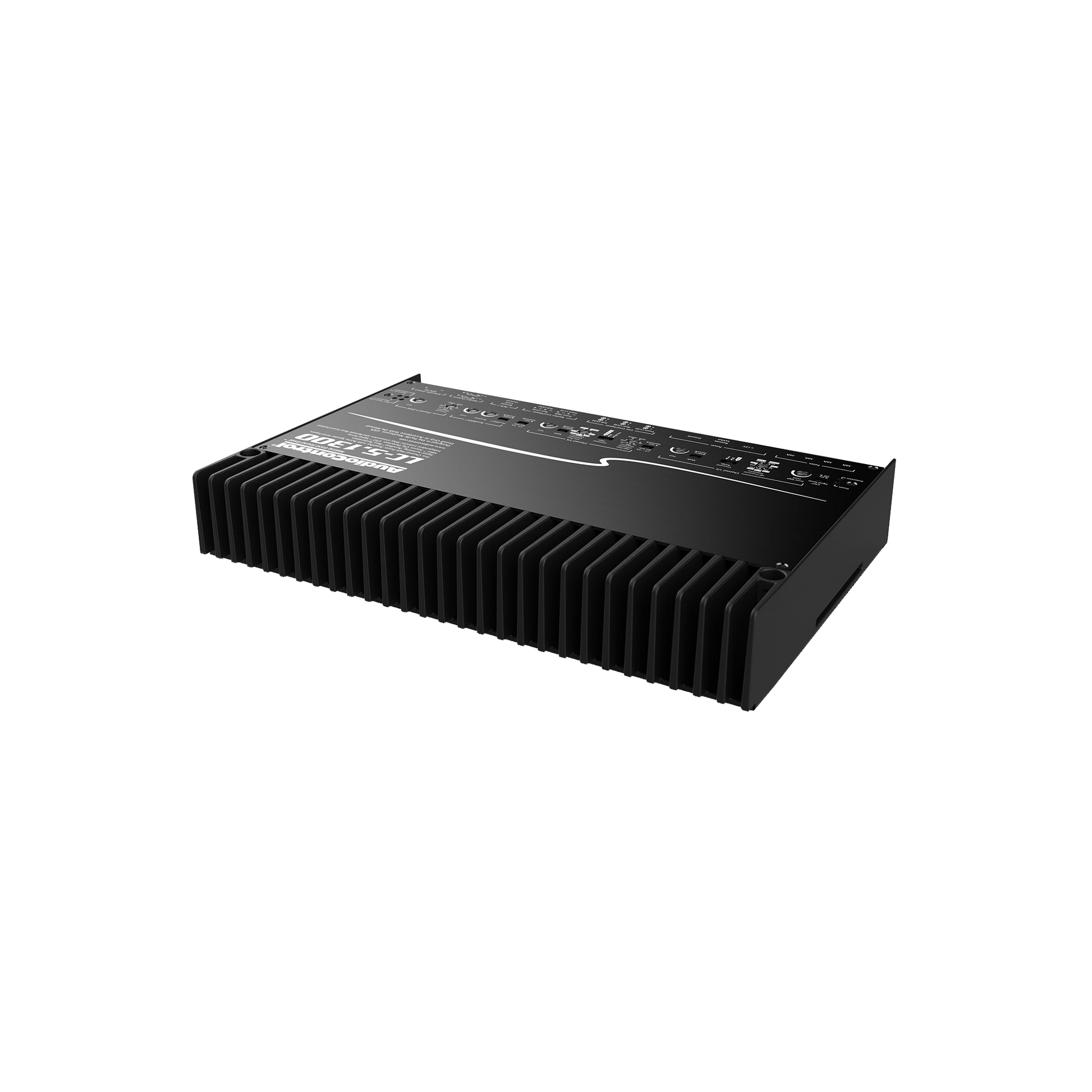

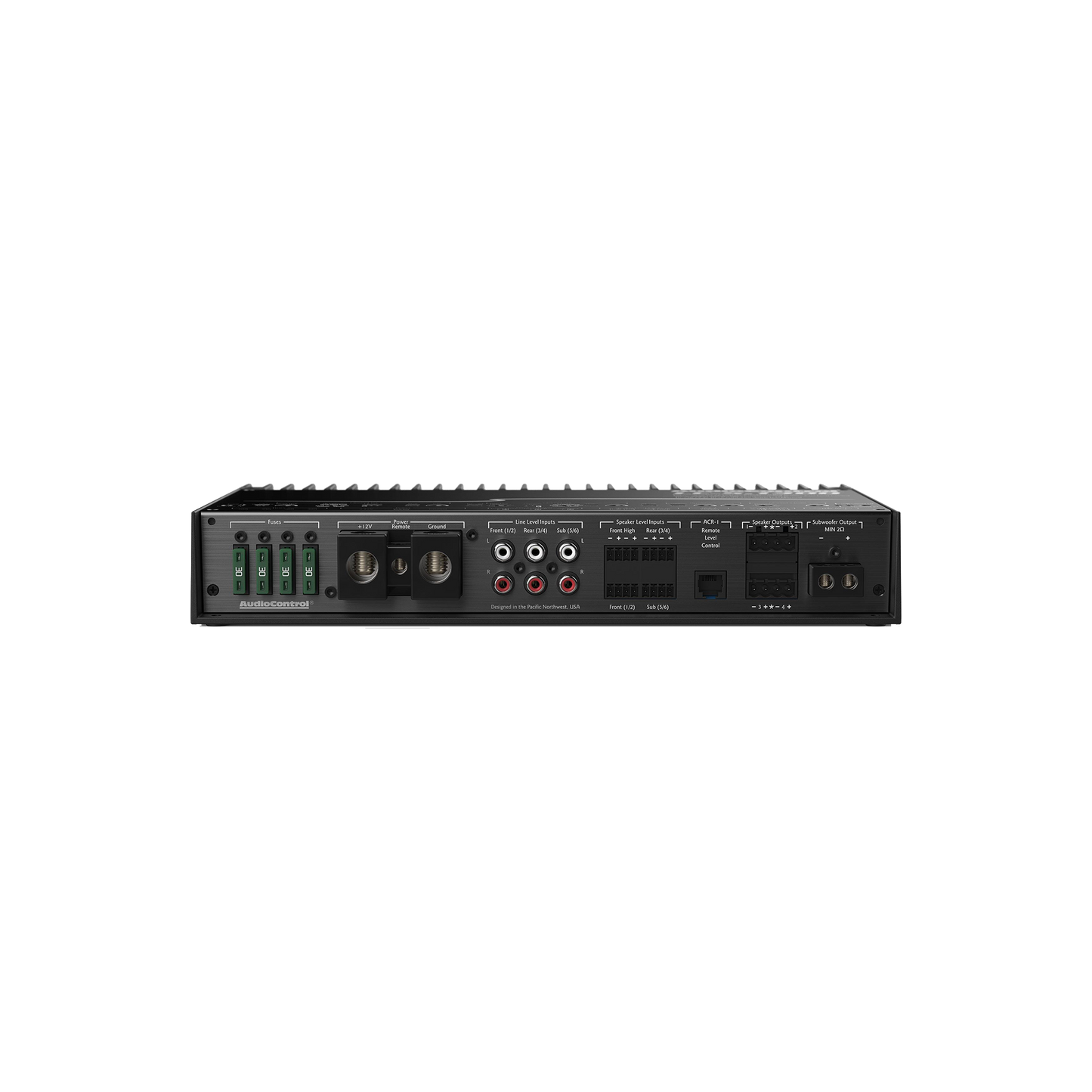

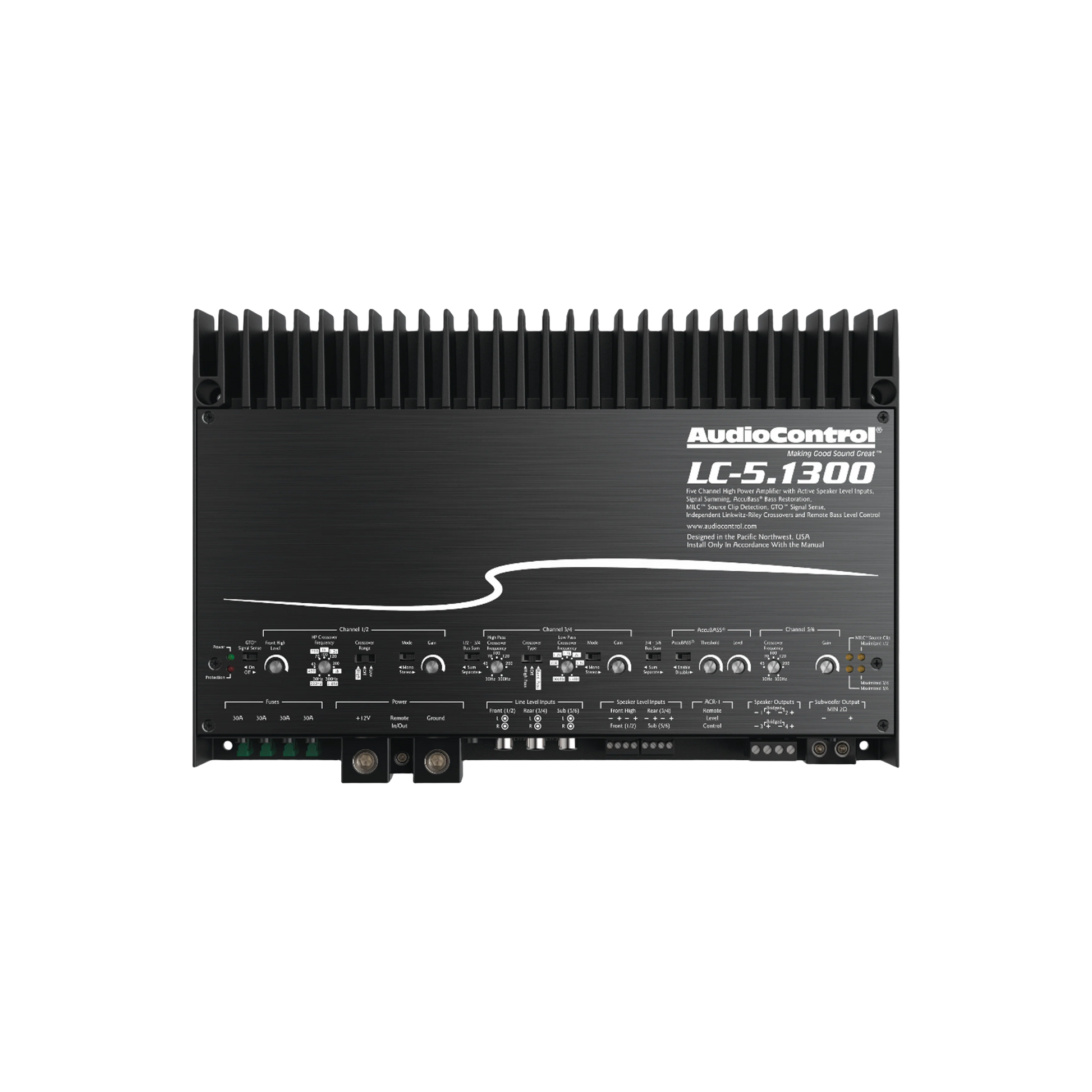

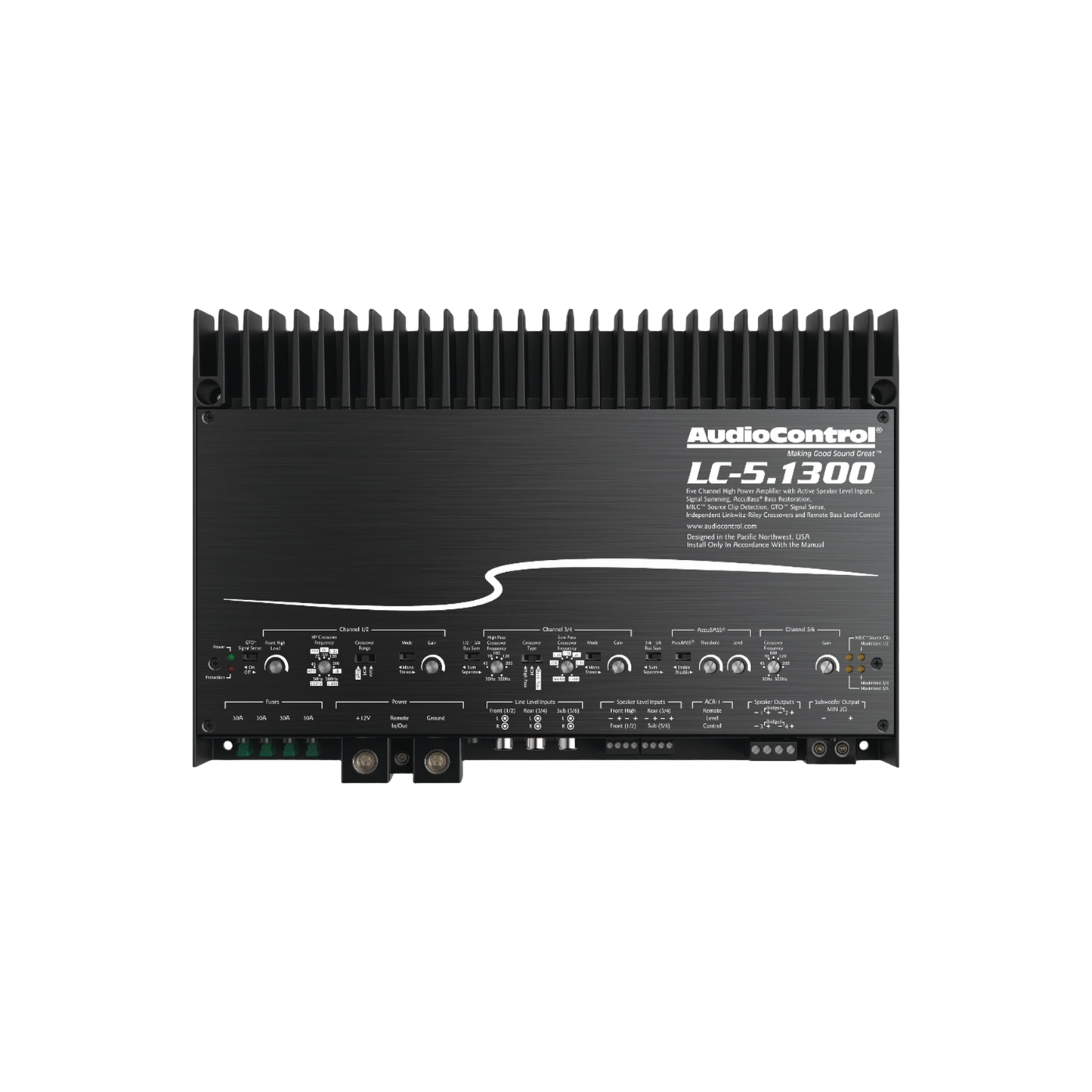

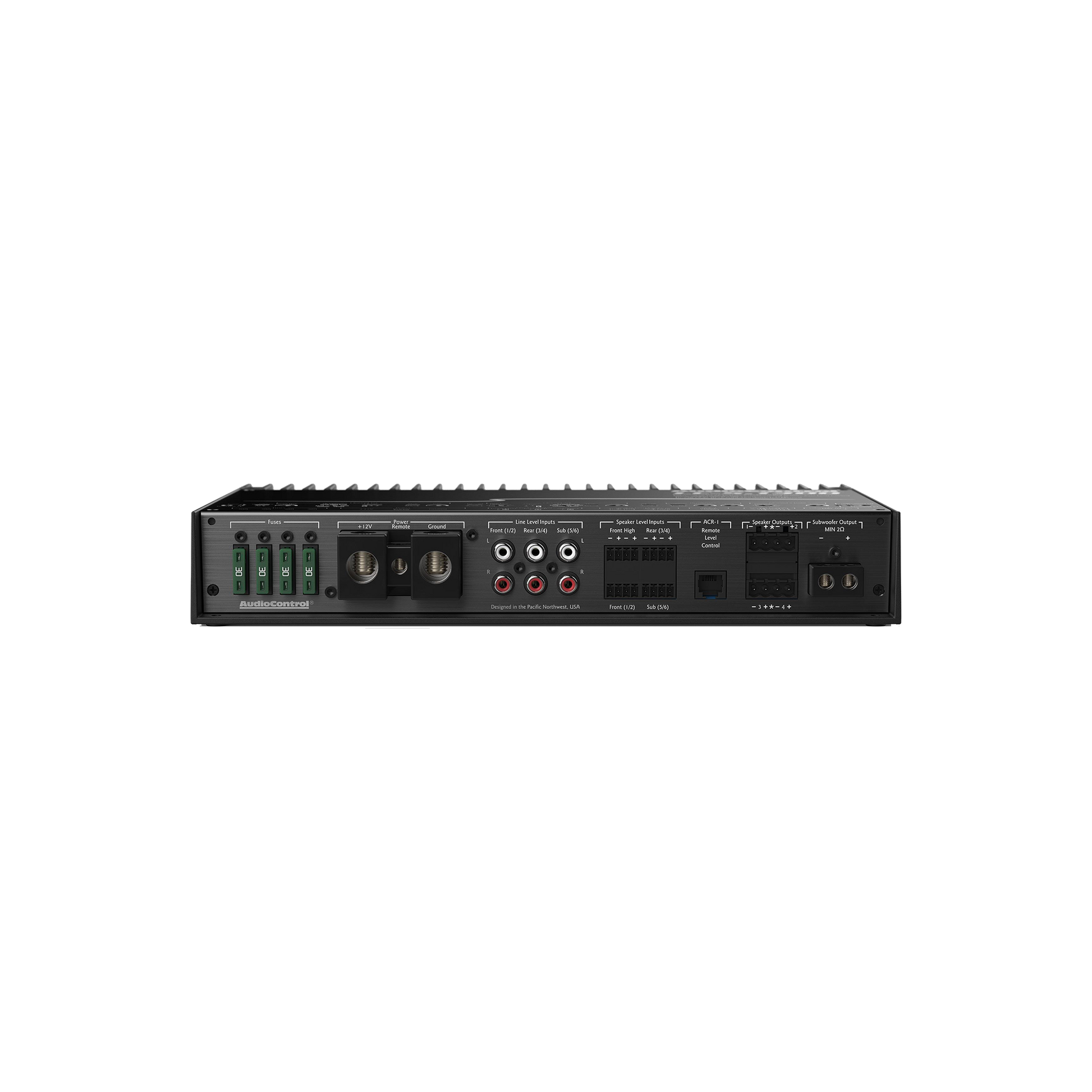

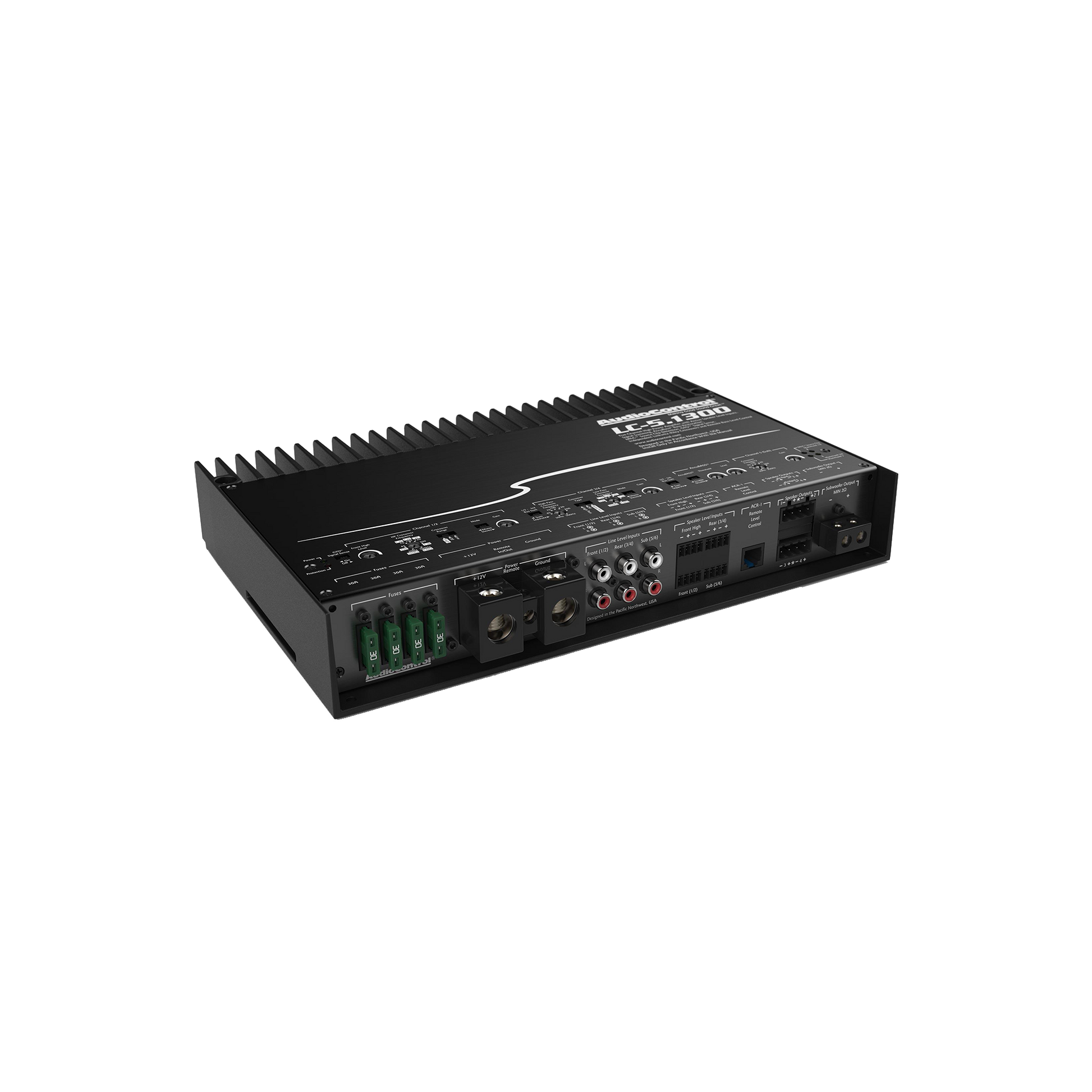

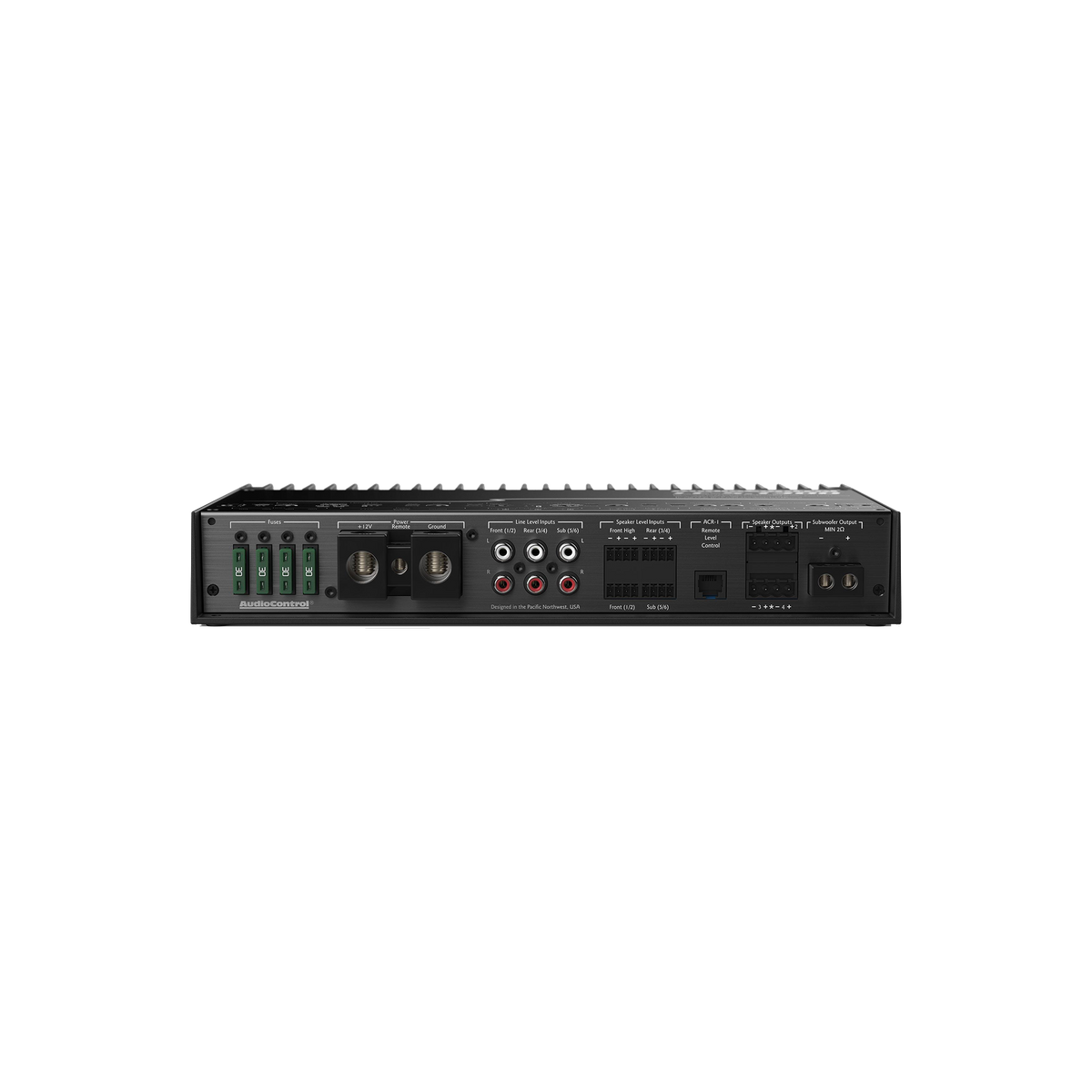

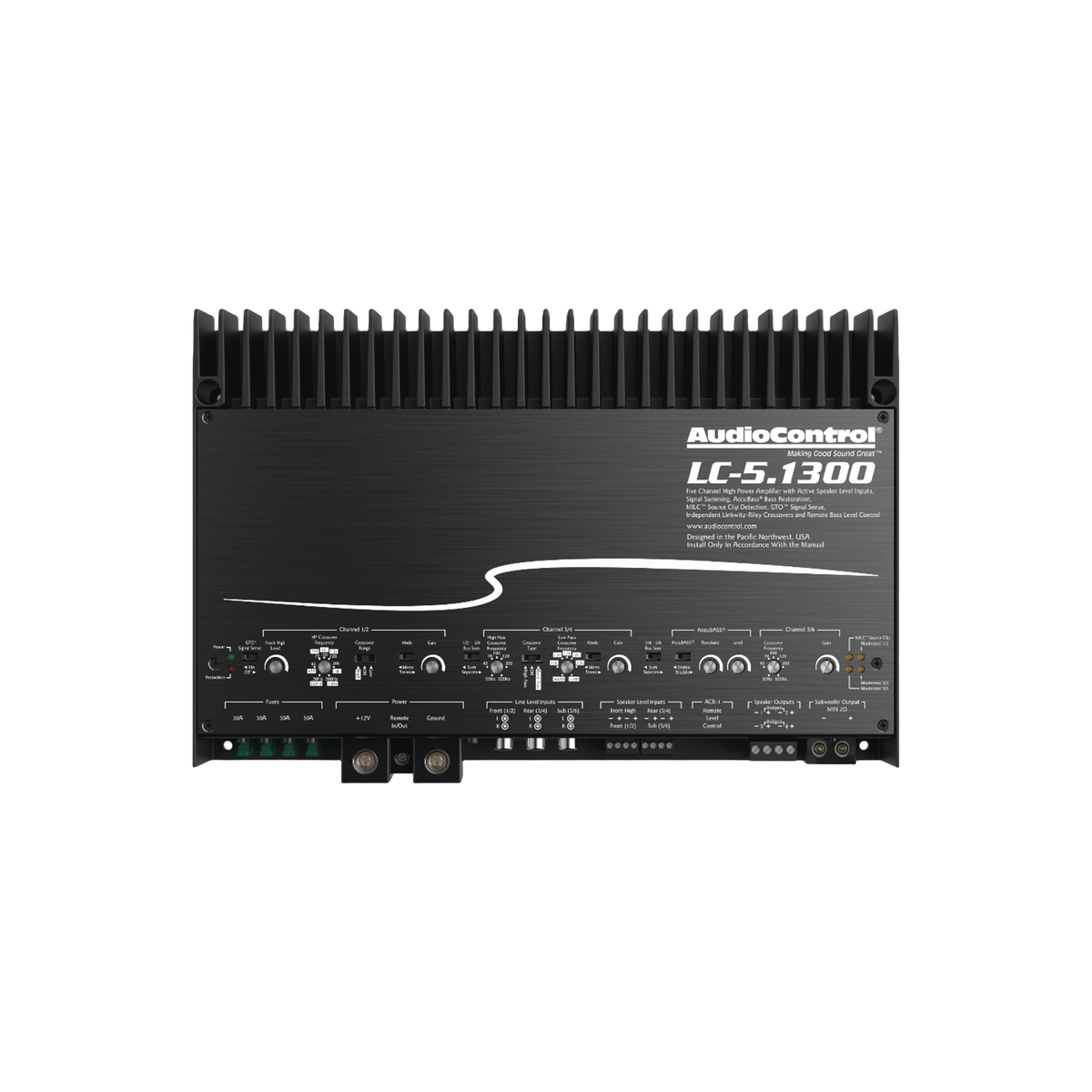

AudioControl Audio LC-5.1300
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandAudioControl
- SKULC-5.1300
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setu...
Product description
The LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs, six line level inputs, the LC-5.1300 is packed with intuitive setup controls for high-pass, band-pass, and low-pass filters, automatic and selectable signal summing, and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution, which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.
FEATURES
- Configurable as 5 or 3 channel amplifier
- 4 x 200 watts + 1 x 500 watts @ 2 ohms
- 4 x 100 watts + 1 x 300 watts @ 4 ohms
- 400 watts @ 4 ohms bridged
- AccuBASS® Processing
- MILCTM Maximum Input Level Control (Patent Pending)
- GTOTM Signal Sense
- 3-way Independent Linkwitz-Riley Alignment crossovers
- Summable active speaker-level inputs (8 channels) for OEM integration
- 6 preamp inputs
- PFM Subsonic Filter
- Optional ACR-1 assignable remote control
- Solid One-Piece Aluminum Chassis
SPECIFICATIONS
INPUTS
- Preamp Inputs: 6 balanced
- Preamp Input Voltage Range: 500 mV – 6 Vrms
- Speaker Level Inputs: 8
- Speaker Level Input Voltage Range: 3 V – 40 Vrms
OUTPUTS
- Rated Continuous (RMS) Power at 14.4V:
- 4 Ω – 100 W x 4 + 300 W x 1
- 2 Ω – 200 W x 4 + 500 W x 1
- Bridged 4 Ω – 400 W
PERFORMANCE
- Frequency Response: 20 Hz – 22 kHz
- Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
- THD+N: < 0.1%
- Minimum Power / Ground Wire Gauge: 3 AWG wire
- Fuse Rating: 4 x 30 A
- Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz
WEIGHT & DIMENSIONS
- Dimensions: 12.0″W x 8.0″D x 2.1″H
- Weight: 7.2lbs. (3.3kg)
