AudioControl

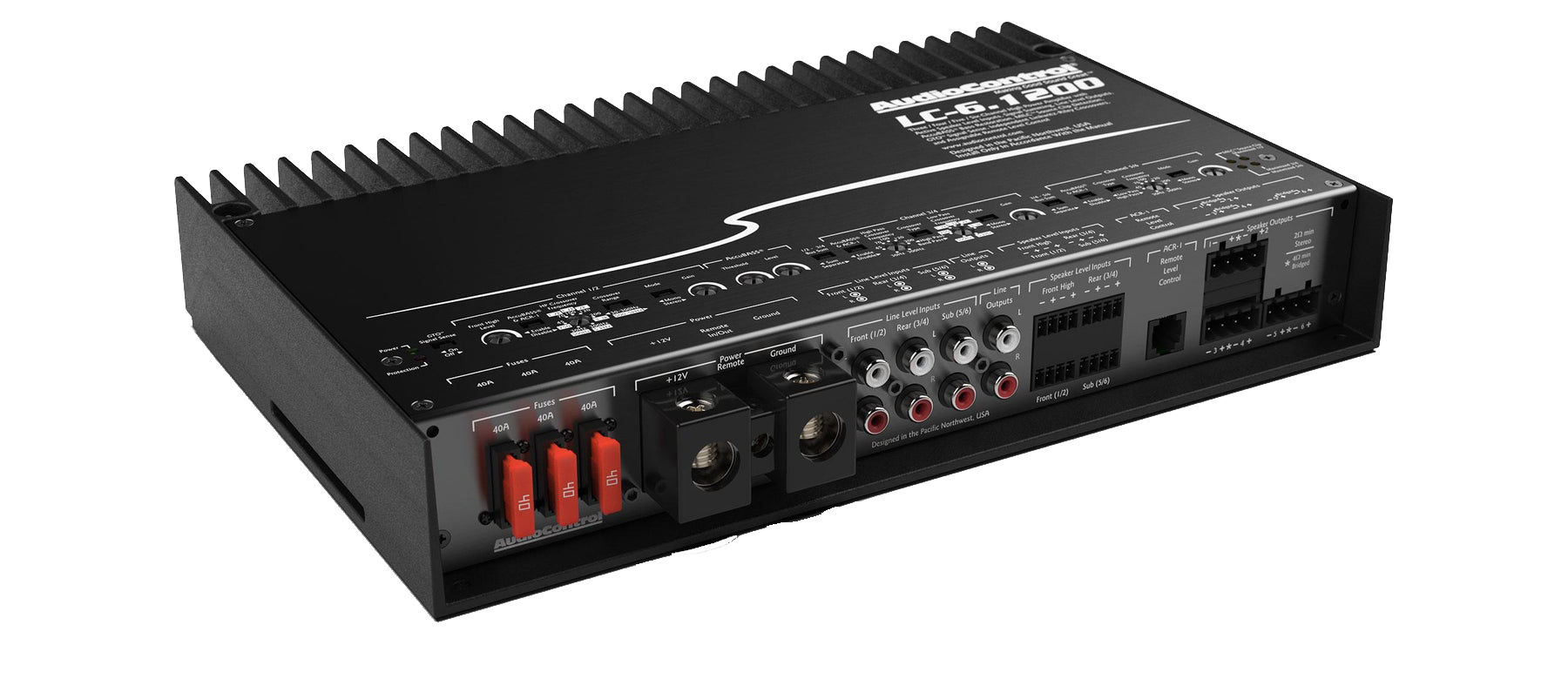

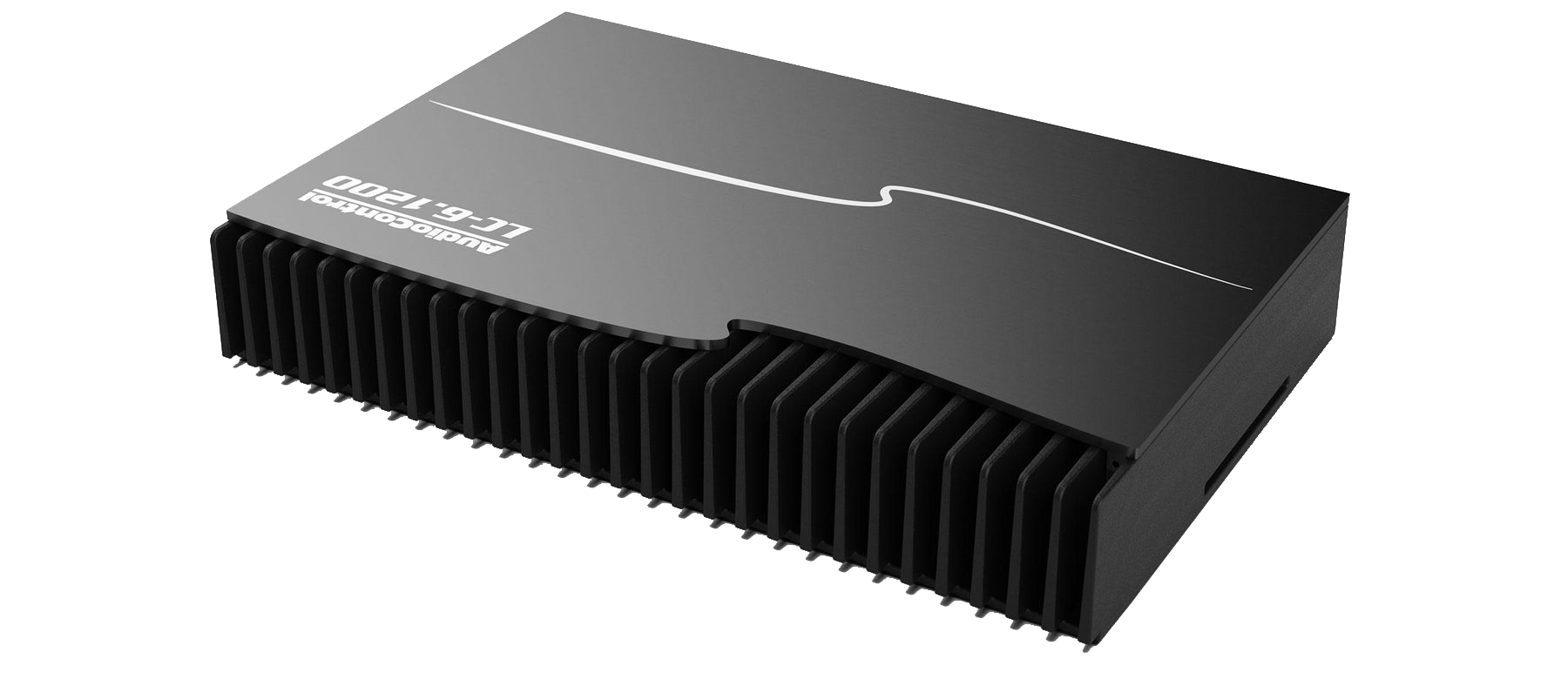

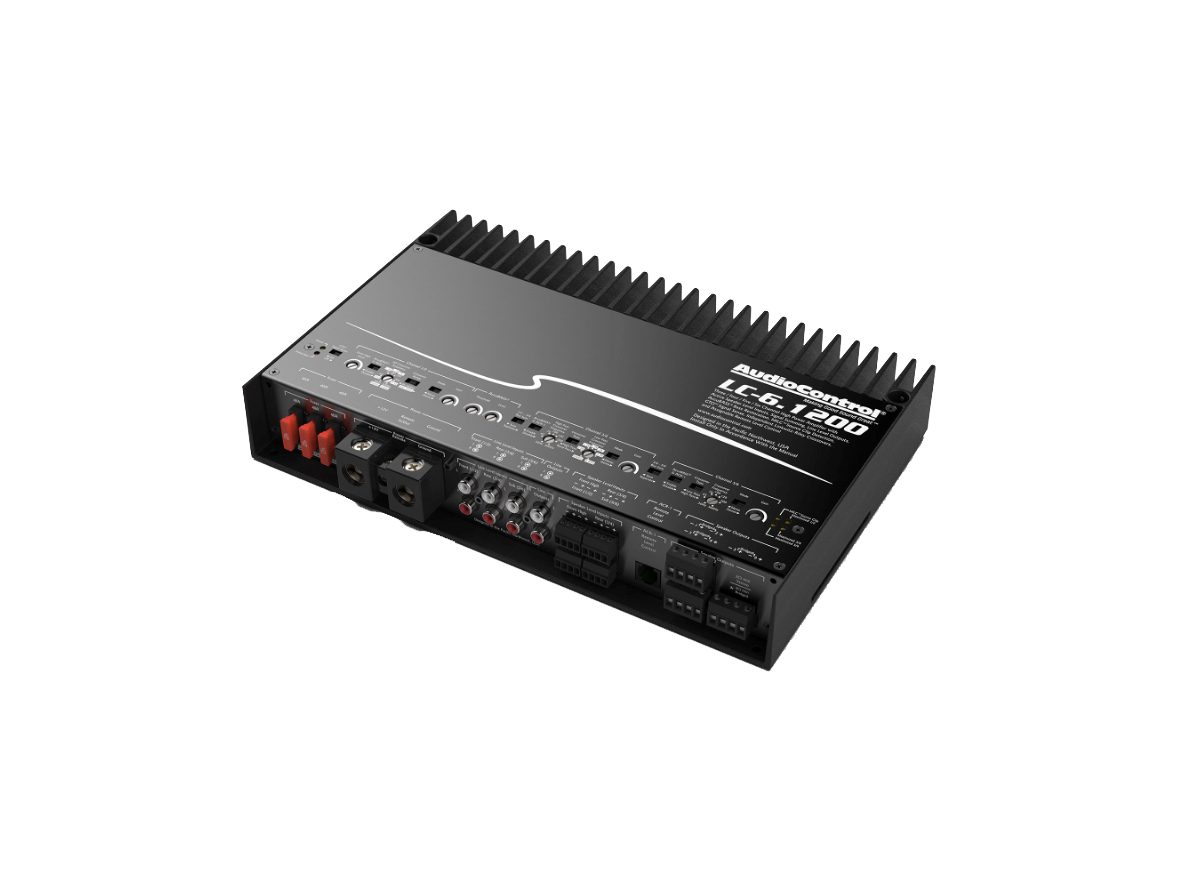

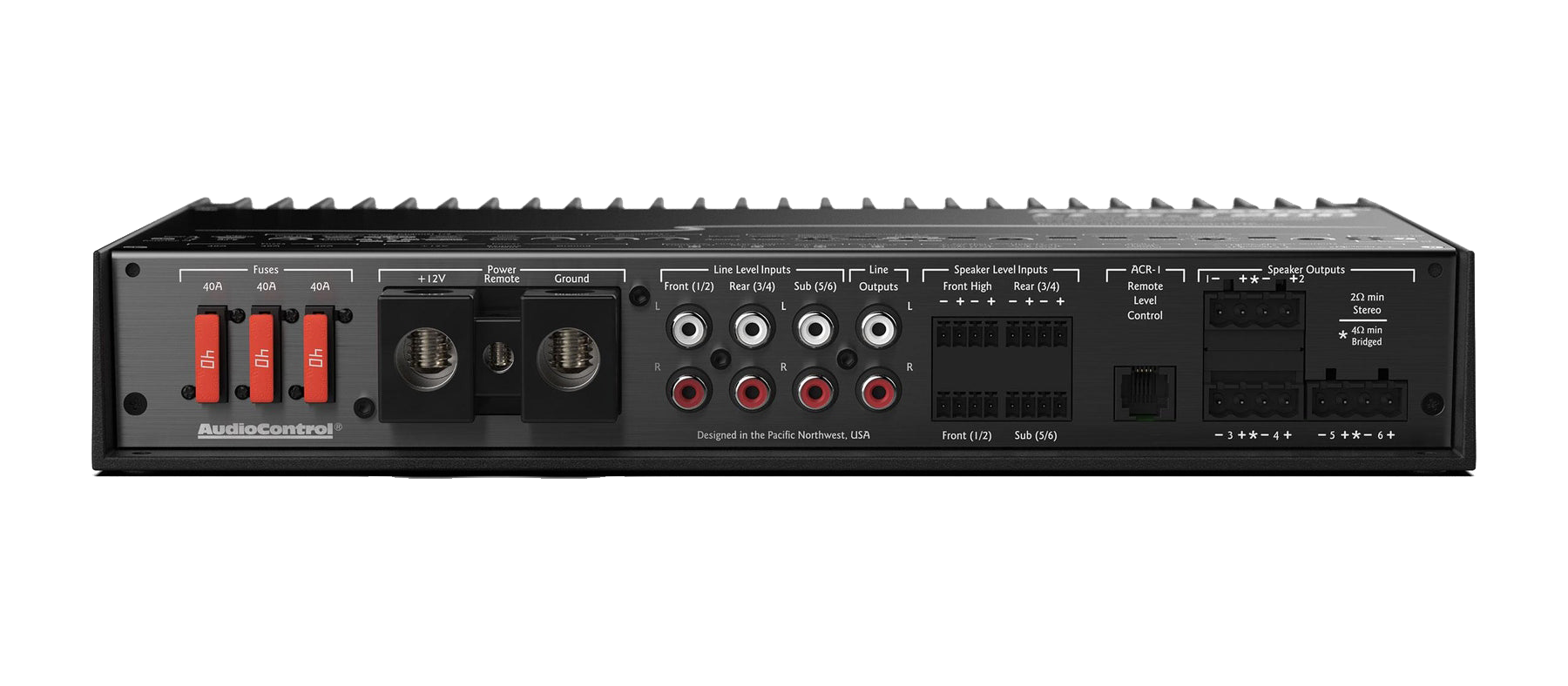

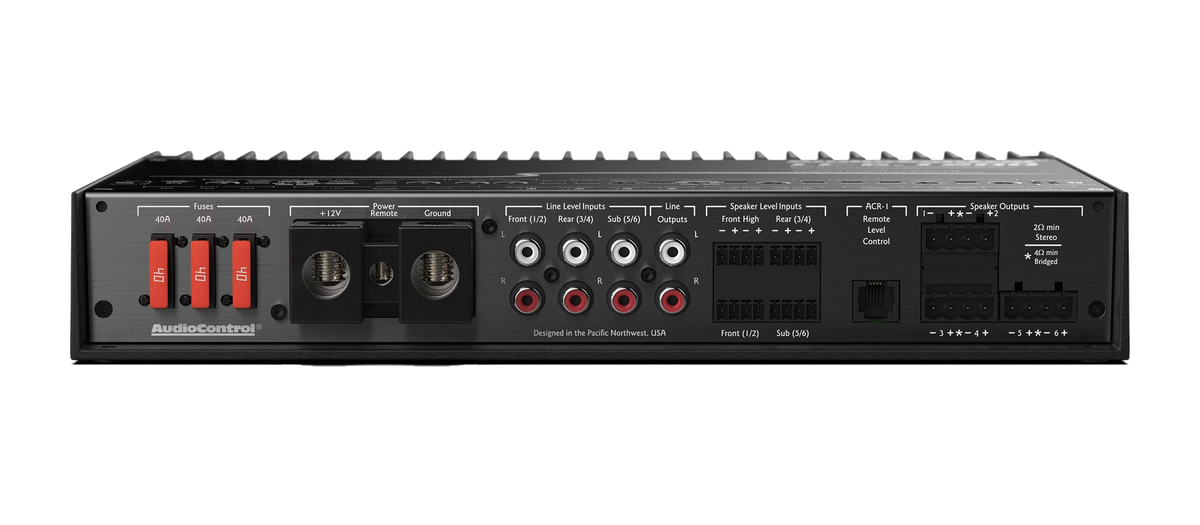

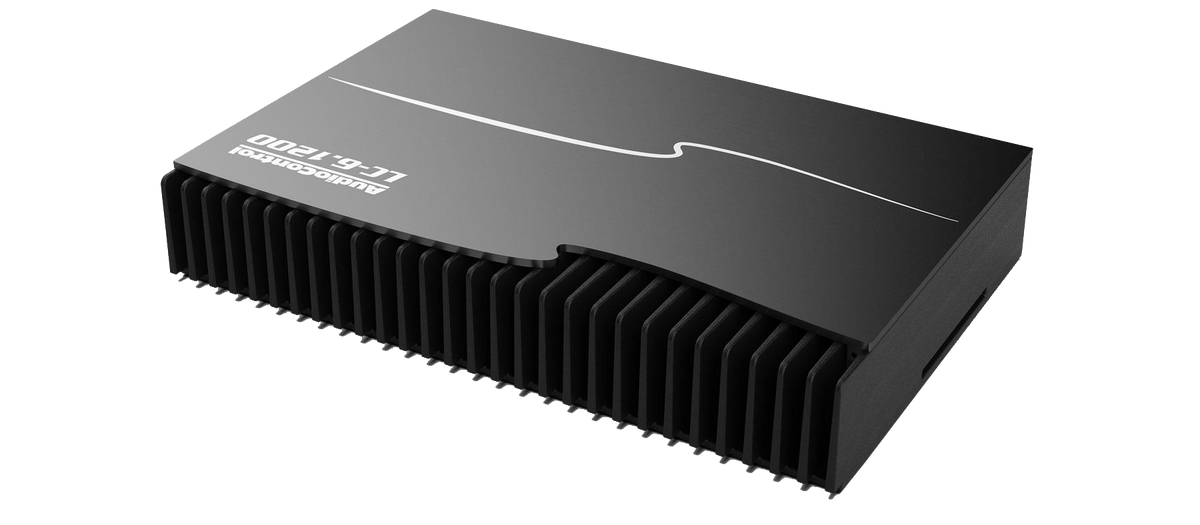

AudioControl Audio LC-6.1200

AudioControl Audio LC-6.1200

Regular price $949.99 USD
Regular price Sale price $949.99 USD
Sale Sold out
Quantity
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

AudioControl Audio LC-6.1200

WOS Pick What these speakers do in 10 seconds — expand for full specs.

  • BrandAudioControl
  • SKULC-6.1200
  • RMS400
  • Ohms2
Mei says

"Speakers are where the sound actually happens. Right size + power match = instant upgrade."

The stuff you'll actually notice
  • RMS: 400.
Product description

Building from the hugely successful LC-4.800 multi-channel amplifier, the LC-6.1200 is surely the most flexible 6-channel amplifier on the market. Featuring eight active speaker level inputs with summing, coupled with an intuitive three-way Linkwitz-Riley crossover network, the LC-6.1200 can be easily integrated with most factory-installed source units. The patented AccuBASS® circuit compensates for factory bass roll-off and provides maximum bass performance.

More control and features include our GTO Signal Sense, MILC Source Clip Detection, and assignable Remote Level Control. The LC-6.1200 builds on the legacy of audio passion and a focus on user-friendly features, making this a perfect solution-based amplifier.


FEATURES

  • Configurable as 6/5/4/3/2 channel amplifier
  • 6 x 200 watts @ 2 ohms
  • 6 x 125 watts @ 4 ohms
  • 400 watts @ 4 ohms bridged
  • AccuBASS® Processing
  • MILCTM Maximum Input Level Control (Patent Pending)
  • GTOTM Signal Sense
  • 3-way Independent Linkwitz-Riley Alignment crossovers
  • Summable active speaker-level inputs (8 channels) for OEM integration
  • 6 preamp inputs
  • 2 assignable preamp outputs
  • PFM Subsonic Filter
  • Optional ACR-1 assignable remote control
  • Solid One-Piece Aluminum Chassis



SPECIFICATIONS

INPUTS

  • Preamp Inputs: 6 balanced
  • Preamp Input Voltage Range: 250 mV – 8 Vrms
  • Speaker Level Inputs: 8
  • Speaker Level Input Voltage Range: 3 V – 40 Vrms

OUTPUTS

  • Rated Continuous (RMS) Power at 14.4V:
    • 4 Ω – 125 W x 6 RMS
    • 2 Ω – 200 W x 6 RMS
    • Bridged 4 Ω – 400 W RMS
  • Preamp Outputs: 2
  • Maximum Preamp Output: 8.5 V RMS

PERFORMANCE

  • Frequency Response: 10 Hz – 30 kHz
  • Signal to Noise: 102 dBa, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Minimum Power / Ground Wire Gauge: 3 AWG wire
  • Fuse Rating: 3 x 40 A
  • Crossover: 3-way Linkwitz-Riley, Adjustable From 30 Hz – 5000 Hz

WEIGHT & DIMENSIONS

  • Dimensions: 12″W x 8.0″D x 2.1″H
  • Weight: 7.2lbs. (3.3kg)

IN THE BOX: LC-6.1200, Speaker Connectors, Fuses, Manual, Warranty



California Proposition 65

  • To our California customers: Please view your Proposition 65 warning here.
Speaker specs
Speaker Size (Mid) 12"
Impedance 2
RMS Power 400
