AudioControl

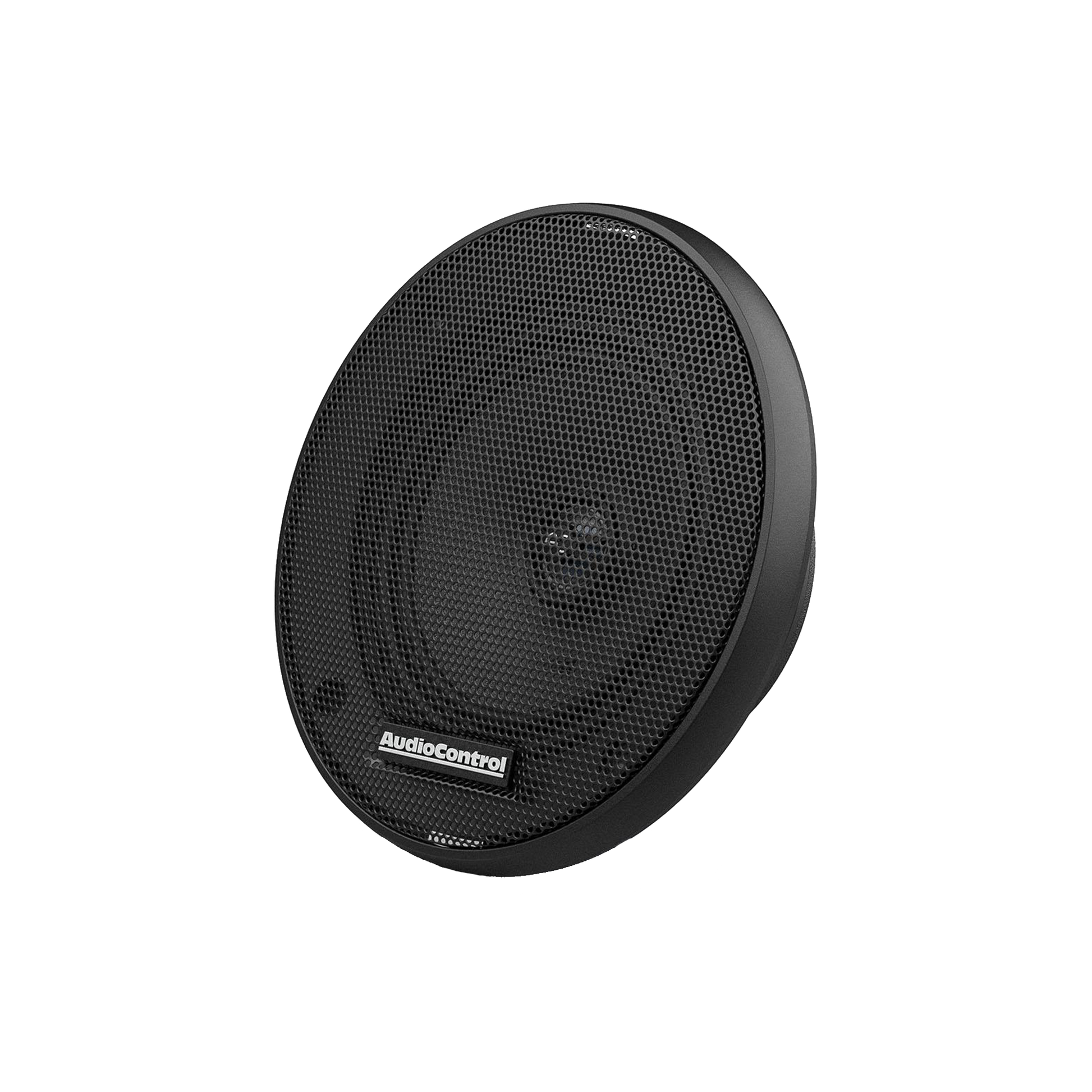

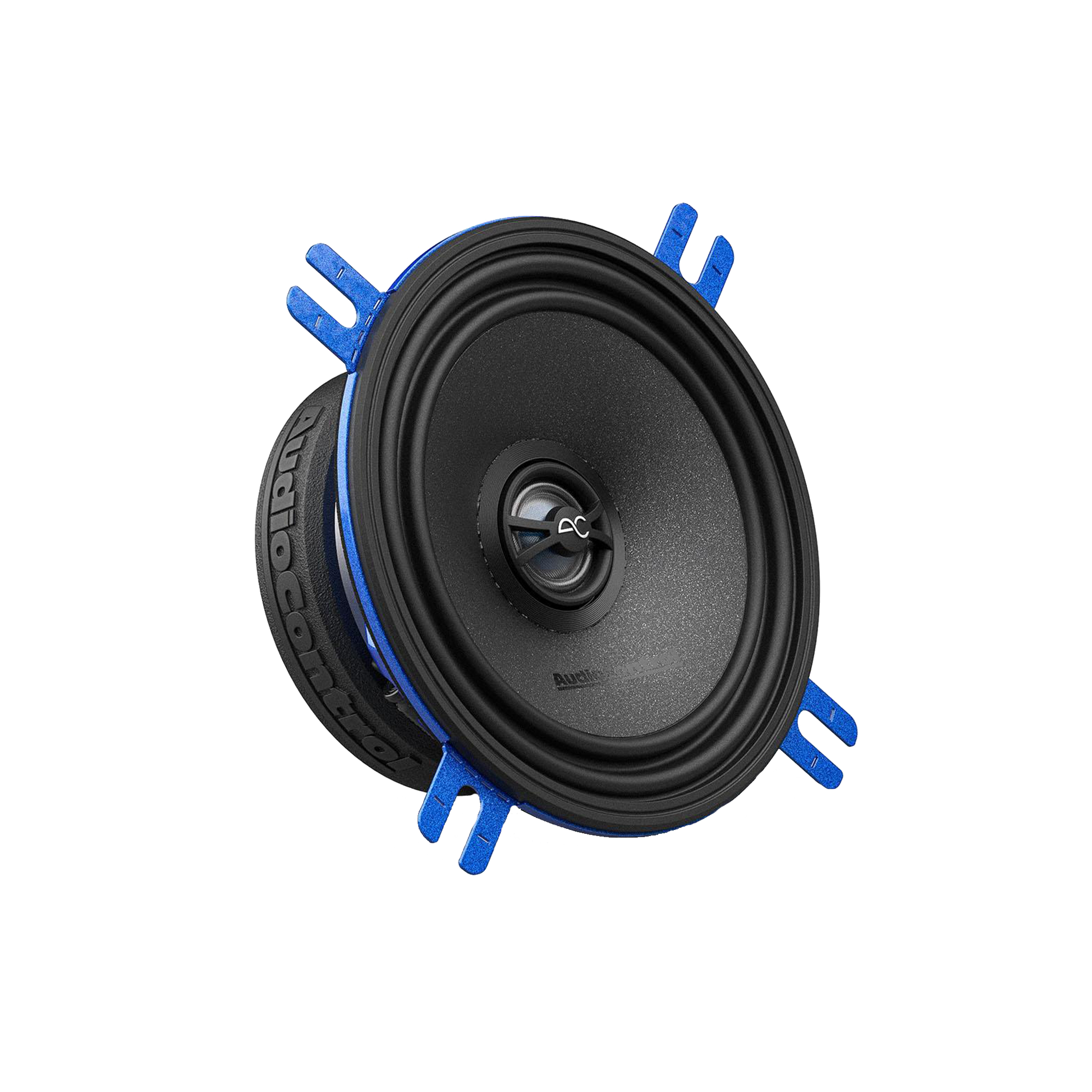

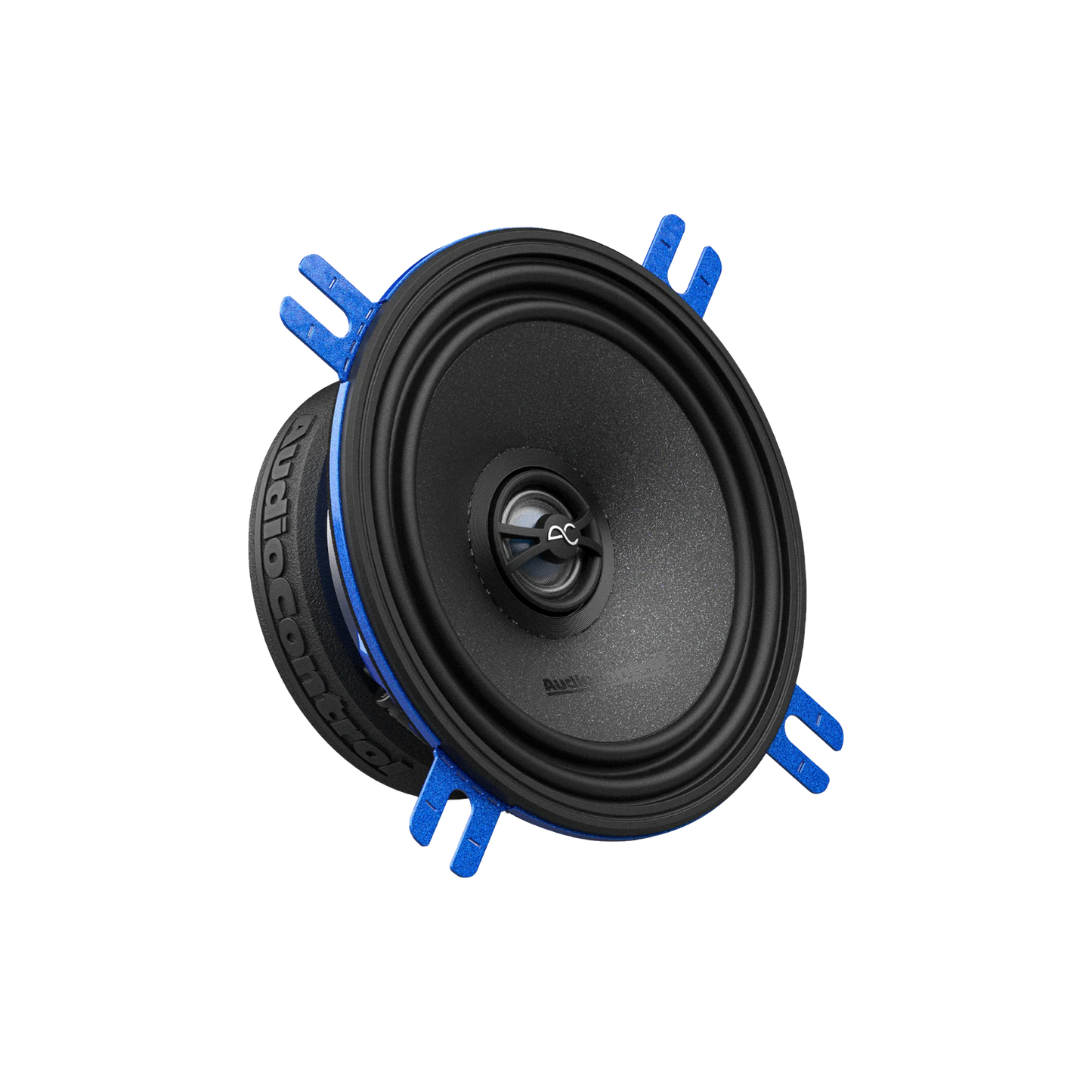

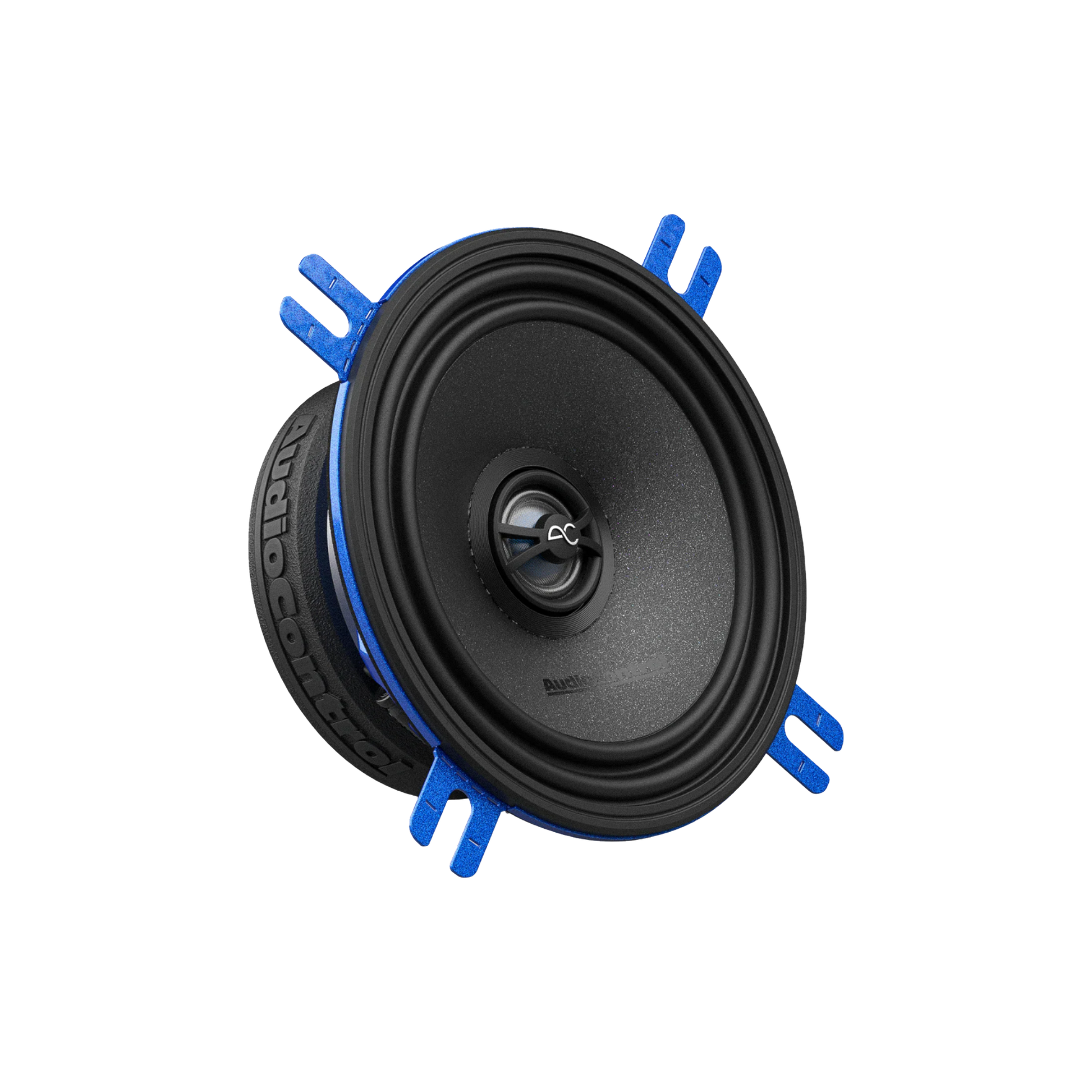

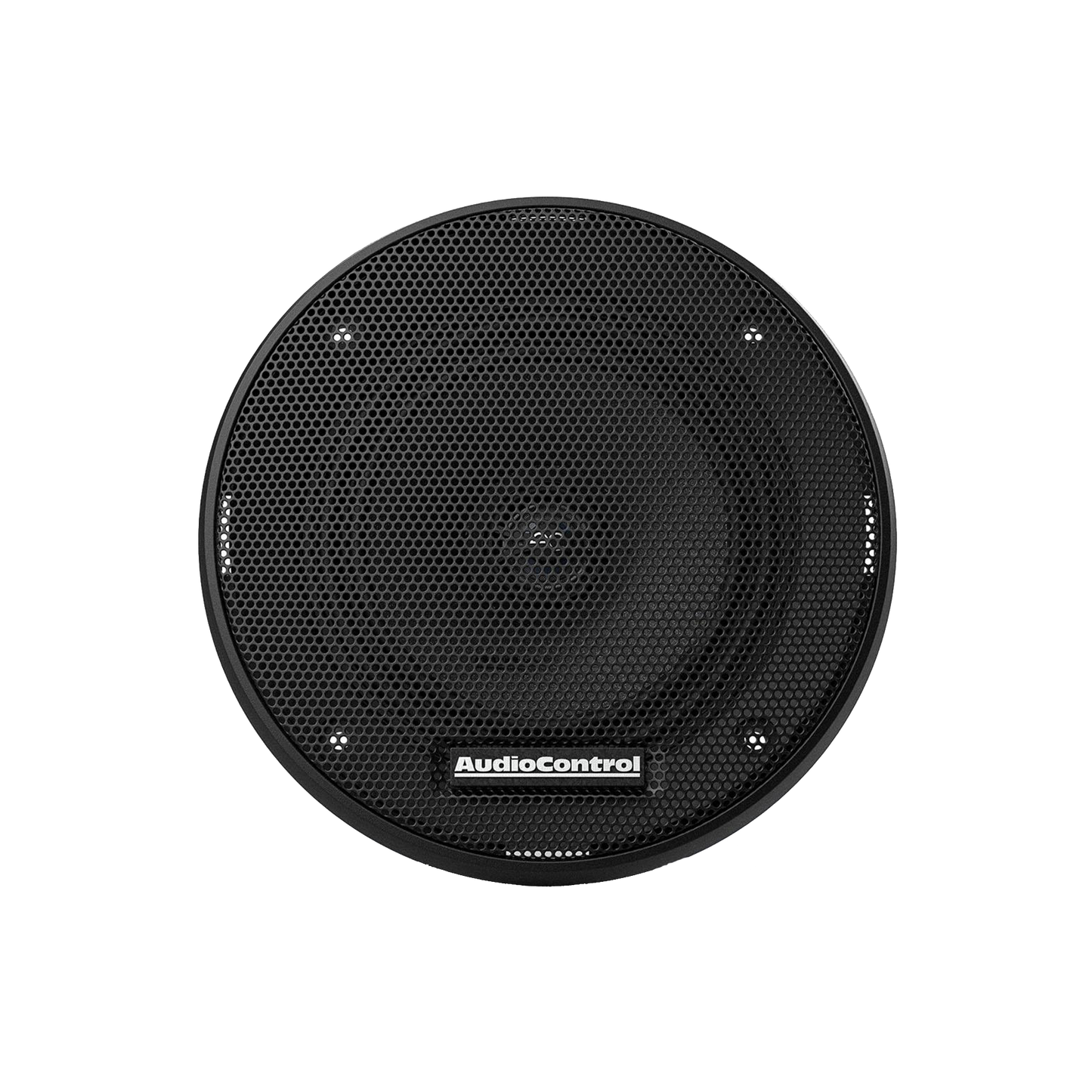

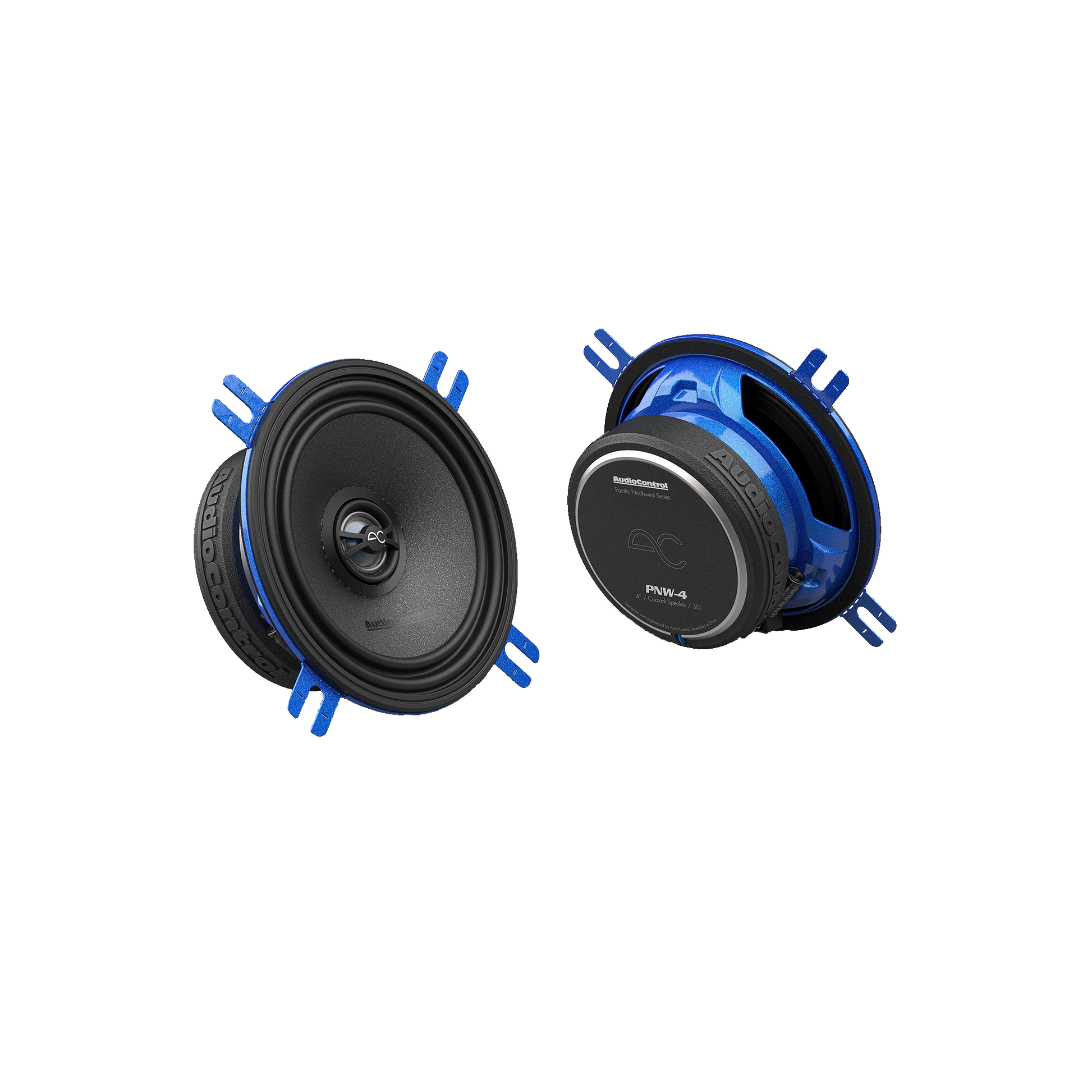

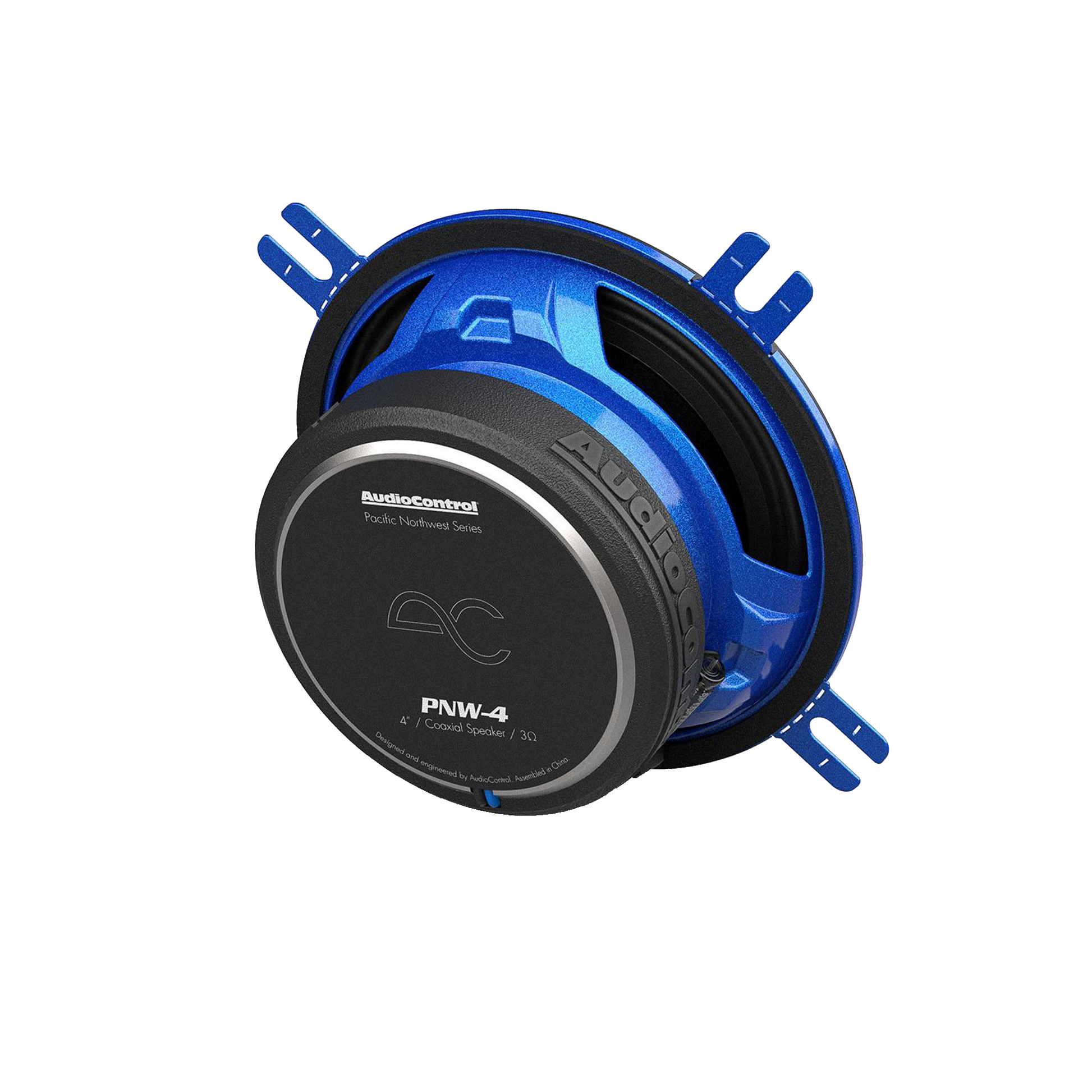

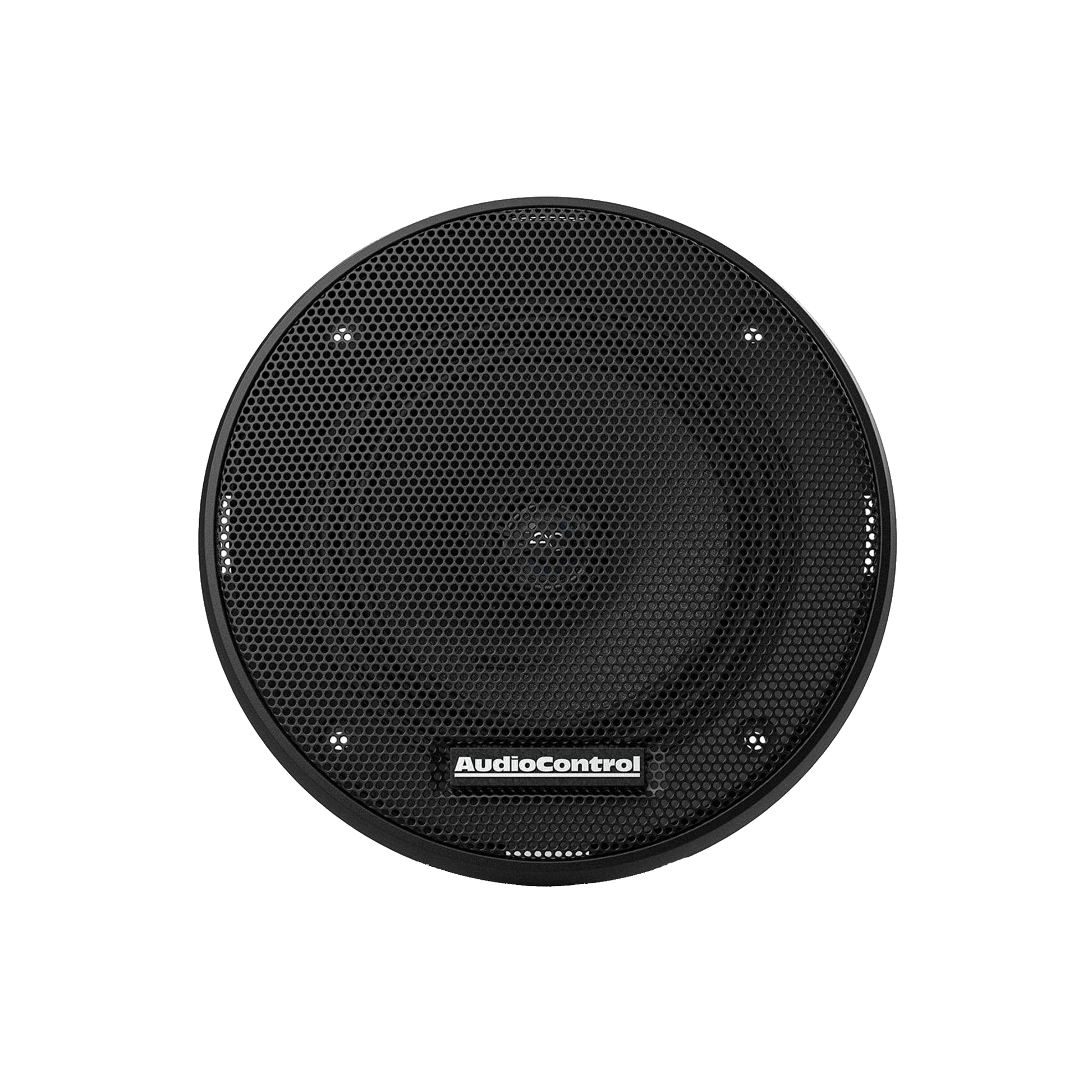

AudioControl Audio PNW-4

AudioControl Audio PNW-4

Regular price $169.00 USD
Regular price Sale price $169.00 USD
Sale Sold out
Quantity
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

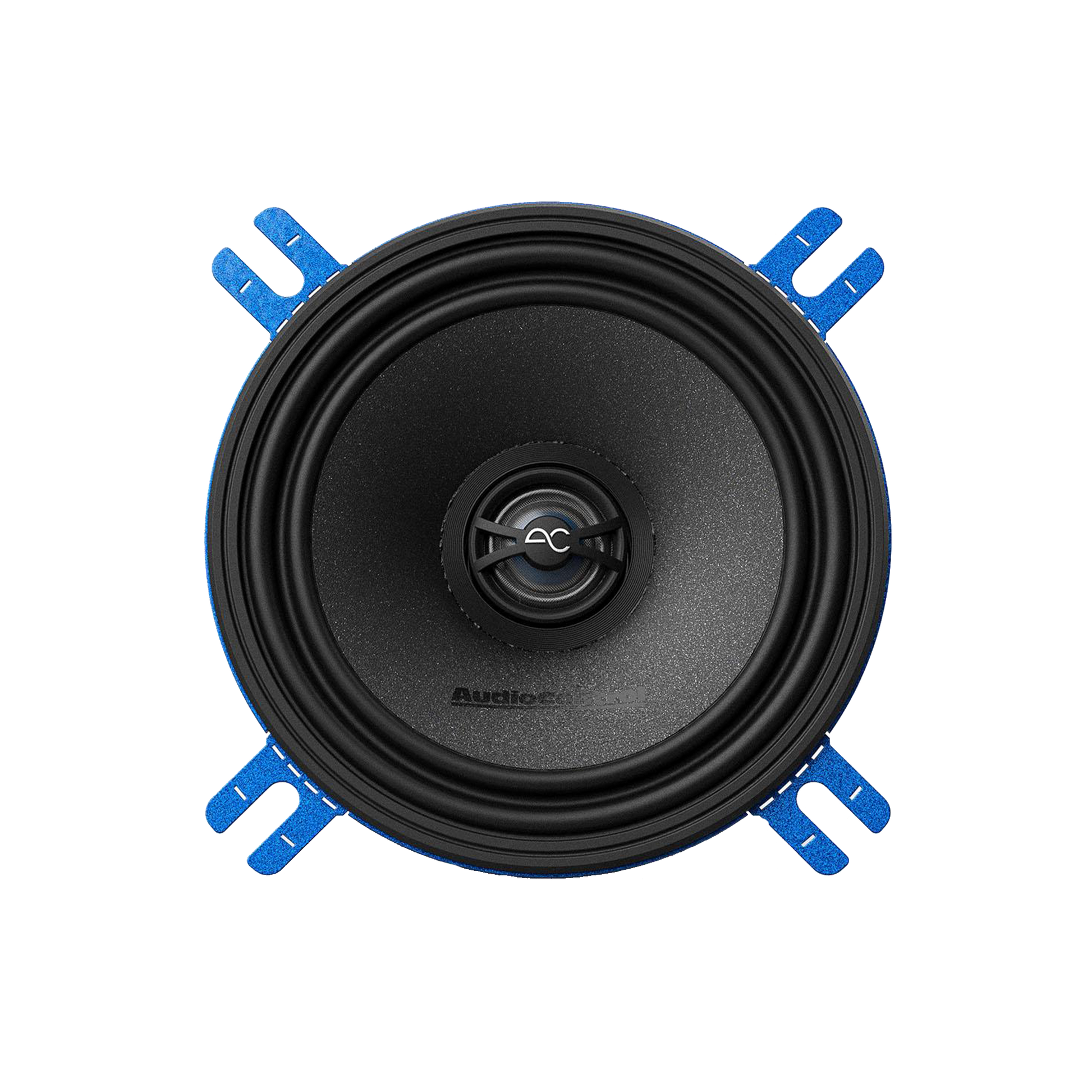

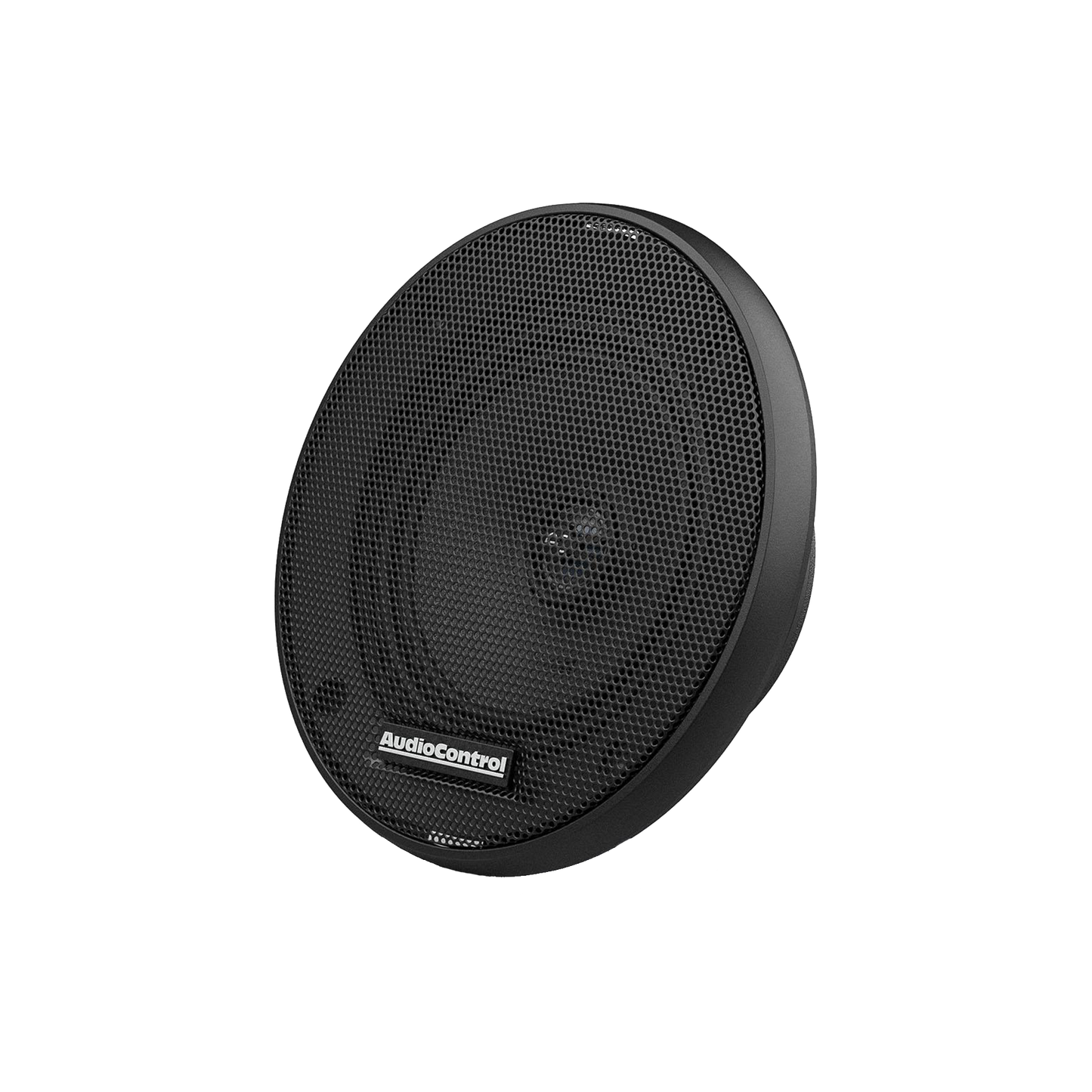

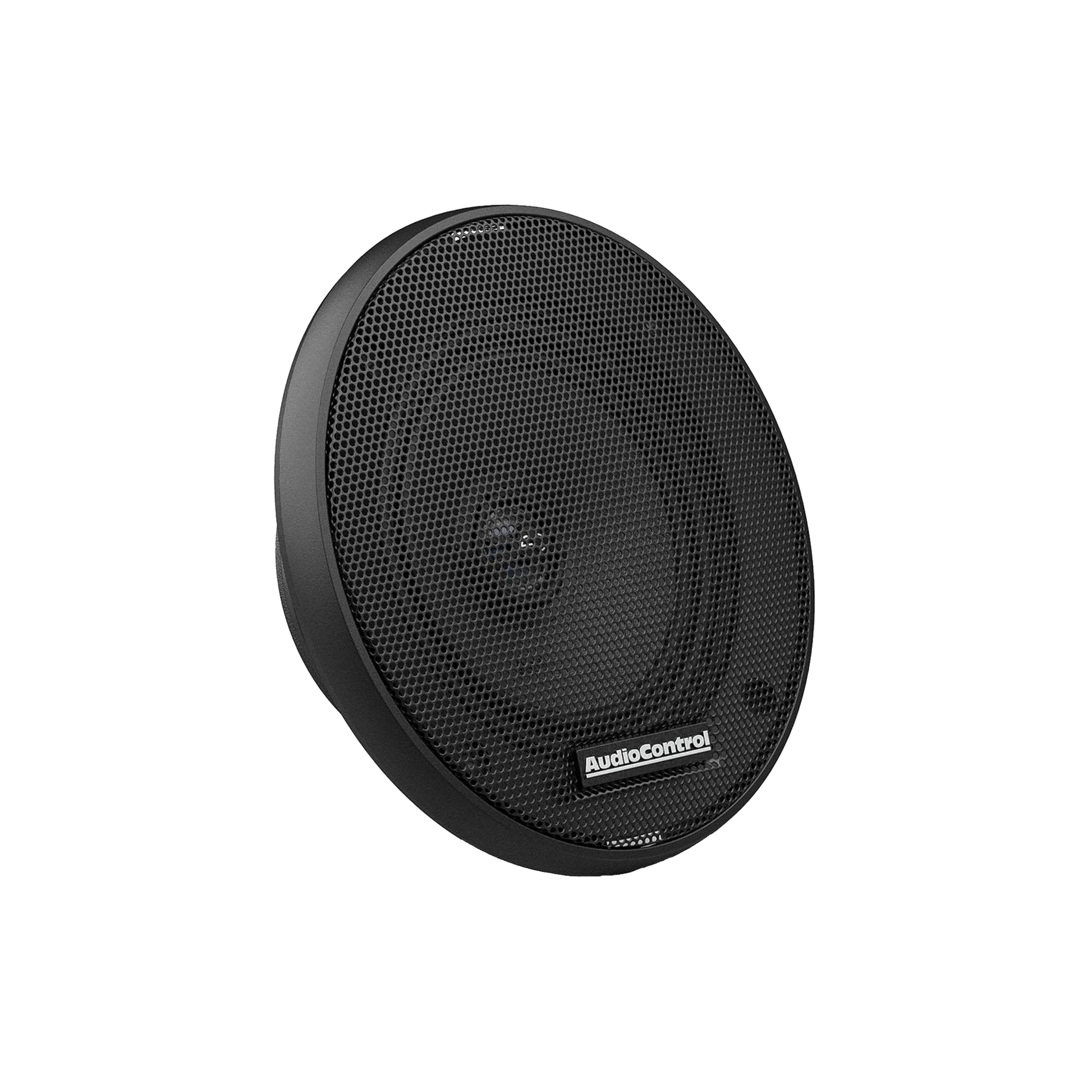

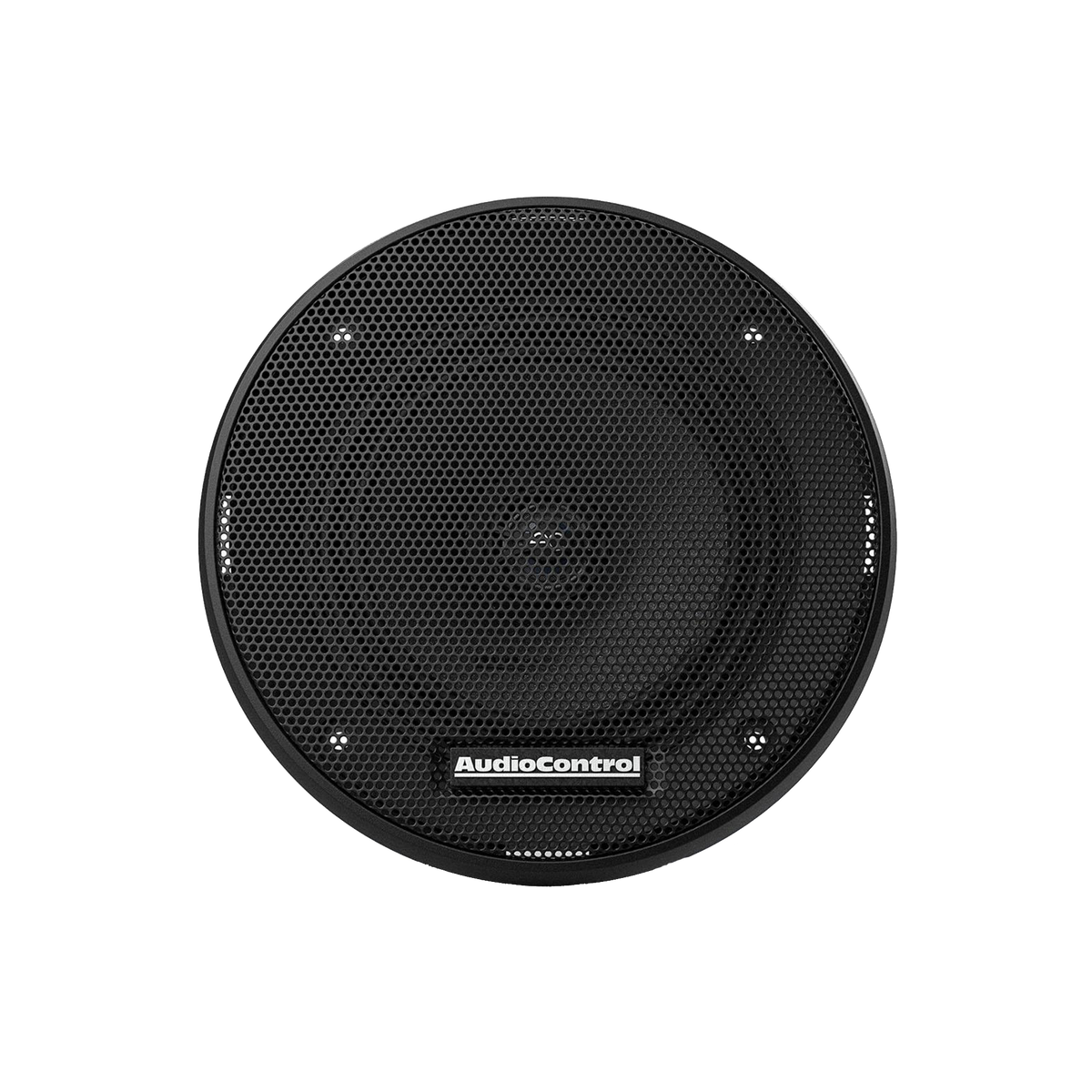

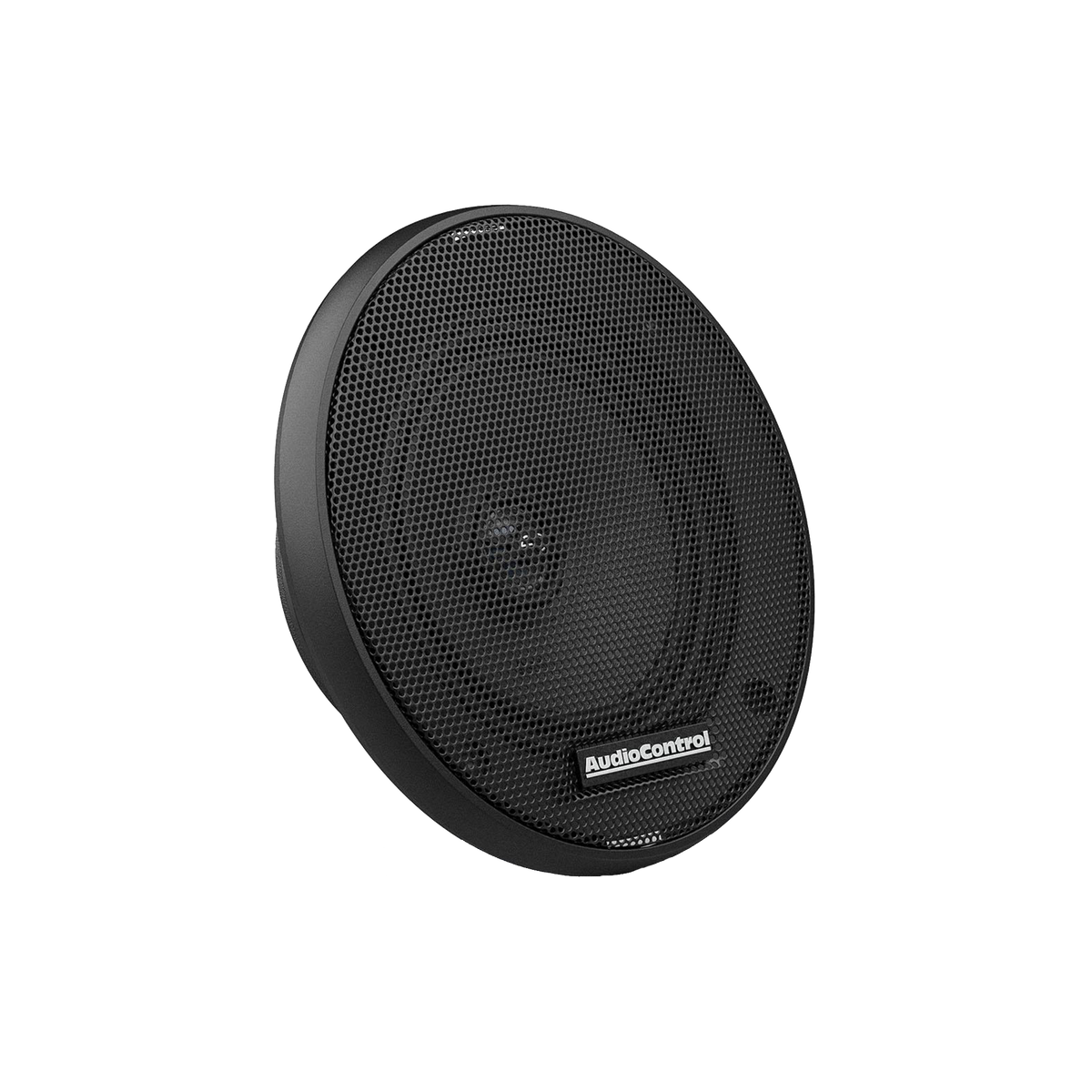

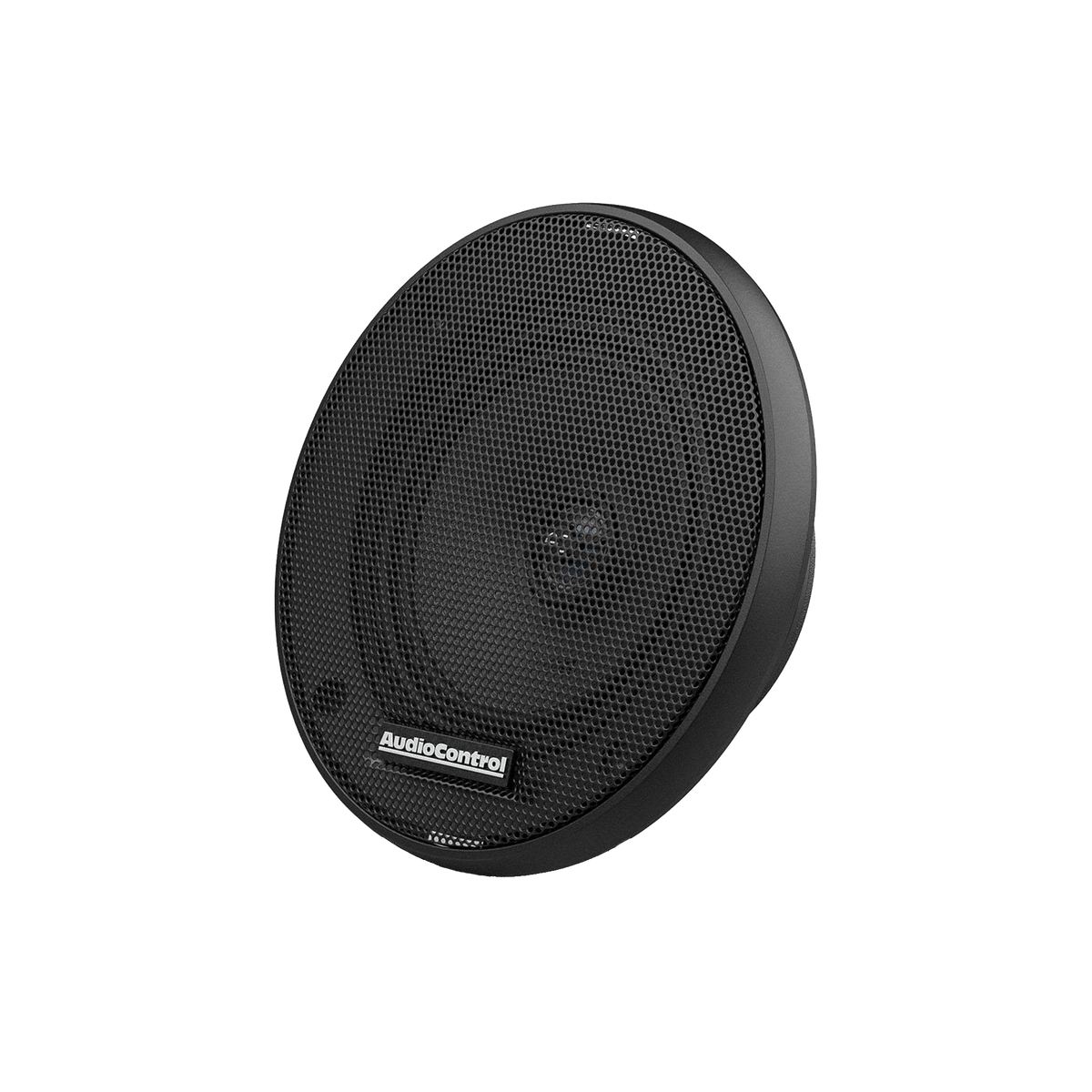

AudioControl Audio PNW-4

WOS Pick What these speakers do in 10 seconds — expand for full specs.

  • BrandAudioControl
  • SKUPNW-4
  • TypeCoaxial Speakers
  • RMS50
  • Ohms3
Mei says

"Speakers are where the sound actually happens. Right size + power match = instant upgrade."

The stuff you'll actually notice
  • Type: Coaxial Speakers.
  • RMS: 50.
Product description

AudioControl has over 45 years of experience engineering top-quality audio components. Buckle up and get ready to embark on a wild new auditory adventure with AudioControl’s PNW speakers! Experience the vibrant landscapes of the Pacific Northwest through your music when you combine AudioControl’s legendary amplifiers with the new PNW series of speakers. Trust us, you’ve never heard sound quite like this before. The PNW line features an edge-enhanced steel frame for ultimate structural strength, a black anodized voice coil former for superior heat dissipation, and a linear double-roll surround for precise cone movement. Plus, the rigid poly mica-coated cone optimizes sound reproduction.

Worried about installation? Don’t be! Our speaker sets come with high-quality mounting hardware, so you can enjoy your new sound system hassle-free. The tweeter’s point source design even aligns the output of both drivers perfectly, resulting in better speaker alignment for amazing sound quality. Looking for the full package? Pair PNW with our Spike or Space series subwoofers for the ultimate in-vehicle listening experience. All of these features add up to a line of speakers that are not only impressive on paper but are sure to impress you with their detail, clarity, and volume every time you drive.

FEATURES

  • Edge-enhanced steel frame for added structural strength
  • Black anodized voice coil former for superior heat dissipation
  • Linear double-roll surround for precision cone movement
  • Complex FEA-designed high-efficiency motor
  • Rigid poly mica-coated cone for optimized sound reproduction
  • Rear dampened hybrid silk dome tweeter for extended frequency response
  • Concentric point source design for a seamless transition from midrange to tweeter
  • Sonic diffuser and radiant collar for better off-axis frequency response
  • High-quality mounting hardware included

SPECIFICATIONS

Crossover Type                                     Butterworth

Power                                                           50W RMS / 75W Max

DC Resistance (Re).                              2.6 ohms

Filter Type                                                 HP

Frequency Response                       75-20k Hz

XO Frequency                                       5900 Hz

Slope (Octave)                                       -6 dB

Midrange Voice Coil Diameter       25 mm



IN THE BOX: (2) PNW-4, Manual, Warranty



DIMENSIONS

  • Overall Diameter (w/o Grille): 5.23 in/ 133 mm
  • Cut Out Diameter: 3.60 in/ 91.5 mm
  • Mounting Depth: 1.66 in/ 42.2 mm
  • Height (w/o Grille): 0.16 in / 4.1 mm
  • Height (w/ Grille): 0.64 in / 16.5 mm
  • Motor Diameter (w/ Cover): 2.96 in / 75.4 mm
  • Grille Overall Diameter: 5.40 in / 137 mm



California Proposition 65

  • To our California customers: Please view your Proposition 65 warning here.
Speaker specs
Speaker Type Coaxial Speakers
Impedance 3
RMS Power 50
