AudioControl Audio TXJTD8
WOS Pick What these speakers do in 10 seconds — expand for full specs.
- BrandAudioControl
- SKUTXJTD8
- RMS700
- Ohms4
Mei says"Speakers are where the sound actually happens. Right size + power match = instant upgrade."
The stuff you'll actually notice
- RMS: 700.
Product description

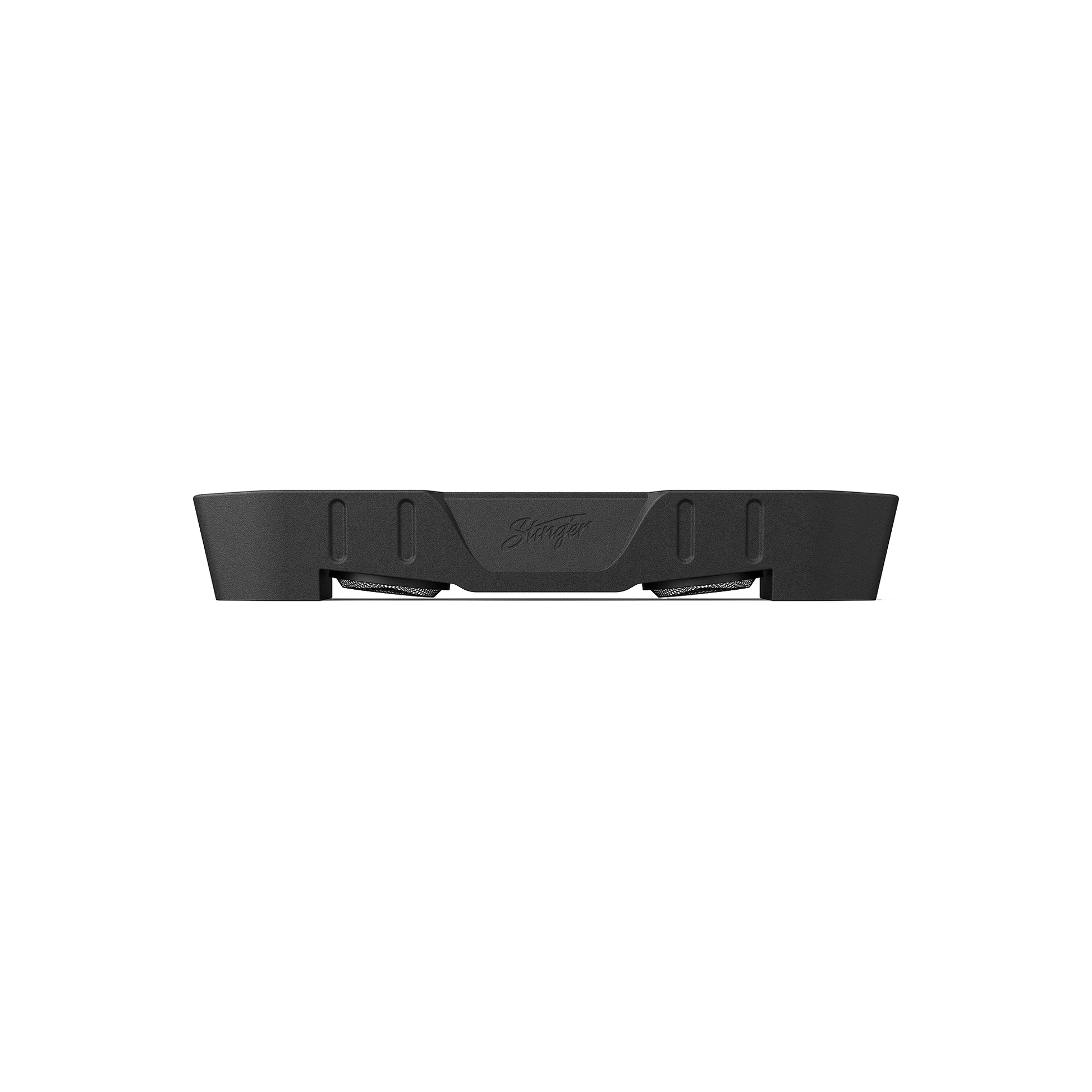

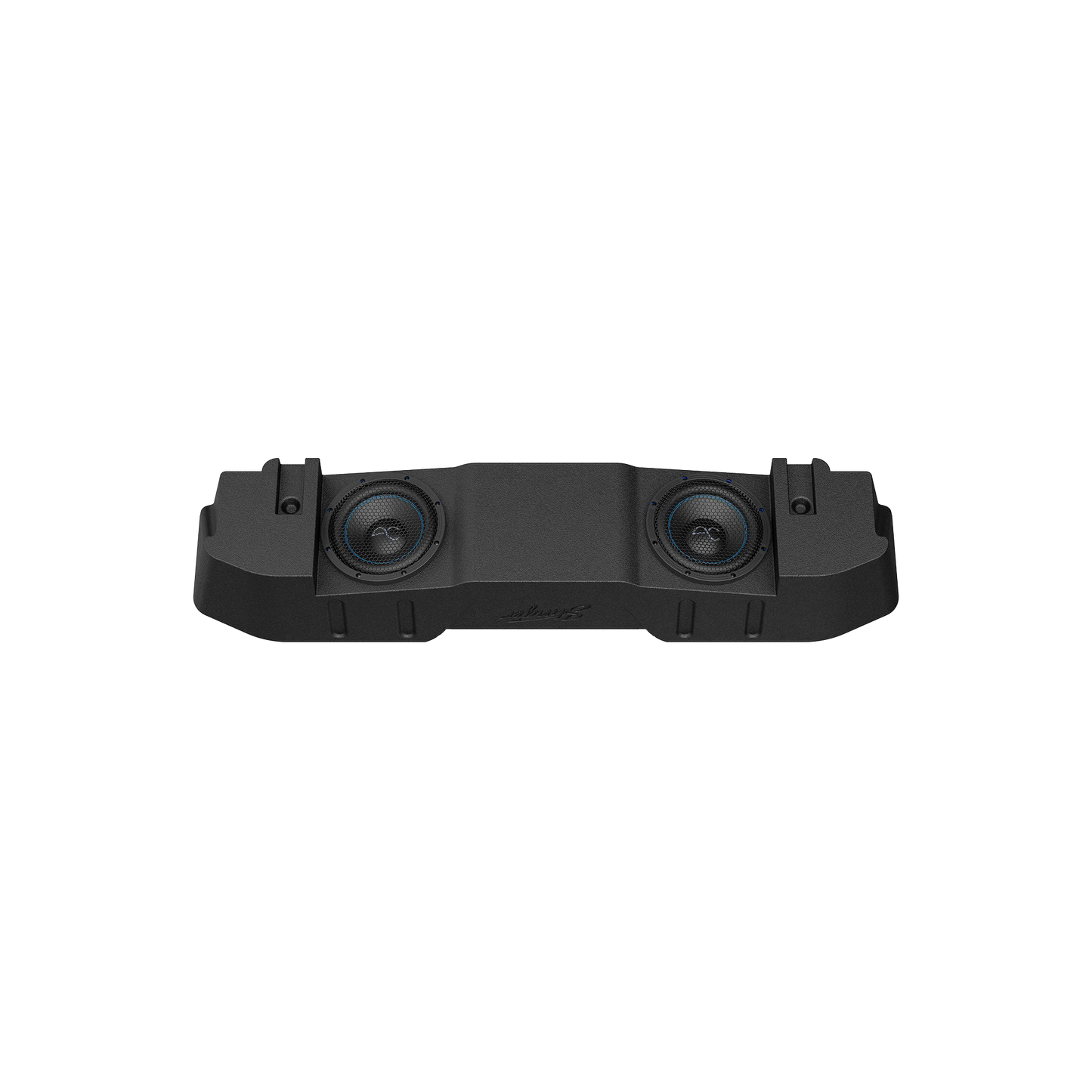

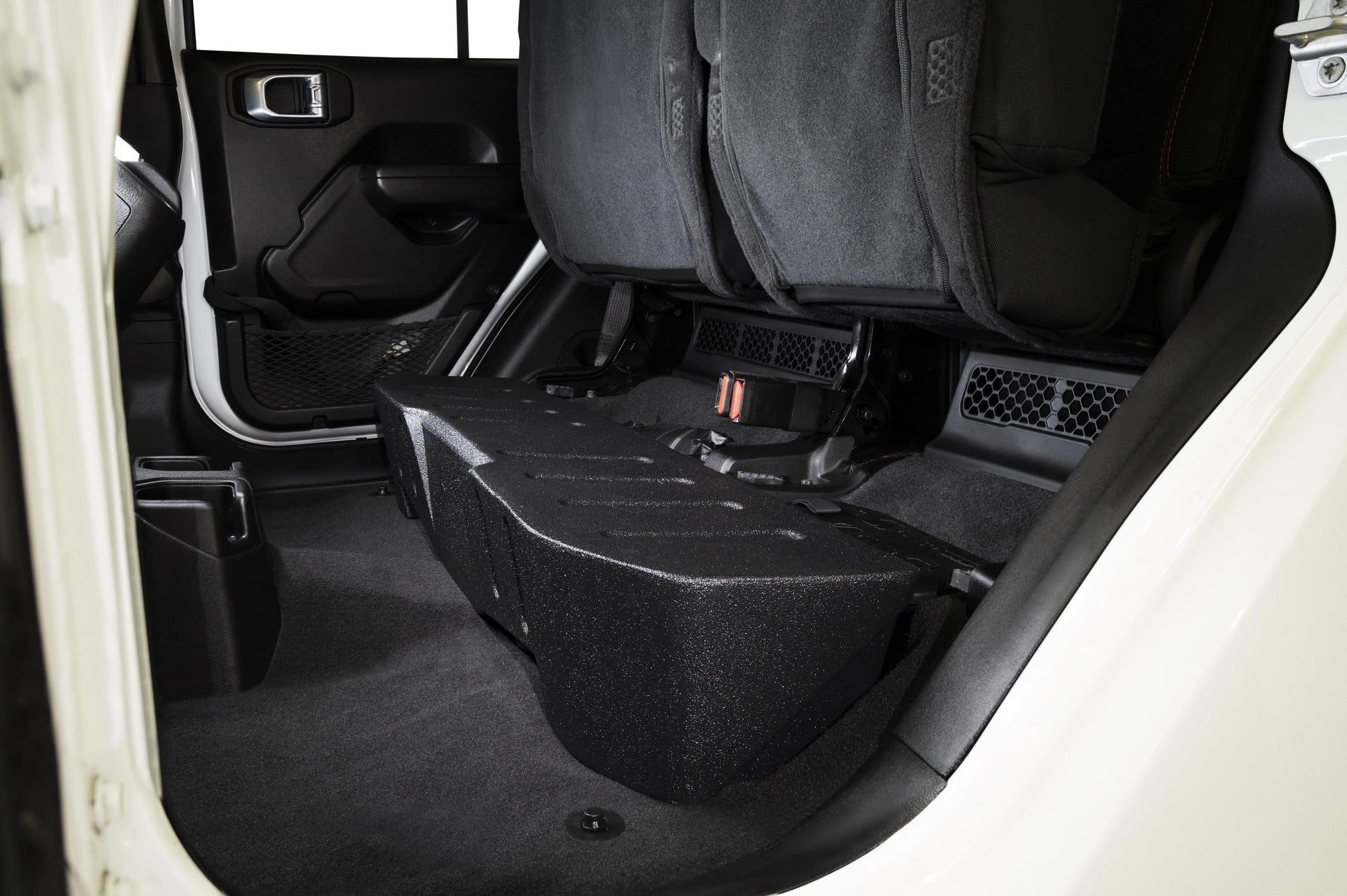

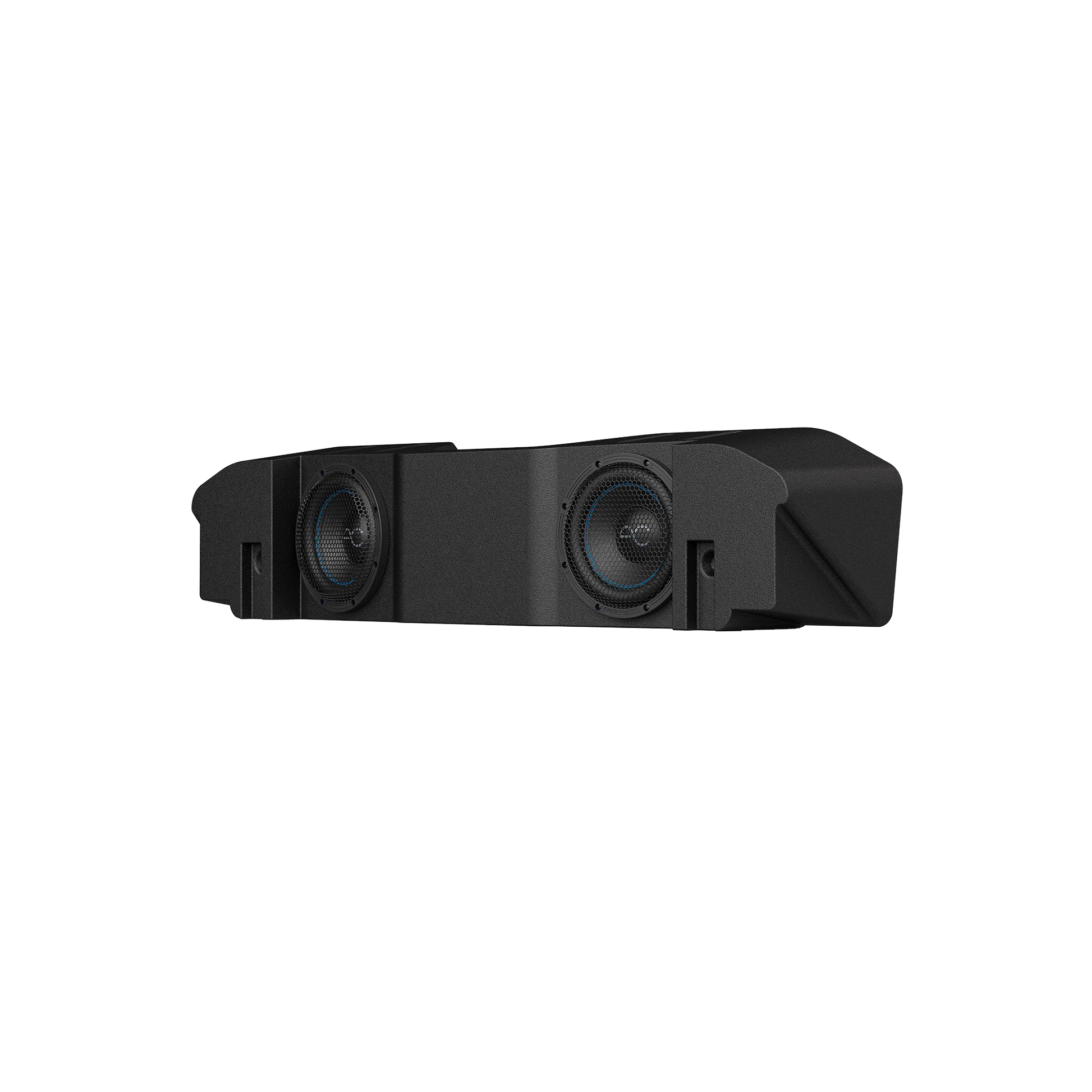

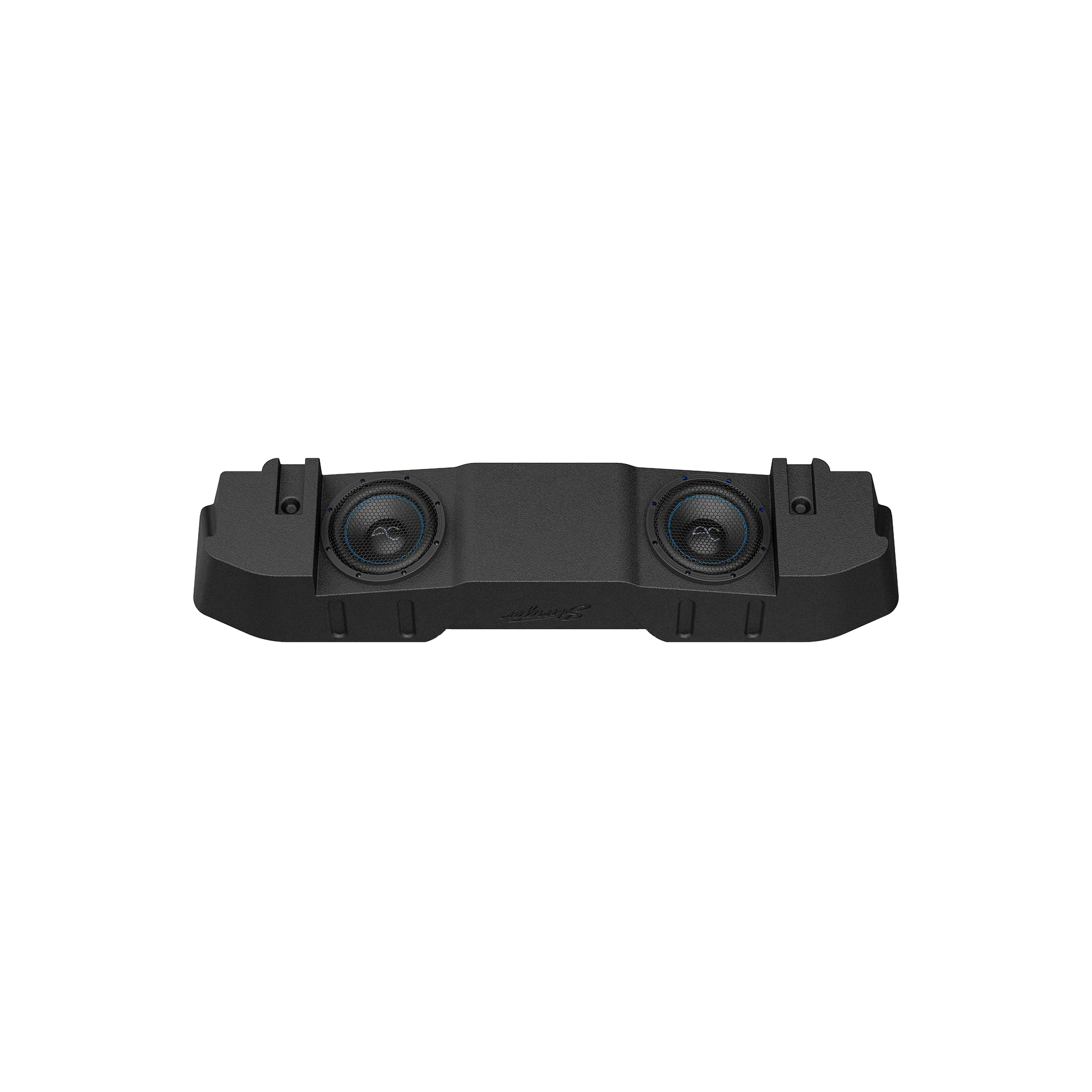

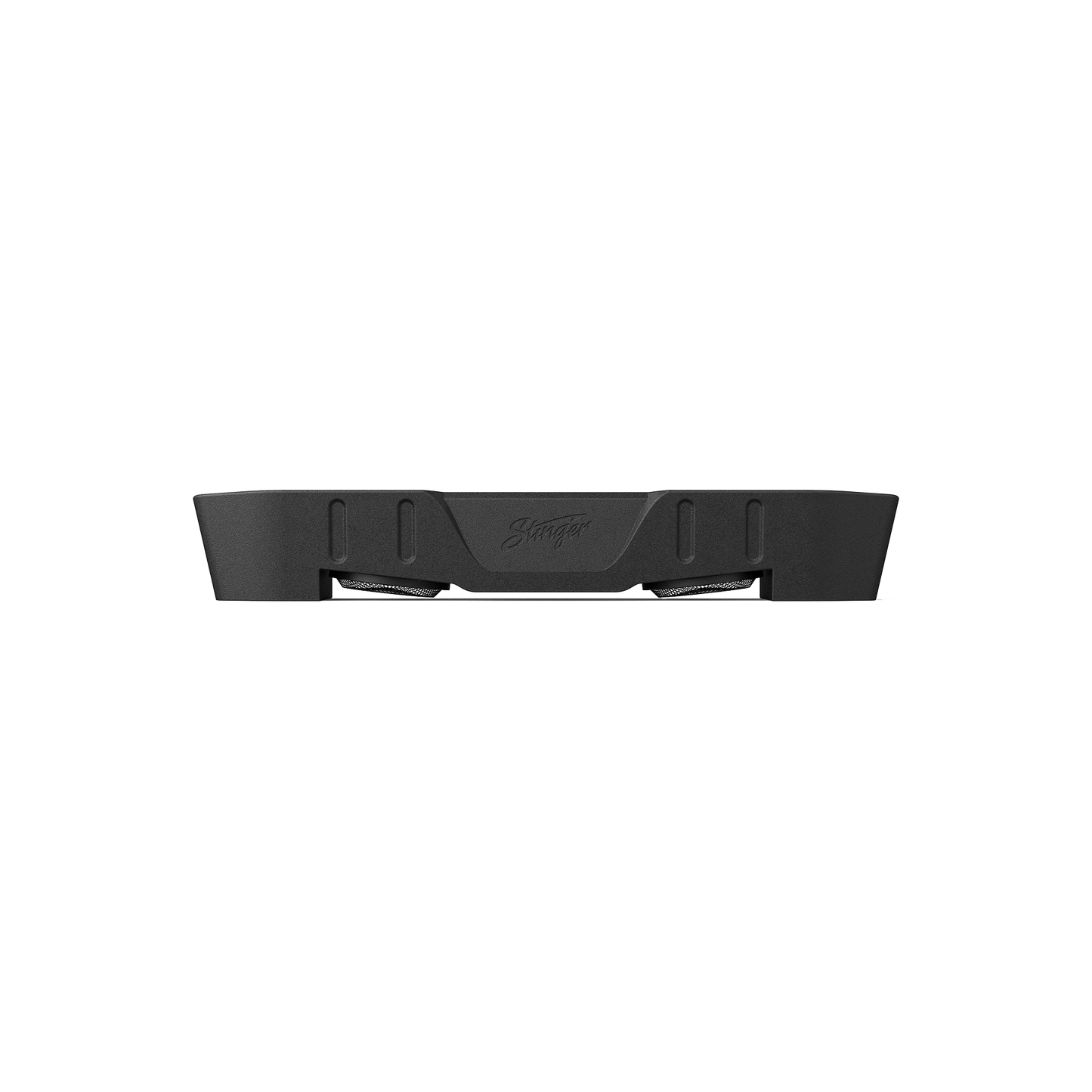

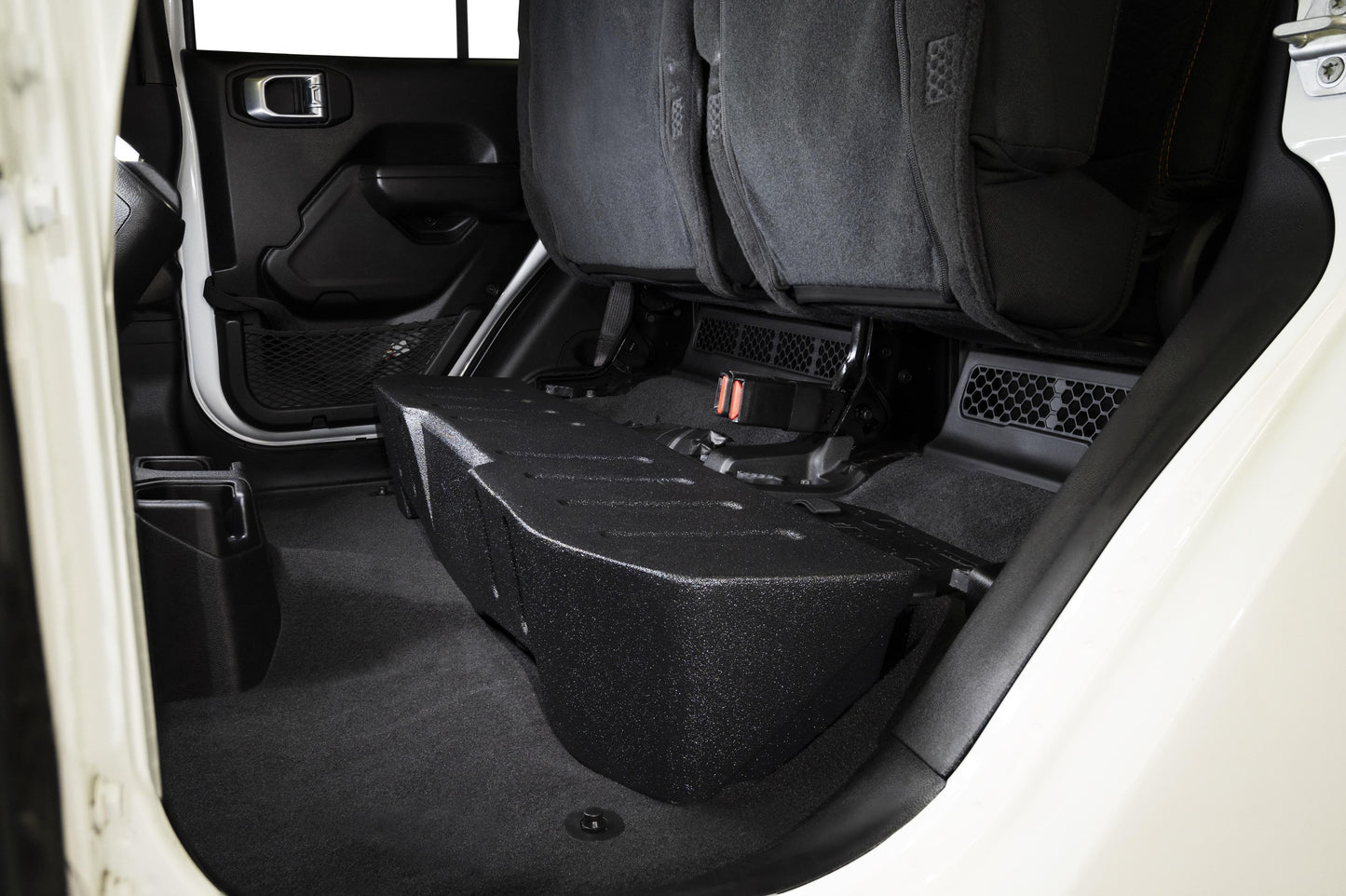

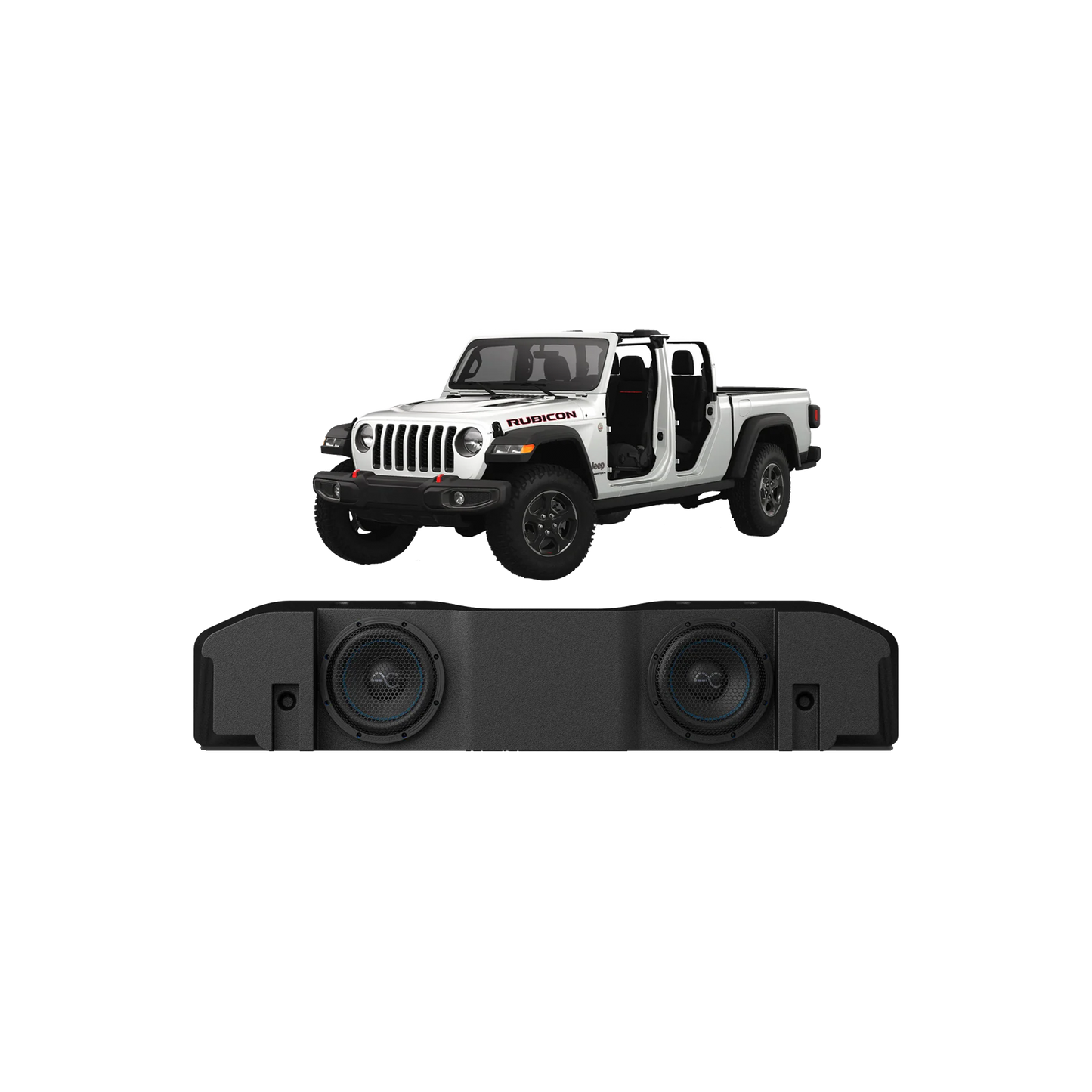

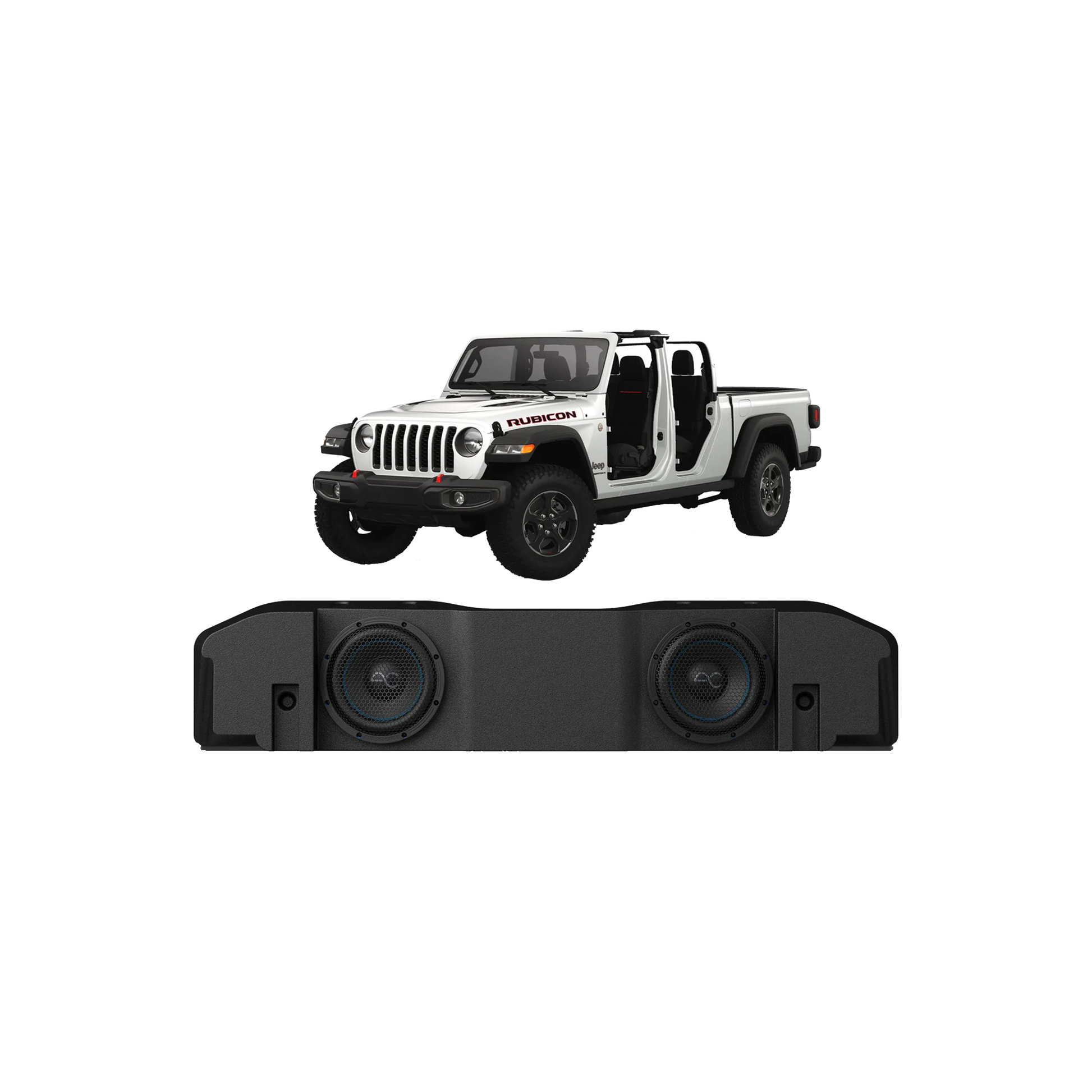

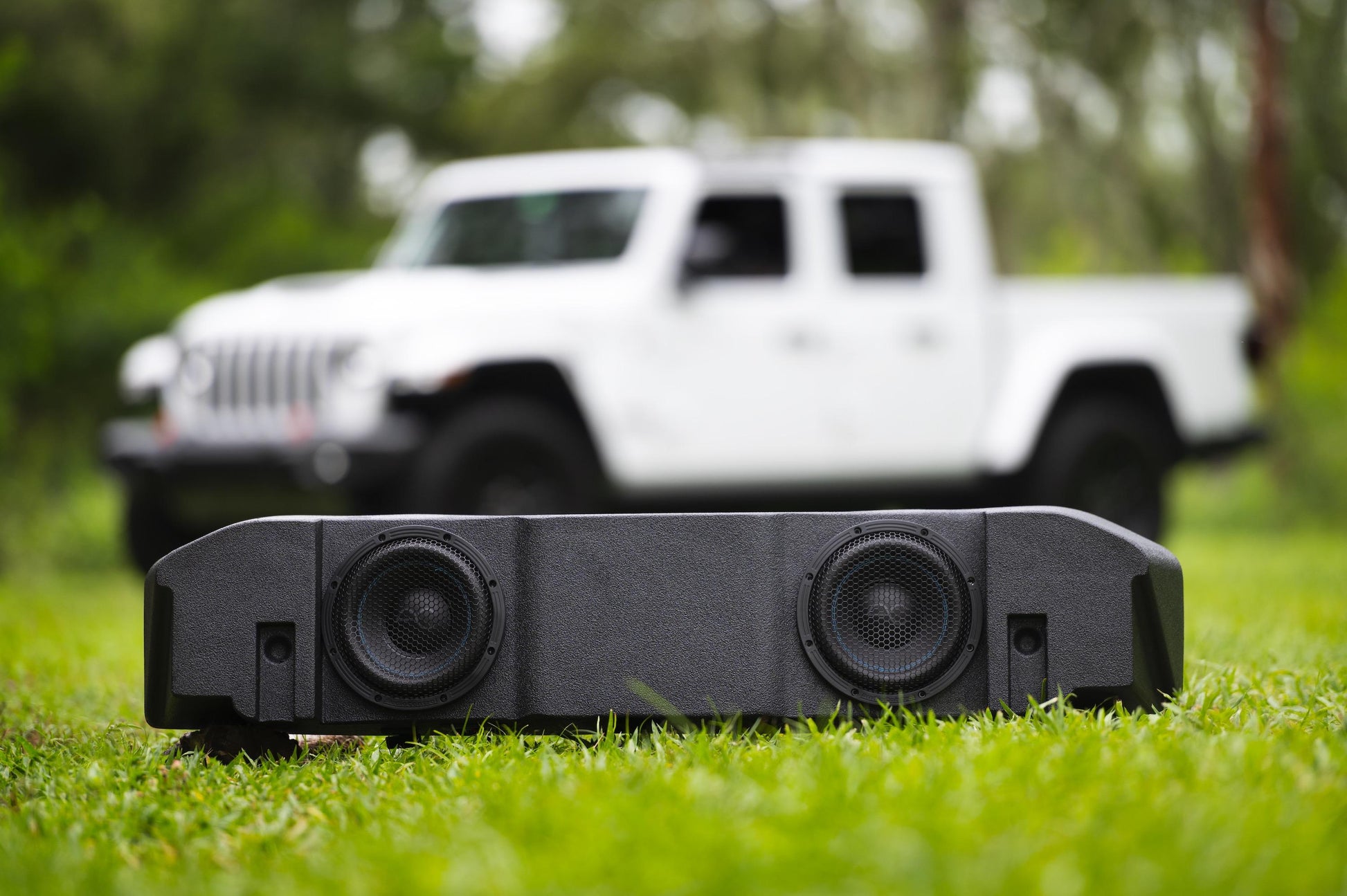

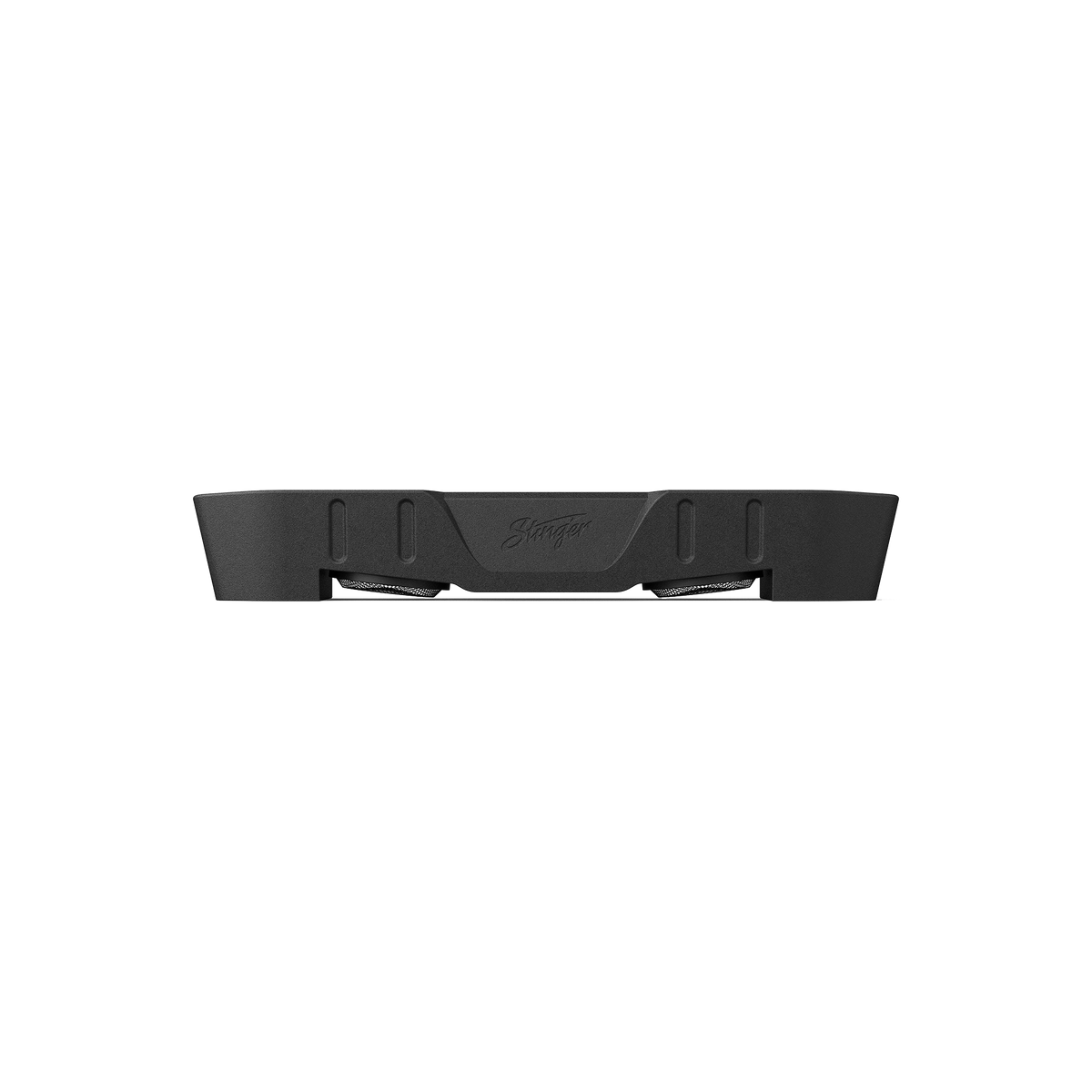

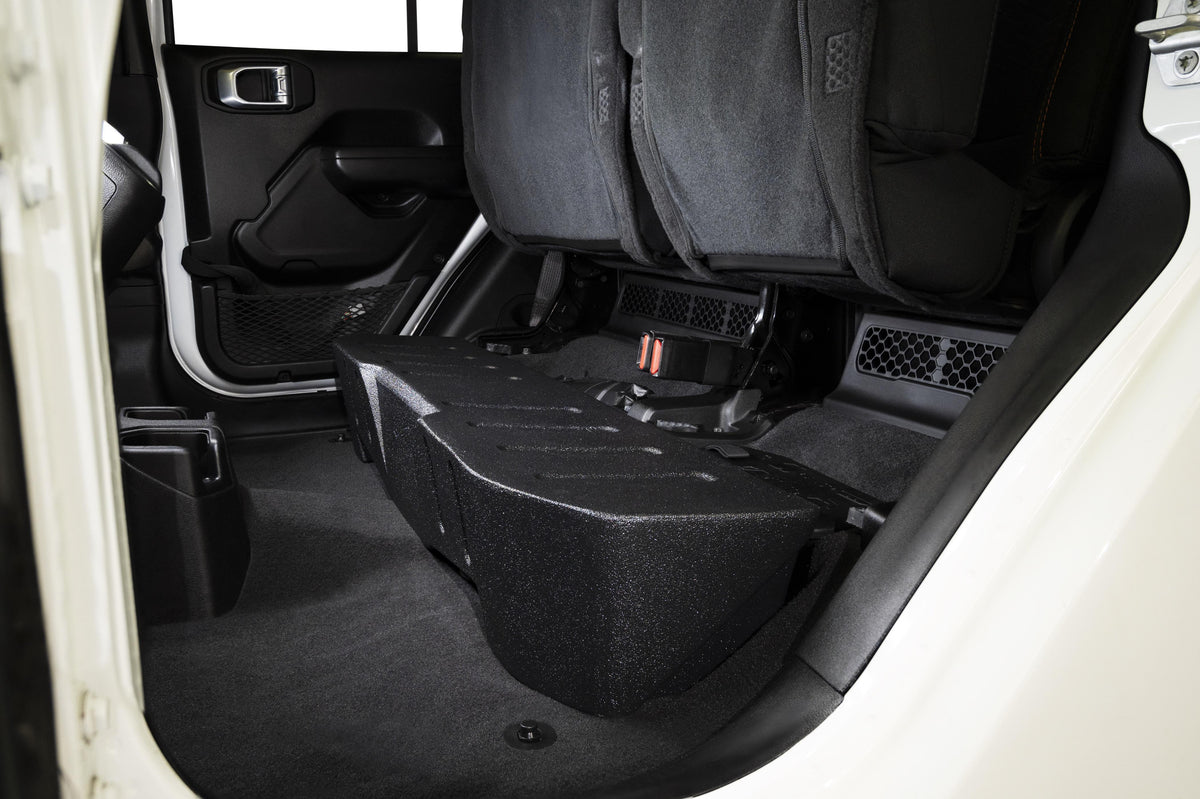

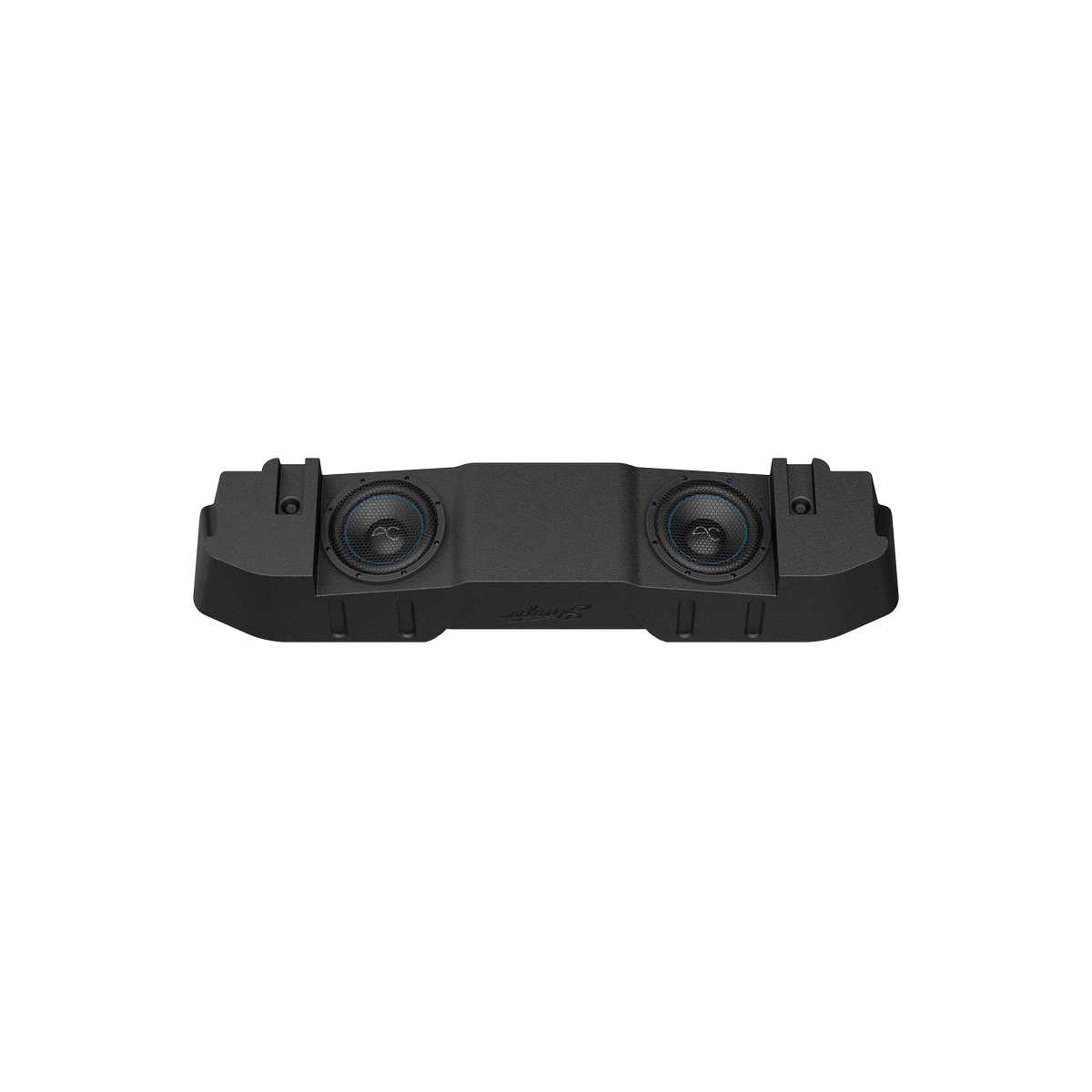

Designed for seamless integration beneath your Jeep Gladiator's (2020-2024) rear seat, our Dual 8” Vented Subwoofer Enclosure offers a convenient and efficient method to augment your audio system with powerful AudioControl Spike Series subwoofers. Engineered with durability in mind, this fiberglass enclosure is built to withstand challenging conditions, boasting rugged and weather-resistant features.
700 Watt RMS / 1000 Watt Max. Install Guide.
ENCLOSURE FEATURES
- Roadkill-Armor Coat
- Permanent Heat Bonded EPM (Elastomeric Polyurethane Molecule) Enclosure Coating
- Weather-Resistant Enclosure for Harsh Outdoor Environments
- Sound Dampening Properties for Resonance Reduction
- Scratch, Crack, and Peel-Resistant
- Chemical and Stain-Resistant
- Impact Absorption
- UV Protection
- Provides Leak and Corrosion Prevention
- Heavy Duty Fiberglass with Internal Bracing
- Poly-Fill Included to Absorb Standing Waves and Reduce Distortion
- Durable, Coated Steel Subwoofer Grille for Extra Protection
- XT-90 Connector Option for quick disconnect
SUBWOOFER FEATURES
- 8” 4Ω Spike Series Subwoofers (wired @ 2Ω) 400W-1000W Enclosure Power
- Range (700W Ideal) Fiber Matrix Paper Cone with Mica Coating for Optimum
- Sound Reproduction Dual Damping System for Linear Bass Reproduction
- High Excursion Design for Ultra Low Bass
THERMAL & MECHANICAL ELEMENTS
- 2” Black Anodized Voice Coil Former for Superior Heat Dissipation
- Dual Dust Cap System for Enclosure Compression Control
- Efficient Heavy-Duty Motor Design
- Efficient Motor Design via Magentic FEA Technology
- Micro Level Bonding Adhesive for Increased Strength
- High Density Ferrite Magnet
- Push Style Terminals Provide Consistent Tension For a Reliable Connection
- Grilles Included
- High-Quality Mounting Hardware
SPECS
Speaker Model SPK-S4 (x2)
Subwoofer Size Dual 8”
Voice Coil Single 4 ohm
DC Resistance (Re) 2 ohm
Sensitivity 1W/M (SPL) 88dB
Frequency Response 20Hz – 250Hz
RMS Power Min: 400 watts / Ideal: 700 watts
Peak Power 1,000 watts
Speaker Displacement 0.10 cu ft / 2.88 Ltr
Speaker Weight 11.75 lbs
ENCLOSURE DIMENSIONS
Internal Tuning 39 Hz
Subsonic Filter Setting 31 Hz
Enclosure Weight 20.5 lbs
Total Weight 43 lbs
Height 7.5in / 19.05cm
Width 48in / 121.92cm
Depth 10.5in / 26.67cm
Speaker specs
| Speaker Size (Mid) | 8" |
|---|---|
| Impedance | 4 |
| RMS Power | 700 |
| Peak Power | 700 |
