Blaze Audio 18in CBL series BZ-BL18S
Description

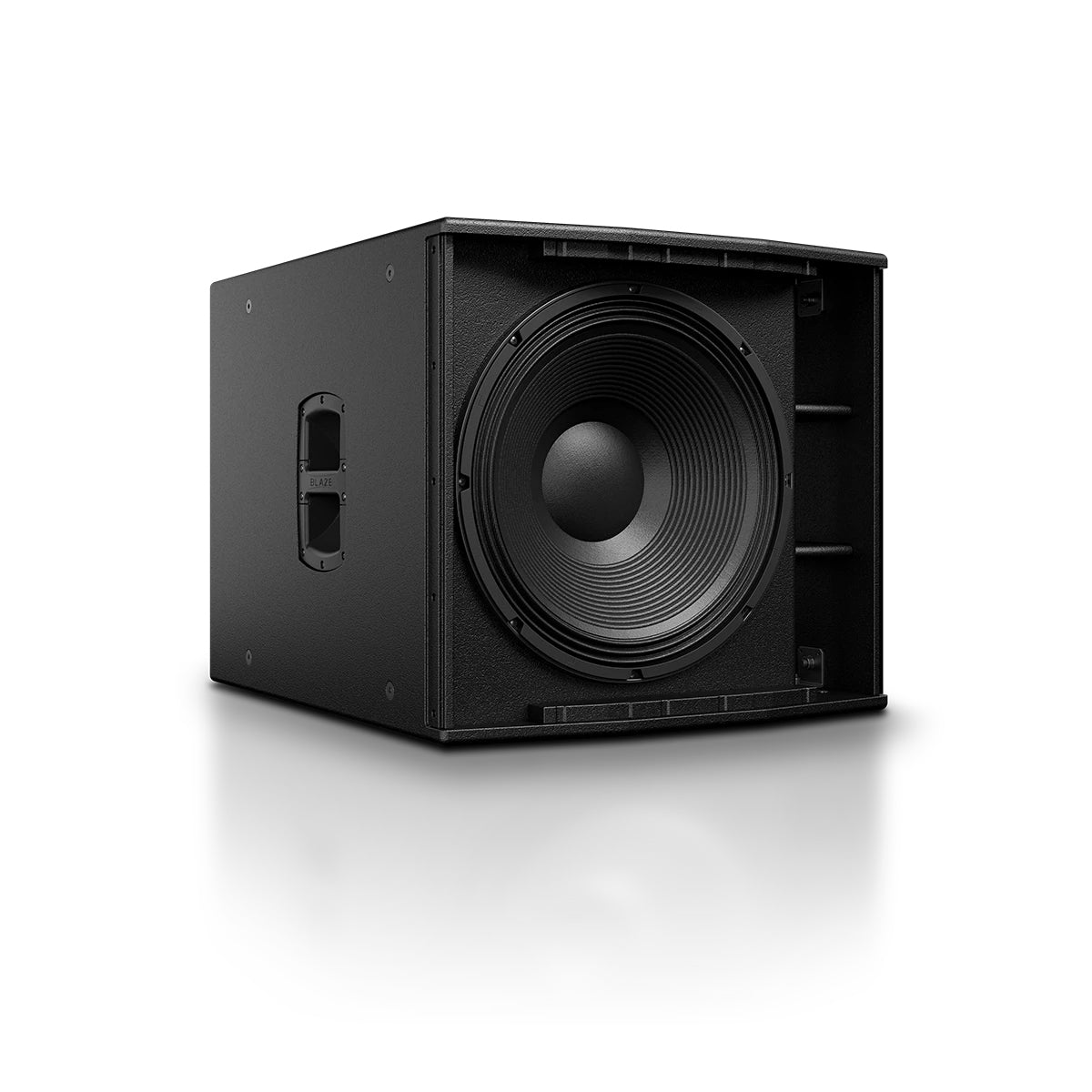

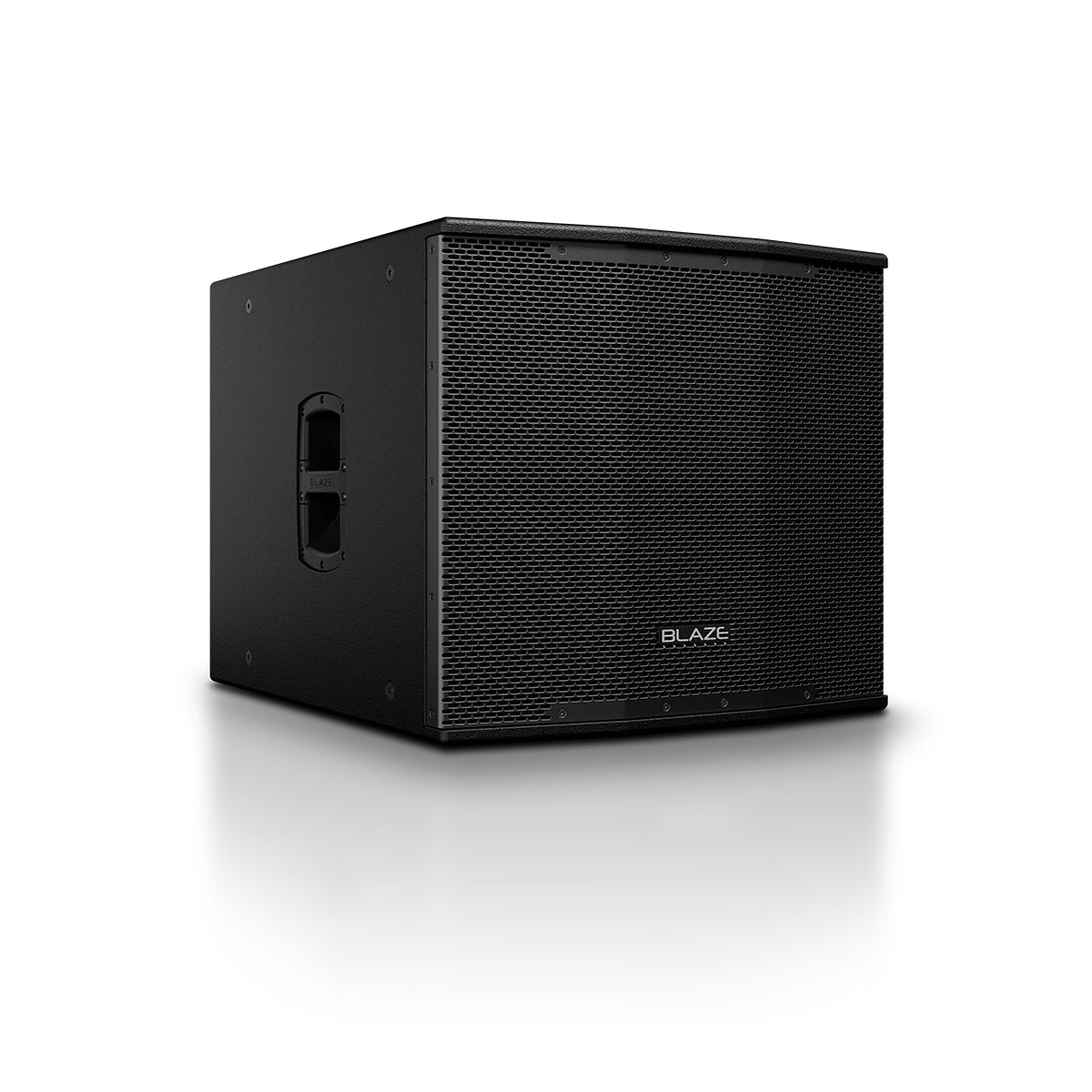

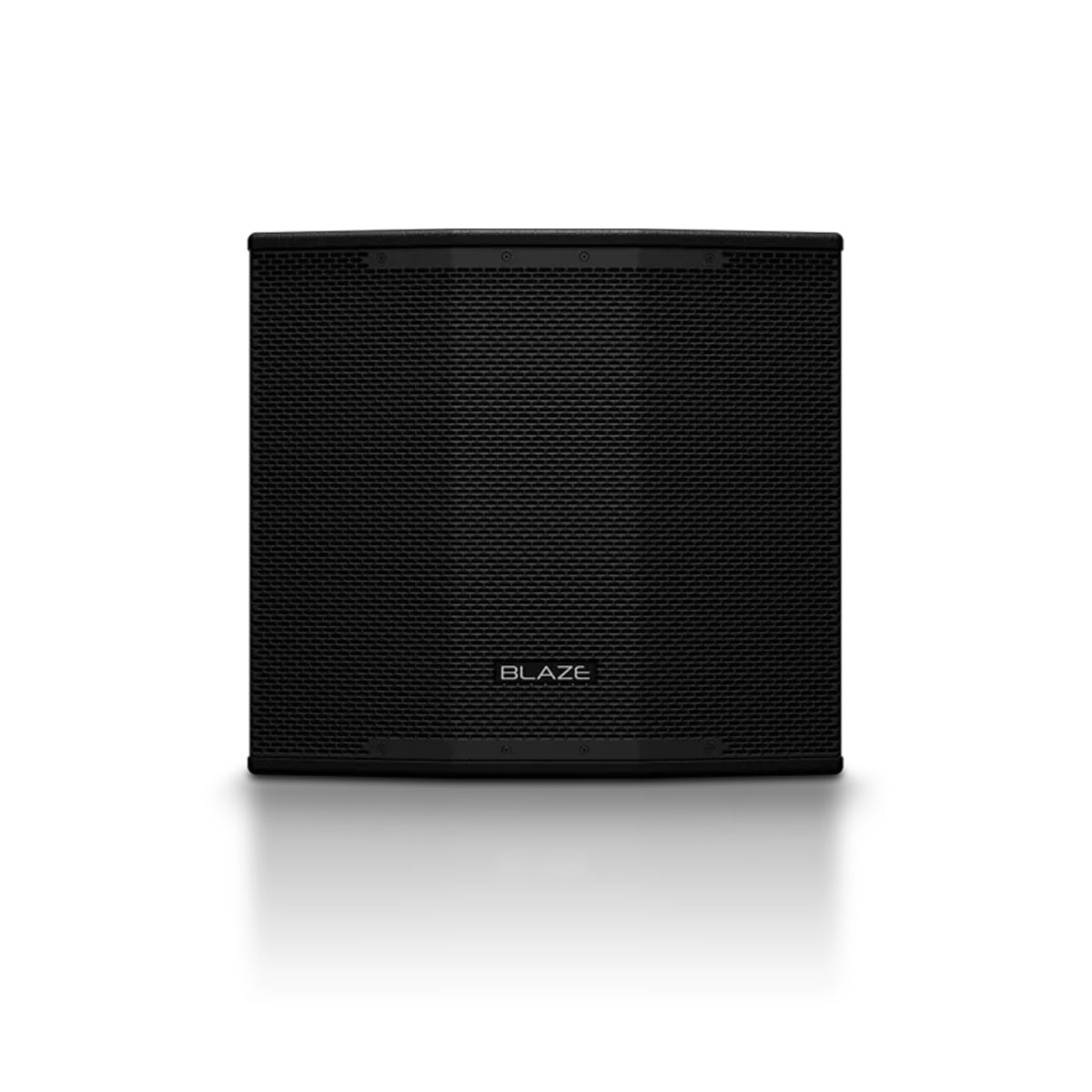

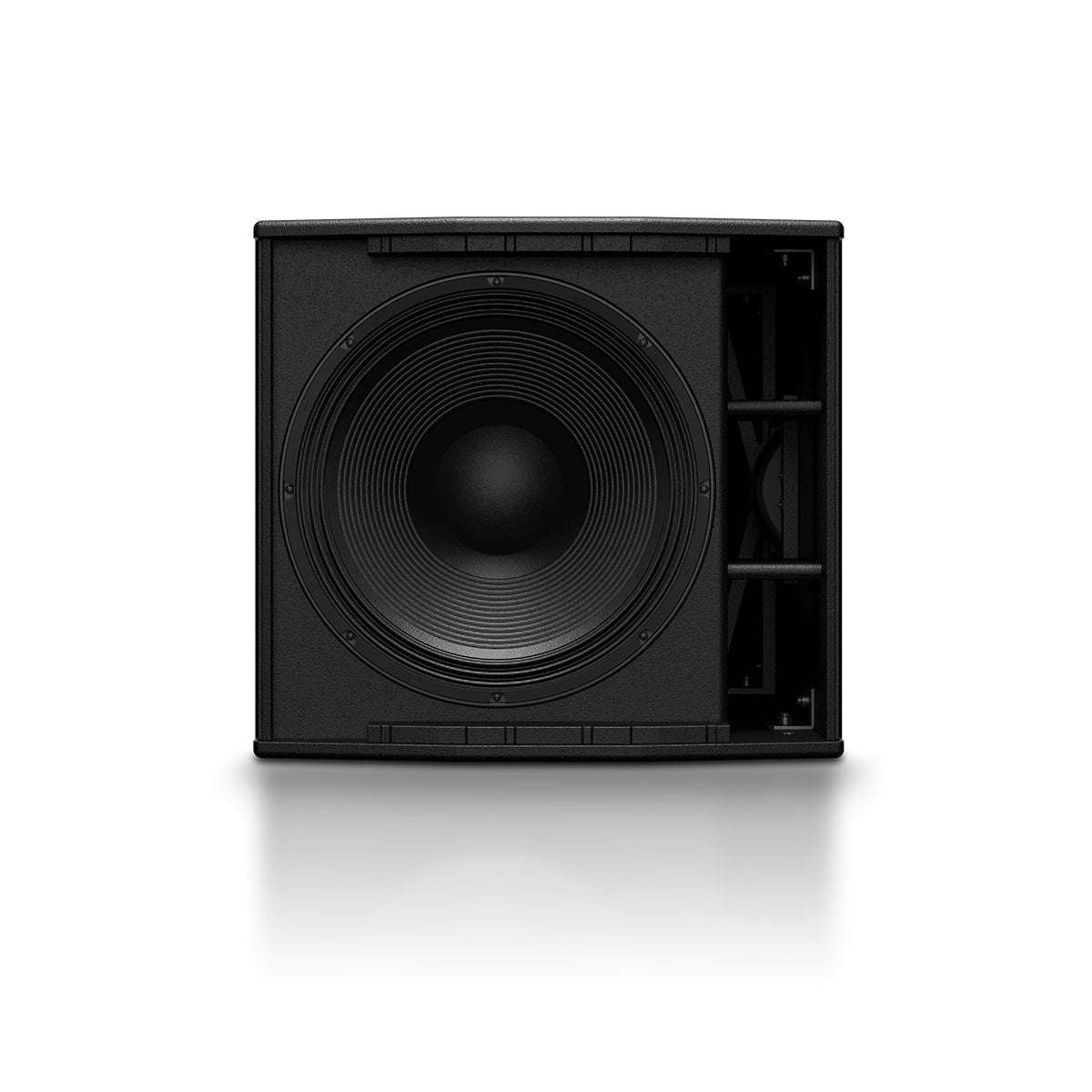

18" CBL series high power passive subwoofer
- Dynamic and Versatile: Ideal for both background and foreground music applications.

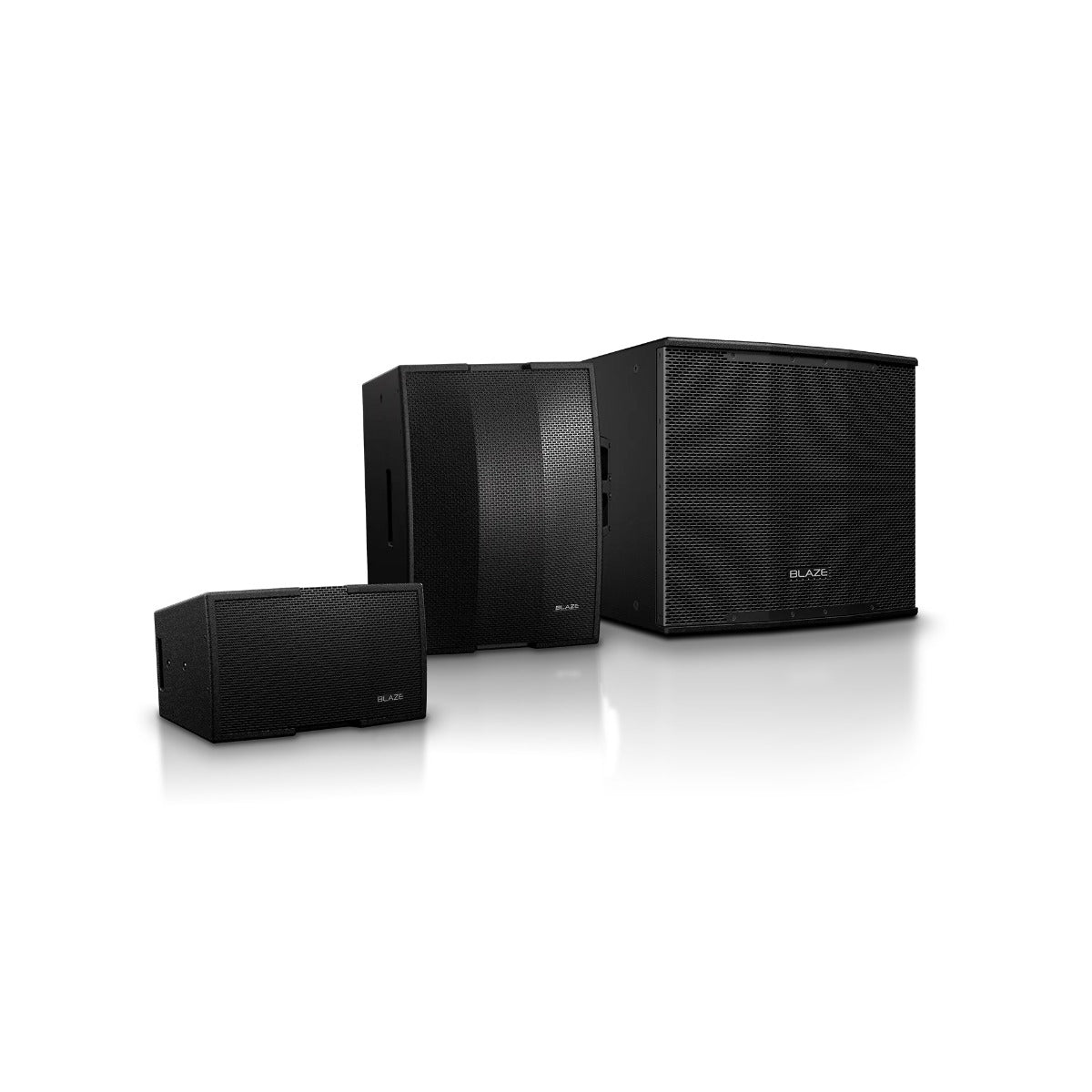

- Perfect Integration: Complements the Constant Beamwidth Loudspeakers series, including the CBL523 and CBL528 loudspeakers, to create a complete full-range system.
- Flexible Installation: Fixed installation with portable capabilities thanks to built-in casters and handles.
- Adaptable Design: Perfect for hybrid venues, providing a single sub solution for multiple applications.
- Value-Driven Solution: Offers professional performance at a competitive price point.
- Fully integrates with Blaze Audio’s PowerZone™ Connect amplifiers (3004 or higher).
| Frequency Response (-3 dB) | 36 Hz - 150 Hz |
| Frequency Range (-10 dB) | 31 Hz - 150 Hz |
| Recommended Low-Pass Filter | 90 Hz |
| Nominal Directivity (-6dB) | Omni or cardioid |
| Long Term Power Handling Capacity | 1200 W AES, 2400 W Program (4800 W peak) |
| Max SPL @ 1 W / 1 m | 136 dB |
| Transducer Components | 1 x 18 inch, 4” voice-coil |
| Dimensions (HxWxD) | 22.5” x 24.5” x 30” 571.5 x 622.3 x 762 mm |
| Weight | 131.5 lbs | 59.65 kg |
