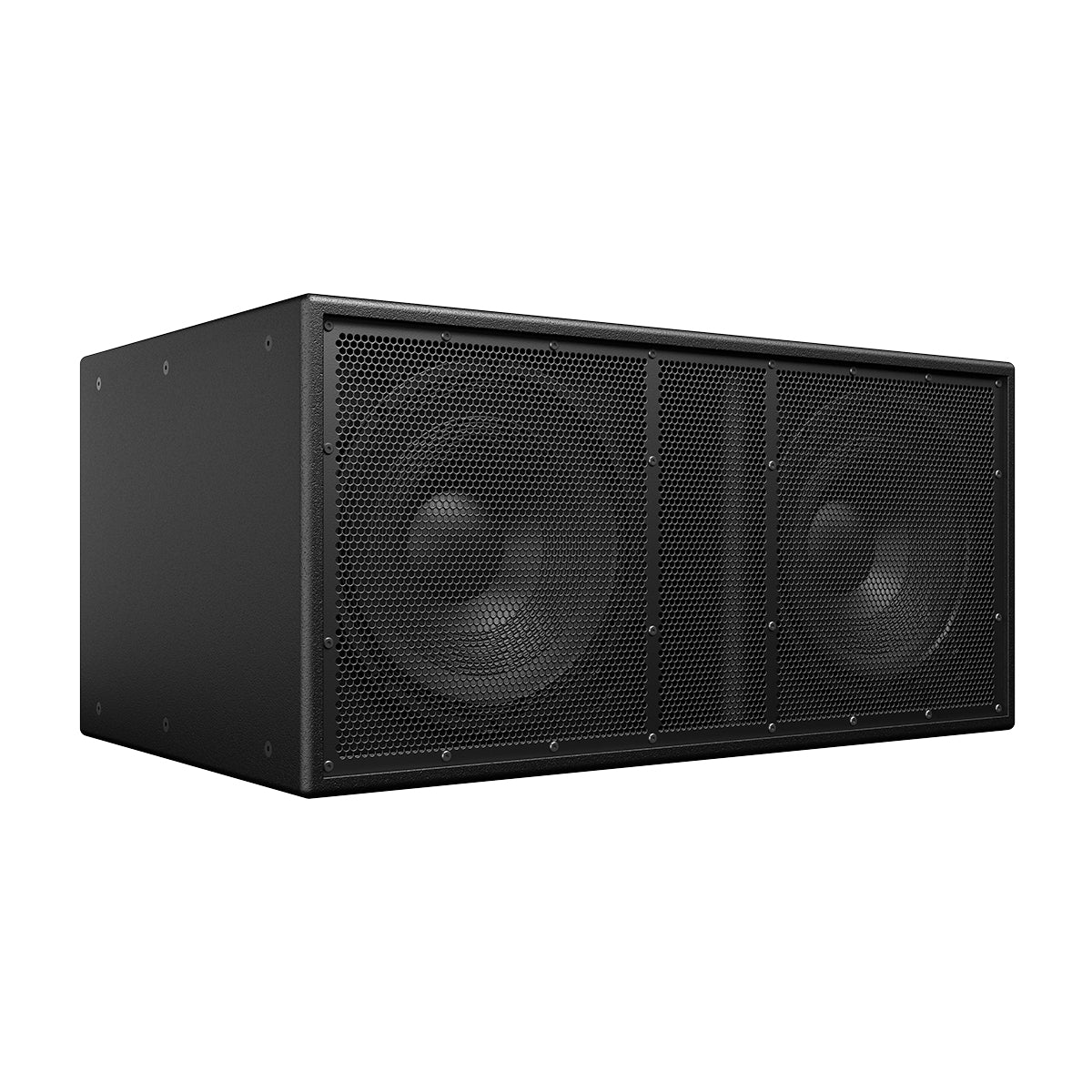

Blaze Audio Passive 5000w Sub BZ-BL218SSi-B
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandBlaze Audio
- SKUBZ-BL218SSi-B
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- Description Passive 5000w Sub for BZ-PowerZone-CT-3004 or higher High-output sub-bass companion subwoofer housed in a tour-grade enclosure 5000 W of stunning low-end response. Symmetrical dispersion pattern. Designed to satisfy the need for an extreme high SPL subbass l...
Product description
Description
Passive 5000w Sub for BZ-PowerZone-CT-3004 or higher
High-output sub-bass companion subwoofer housed in a tour-grade enclosure
- 5000 W of stunning low-end response.
- Symmetrical dispersion pattern.
- Designed to satisfy the need for an extreme high SPL subbass loudspeaker system.
- Components have been selected solely for their performance.
- Utilizes two direct radiating 18-inch, 2500 W cone drivers in a tuned enclosure, which provides maximum output with minimal distortion and smooth extended low frequency response.
- The tour-tested 21-ply Baltic Birch highly braced enclosure and 24 mm thick baffle board construction provide unsurpassed rigidity and strength.
- Configurable as in cardioid, or end-fire arrays.
- Fully integrates with Blaze Audio’s PowerZone™ Connect amplifiers (3004 or higher).
| Frequency Response (-3 dB) | 25 Hz – 150 Hz |
| Frequency Range (-10 dB) | 18 Hz – 150 Hz |
| Recommended High-Pass Filter | 20 Hz – with minimum 24 dB / octave (4th order) Butterworth slope |
| Nominal Directivity (-6 dB) | Omni or cardioid |
| Recommended Crossover Frequency | 90 Hz (acoustic, active, external DSP) |
| RMS Handeling Capcity | LF: 5000W |
| Maximum SPL @ 1 Meter | 143 db (Blaze Audio preset) |
Weather & environment
Vehicle fitment
| Model | BZ-BL218SSi-B |
|---|
Support & warranty
