Blaze Audio Shallow 8in+Passive Radiator, BZ-C8S-Sub-WHT

Description

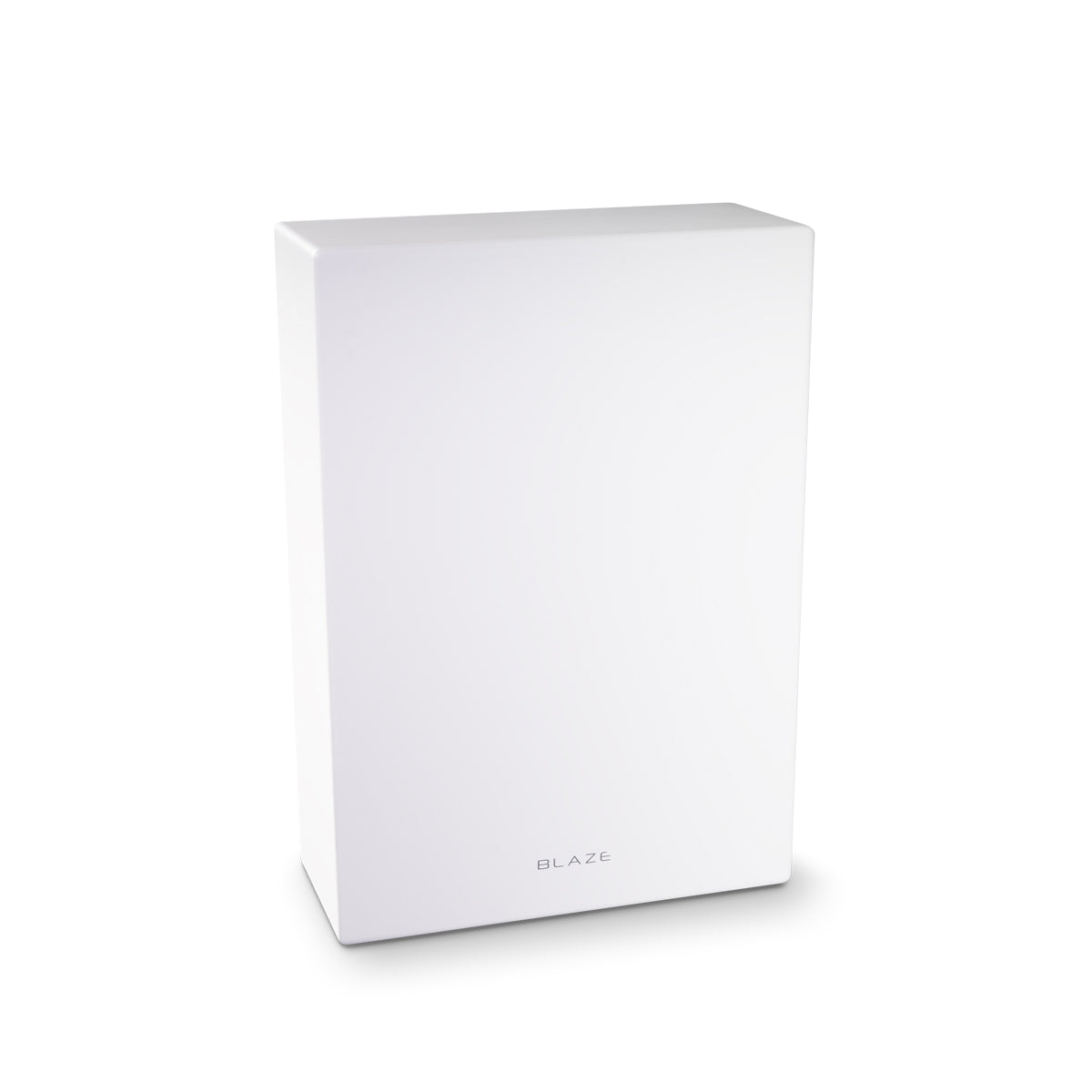

Shallow 8" + Passive Radiator, on-wall passive subwoofer, White

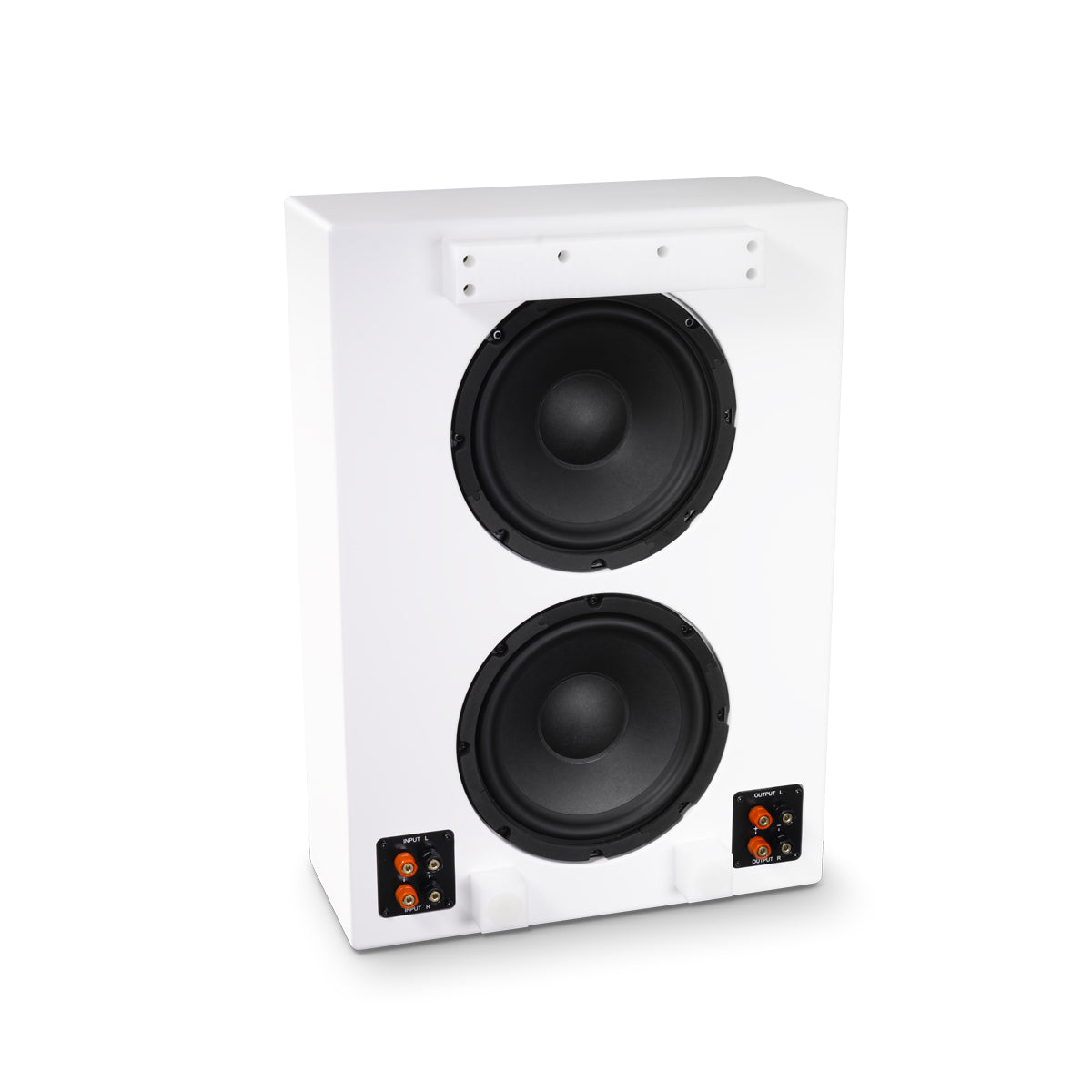

C8S is a compact and shallow on-wall subwoofer. The subwoofers face the wall and the sound is reflected out to the surroundings, allowing the subwoofer to blend discretely into any modern environment and offering full protection of the drivers.

The C8S features a powerful 8” subwoofer with dual voice coil and a passive radiator to extend the sub bass performance to below 34 Hz. The built-in crossover with heavy duty terminals allows the cables for the top-boxes to be connected directly from the C8S.

A built in mounting system also works as feet, so the subwoofer can either be hung on the wall or placed on the floor. Or, the feet can be removed and it can be placed under a sofa or other furniture. Measuring only 16 cm deep – or 19 cm with wall mount, the C8S offers very loud output for its size with real sub bass extension.

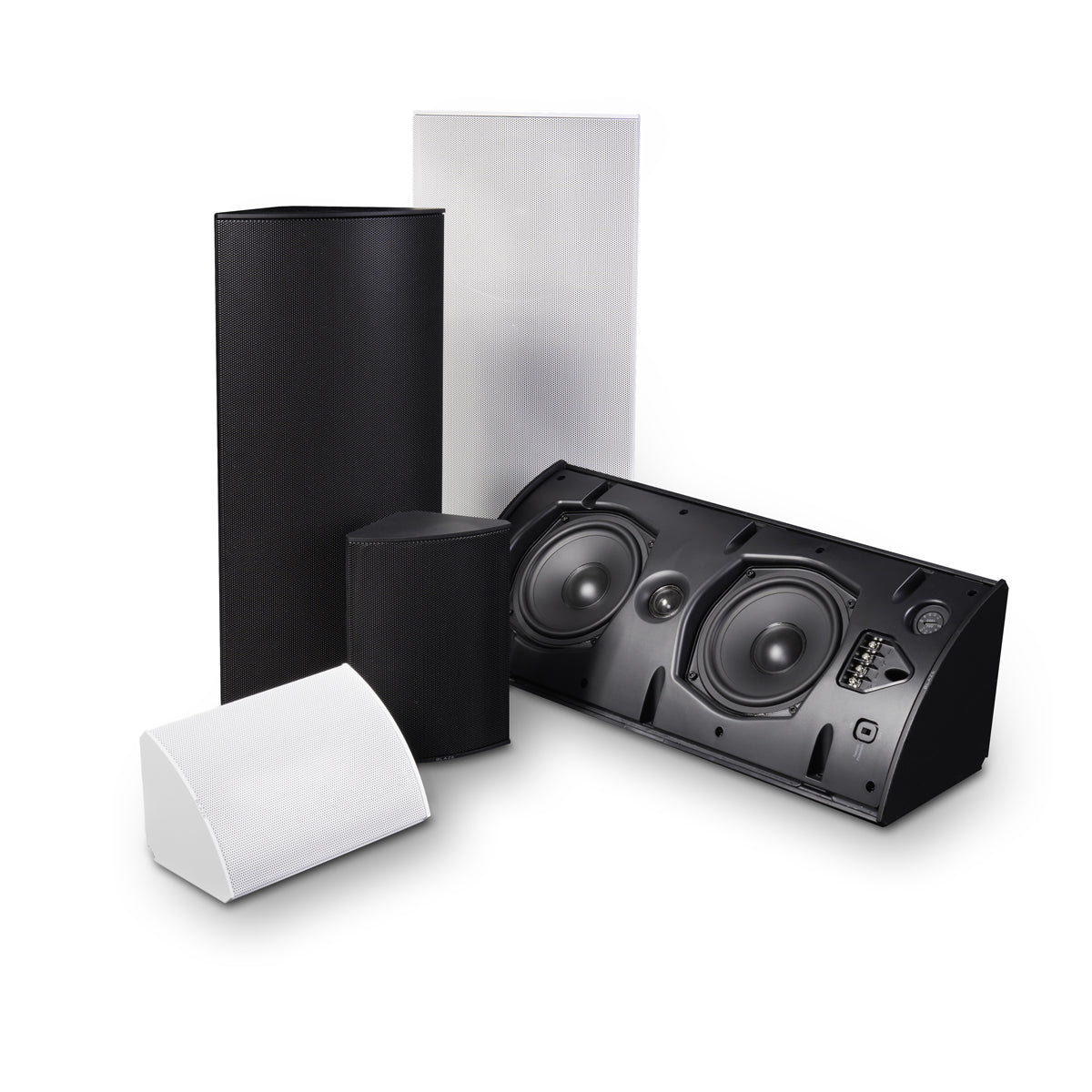

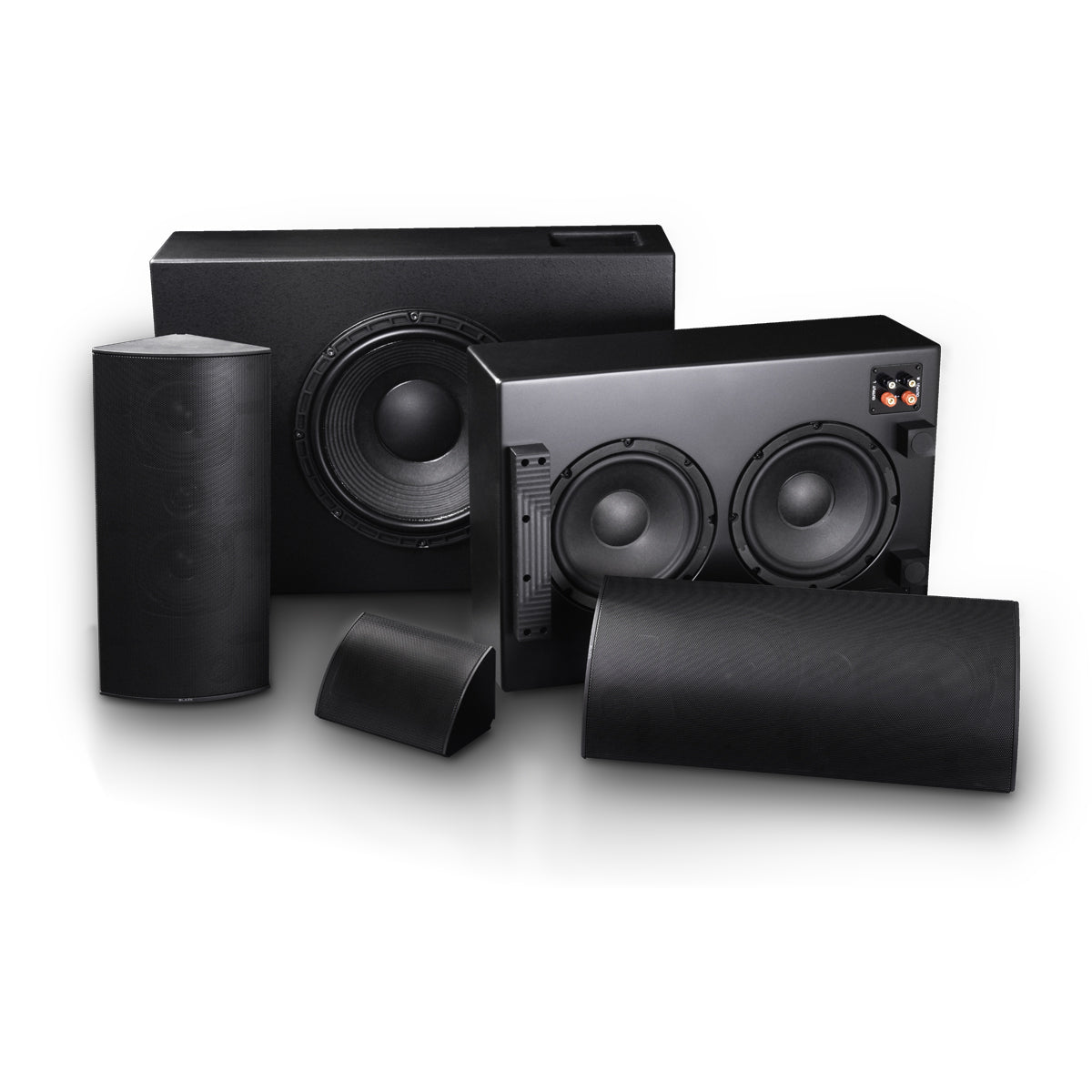

C8S is available in black and white and is designed to be used together with our Ci and CBL series loudspeakers.

• 8” woofer with dual voice coil.
• 8” passive radiator.
• Built in crossover.
• Plasti-dipped MDF cabinet.
• Heavy duty screw terminals.
• Placement: Indoor, placed on wall, on floor, or below sofa.
• Accessories: Wall bracket (included).
• Designed in Denmark.

Specifications

• Sensitivity SPL / 1W @ 1m: 88 dB
• Maximum SPL, Long Term: 108 dB
• Maximum SPL, Peak: 114 dB
• Frequency response: 30-240 Hz
• Nominal impedance: 8 Ω
• Ingress Protection: Indoor use only
• Recommended amplifier: 50-150 W into 8 Ω
• Measurements with wall mount:
• 530 x 374 x 190 mm
• 20.87 x 14.72 x 7.48 in
• Weight:
• 10,7 kg
• 23.59 lb
