Blaze Audio Constant Curvature Array BZ-CCA10i-BA-B
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandBlaze Audio
- SKUBZ-CCA10i-BA-B
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- Description Constant Curvature Array, Scalable 20° Vertical, Black The CCA10i is a compact arrayable point source loudspeaker, designed for medium-sized venues to large distributed systems that need a flexible, scalable speaker solution. Mounted horizontally with tight acous...
Product description
Description
Constant Curvature Array, Scalable 20° Vertical, Black

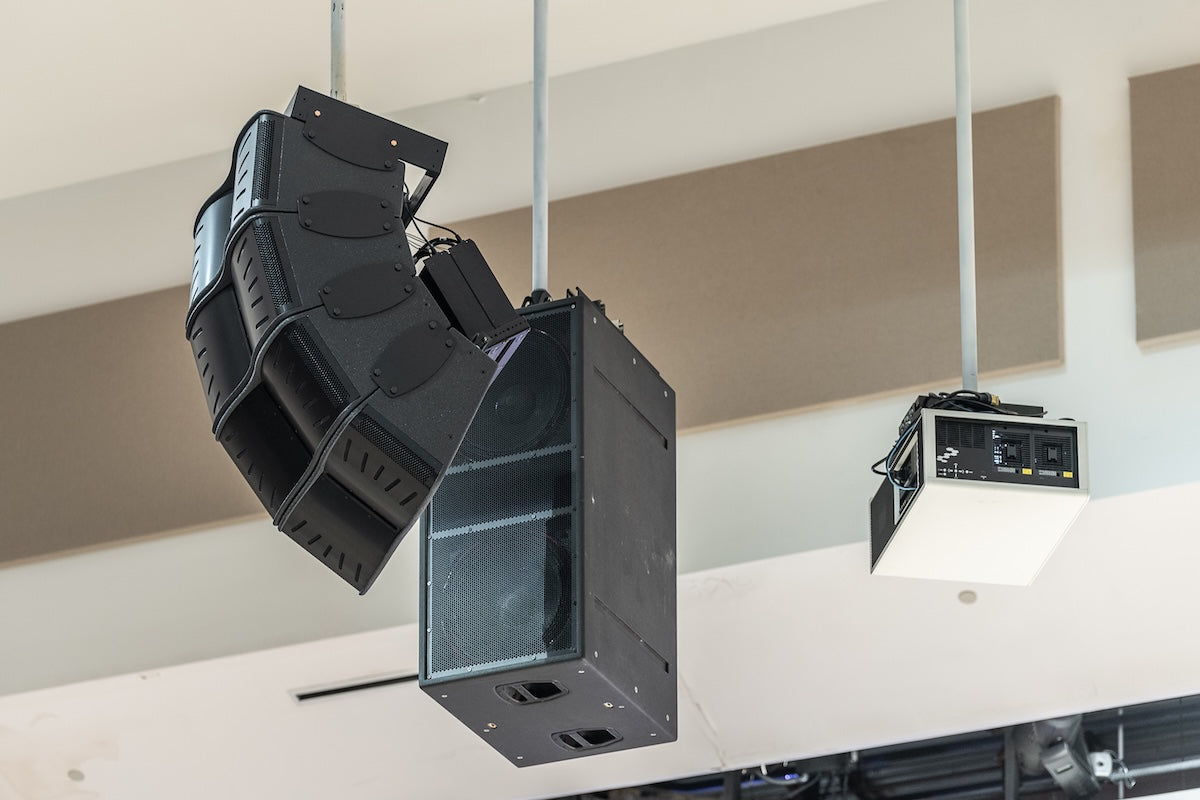

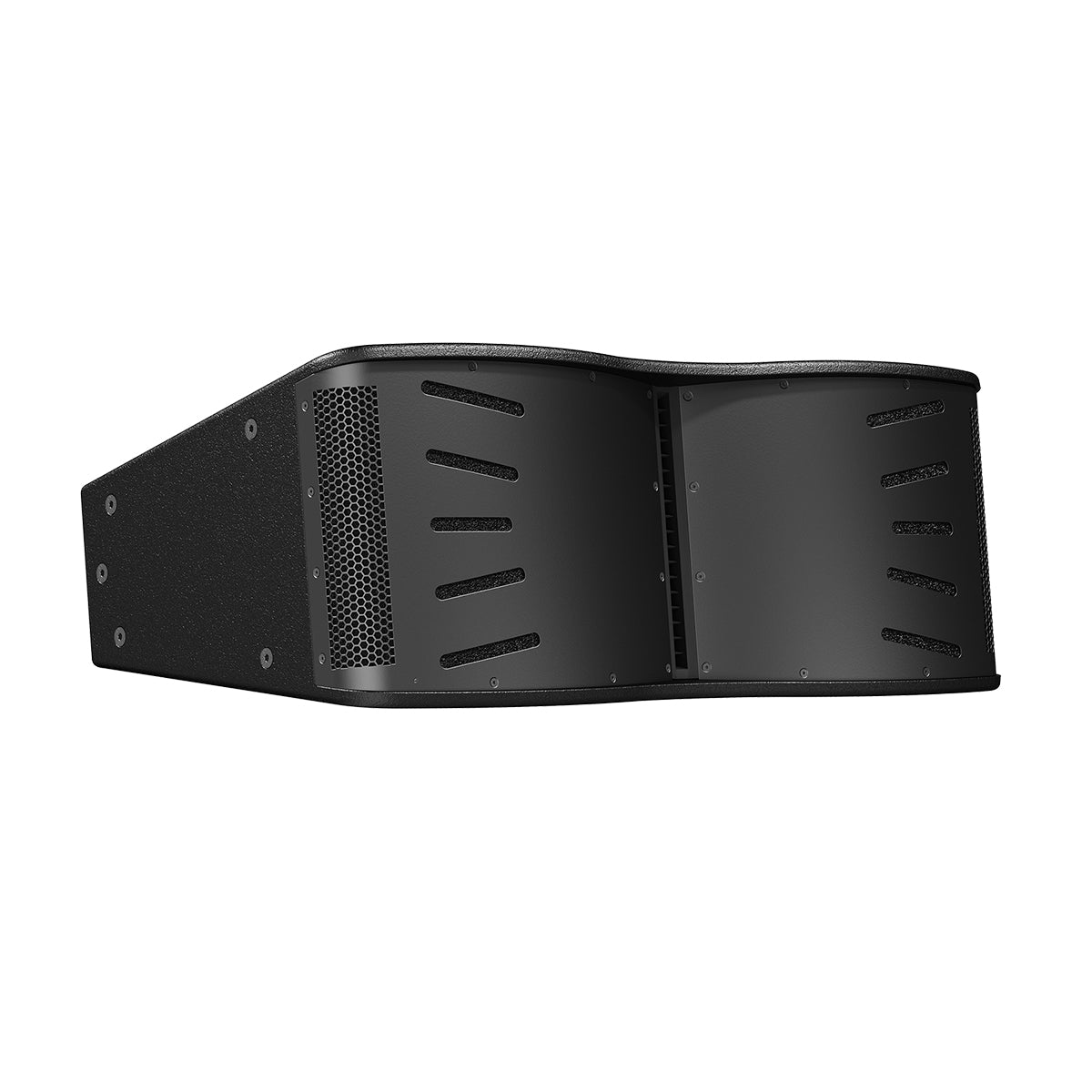

The CCA10i is a compact arrayable point source loudspeaker, designed for medium-sized venues to large distributed systems that need a flexible, scalable speaker solution. Mounted horizontally with tight acoustic centers to minimize comb filtering, each CCA10i enclosure provides a fixed 20° vertical coverage and can be flown with additional enclosures in vertical arrays.
Featuring a coaxial compression driver that uses separate midrange and high-frequency polymer ring-shaped diaphragms, the compression driver delivers an extremely wide response from 420 Hz – 18,000 Hz. Two 10” high-excursion ultra-low distortion drivers offer reduced power compression, providing efficient and accurate bass reproduction down to 52 Hz.
- 3-way Arrayable Point Source, designed for Bi-Amping.
- Constant Curvature waveguide for unprecedented array coherence.
- Precision 160° symmetrical horizontal pattern control.

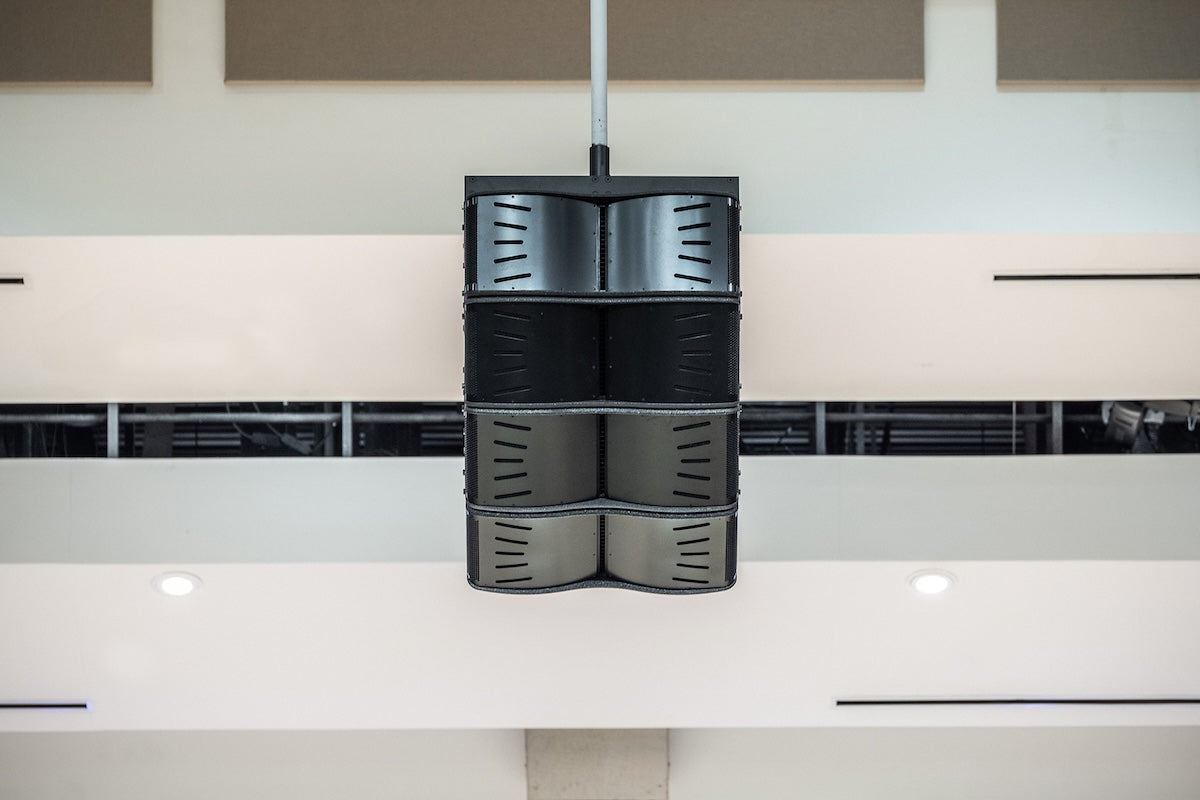

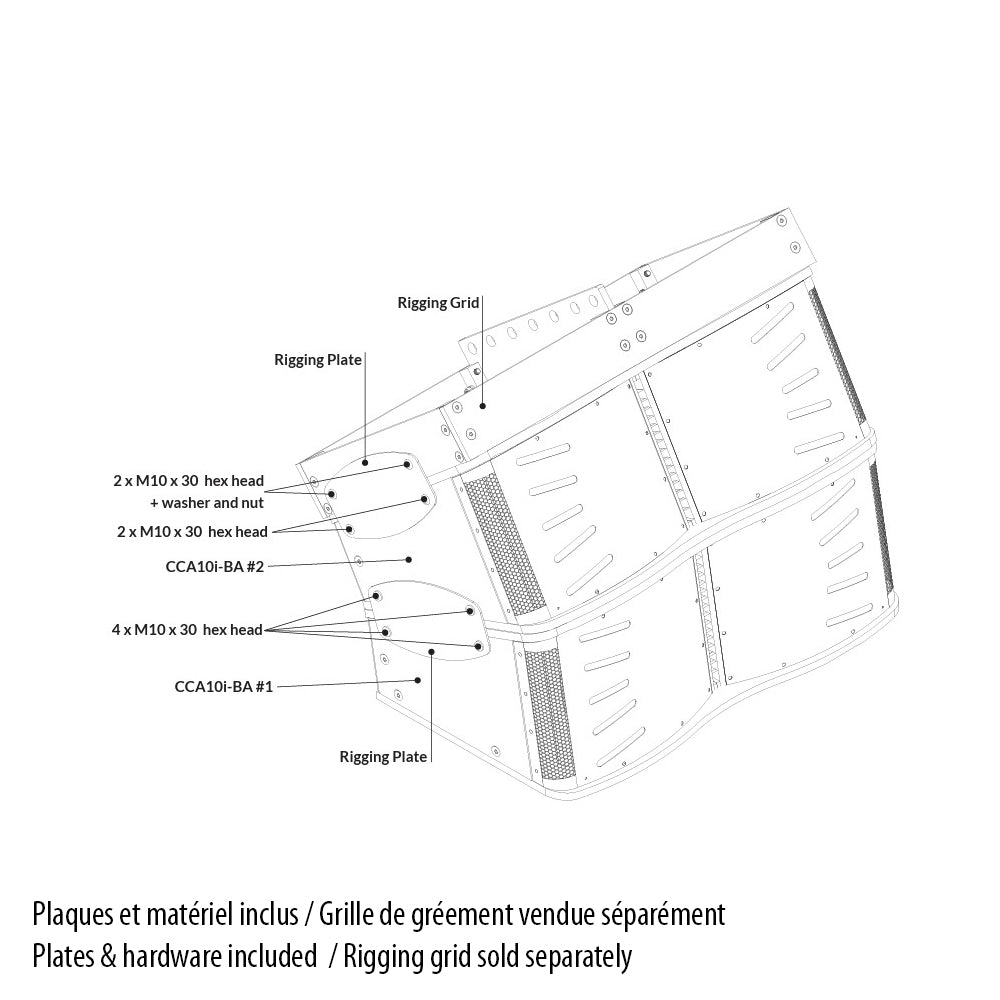

- Variable vertical coverage in 20° increments (one enclosure 20° and max 12 enclosures).
- Dual 10” ultra-low distortion, high excursion drivers.
- System range 52 Hz – 18 kHz.
- Exceptionally high SPL.
- Rugged Polyurea coating for extreme durability.
- System integration with Blaze Audio amplifiers.
| Frequency Response (-3dB)* | 52 Hz - 18 kHz |
| Frequency Range (-10 dB) | 45 Hz - 18 kHz |
| Horizontal Nominal Dispersion (-6dB) | 160° |
| Vertical Nominal Dispersion (-6 dB) | 20° |
| Max SPL @ 1W/1m (2.83v) | 131 dB SPL (140 dB SPL peak) |

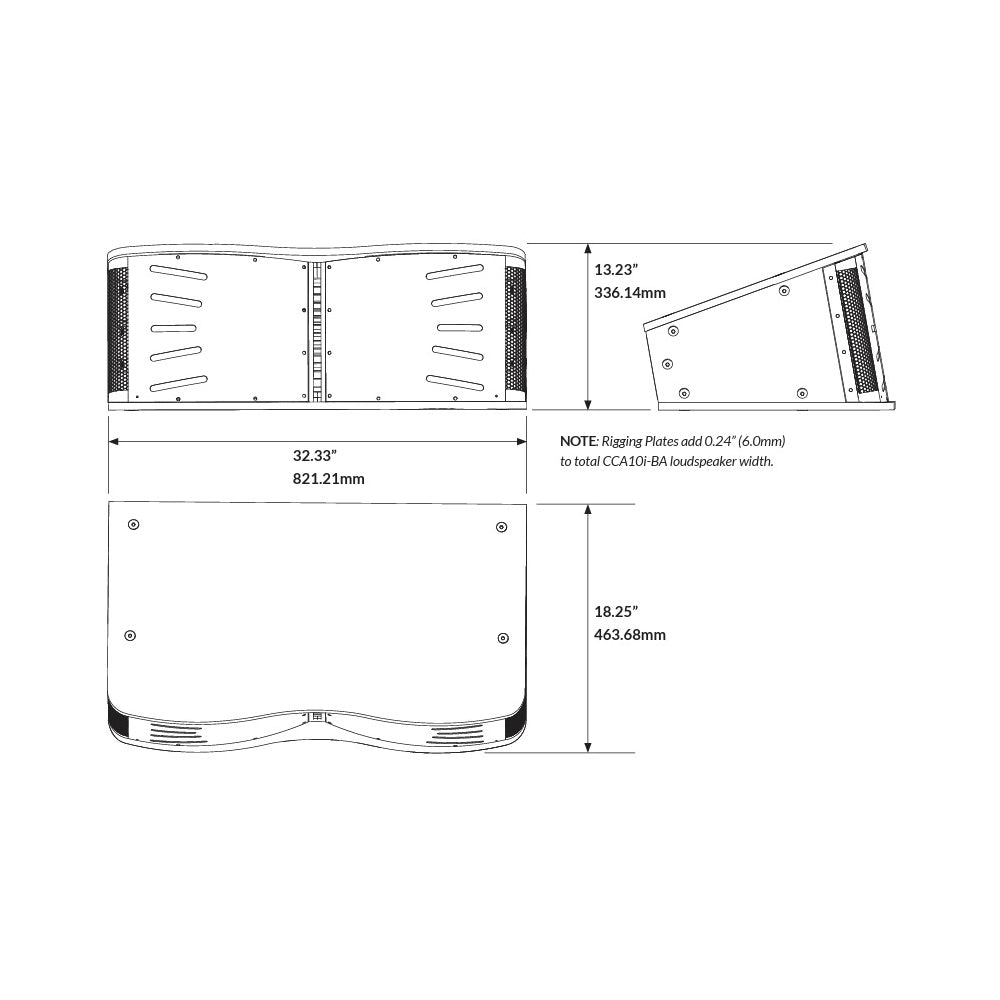

| Dimensions (HxWxD) | 13.23” x 32.33” x 18.25” 336.14 x 821.21 x 463.68mm |
| Weight | 83lbs | 37.65kg |
Weather & environment
Vehicle fitment
| Model | BZ-CCA10i-BA-B |
|---|
