Blaze Audio Corner Spkr, 4in+Rad, BZ-Ci4-BLK
Know What You’re Installing
Product Overview+
Description
4" + Passive Radiator Corner Speaker. 8Ohm Only, IP65, Black
Sold as Each, but MUST BUY 2

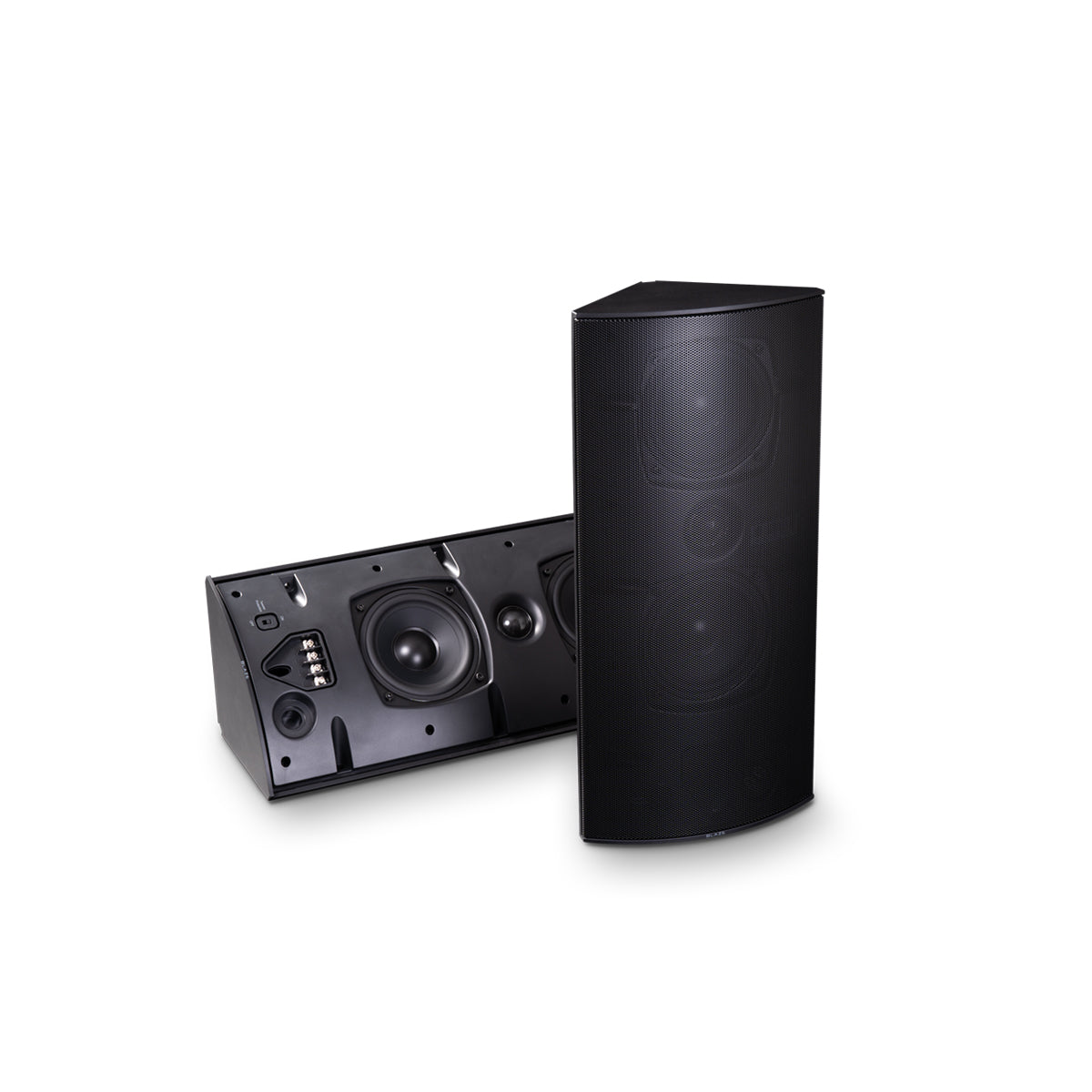

Ci4 is a feature packed compact 2-way full-range loudspeaker with medium output. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few loudspeakers, which makes the Ci4 especially suited for in-door and outdoor commercial installations. It features an advanced passive woofer design which enables the compact cabinet to deliver full-range bass.
The patented triangular cabinet features integrated mounting points, allowing it to be flush-mounted in corners or onto walls and ceilings without the need for brackets. Additionally, with our new slider system, installation becomes a flexible and easy one-person task
Cabinets can be coupled together to increase coverage to 180° or 270° degree. The cable connection is invisible both in vertical and horizontal applications and the tweeter features a switchable protection circuit for added safety.

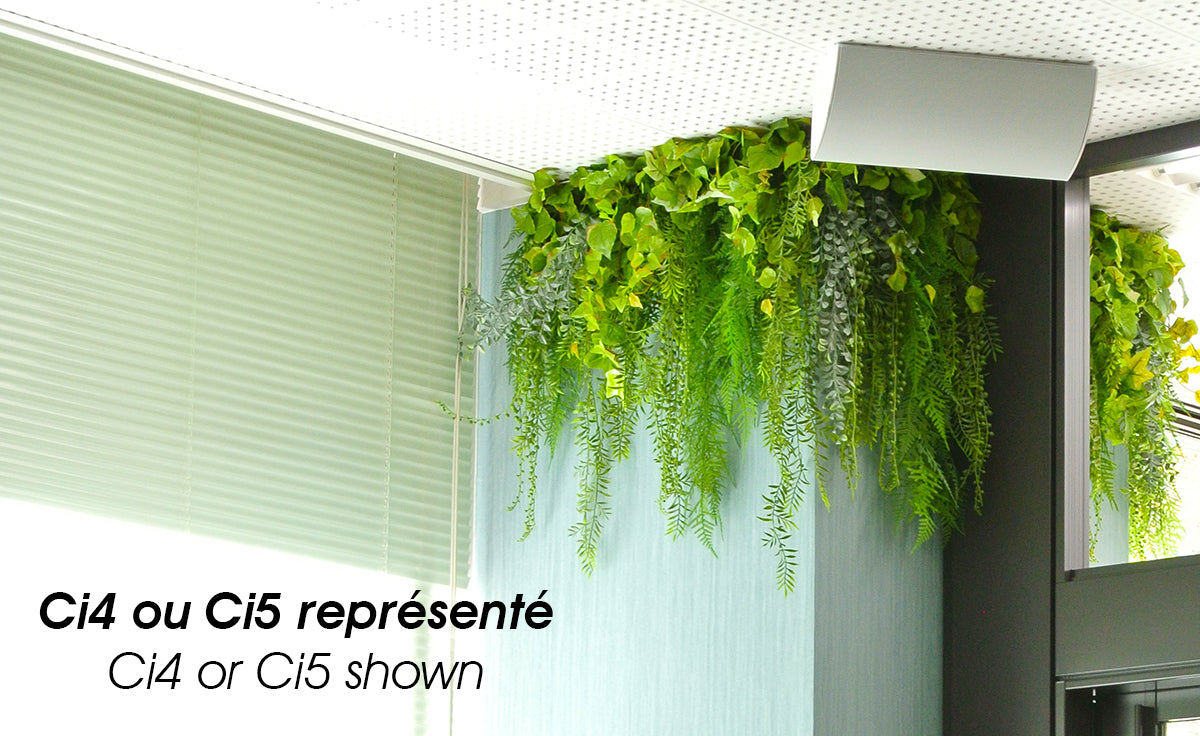

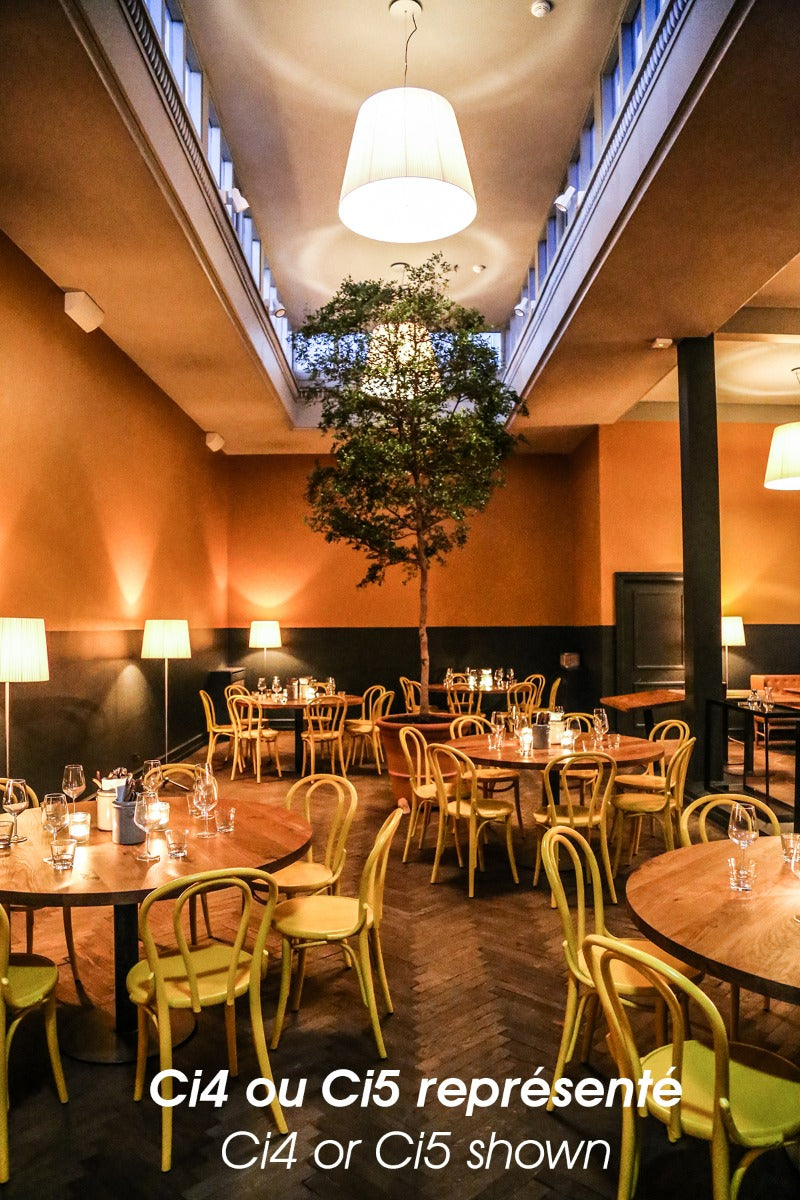

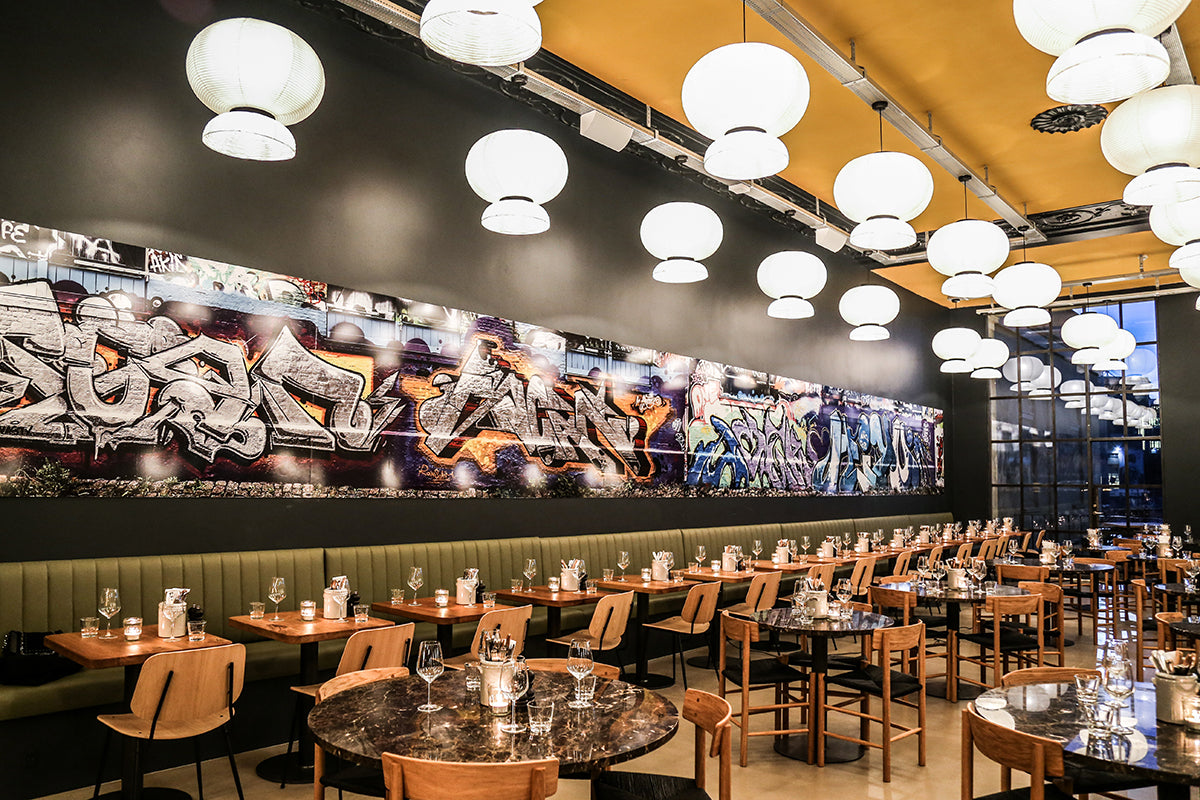

Ci4 is the perfect aesthetic loudspeaker solution for background sound in commercial installations such as cafes, hotels and retail shops.

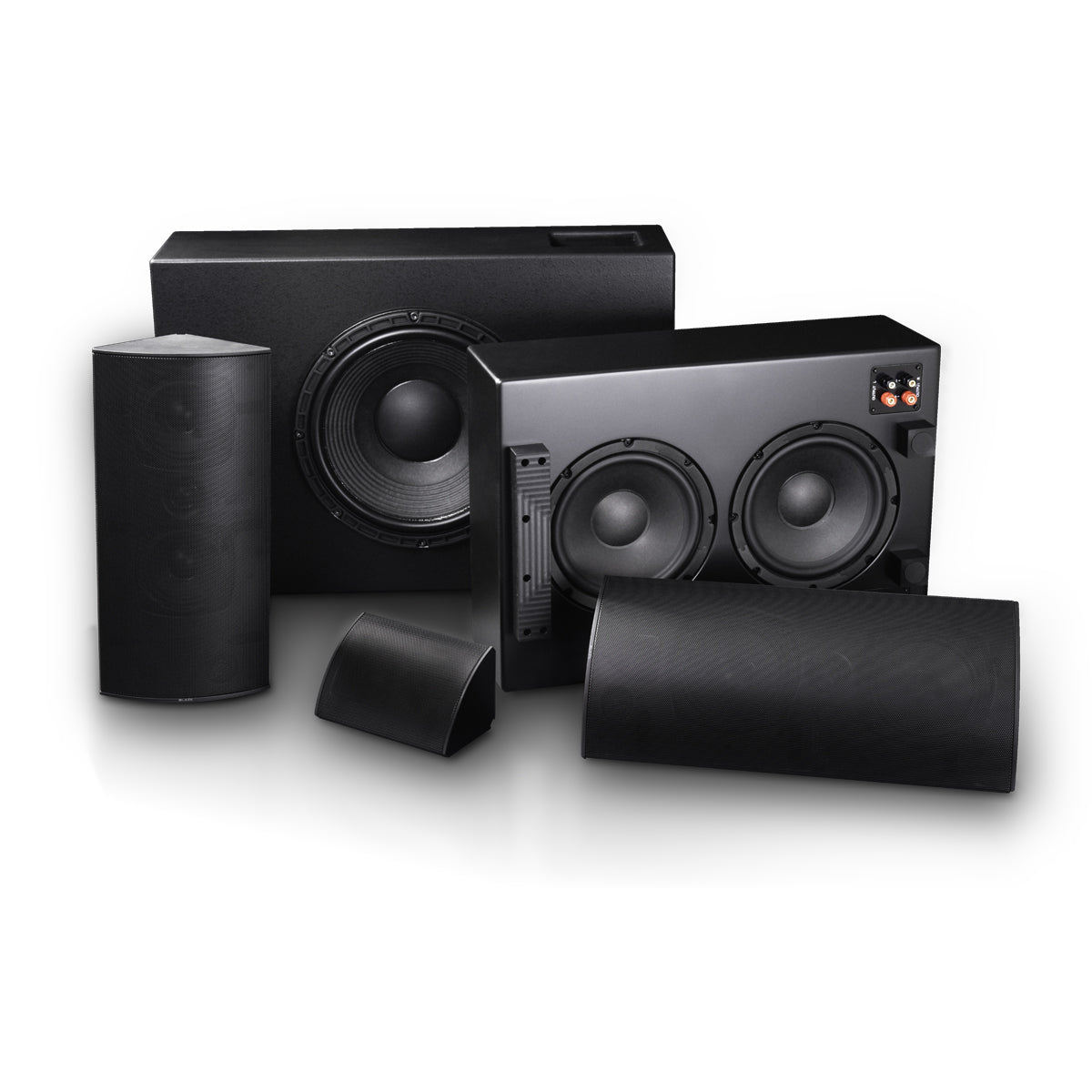

For enhanced bass performance, the Ci4 can be teamed indoors with our C8S and C12S subwoofers.

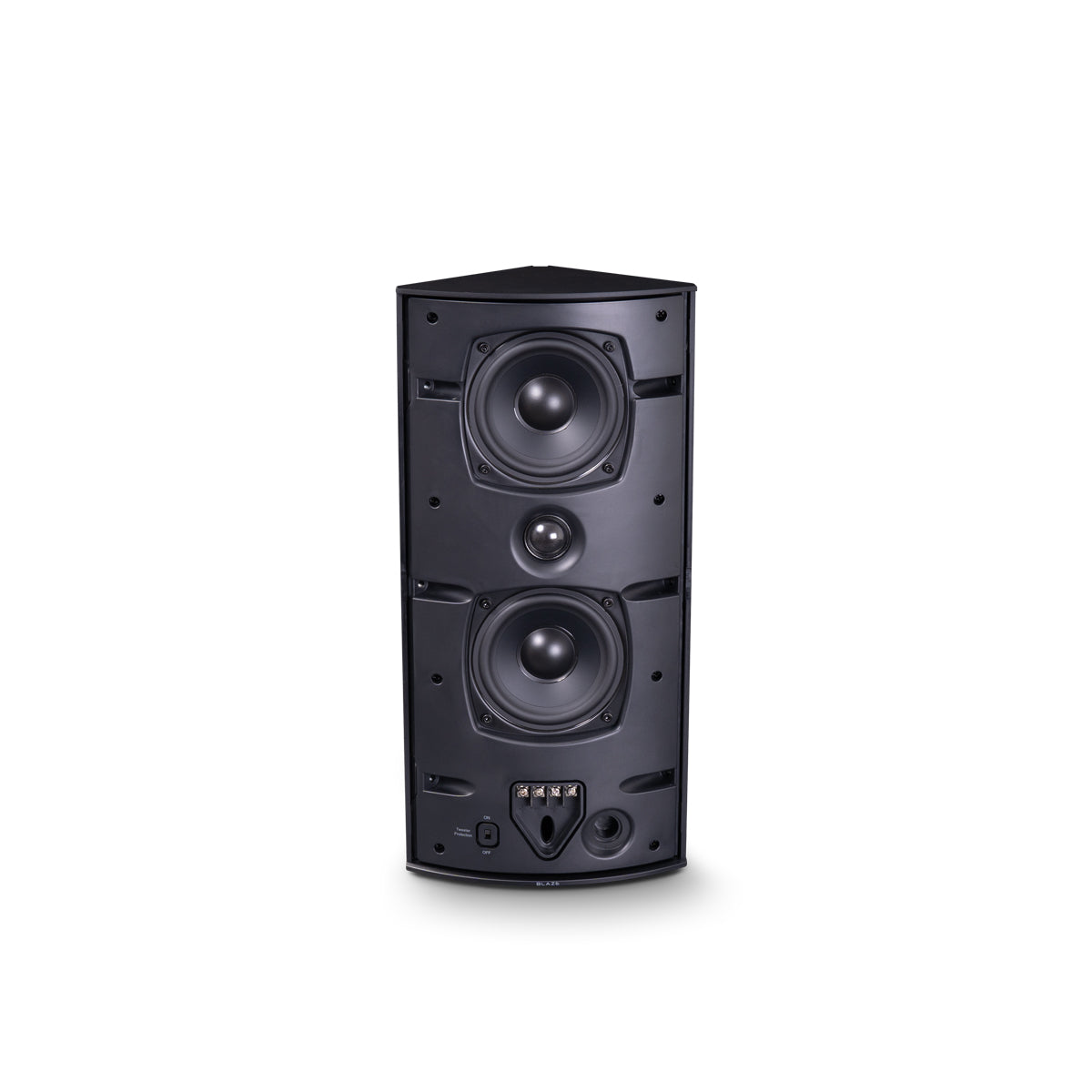

- 4″ woofer + 4” passive radiator.
- 1″ silk dome tweeter.

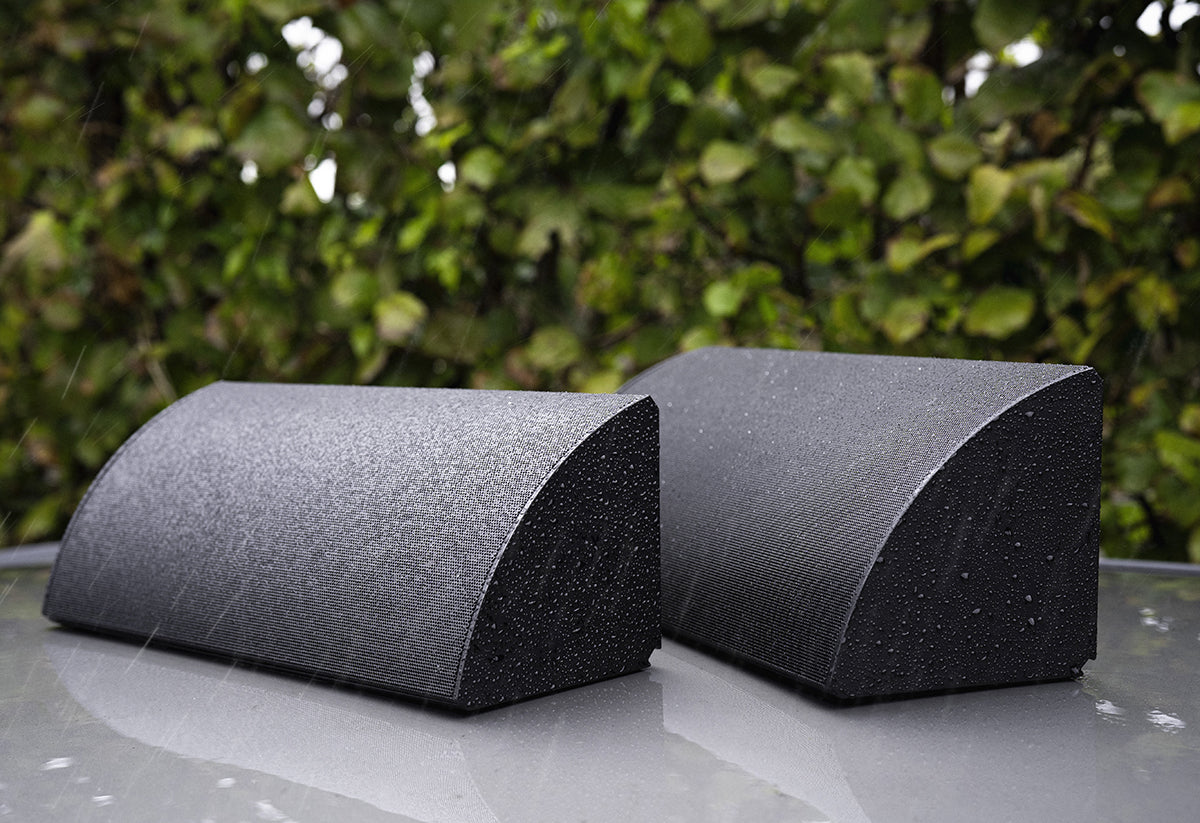

- IP65 rated.
- Switchable limiting circuit for tweeter.
- Triangular ABS cabinet.
- Metal grille.
- Hidden cable connection.
- Mounts without brackets or with hidden sliders.
- Screw terminals.

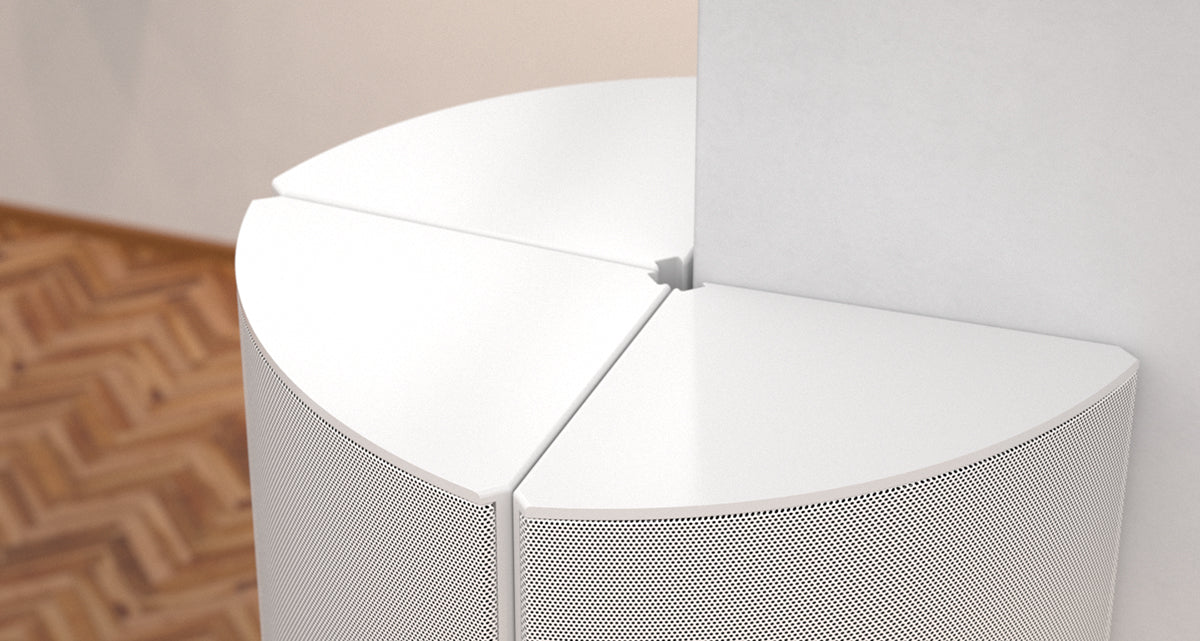

- Couples together for 180° or 270° coverage.
- Placement: Indoors or outdoors, walls/ceilings incl. corners or hanging from ceiling.
- Compatible with Blaze Audio’s C8S and C12S subwoofers.
- Accessories: Ceiling suspension bracket / Half moon bracket / Slider mounting bracket (Slider mounting bracket incl. w. loudspeaker)
- Designed in Denmark.
- Available in black or white.
Specifications
- Sensitivity SPL / 1W @ 1m: 86 dB
- Maximum SPL, Long Term: 105 dB
- Maximum SPL, Peak: 111 dB
- Frequency response: 60-20kHz
- Nominal impedance: 8 Ω
- Dispersion: 100° vertical / 100° horizontal
- Ingress Protection: IP65
- Recommended amplifier: 30-60W
- Measurements:
- 400 x 190 x 145 mm
- 15.75 x 7.48 x 5.71 in
- Weight:
- 2,7 kg
- 5.95 lb
