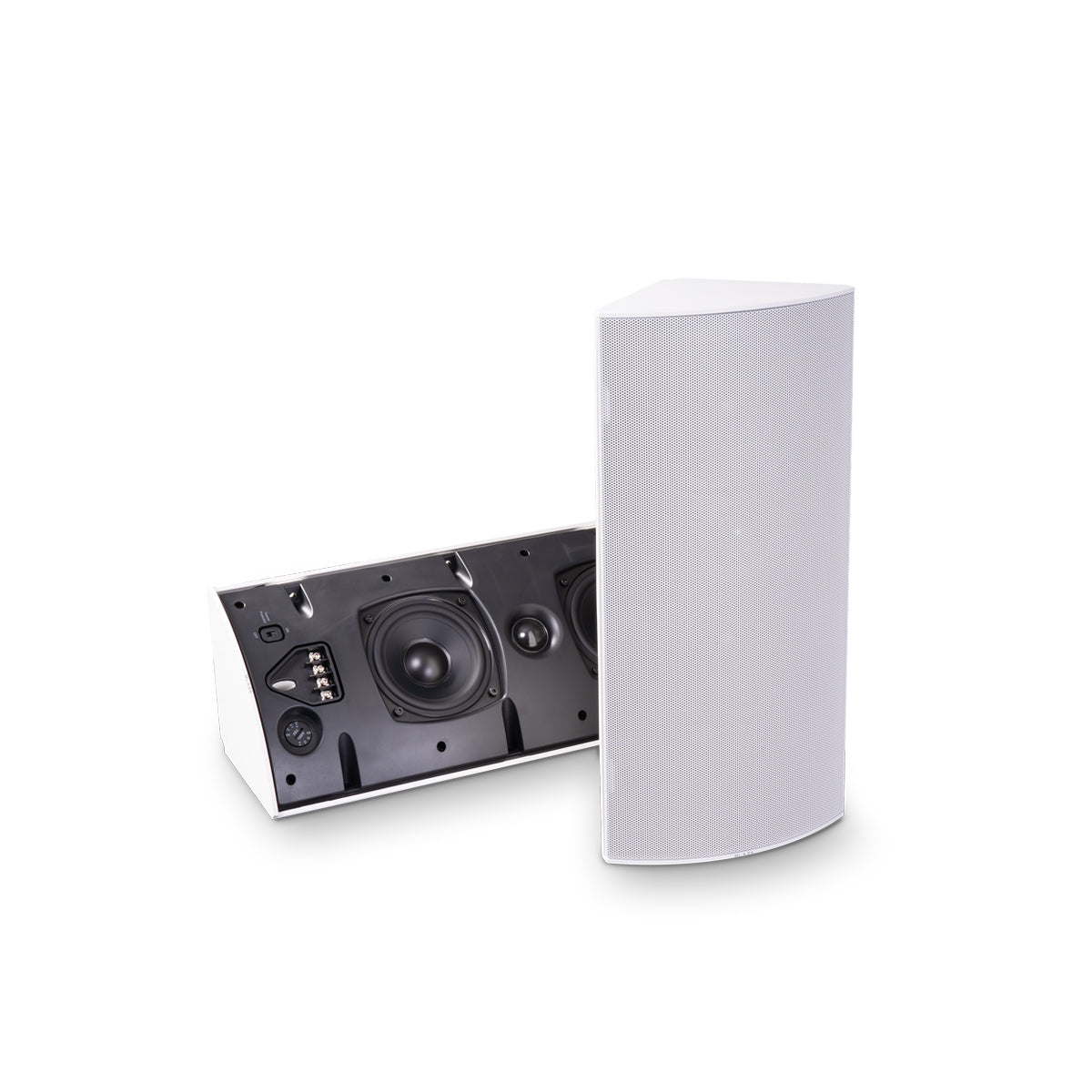

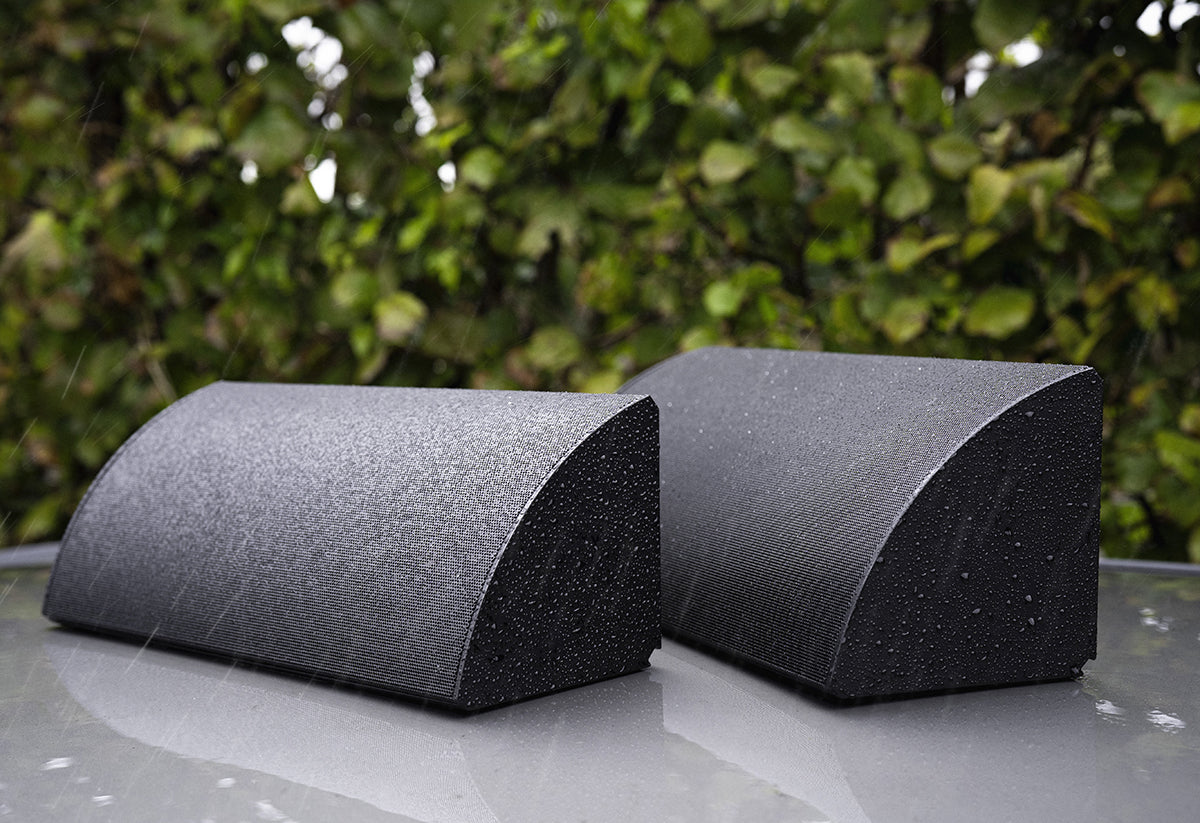

Blaze Audio Corner Spkr, 4in+Rad, BZ-Ci4V-WHT

Description

4" + Passive Radiator Corner Speaker. 70v/8Ohm, IP65, White

Sold as Each, but MUST BUY 2

Ci4-V is similar to the Ci4, but with switchable high-impedance mode. In high-impedance mode, the Ci4-V has tap settings for 3,5 – 7,5 or 15 watt output conveniently located on the front baffle. Ci4-V is a feature packed compact 2-way full-range loudspeaker with medium output. With a wide and uniform dispersion, full coverage can be achieved by installing relatively few loudspeakers, which makes the Ci4-V especially suited for in-door and outdoor commercial installations. It features an advanced passive woofer design which enables the compact cabinet to deliver full-range bass.

The patented triangular cabinet features integrated mounting points, allowing it to be flush-mounted in corners or onto walls and ceilings without the need for brackets. Additionally, with our new slider system, installation becomes a flexible and easy one-person task

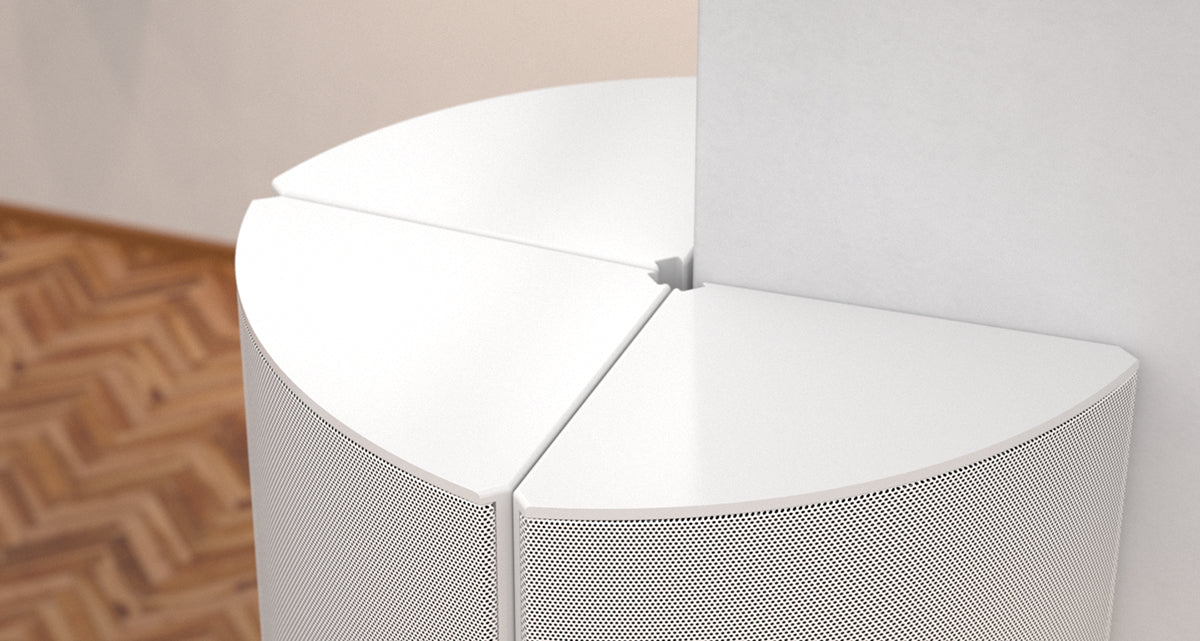

Cabinets can be coupled together to increase coverage to 180° or 270° degree. The cable connection is invisible both in vertical and horizontal applications and the tweeter features a switchable protection circuit for added safety.

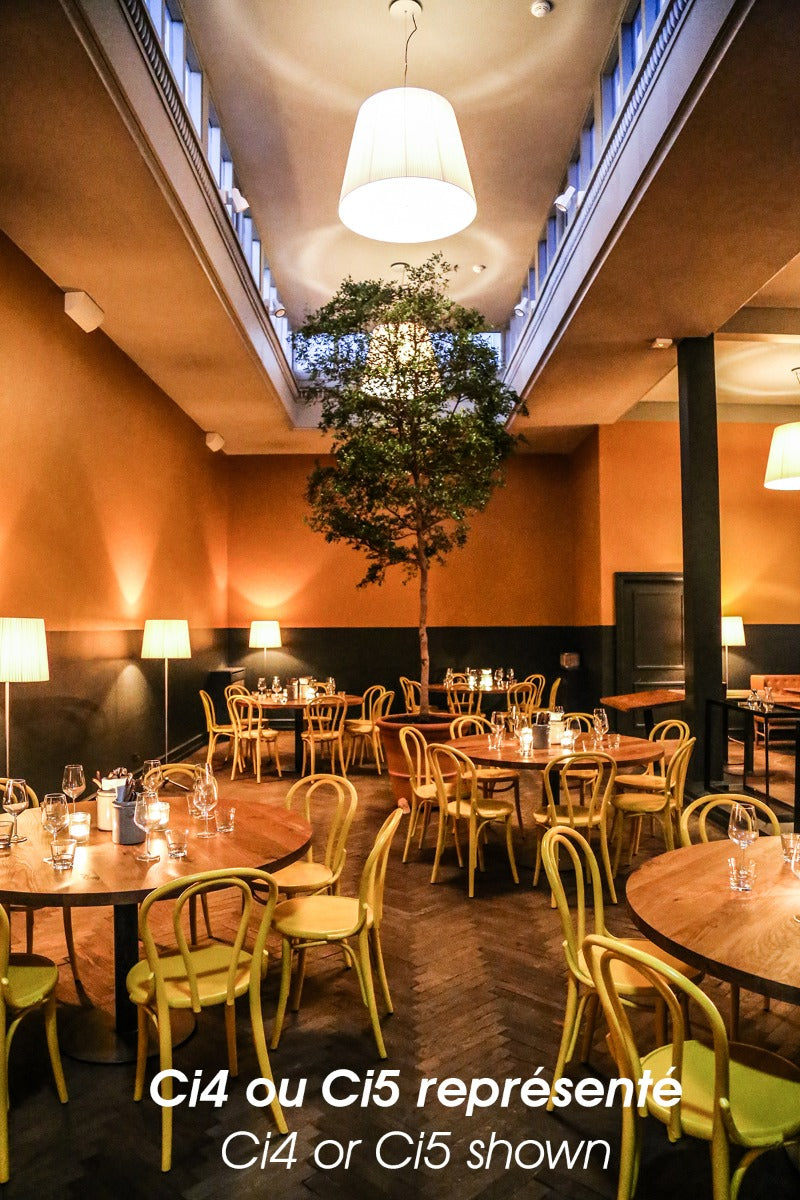

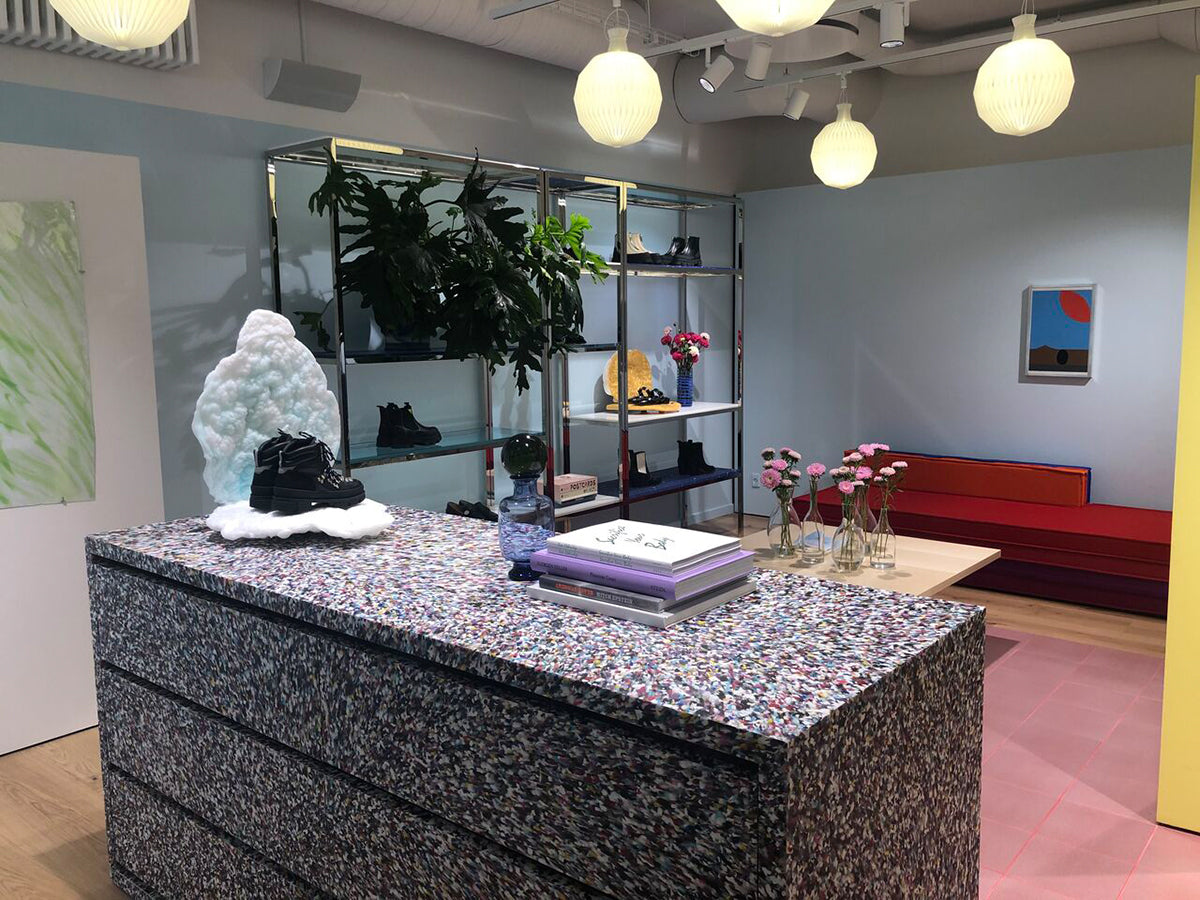

Ci4-V is the perfect aesthetic loudspeaker solution for background sound in commercial installations such as cafes, hotels and retail shops.

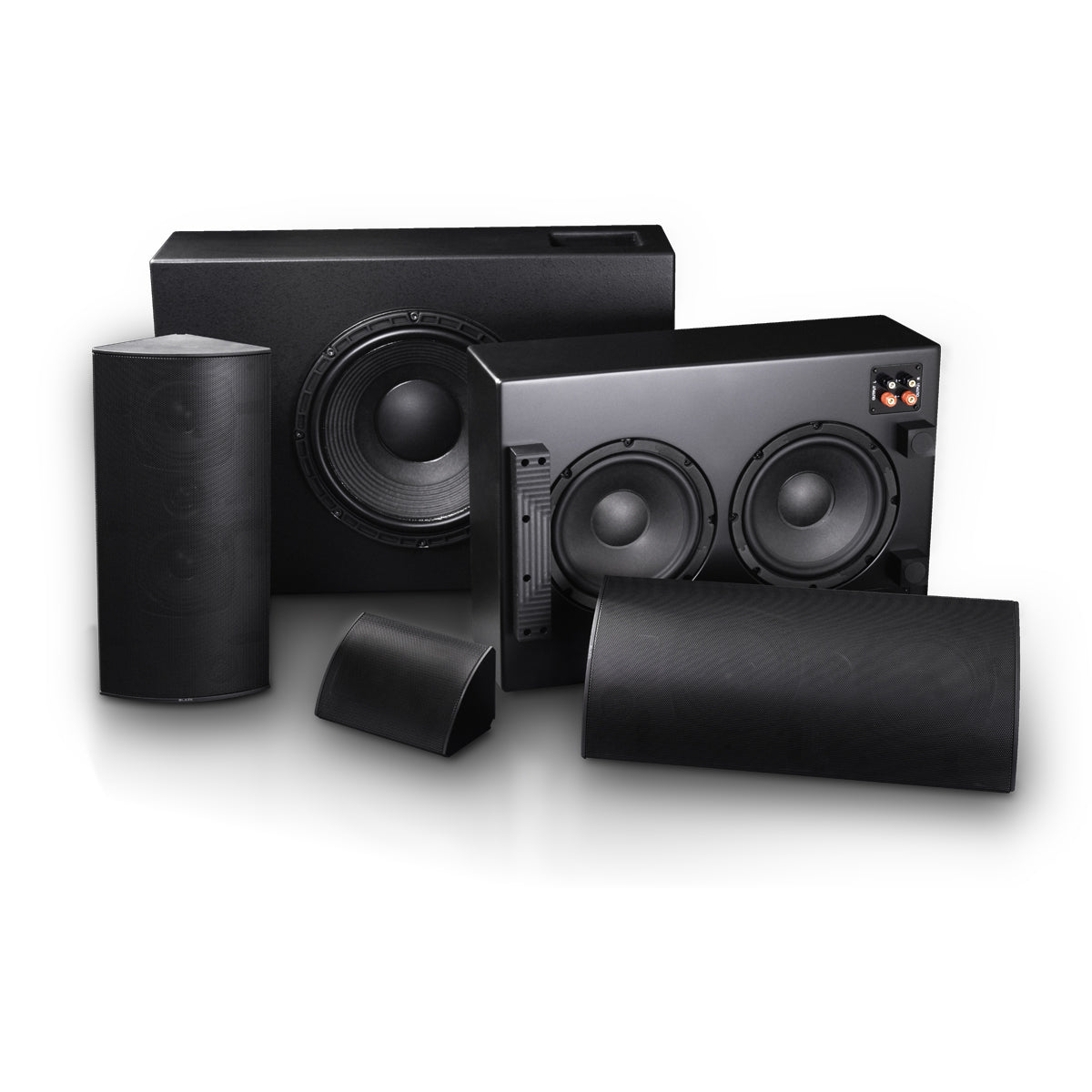

For enhanced bass performance, the Ci4 can be teamed indoors with our C8S and C12S subwoofers.

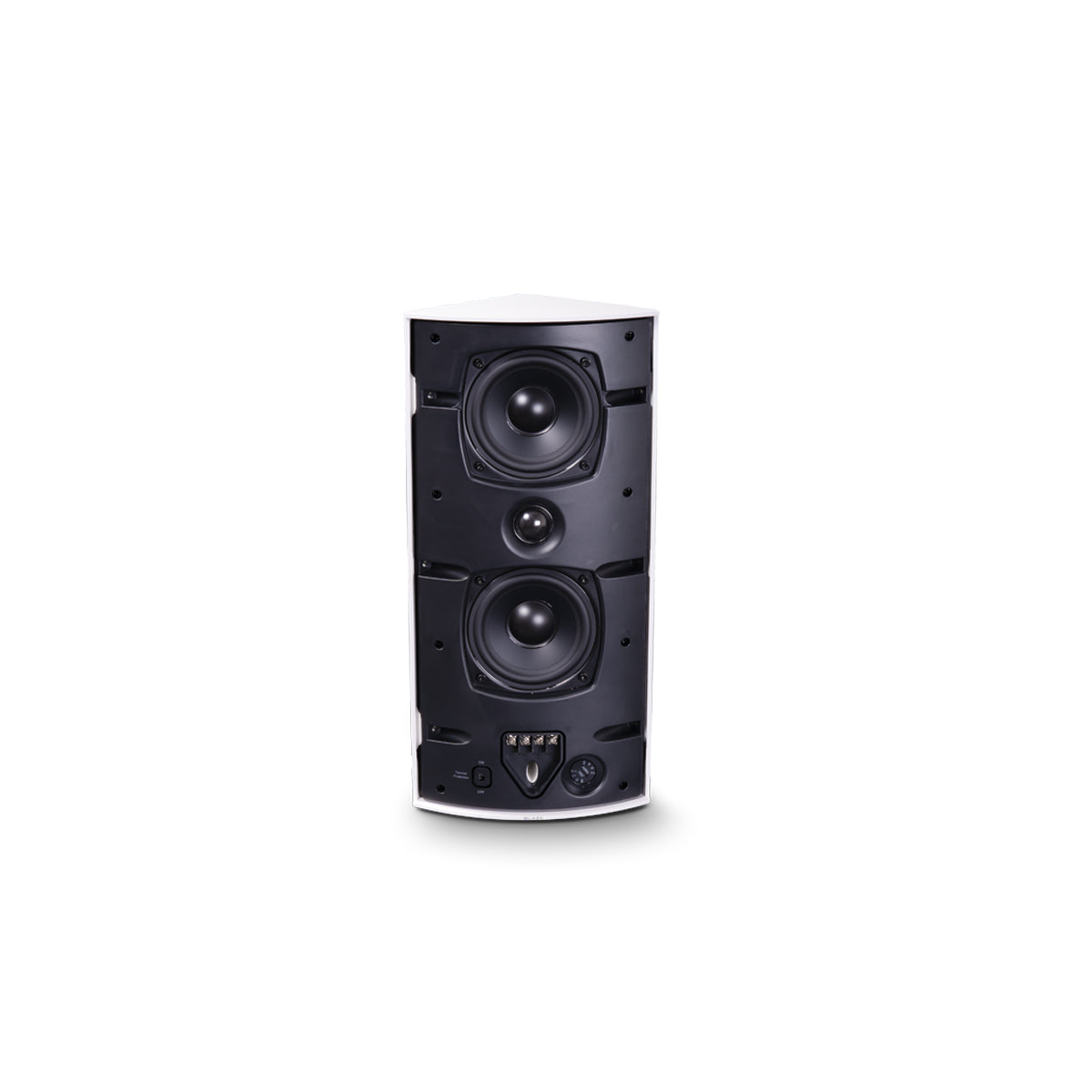

• 4″ woofer + 4” passive radiator.
• 1″ silk dome tweeter.
• Switchable 100/70V mode/8 Ω mode
• IP65 rated.
• Switchable limiting circuit for tweeter.
• Triangular ABS cabinet.
• Metal grille.
• Mounts without brackets or with hidden sliders.
• Hidden cable connection.
• Screw terminals.
• Couples together for 180° or 270° coverage.

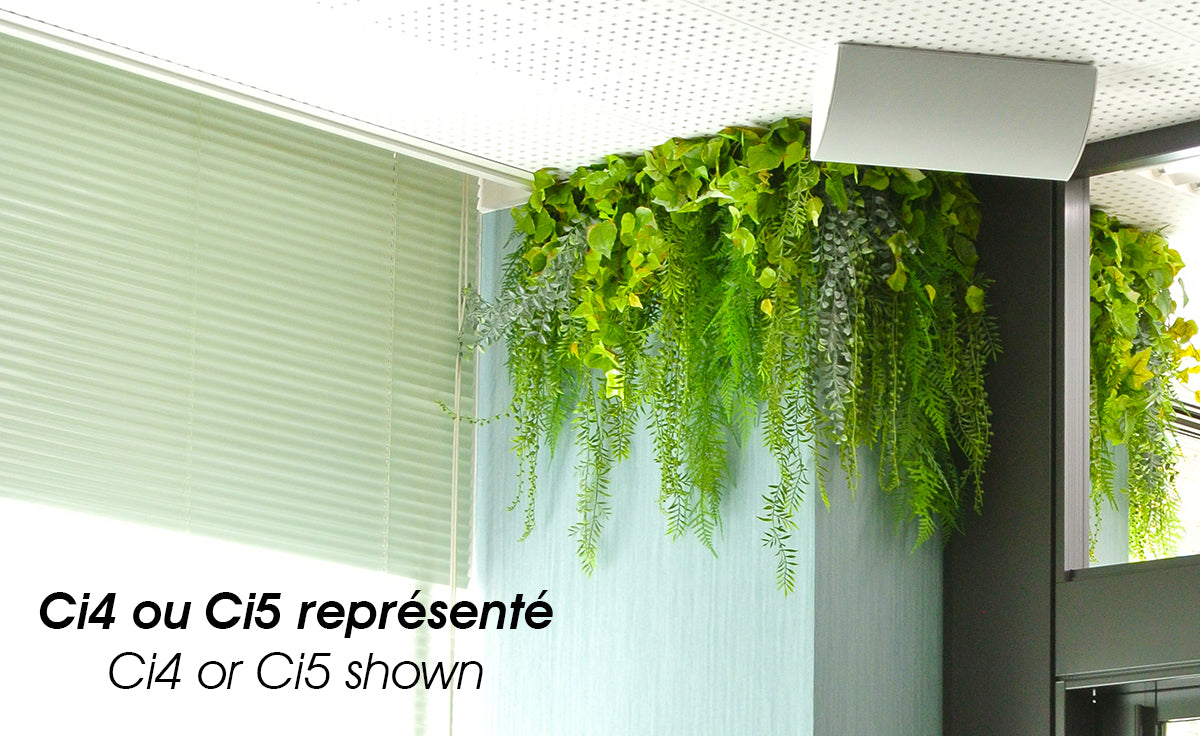

• Placement: Indoors or outdoors, walls/ceilings incl. corners or hanging from ceiling.
• Compatible with Blaze Audio’s C8S and C12S subwoofers.
• Accessories: Ceiling suspension bracket / Half moon bracket / Slider mounting bracket (Slider mountingbracket incl. w. loudspeaker)
• Designed in Denmark.
• Available in black or white.

Specifications

• Sensitivity SPL / 1W @ 1m: 86 dB
• Maximum SPL, Long Term: 105 dB
• Maximum SPL, Peak: 111 dB
• Frequency response: 60-20kHz
• Nominal impedance: 8 Ω
• Dispersion: 100° vertical / 100° horizontal
• Ingress Protection: IP65
• Recommended amplifier: 25-50W
• Ci4-V transformer taps:
• 70 V: 3,75, 7,5, 15 W
• 100 V: 7,5, 15 W
• Measurements:
• 400 x 190 x 145 mm
• 15.75 x 7.48 x 5.71 in
• Weight:
• 3.15 kg
• 6.95 lb
