Blaze Audio PowerZone Connect -Dante-20 BZ-PowerZoneCT-1008D
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandBlaze Audio
- SKUBZ-PowerZoneCT-1008D
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- Description PowerZone™ Connect 1008D (LBX-888-031)1000 W DSP-enabled Class-D amplifier with 8 channels and Dante™ 1RU form factor Full-matrix DSP configuration via PowerZone™ Control web app (built-in) Hybrid power distribution in both Lo-Z and Hi-Z Powered by Pascal UM...
Product description
Description

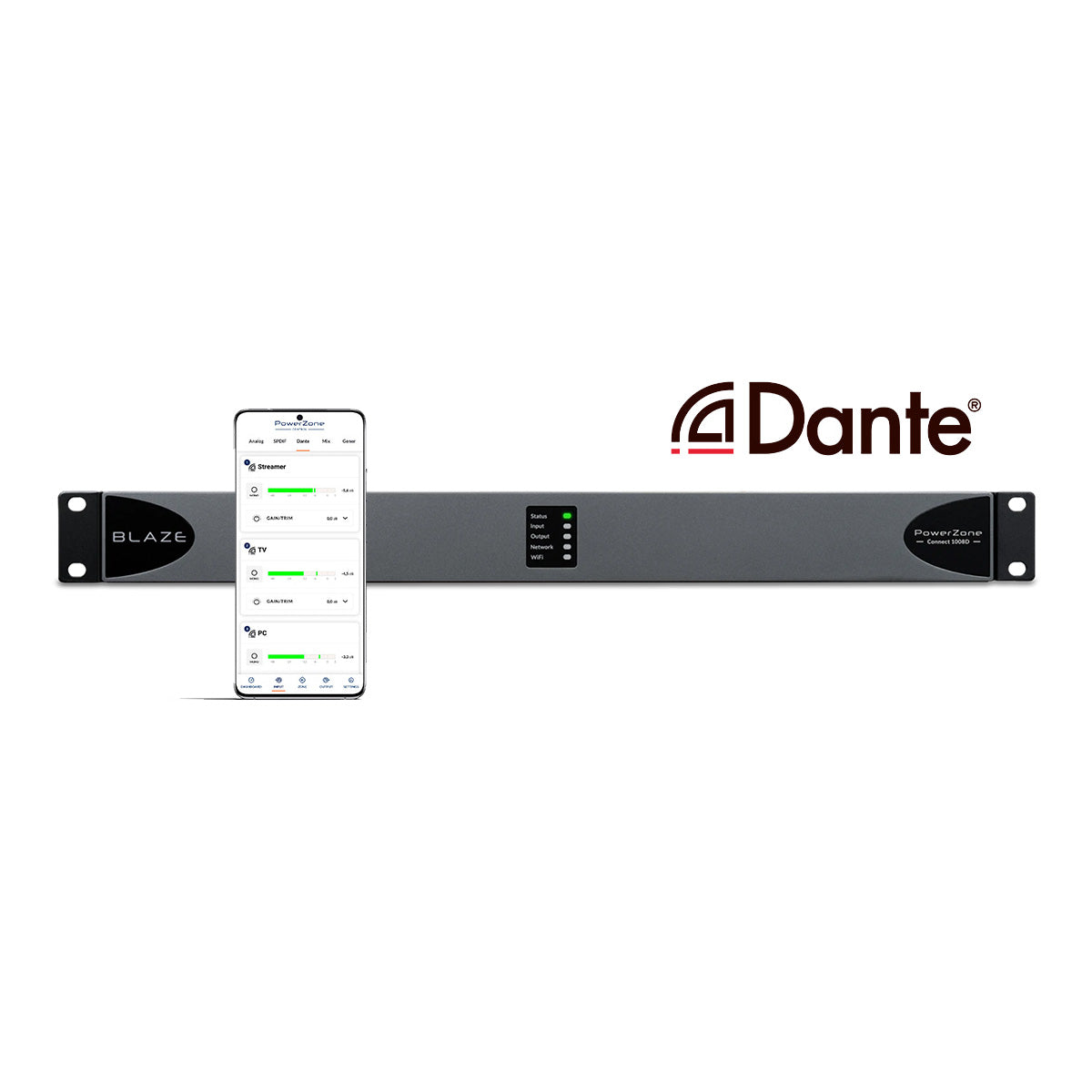

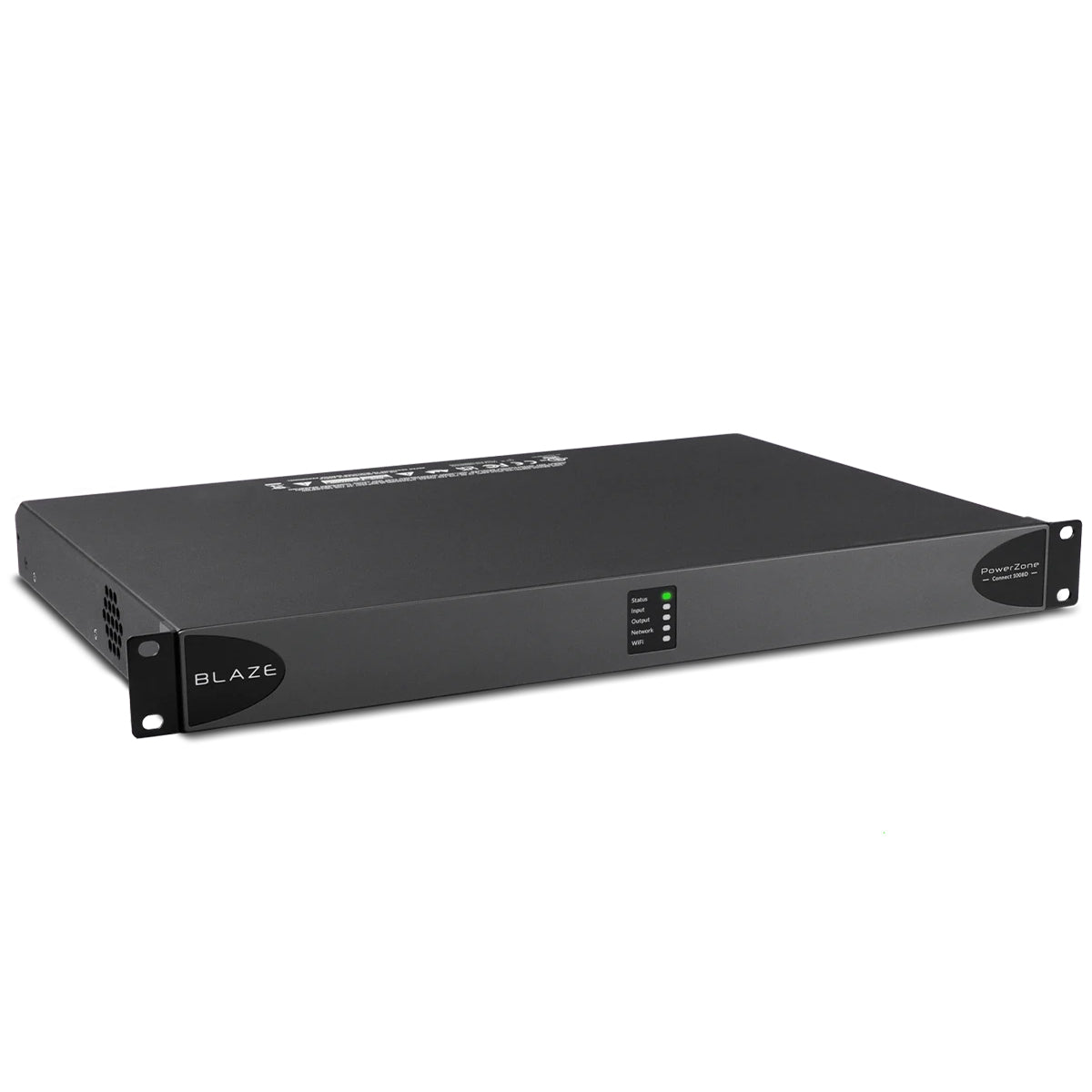

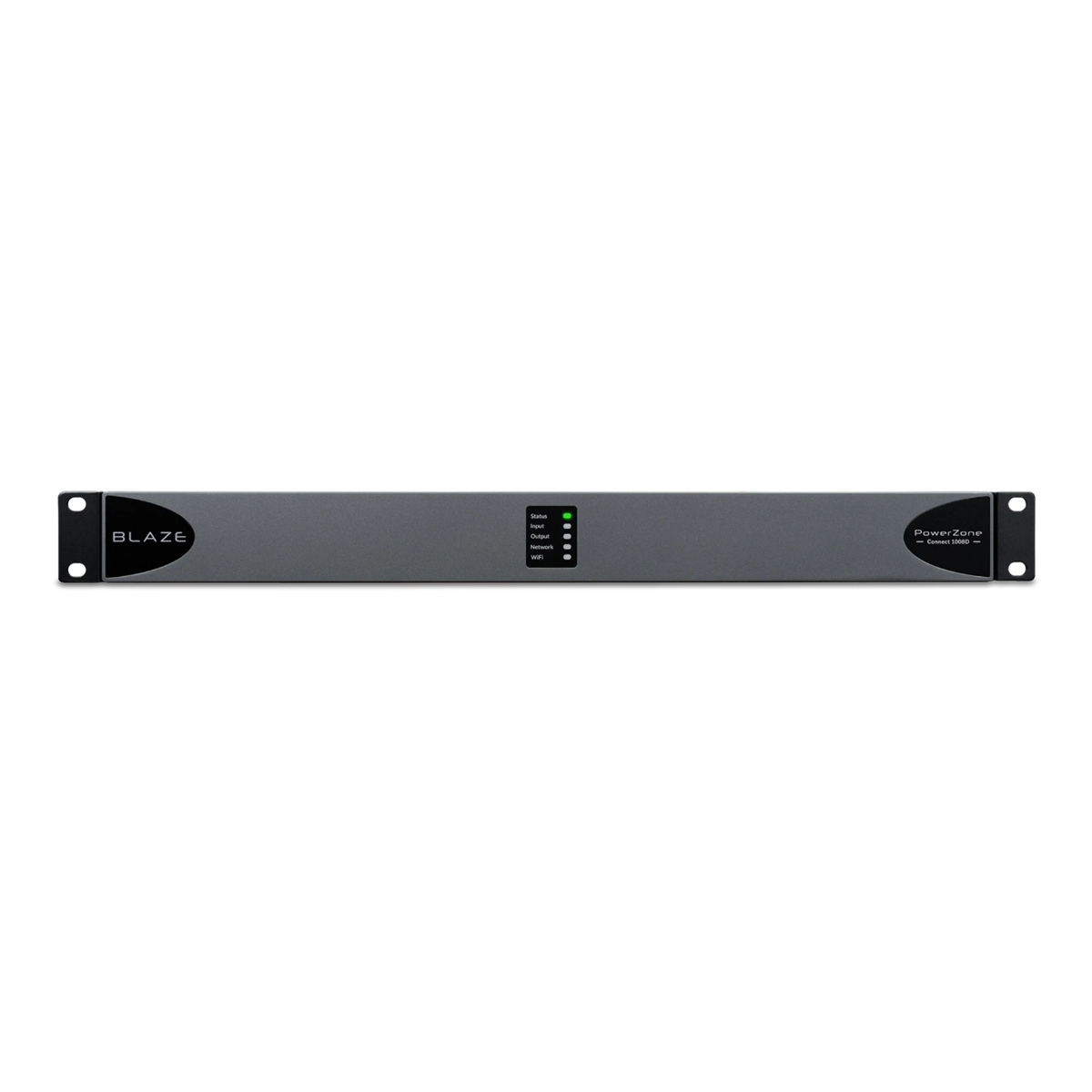

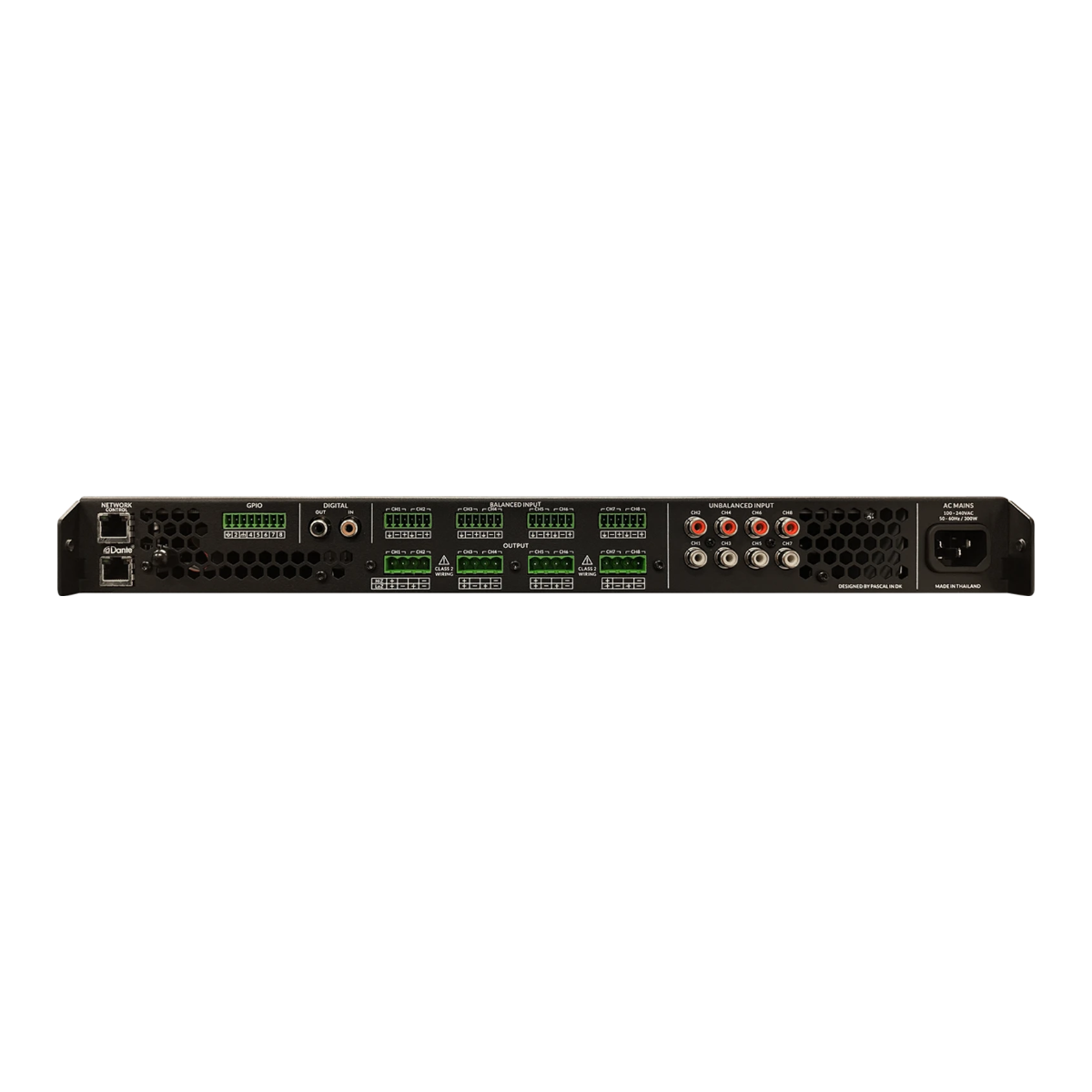

PowerZone™ Connect 1008D (LBX-888-031)
1000 W DSP-enabled Class-D amplifier with 8 channels and Dante™
- 1RU form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z and Hi-Z
- Powered by Pascal UMAC™ Class-D technology
- Dante™ Ultimo™ chip 4×4 (4-channels)
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- UREC™ universal power supply with PFC
- 5 Year warranty
| Output Power @ 4/8Ω | 8 x 125 W |
| Output Power @ 70/100V* | 4 x 250 W |
| Total System Power | 1000 W |
| Power Consumption | 300 W |
| Dimensions | 44 x 440 x 319 mm 1.7 x 17.3 x 12.6 in |
| Weight | 3.8 kg | 8.4 lbs |
Weather & environment
Vehicle fitment
| Model | BZ-PowerZoneCT-1008D |
|---|
