Blaze Audio PowerZone Connect 4008 BZ-PowerZoneCT-4008
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandBlaze Audio
- SKUBZ-PowerZoneCT-4008
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- PowerZone Connect 4008 - 2U: 8 Channel - 4000w 8 Ohm & 70v IP Amplifier with DSP The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total syste...
Product description

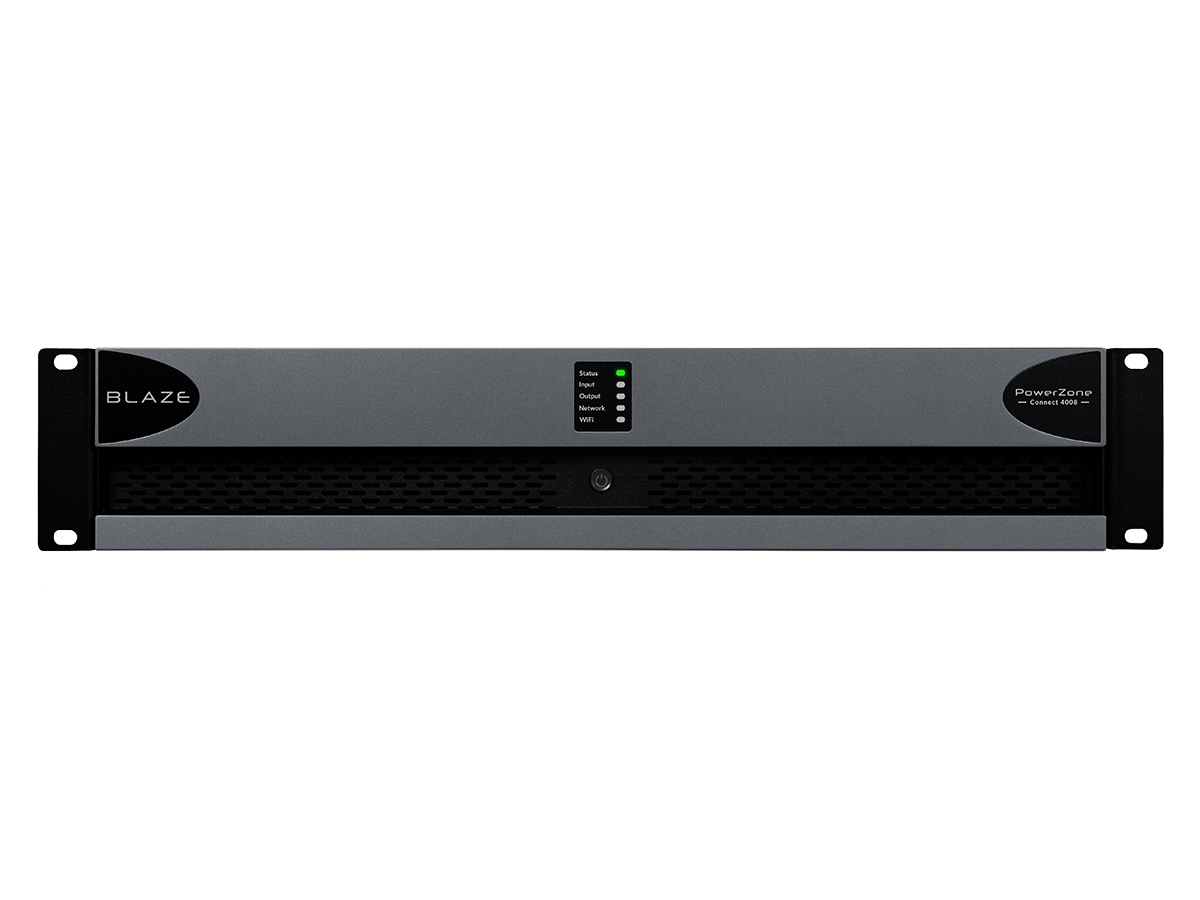

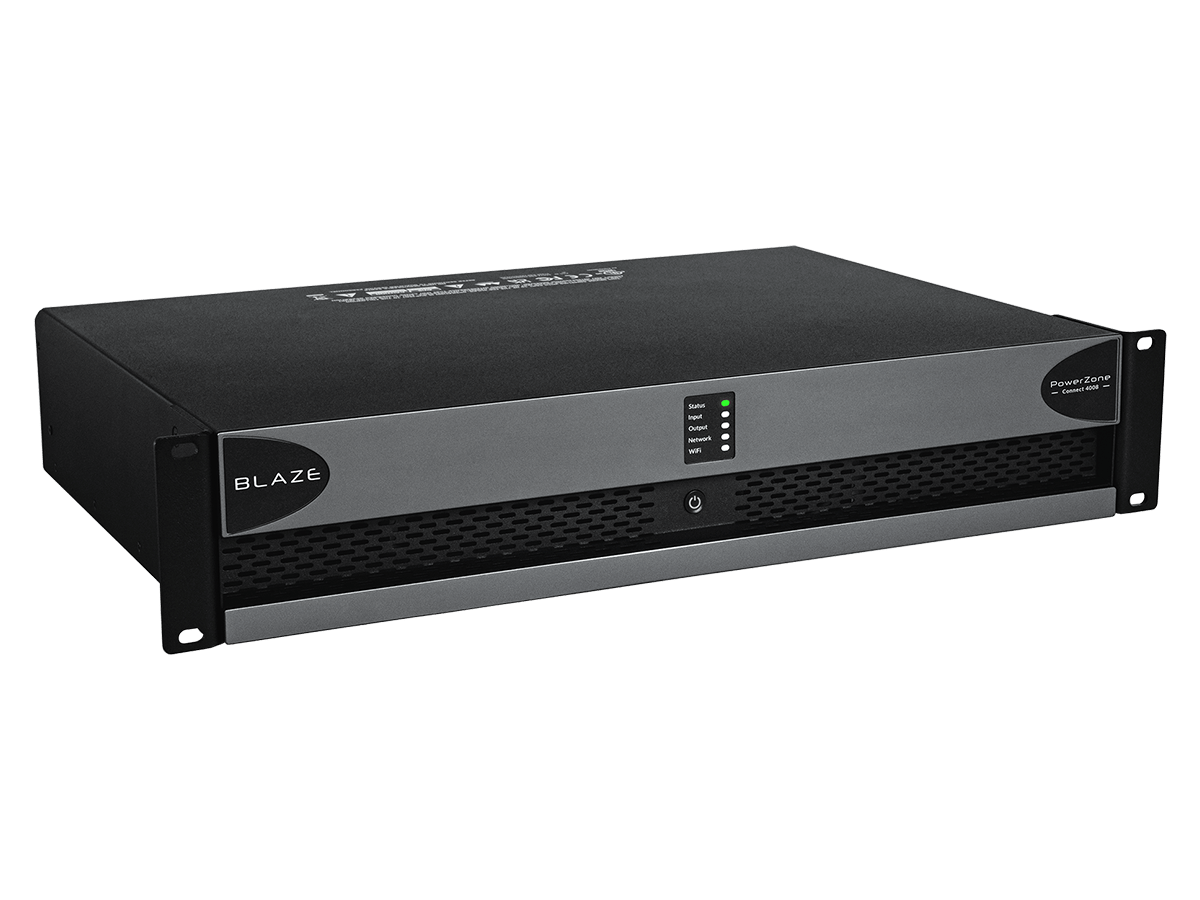

PowerZone Connect 4008 - 2U: 8 Channel - 4000w 8 Ohm & 70v IP Amplifier with DSP
The PowerZone™ Connect 2U series is a line of ultra-reliable, full-matrix DSP-enabled Class-D amplifiers that delivers exceptional system configuration and flexible output, with a total system power ranging from 1000 W to 6000 W. The amplifiers have built-in Wireless-Access-Point for simple connection and easy system setup via Wi-Fi.
- Full rack 2U form factor
- Full-matrix DSP configuration via PowerZone™ Control web app (built-in)
- Hybrid power distribution in both Lo-Z (8 Ohms) and Hi-Z (70v)
- Powered by Pascal UMAC™ Class-D technology
- UREC™ universal power supply with PFC
- Flexible power sharing across output channels
- S/PDIF input/output
- Configurable GPIO
- ErP and Energy Star compliant
- UL listed audio equipment
- 5 Year warranty
| Channels | 8 x Lo-Z/4 x Hi-Z |
| Output Power @ 2 Ω | 8 x 500 W (SE) |
| Output Power @ 4 Ω | 8 x 500 W (SE) 4 x 1000 W (BTL) |
| Output Power @ 8 Ω | 8 x 250 W (SE) 4 x 1000 W (BTL) |
| Output Power @ 70 V | 4 x 1000 W (BTL) |
| Output Power @ 100 V | 4 x 1000 W (BTL) |
| Total System Power | 4000 W |
Weather & environment
Vehicle fitment
| Model | BZ-PowerZoneCT-4008 |
|---|
Support & warranty
Need help choosing or installing?
We build indestructible, IP-rated systems for marine, motorcycle, UTV, and automotive. If you want a matched setup, we’ll guide you to the right gear the first time.
