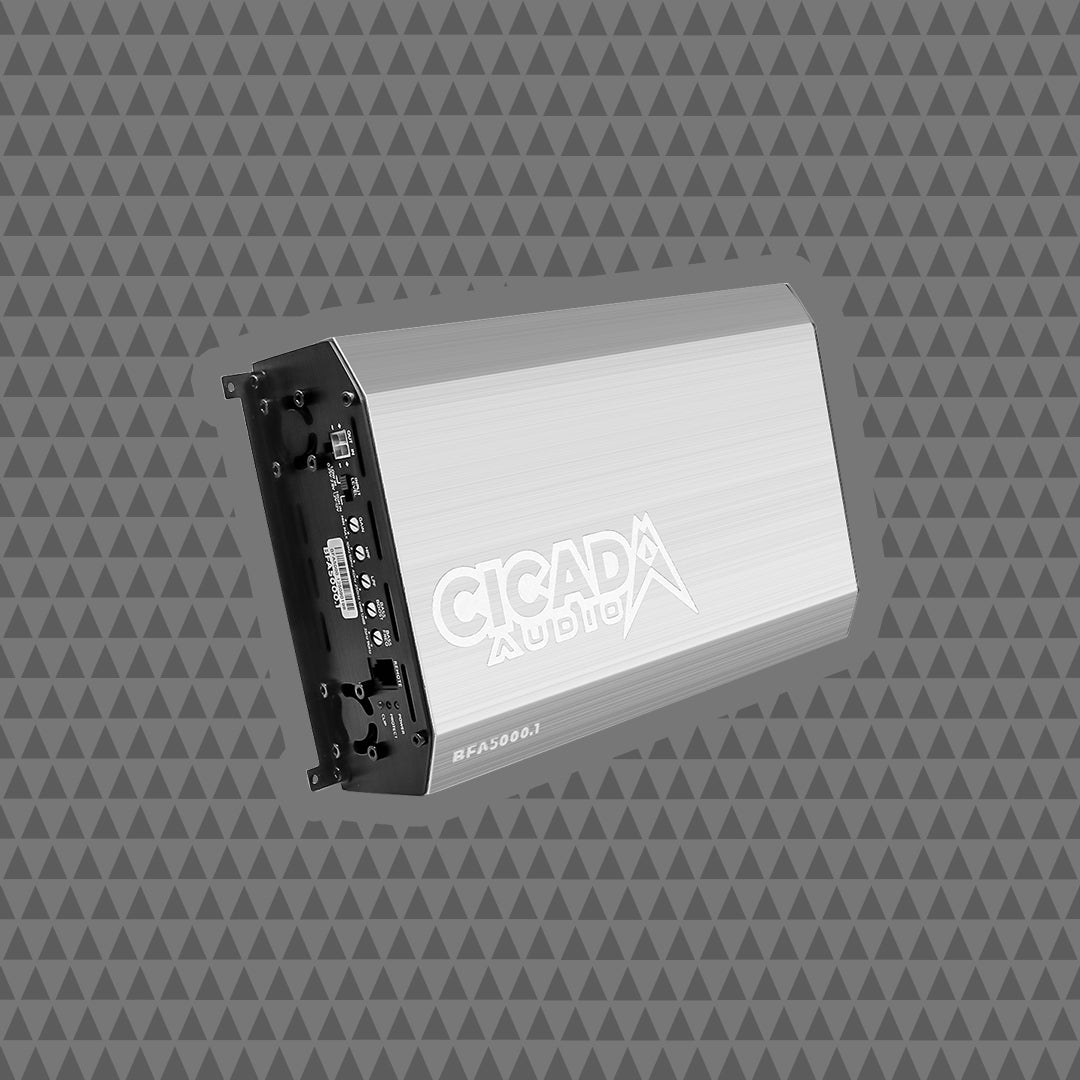

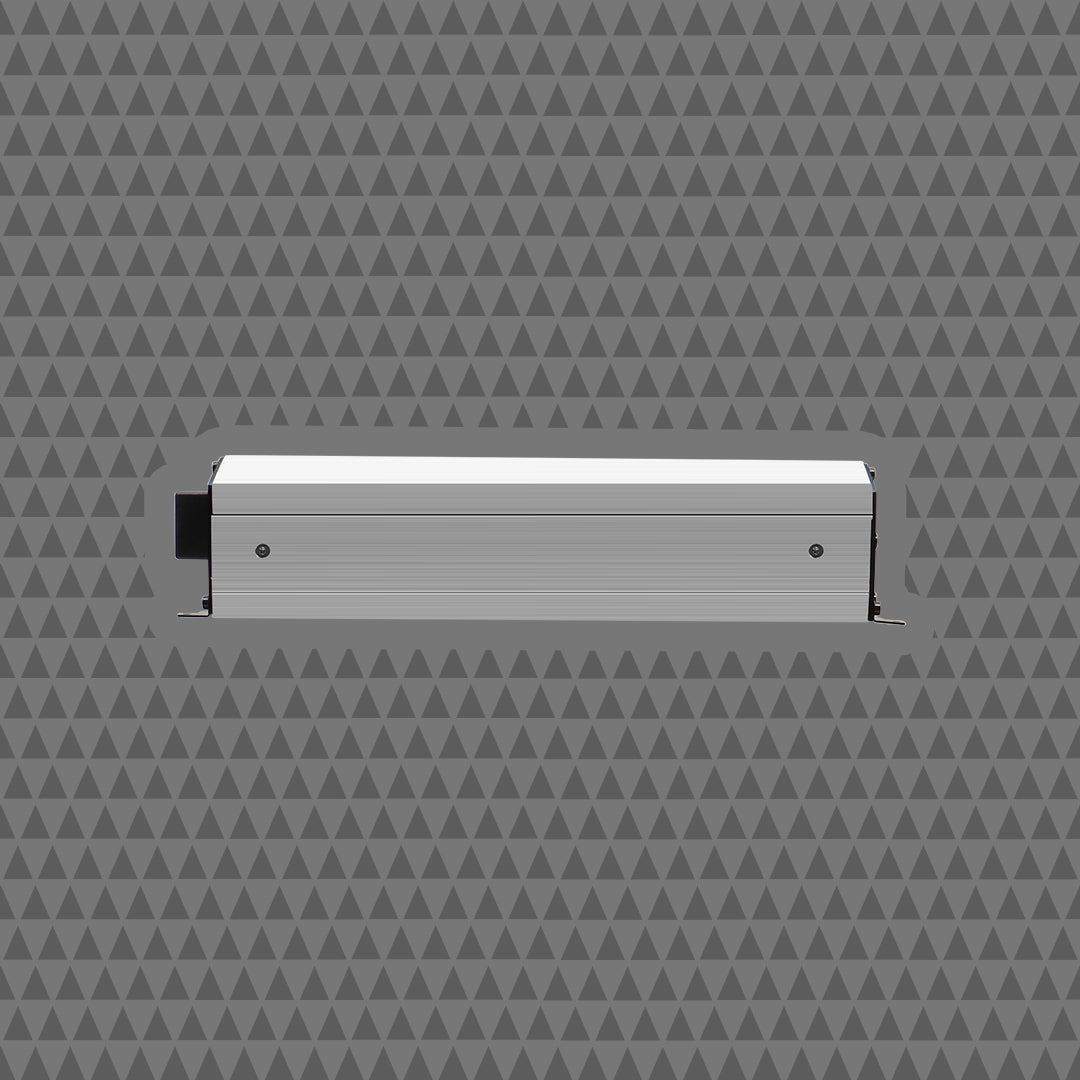

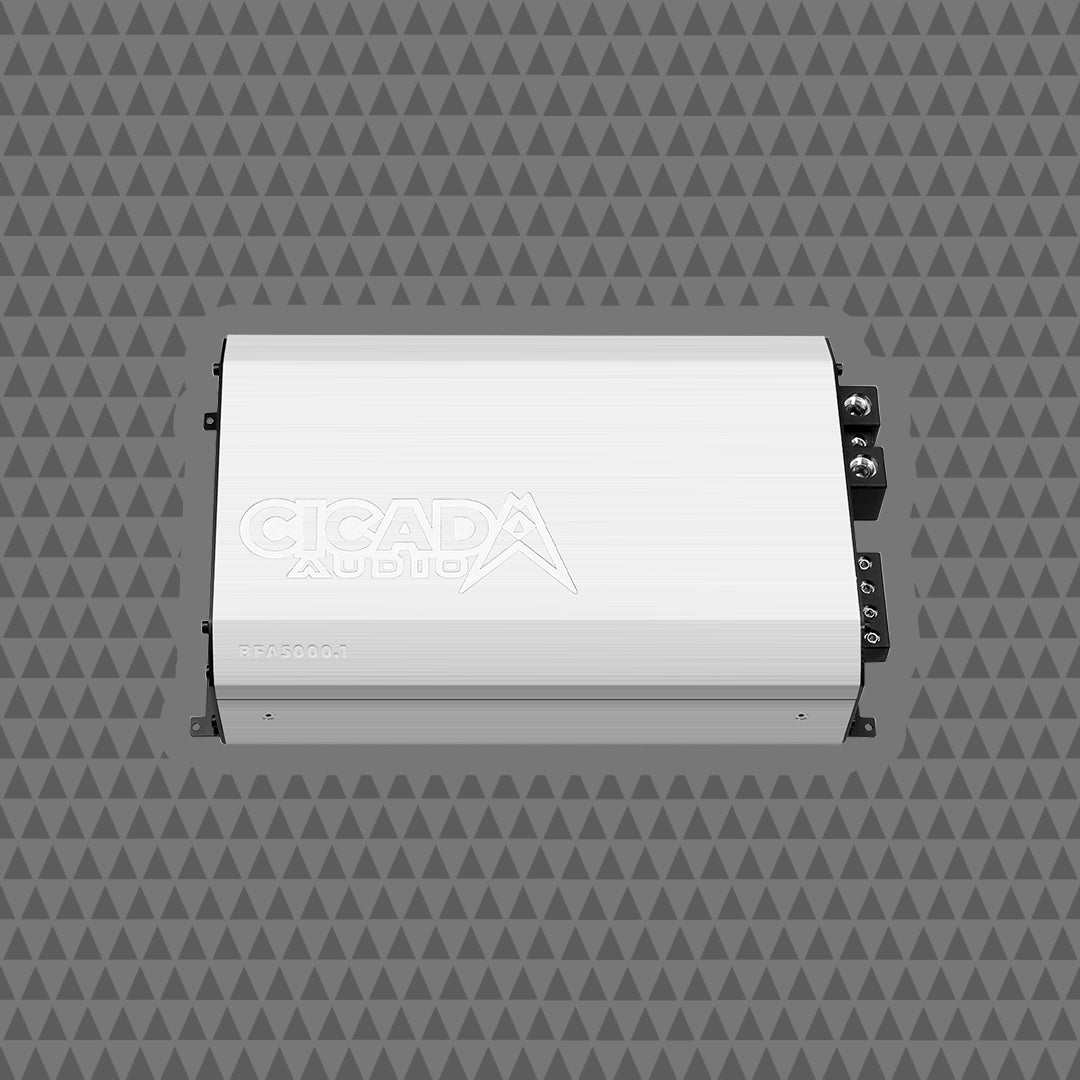

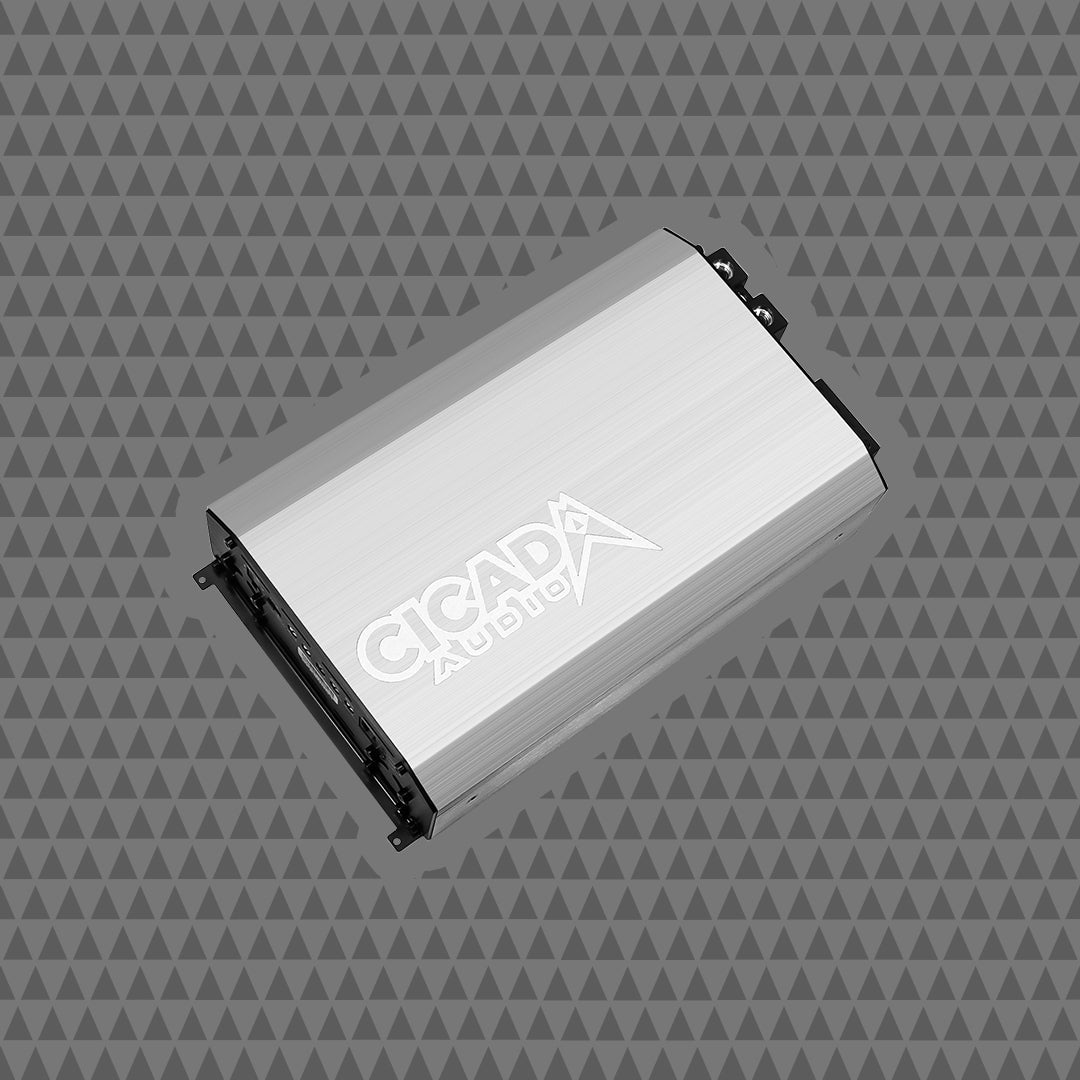

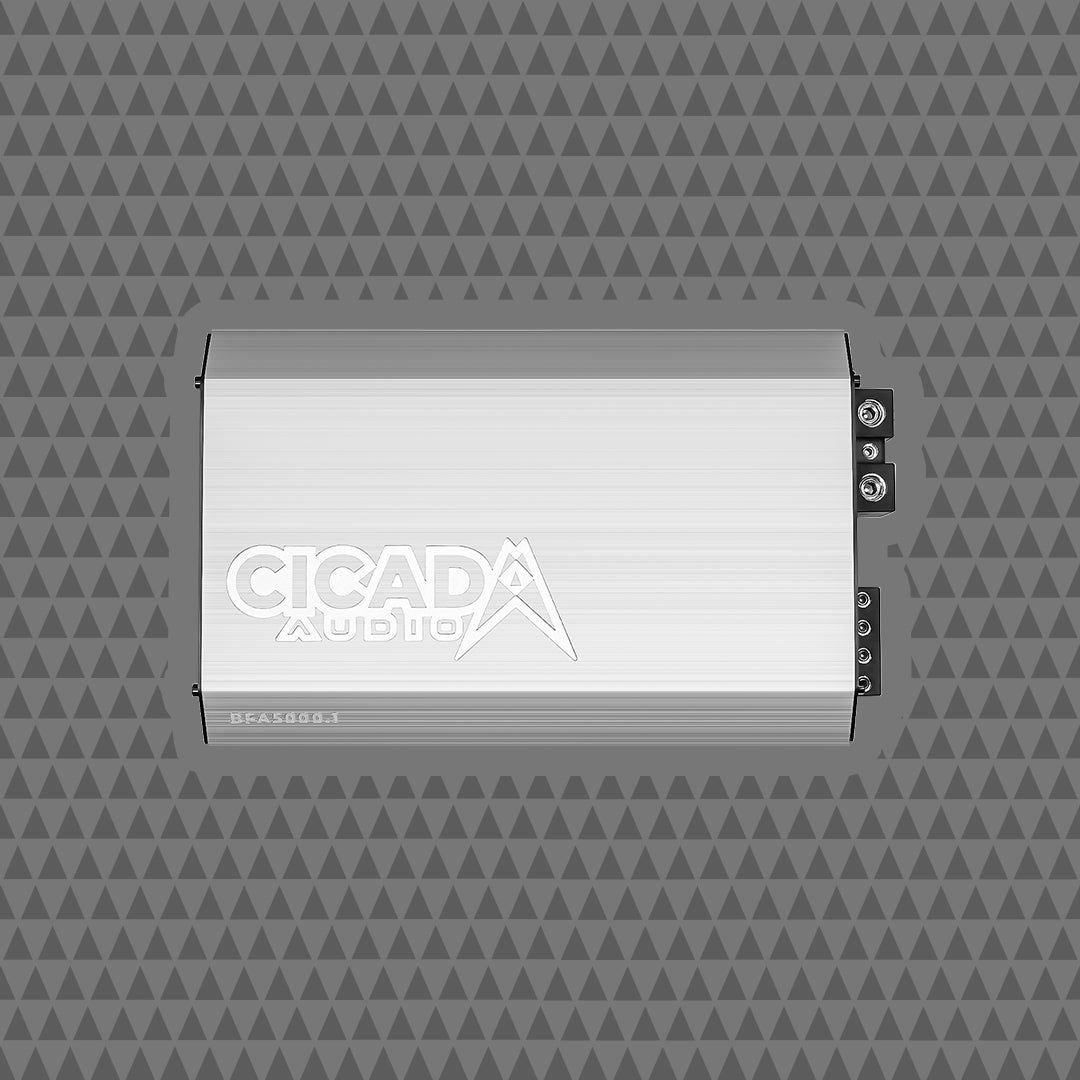

Cicada Audio Amplifier BFA5000.1
WOS Pick What this amp does in 10 seconds — expand for full specs.
- BrandCicada Audio
- SKUBFA5000.1
Mei says"Match this amp to your speakers and sub. Wrong power or wiring = weak system — do it once, do it right."
The stuff you'll actually notice
Product description
FEATURES
- Compact size engineered to never compromise, and always deliver the most powerful output
- Included mounting brackets for secure installation
- Class D lR® chipset offers latest in digital technology
- Conformal coated layer applied over the circuit board for protection against various environmental conditions
- CAD circuit provides superior overload protection

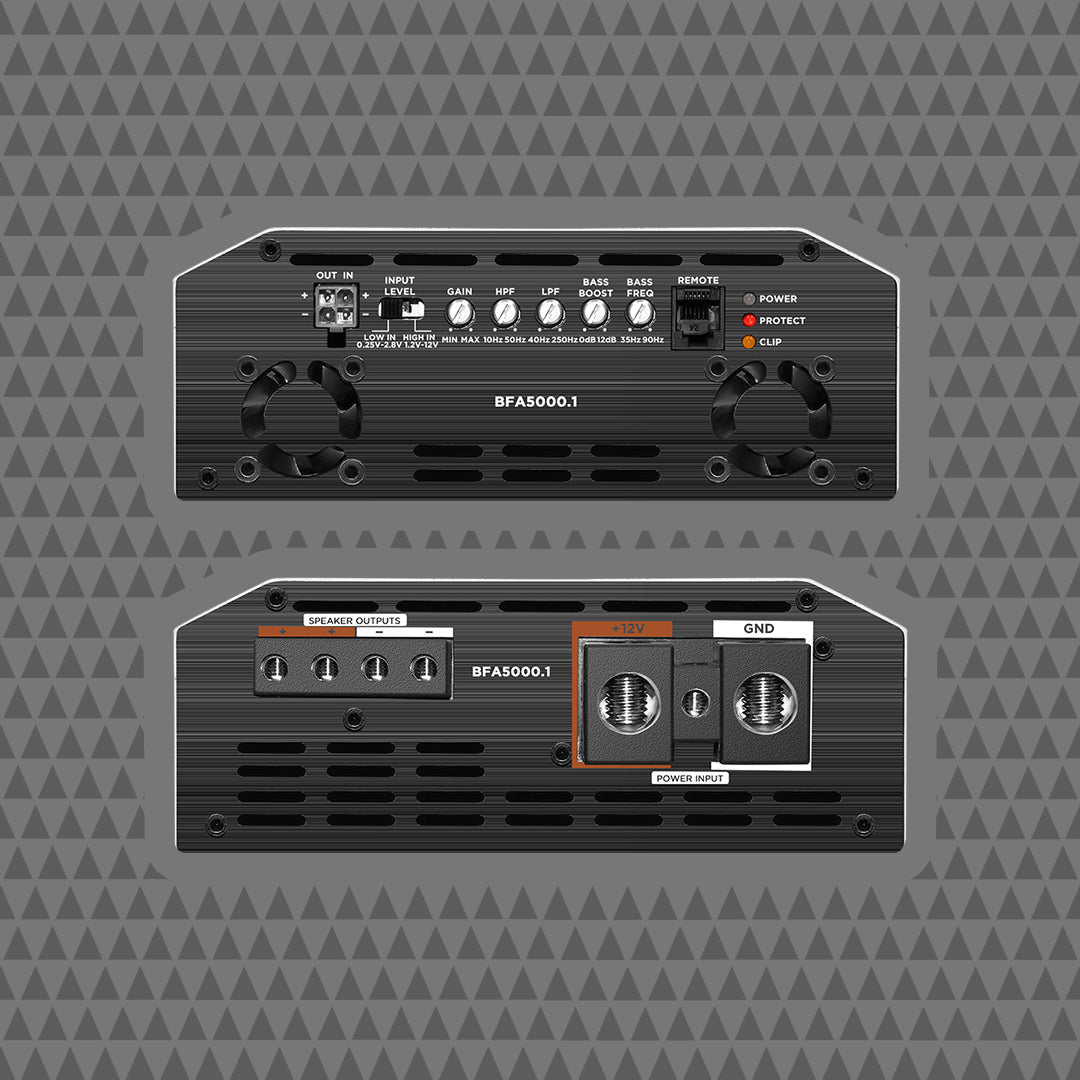

- Premium 1/0 AWG power and 12 AWG speaker busbar style inputs/outputs for solid connections
- Molex® inputs for flexible hook up via RCA or H-D® custom termination
- Clipping and Status LED indicators
- Sensitivity adjustment from 12v-0.2v
- Fully encased in extruded Aluminum heatsink
- Two (2) year warranty
SPECIFICATIONS
- RMS Power Output @ 14.4v: 3000W x 1 @ 4Ω, 5000W x 1 @ 2Ω
- SNR: 86 dB (A-weighted, 20 Hz- 250 Hz)
- Operating Voltage: 9V – 16V
- Current Draw (Music): 200 A
- Current Draw (Max): 450 A
- Recommended Fuse (Music): 200 A
- Total Efficiency: 80%
- Frequency response 20 Hz – 250 Hz +/- 3 dB
- Damping Factor: 200
- Crossover LPF: 20 – 250 Hz
- Subsonic: 20 – 50Hz
- Slope: 12 dB per octave
Power breakdown
Inputs, filters & control
Build, wiring & install
Protection & performance
Full specifications
Amplifier
Power ratings
Inputs & filters
Wiring
Weather / environment
Support
Support & warranty
Need help choosing or installing?
We build indestructible, IP-rated systems for marine, motorcycle, UTV, and automotive. If you want a matched setup, we’ll guide you to the right gear the first time.
