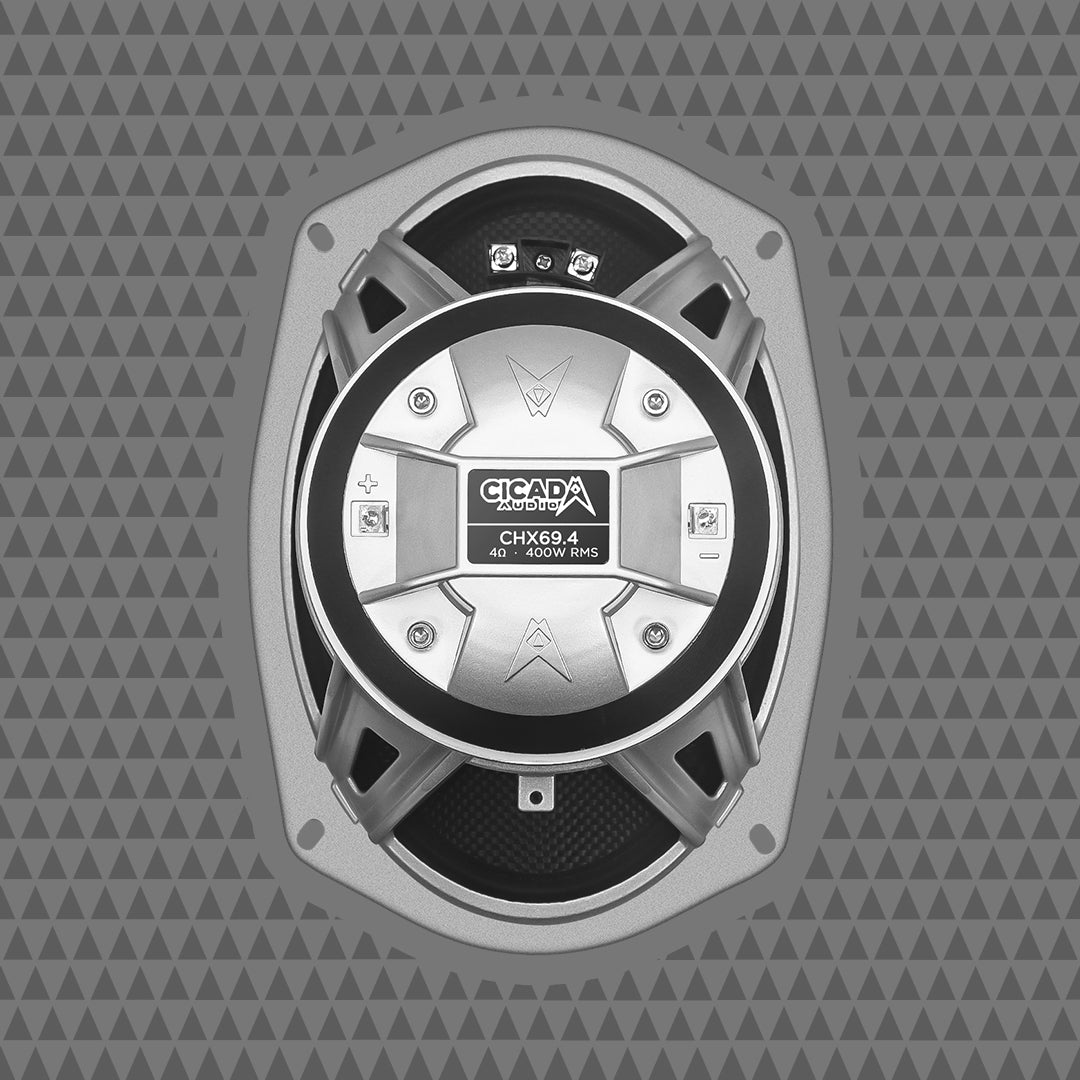

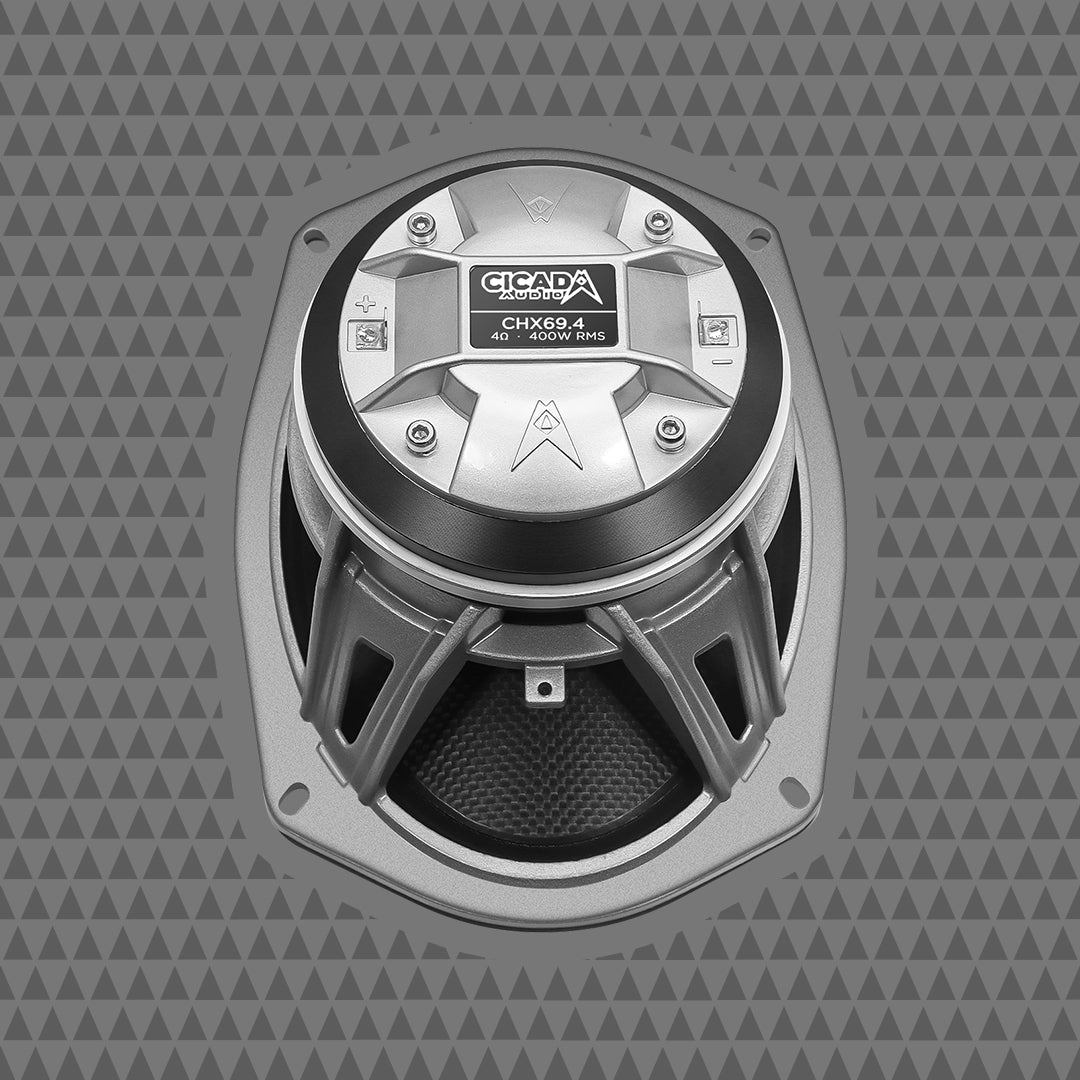

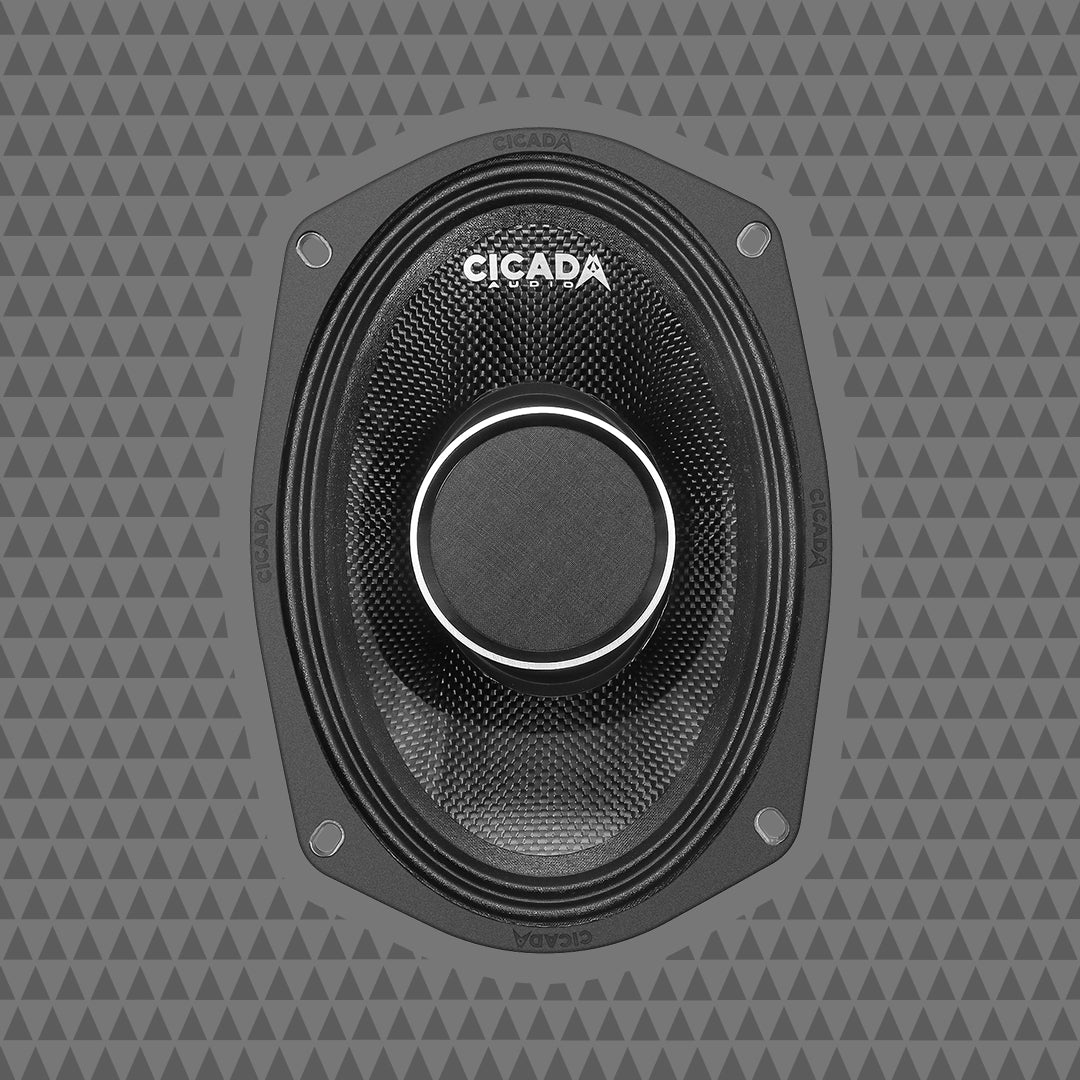

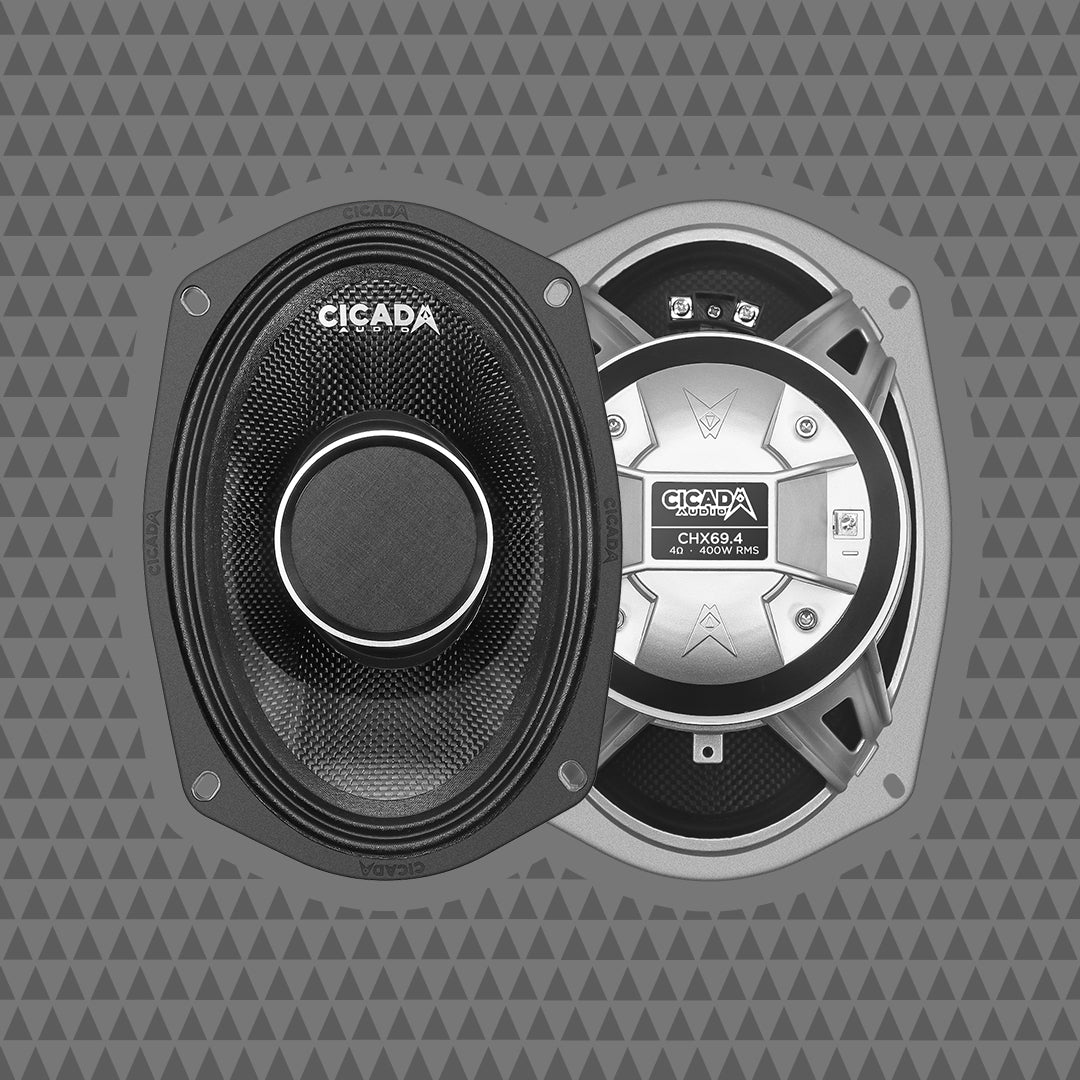

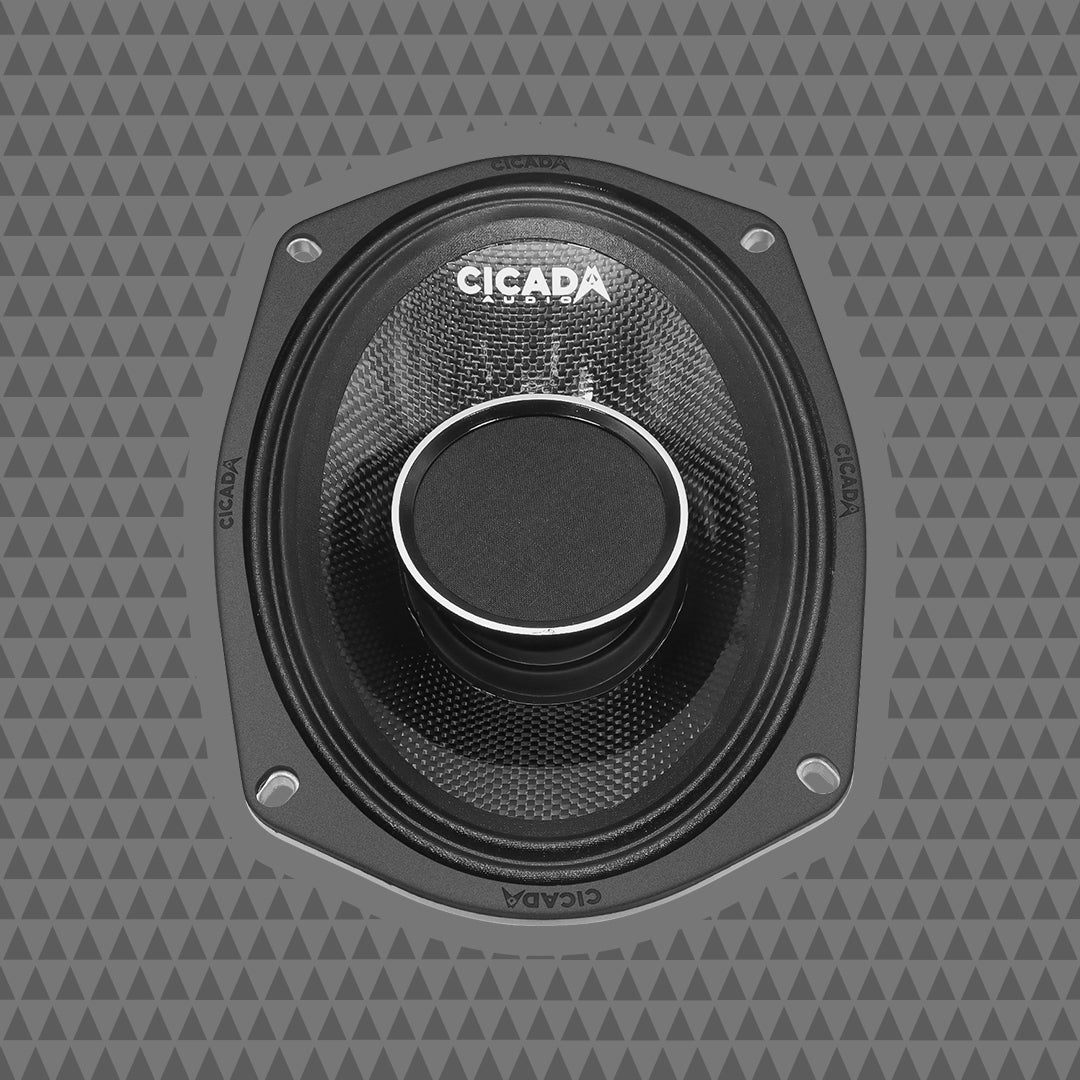

Cicada Audio Speaker CHX69.4

RECOMMENDED POWER AMPLIFIERS: FLX1000.4 (if bridged with 4Ω drivers), FLX1400.4, FLX1400.4P, FLX2000.4.

FEATURES:

• Nanofram™ Horn Cover
• Cicada All-Weather Design: Exclusive design for reliable protection against rain and harsh conditions.
• Rain or Shine™ Performance: All-weather performance design for optimal sound in any environment.
• Available in 4Ω or 2Ω Versions
• Aluminum Tweeter Diaphragm: Delivers brighter, more efficient sound.
• 1.75″ OFC Copper Wire Tweeter Voice Coils: Efficient design that produces great sound while generating less heat.
• Repairable Tweeter Voice Coils (CHT175): Allows for easy repair of the voice coils if needed.
• External 12dB Crossover: Includes an optional -3/-6 dB tweeter resistor attenuator for enhanced control.

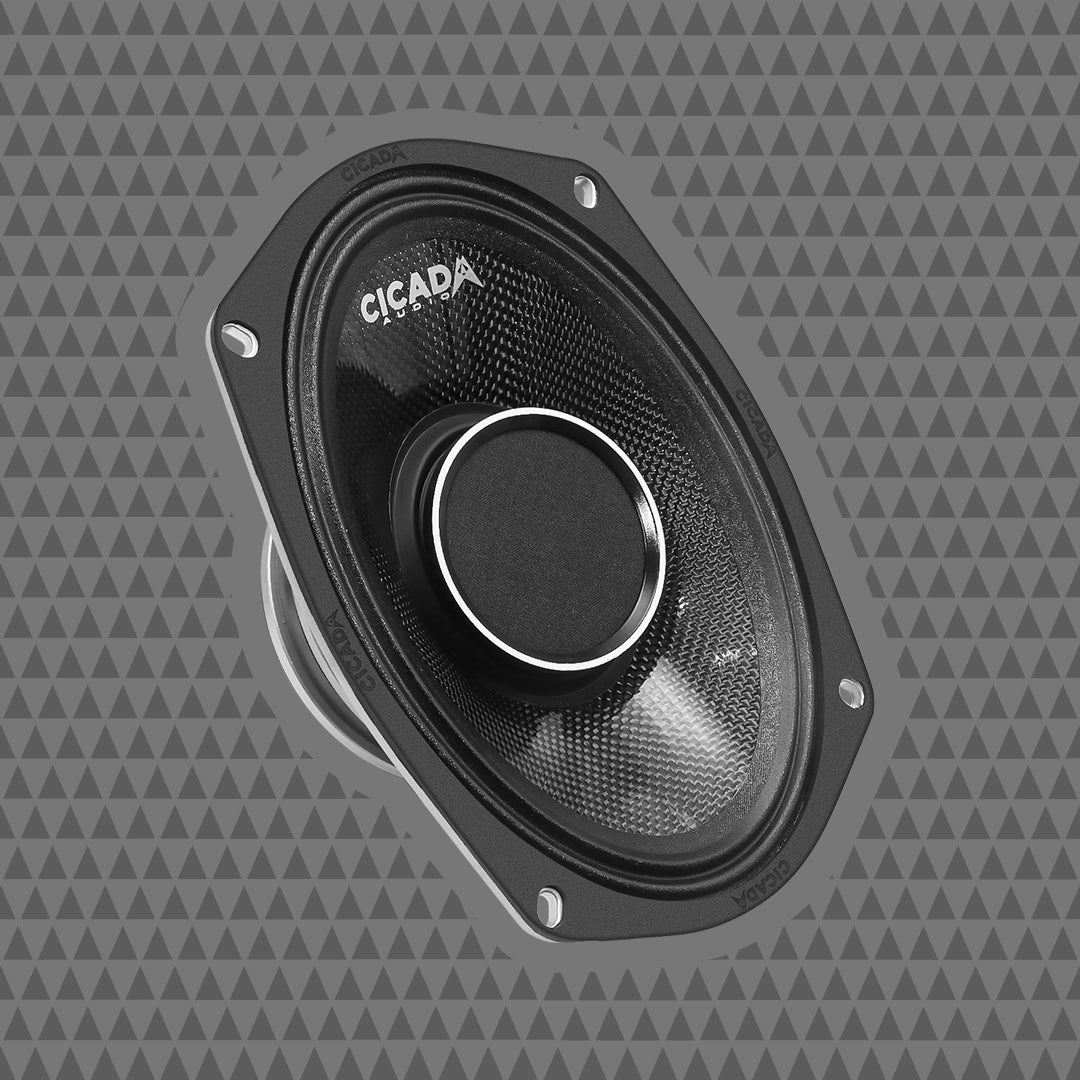

• Carbon Matrix Composite™ (CMC™) Cone: Lightweight, rigid, and high-temperature resistant for superior performance.
• Black Coat™ 2.5-inch High Conductivity OFC Copper Wire Mid-Bass Voice Coil: Ensures extreme thermal performance with low resistance for maximum efficiency.
• N35SH Neodymium Magnet: Provides powerful and reliable performance.

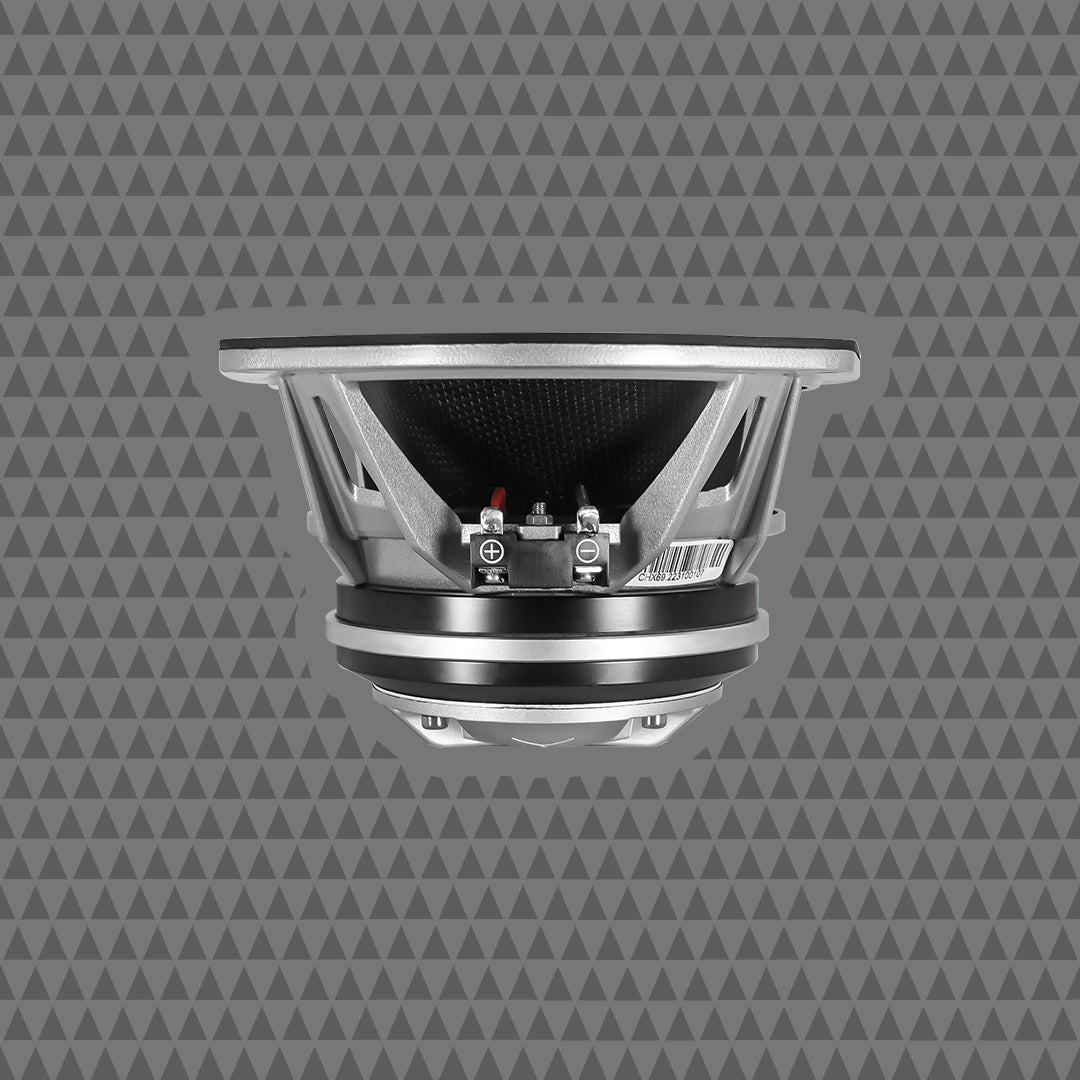

• Die-Cast Aluminum Custom-Tooled Basket with Vortex Flow Venting™: Maximizes airflow and cooling.
• Warranty: 2 years.

SPECIFICATIONS:

• Type: 4Ω 6X9-inch PRO Coaxial Horn Driver
• Power Handling: 400W RMS / 800W MAX
• Voice Coils:
  • 2.5-inch (64mm) Mid-Bass
  • 1.75-inch (44mm) Tweeter
• High Temperature Design
• Tweeter Dome: Aluminum

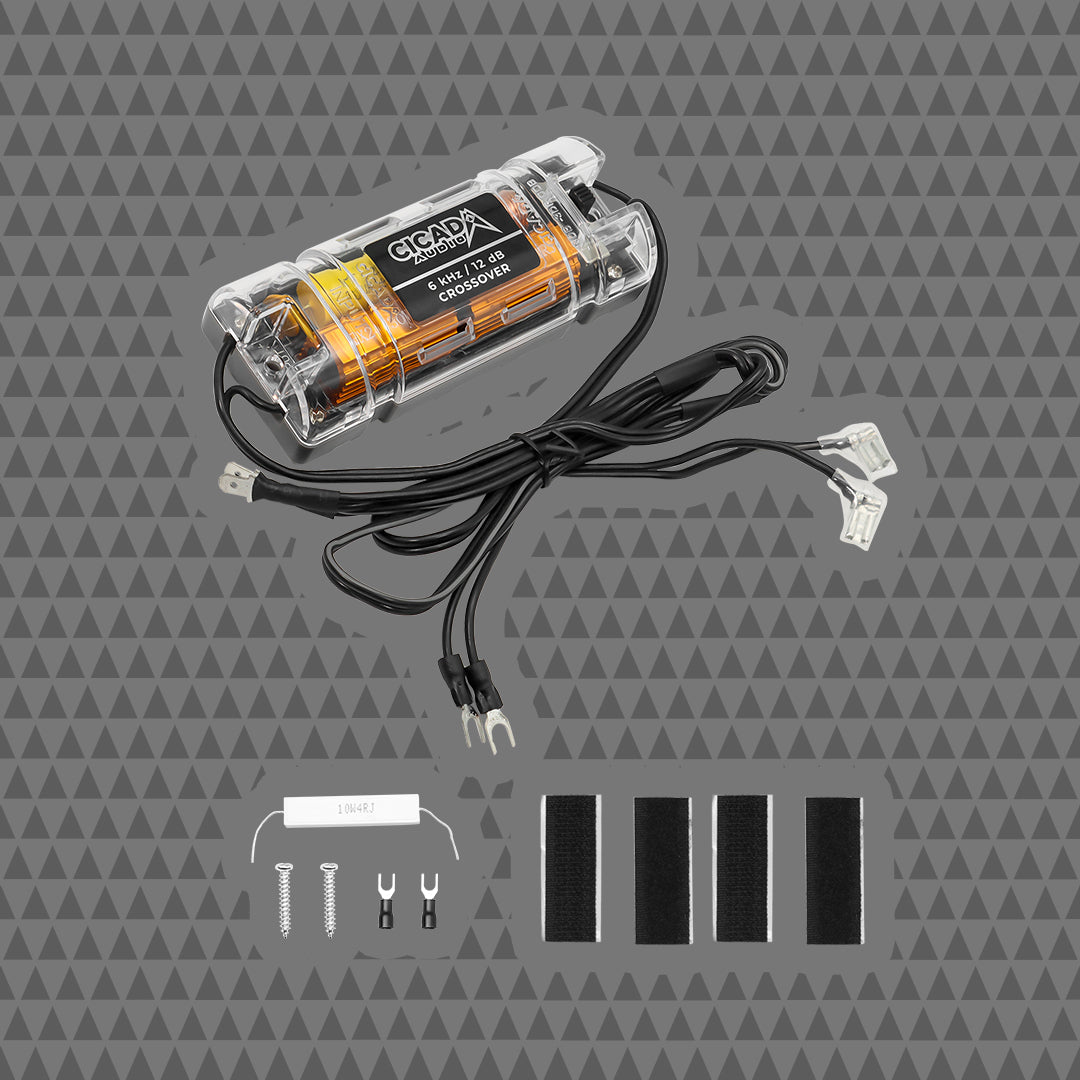

• Crossover: Custom-Tooled, Vented, Encased 12dB External Crossover
• Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
• Cone Material: Carbon Matrix Composite™
• Magnet: Neodymium
• Sensitivity: 92dB (1W / 1M)
• Frequency Response: 46Hz – 20kHz ±3dB
• Mounting Depth: 3.75-inch (96mm)
• Mounting Diameter: 5.7-inch (145mm) x 8.5-inch (216mm)
