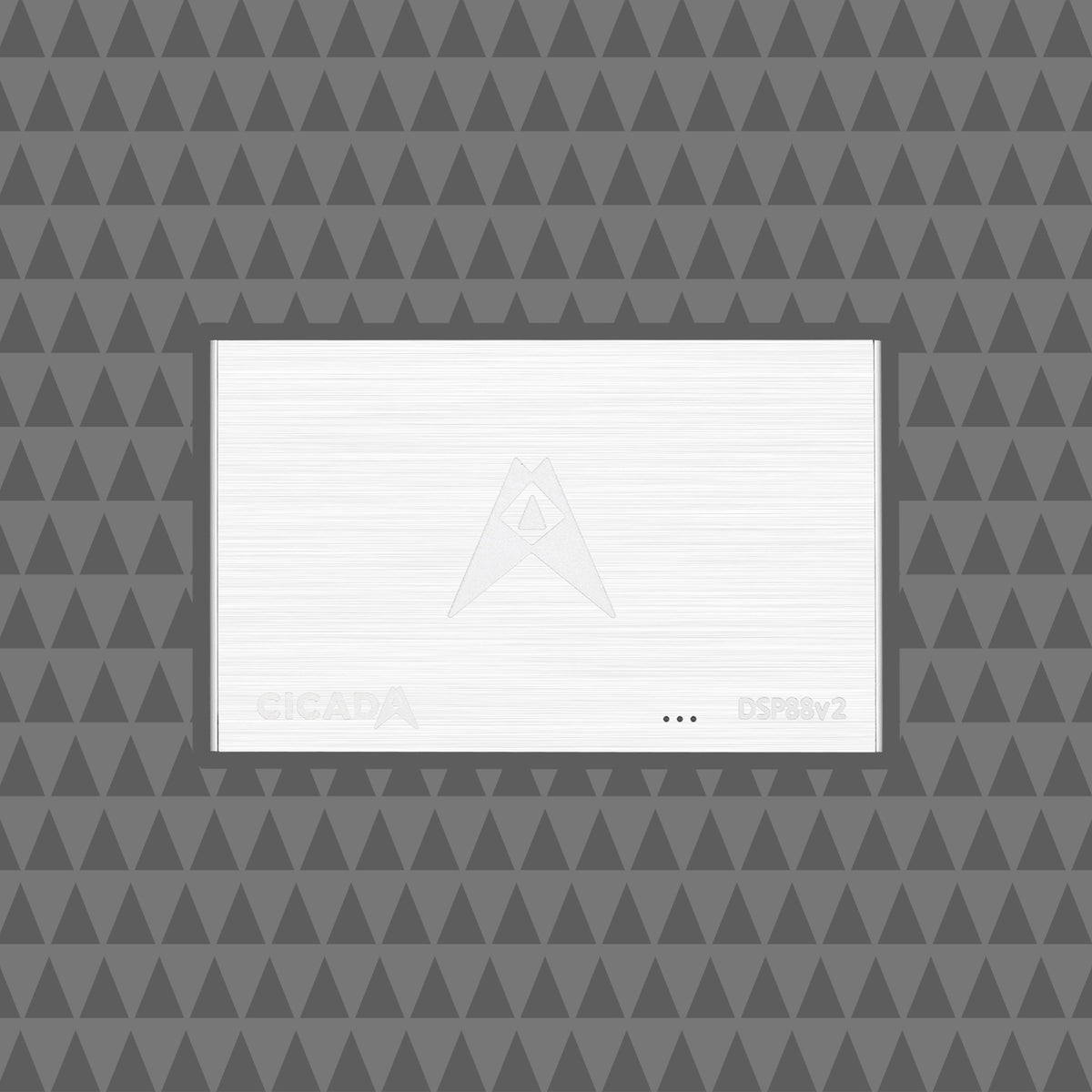

Cicada Audio DSP DSP88V2-DSP

DSP88v2 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT

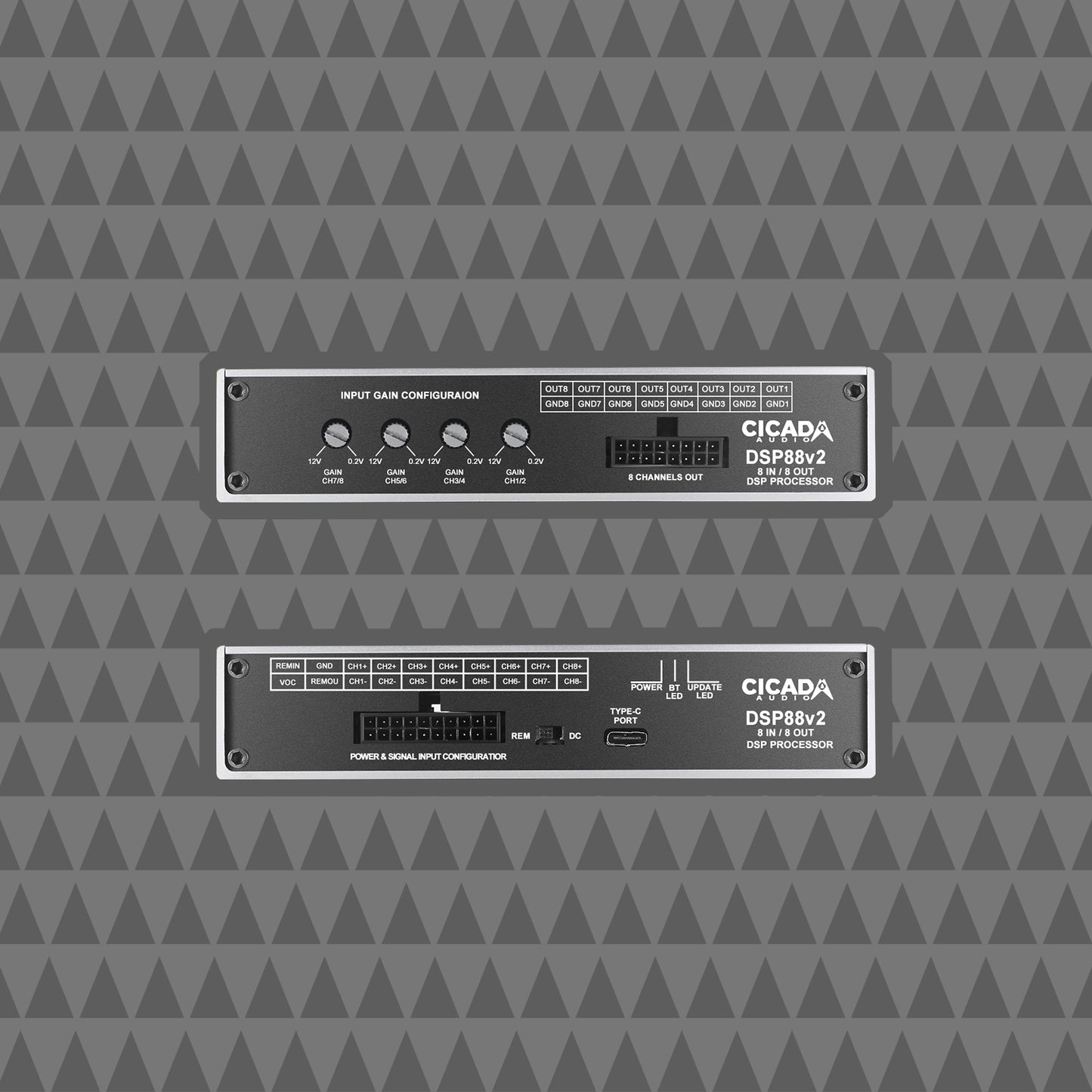

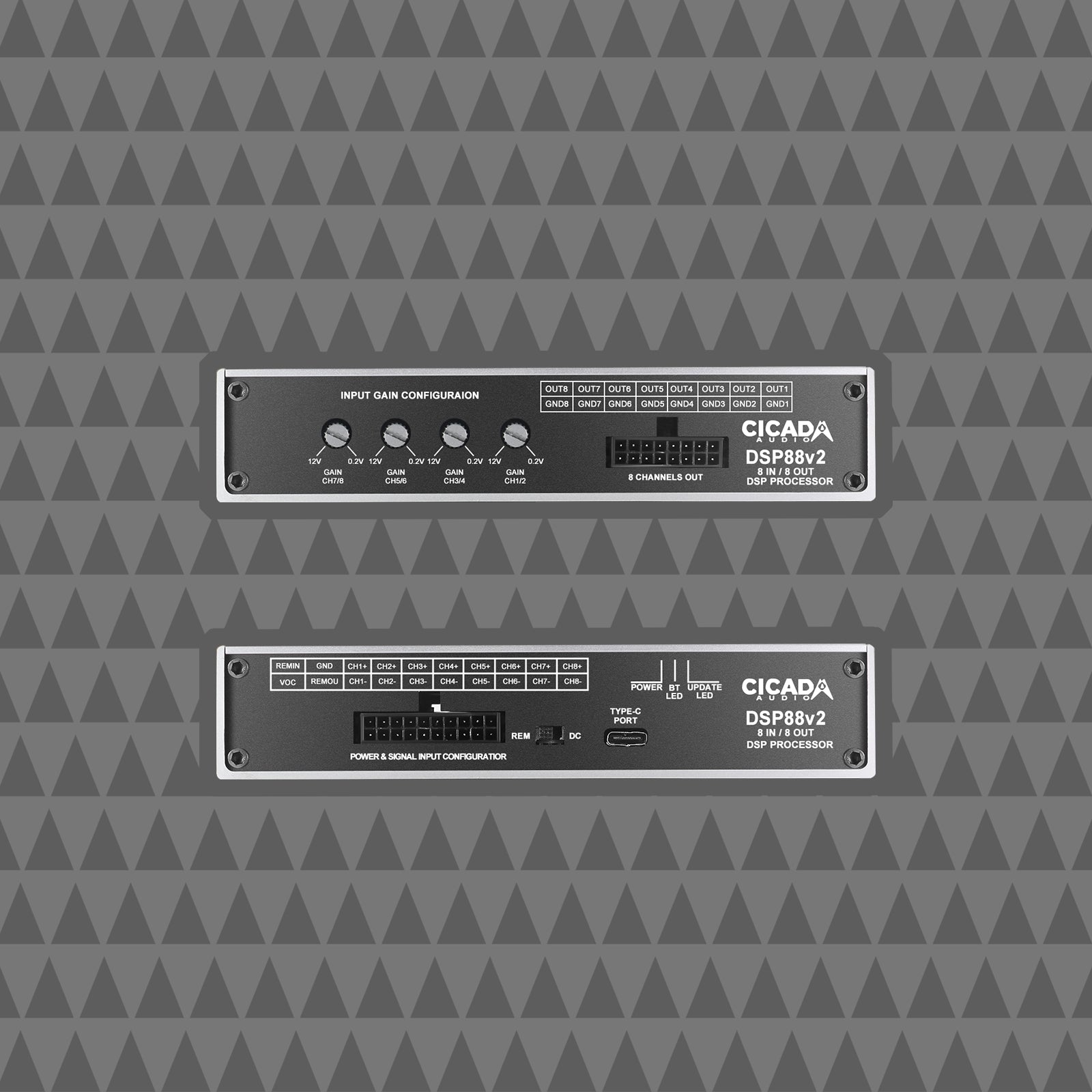

• Signal Input:  8 High-Low Level Inputs
• Signal Output:  8 RCA Outputs
• Output Impedance: 200 Ohms
• Frequency Response:  20Hz – 20kHz +/- 0.5Db
• Input Voltage:  0.02V –  12V
• Input Impedance:  20k Ohms
• Output Voltage: Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to  2 V out, etc.)
• THD+N:  <1.0%
• Signal-to-Noise:  >100 dBA (A-weighted)
• Digital Signal Processing (DSP):
  Speed: 147 MIPS    Precision: 32-Bit    Accumulators: 72-bit
• Digital to Analog (DAC):  Precision: 24-Bit
• Dynamic Range: 108 dB
• THD+N: -98 dB
• Analog to Digital (ADC):  Precision: 24-Bit
• Dynamic Range: 105 dB
• THD+N: -98 dB
• Operating Voltage:  9 – 16 VDC
• Crossover Frequency:  Variable: 20 Hz to 10 kHz
• Crossover Slope:  Selectable Slope: 6/12/18/24/36/48 dB/Octave
• EQ Frequency Controls:  Selectable Q: 0.05 to 20.0
• Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm)

Windows PC Software Available here

You can upload saved system settings from one DSP88v2 and load it into a different DSP88v2.   (Think of the possibilities!)

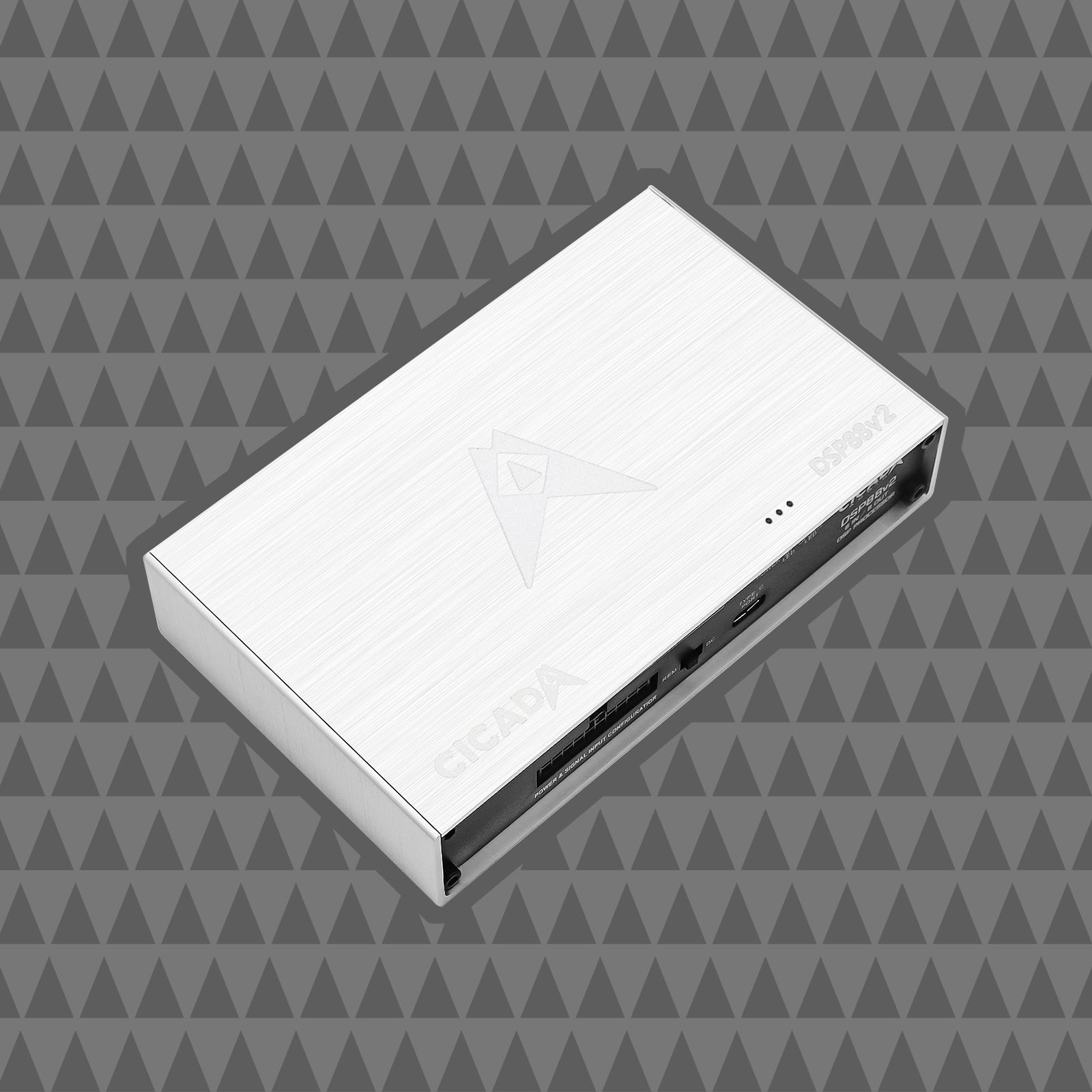

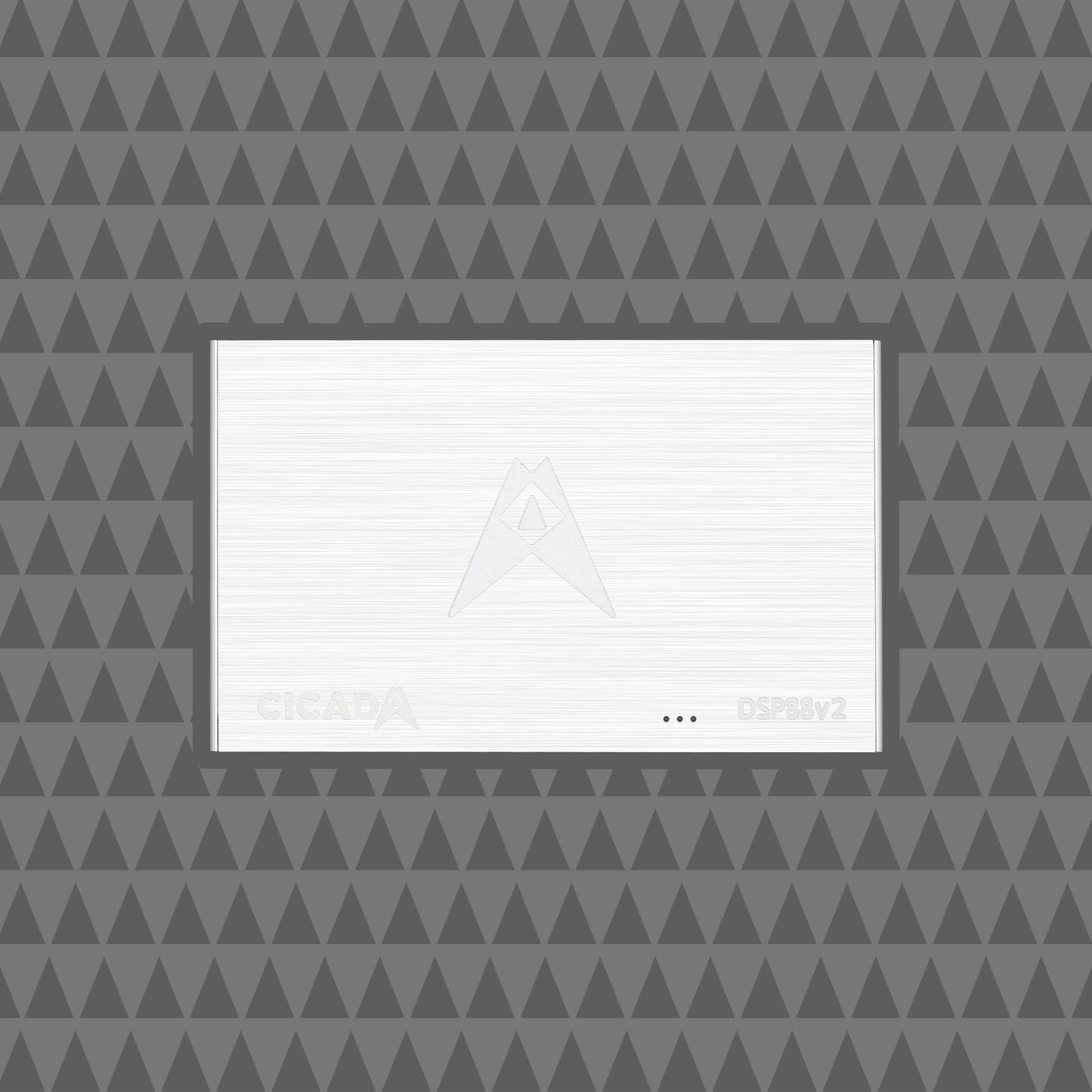

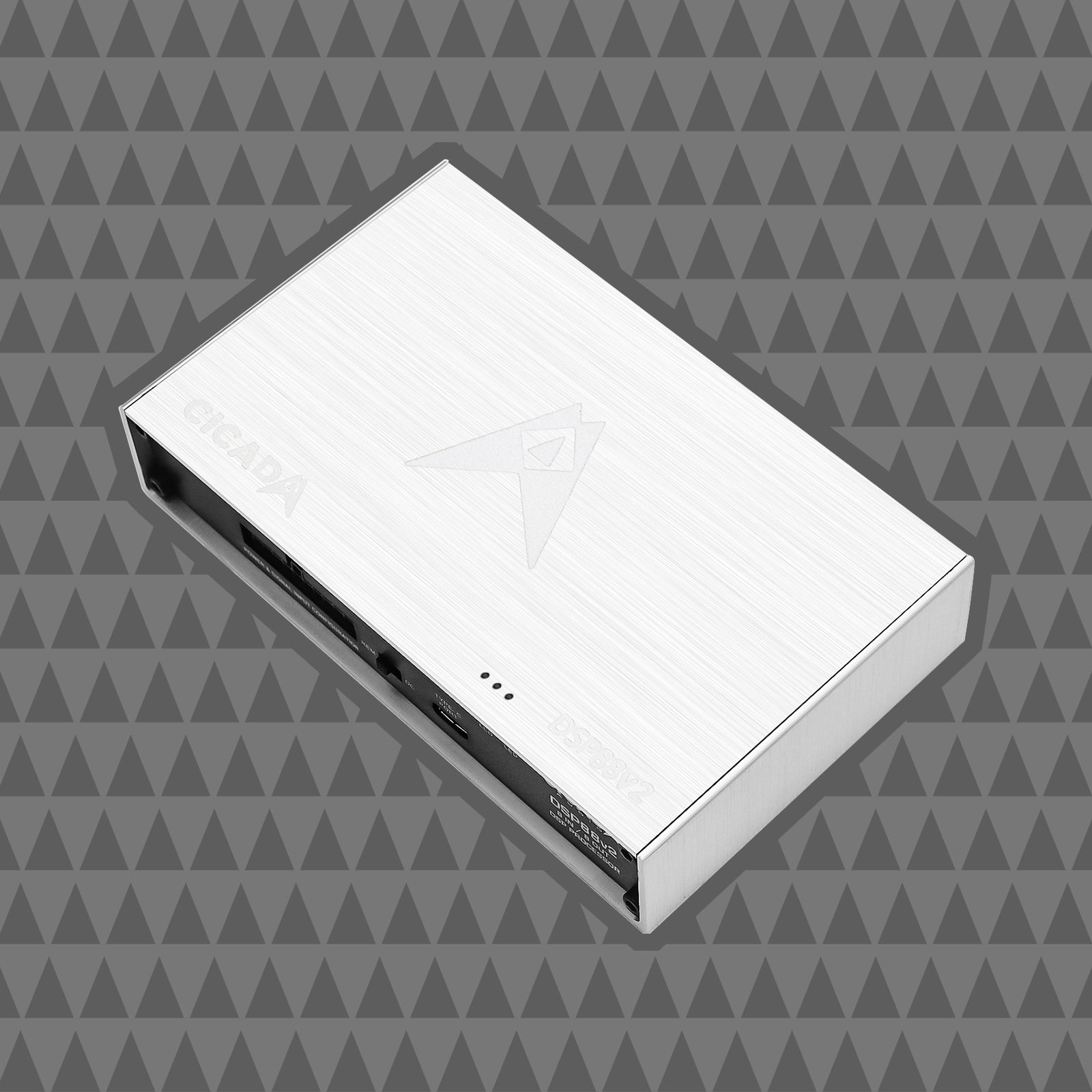

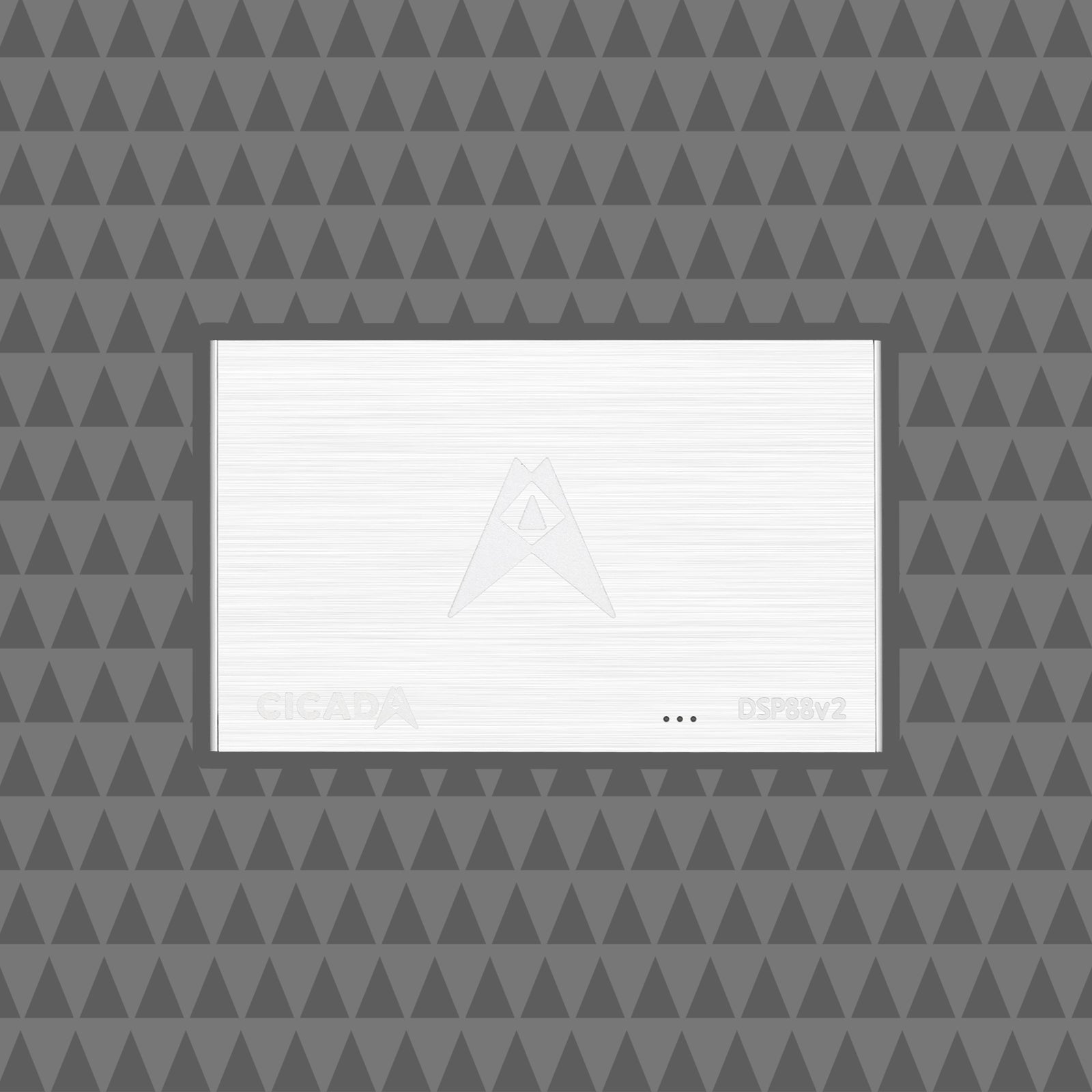

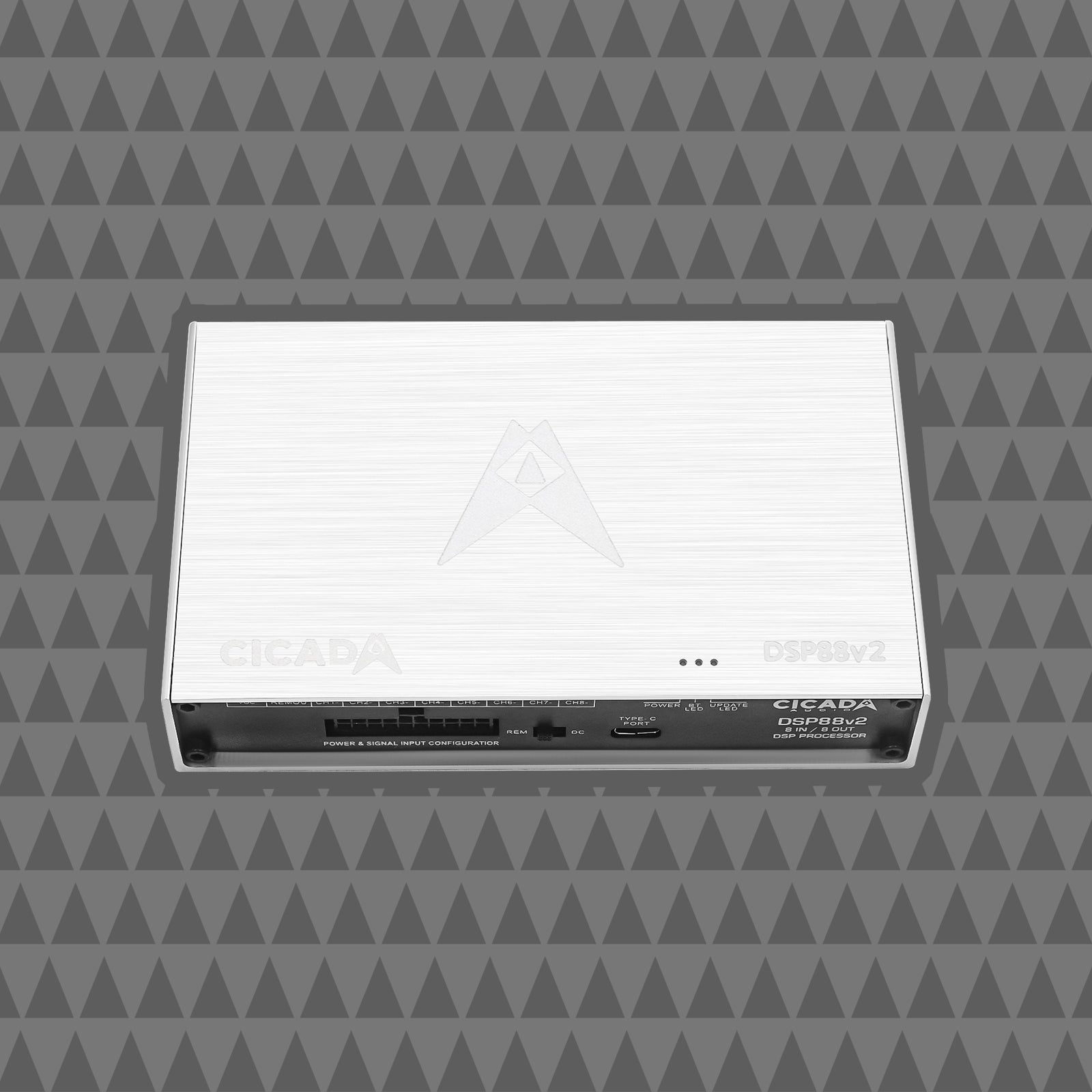

Our DSP88v2 processor is ultra-compact and element-ready, making it the ideal choice for motorcycle installations. Its incredibly small form factor ensures it fits seamlessly into your setup. With easy setup features like integrated summing, crossover, time delay, and gain filters, the DSP88v2 gives you 8 inputs and 8 outputs, all fully programmable. You can even run a 2-channel input and still have 8 channels of DSP to customize as needed!

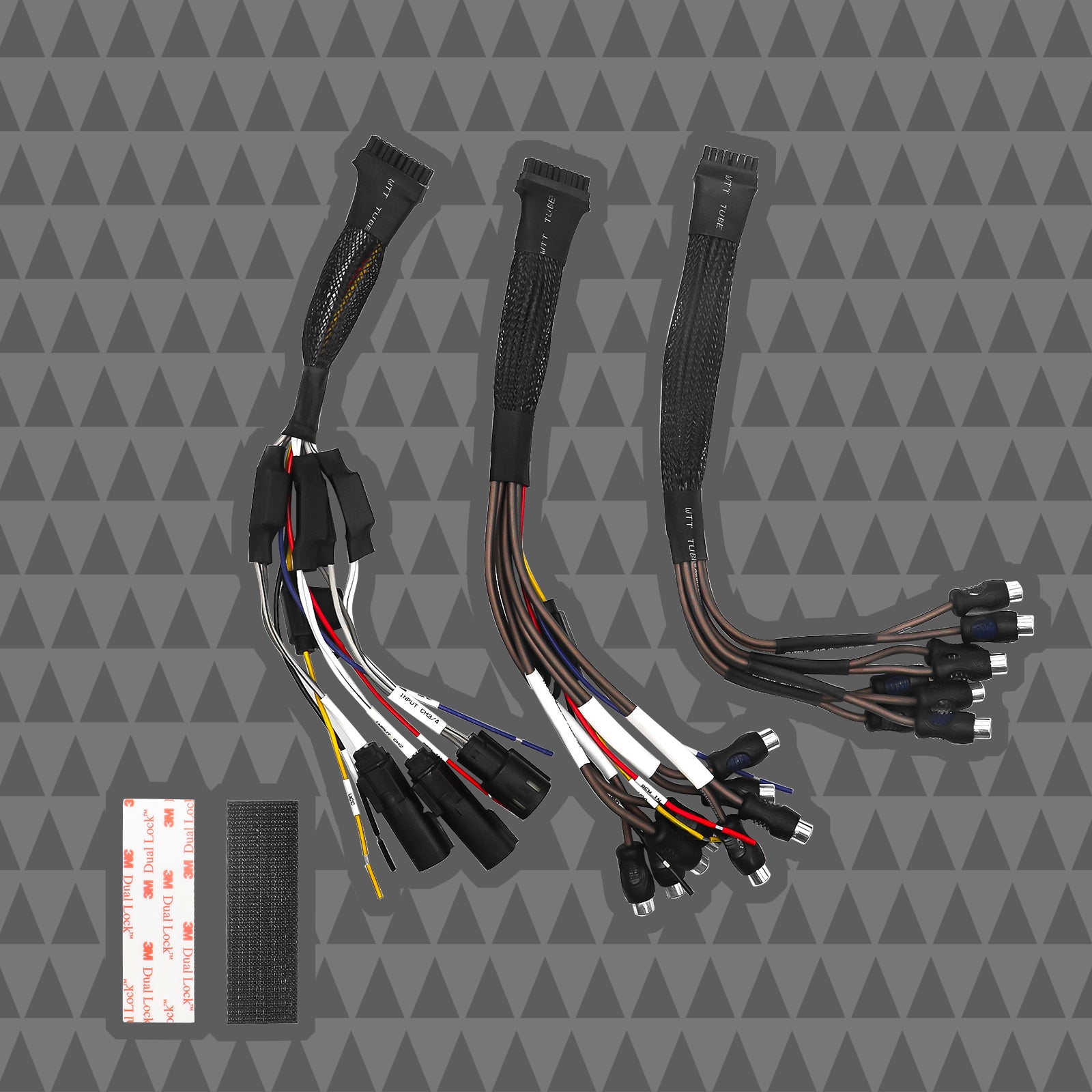

The processor comes with a “loaded” HD OEM radio harness with MOLEX connectors for easy connection. You have complete control over both input and output signals, with crossover slopes ranging from 6dB to 48dB. Adjustable Q values are available, from very narrow (Q of 20) to very broad (Q of 0.05). Channels can be grouped for easy tuning, and you can link channels for simple level setting. The software is incredibly user-friendly, making tuning a breeze. Plus, we’ve included Preset Audio Curves for popular bike years and typical gear—just one click and you’re done! If you want to fine-tune it yourself, these curves will get you much closer to the ideal setup, quickly and easily.

Our Windows PC software is available for download here. This DSP is perfect for your motorcycle, especially when paired with Co-Ax Horn speakers to maximize output, power, and clarity. Everything is designed to make tuning your bike easier and faster.

Also, check out our accessory section for a variety of harnesses that make installation even easier—plug and play!

Fitment Notes:
This DSP processor has an excellent form factor, allowing it to sit on top of the radio or under the left/right fairing substructure. The small size and the software make it a perfect fit for any Harley Bagger from 1998 to 2024.
