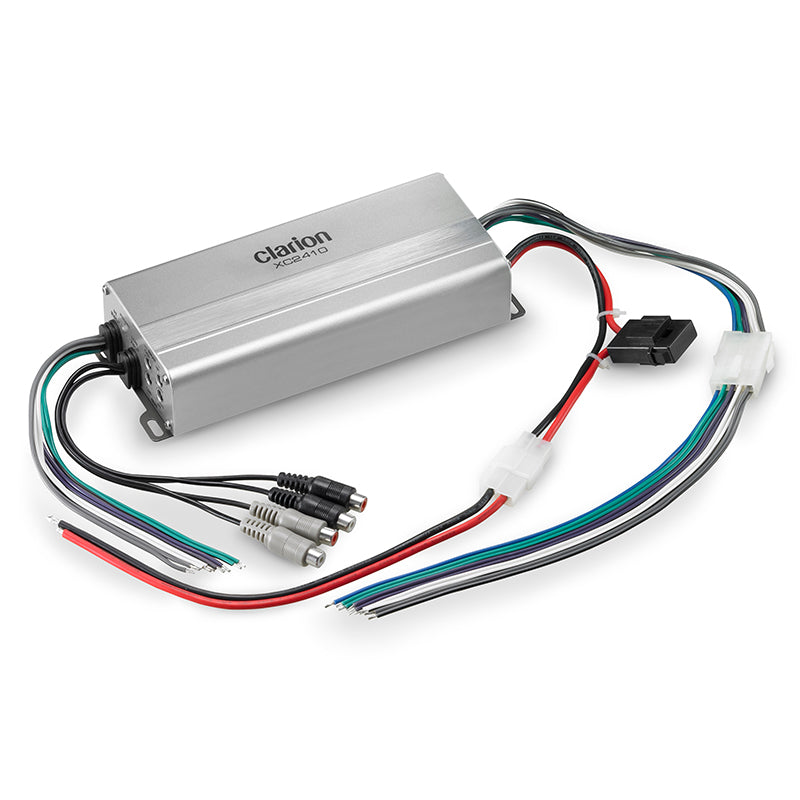

Clarion Marine amplifier XC2410

Clarion XC2410 Micro Size 400W Max Power,4-channel Marine Amplifier,Class-D

We are a Clarion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 4-Channel amplifier
• 40-amp ATO fuse (installed in-line)
• 9" Power/Ground harness
• 9" Speaker-level output harness
• Four 3/4" Self-tapping screws
• 4 Flat washers
• Owner's Manual

High Quality Terminals

Clarion amplifiers feature uncompromising resistance to magnetic noise, thereby minimizing distortion, as well as high quality terminals to offer low electrical and contact resistance. Easy subwoofer system configuration is possible with the embedded low pass filters. The result is high quality sound you can enjoy in a variety of systems.

Improved Durability and Reliability

By utilizing corrosion resistant RCA and Connectors, XC series amplifiers offer improved durability and reliability in harsh environments. The XC series amplifiers are true marine amplifiers with efficient aluminum heatsinks and locking power terminals for the harsh marine conditions.

Field Effect Transistor Amplification
There’ s only one way for Clarion’ s main units to deliver unyielding power output and linearity: MOS-FET amplification, or Metal Oxide Semiconductor Field Effect Transistor amplification. Smaller and more efficient than conventional power supplies, a MOS-FET amplification circuit delivers power with less distortion and zero On/Off switching noise. This means you can crank up the volume or set it to easy listening. Either way, your sound will be crystal clear.



SPECIFICATIONS

Maximum Power : 400 Watts

High Frequency Response : 15-250 Hz

Number of Channels : 4/3/2

Built In Crossovers : Yes

RMS Power Output : 75x4 Watts

Amplifier Class : D

FEATURES

Features:

400 Watts of Maximum Power Output
50 Watts × 4 Continuous @ 4-Ohms
75 Watts × 4 Continuous @ 2-Ohms
150 Watts × 2 Continuous @ 4-Ohms Bridged
Double Side Conformal Coated PCB Assembly
MOS-FET Power Supply
12dB/Oct. High Pass Electronic Crossover. Variable 15 - 250Hz (FR/RR)
Variable Gain Control
Turn-On/Off Muting Circuitry (Soft Mute)
Ground Loop Isolation Input Circuit
Corrosion Resistant Nickel Plated RCA, Power, and Speaker Connections
RCA and High Level Speaker Inputs
CEA 2006 Power Ratings

75W × 4 RMS [2Ω @ ≤ 14.4V 1% THD+N]
50W × 4 RMS [4Ω @ ≤ 14.4V 1% THD+N]
S/N ? 70dB (Ref: 1W into 4Ω)


Specifications:

Power @ 4-Ohm: 50W × 4
Power @ 2-Ohm: 75W × 4
Bridged Power @ 4-Ohm: 150W × 2
Number of Channels: 4/3/2
MOS-FET Power Supply: Yes
2-Ohm Stable: Yes
Adjustable 12db/Oct.
High Pass Crossover: Variable 15 - 250Hz (FR/RR)
Nickel Plated Connectors: RCA/ Speaker/ Power
Dimensions (W × H × D) (Inches): 7.17 × 1.54 × 3.23

UPC: 729218020999
Weight: 4
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
