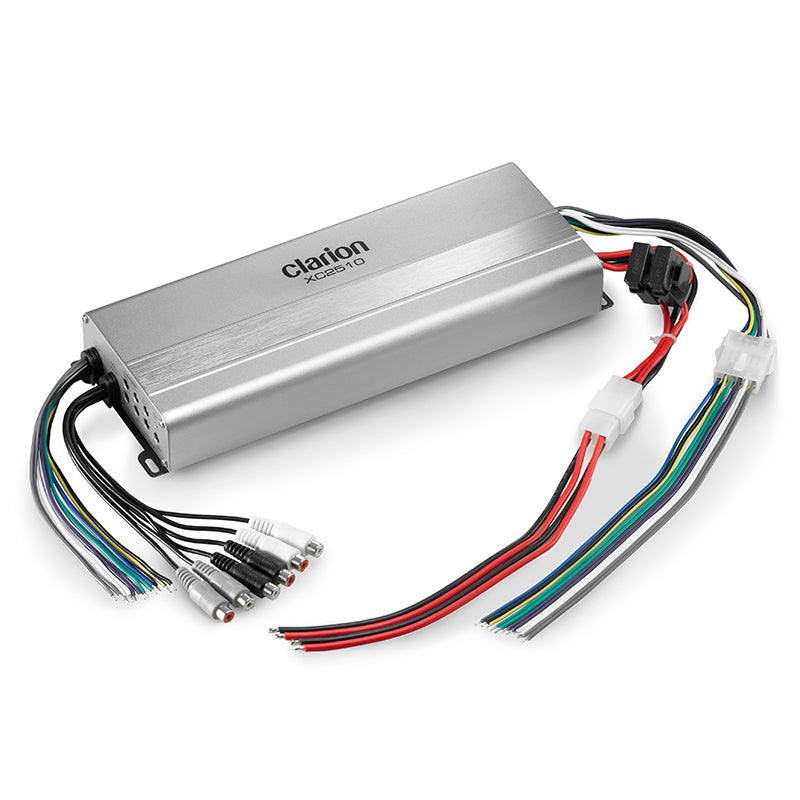

Clarion Marine amplifier Micro Size XC2510

Clarion XC2510 Micro Size 700W Max Power. 5-channel Marine Amplifier, Class-D

We are a Clarion authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• Micro Size Class D 5-channel Marine Amplifier
• Owner's Manual

Unleash the Power of Sound

The Clarion XC2510 is a versatile 5-channel amplifier designed to deliver powerful and high-quality sound for automotive audio systems. With its compact and efficient design, it offers flexibility in configuring your audio setup.

Elevate Your Car Audio Experience

The amplifier features a Class D design, which allows it to provide efficient power output while keeping heat generation to a minimum. It delivers up to 75 watts RMS per channel at 2 ohms for the four main channels and up to 300 watts RMS at 2 ohms for the subwoofer channel. This power output enables the amplifier to drive a combination of speakers and a subwoofer for a well-rounded audio experience.

The Clarion XC2510 is a versatile 5-channel amplifier that offers powerful performance, flexibility in configuration, and high-quality sound reproduction, making it an excellent choice for enhancing your automotive audio system.


Conquer the Waves with Unyielding Strength
The XC2510 includes adjustable electronic crossovers, allowing you to fine-tune the audio output to match your speaker setup. It also features speaker-level inputs, making it compatible with both aftermarket and factory head units. With its compact size, the XC2510 can be easily installed in various locations within your vehicle. Its sleek design and solid construction ensure durability and longevity.

SPECIFICATIONS

Maximum Power : 700 Watts

Number of Channels : 5

Built In Crossovers : Yes

Amplifier Class : D

FEATURES

Features:

700 Watts Maximum Power Output: Delivers high-output performance for your audio system
Continuous Power @ 4 Ohms: 50 W × 4 + 200 W × 1 for reliable channel distribution
Continuous Power @ 2 Ohms: 75 W × 4 + 300 W × 1 for higher current demands
Bridged Continuous Power @ 4 Ohms: 150 W × 2 for powerful two-channel operation
4-Layer Conformal Coated PCB: Protects circuitry and enhances reliability
Bass Boost Adjustment: Enhances low-frequency impact for deeper bass
MOSFET Power Supply: Provides efficient and stable power delivery
12 dB/Oct Low/High Pass Electronic Crossovers: Variable 35–250 Hz (SUB) / 15–250 Hz (FR/RR) for precise tuning
Variable Gain Control: Allows fine adjustment of input sensitivity
Turn-On/Off Muting (Soft Mute): Eliminates power-up and shutdown noise
Ground Loop Isolation Input Circuit: Prevents hum and unwanted noise
Corrosion-Resistant Nickel-Plated Connections: Durable RCA, power, and speaker terminals
RCA & High-Level Speaker Inputs: Compatible with OEM and aftermarket systems


Specifications:

RMS Power Output: 50 W × 4 + 300 W × 1
Power at 2 Ohms: 75 W × 4
Bridged Power: 150 W × 2
Minimum Impedance (Bridged): 4 Ohm
Minimum Impedance (Unbridged): 2 Ohm
Frequency Response: 20–30 kHz
Total Harmonic Distortion (THD): 1% at rated RMS power
Signal-to-Noise Ratio: 70 dB for clear, noise-free playback
Input Voltage: 14.4 V
Amplifier Class: D
Built-in DSP: No
Remote Control: No
Low-Pass Crossover Frequency: 35–250 Hz, 12 dB/octave slope
High-Pass Crossover Frequency: 15–250 Hz, 12 dB/octave slope
Bass Boost: 0–12 dB @ 50 Hz
Fan Cooled: No
Fuse Rating: 80 A
Speaker Level Inputs: Yes
Preamp Outputs: No
Dimensions (W × H × D): 12-1/4″ × 1-5/8″ × 4-3/8″
Warranty: 1 Year Parts / 1 Year Labor

UPC: 729218021002
Weight: 7
