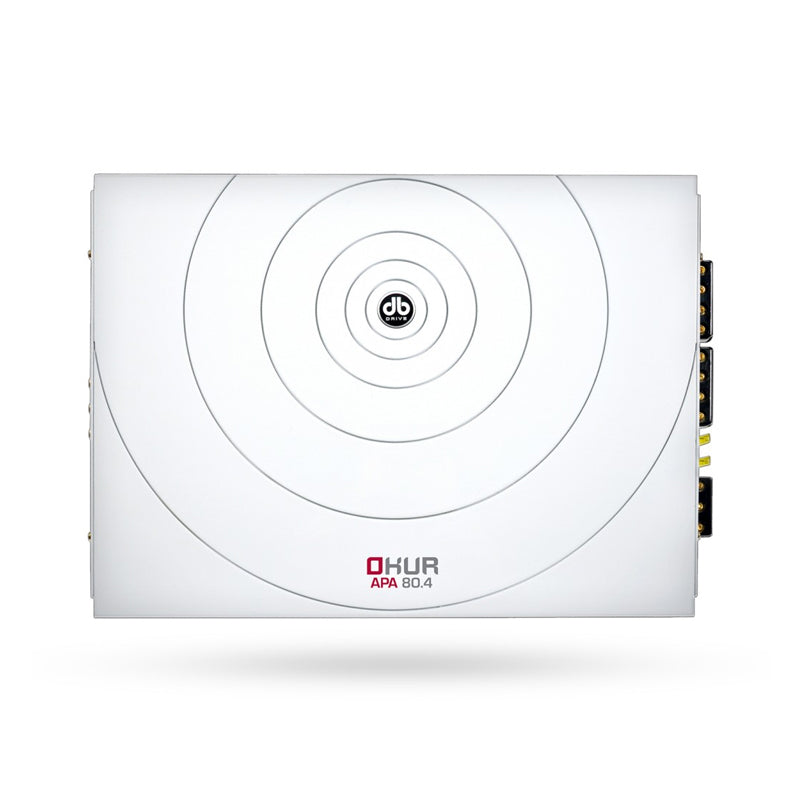

DB Drive Marine amplifier APA80.4

The APA 80.4 from DB Drive is a Class AB, 4-channel marine amplifier with a peak power of 560 watts RMS. This marine amplifier features a DC Offset Protection which means that this circuit will protect the output of the amplifier against DC voltage. The amplifier will shut down if the DC voltage is detected at the output stage. Also, the Short Circuit Protection feature will protect the amplifier by shutting down the amplifier when one of the speakers or wiring comes in contact with the ground. You can resume to normal operation by correcting the problem and turning the head unit off, then back on. APA 80.4 has a built-in crossovers with an option of low or high pass filtering. The Bass Boost feature is also available for added low frequency performance.





SPECIFICATIONS

Maximum Power : 560 Watts

Number of Channels : 4

Built In Crossovers : Yes

RMS Power Output : 80 Watts

Channel Separation : Yes

Amplifier Class : A/B

FEATURES

Features:

4 Channel Amplifier Class AB
Output Power rated @ 14.4 volts

4 x 80 Watts @ 4 Ohm
2 x 200 Watts @ 4 Ohm (Bridged)
4 x 140 Watts @ 2 Ohm

Drivesink Heat Management System
Buffered Pre-amp input Circuitry
Continuously Variable 12dB Low Pass X-over
Variable 12dB Bass boost @ 45Hz
4 Channel 2 Ohm Stereo Capability
Direct Connect Speaker Power Wire Terminals
Full Range RCA Line Outputs
RCA Configuration
Variable Input Level Control
DC-DC PWM Power Supply
DC Short Circuit Protection
Elastoquatic Coating Solution on PCB Component
Ideal for Marine and Off Road Vehicle

UPC: 839868008817
Weight: 10
