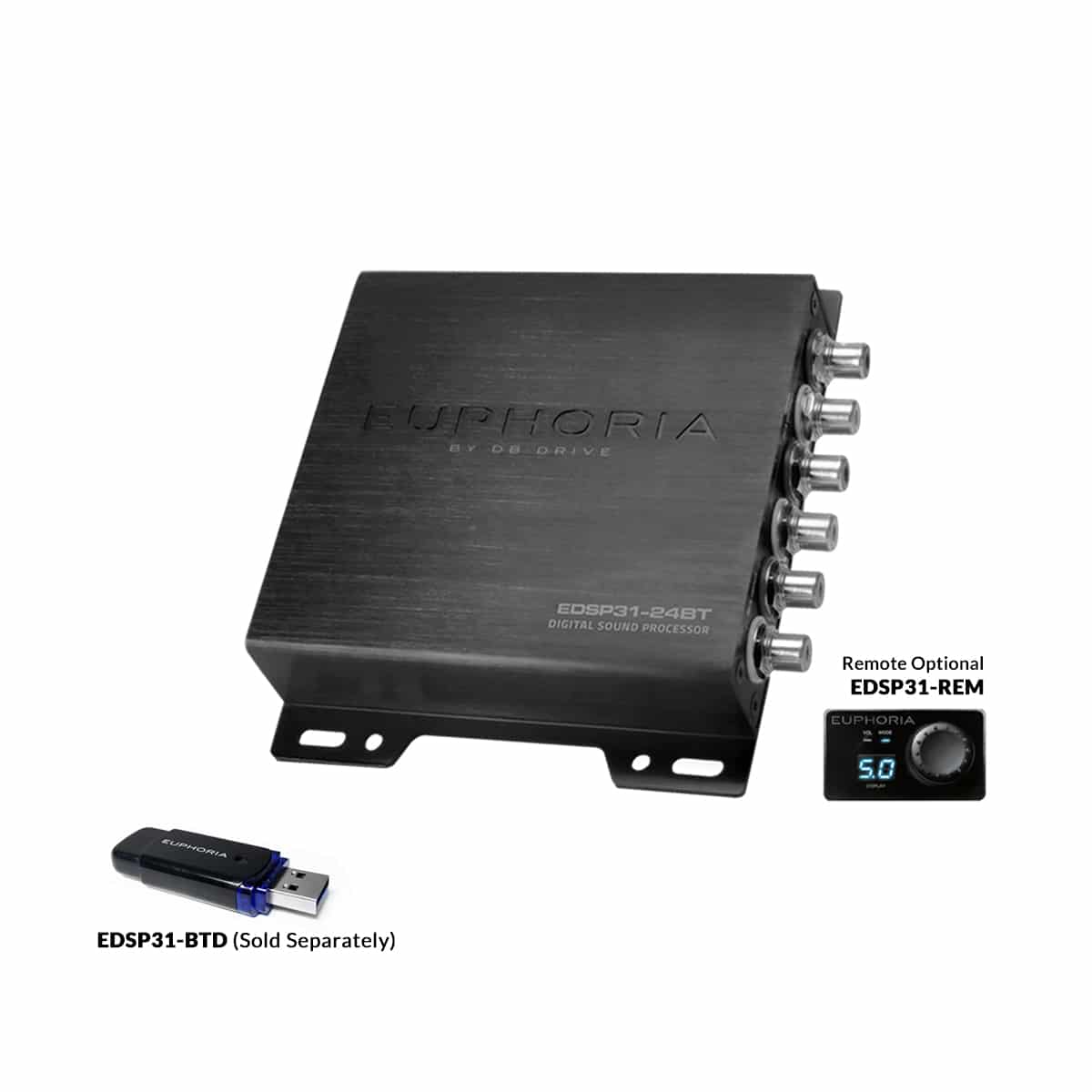

DB Drive Car Audio EDSP31-24BT
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandDB Drive
- SKUEDSP31-24BT
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- 31 BAND DIGITAL SOUND PROCESSOR Specifications DSP settings and adjustments made via PC or optional Smart phone app 2 assignable inputs Selectable Audio Input: low-level or hi-level 4 independently assignable low -level outputs Selectable crossover slopes ( 6, 12, 18,...
Product description
-
31 BAND DIGITAL SOUND PROCESSOR
Specifications
-
- DSP settings and adjustments made via PC or optional Smart phone app
- 2 assignable inputs
- Selectable Audio Input: low-level or hi-level
- 4 independently assignable low -level outputs
- Selectable crossover slopes ( 6, 12, 18, 24, 30, 36, 42, 48 dB/octave )
- 31 band graphic EQ with fine tuning
- Adjustable high, band-pass, or low-pass filters （ 20Hz-20KHz )
- Adjustable Time alignment per output channel
- Adjustable Q-Factor per frequency
- Phase adjustment: switchable 0/180 degrees on all output channels
- Audio Sensing Auto remote output
- Includes USB cable and software download QR codes for windows
- Optional Dash remote with subwoofer control ( sold separately )
- Compatible Microsoft Windows® XP SP3 / Vista / 7 / 8 / 8.1 / 10
Dimensions
- 4.48” x 5.23” x 1.10” – L x W x H
- 114 mm x 133 mm x 28 mm – L x W x H
-
