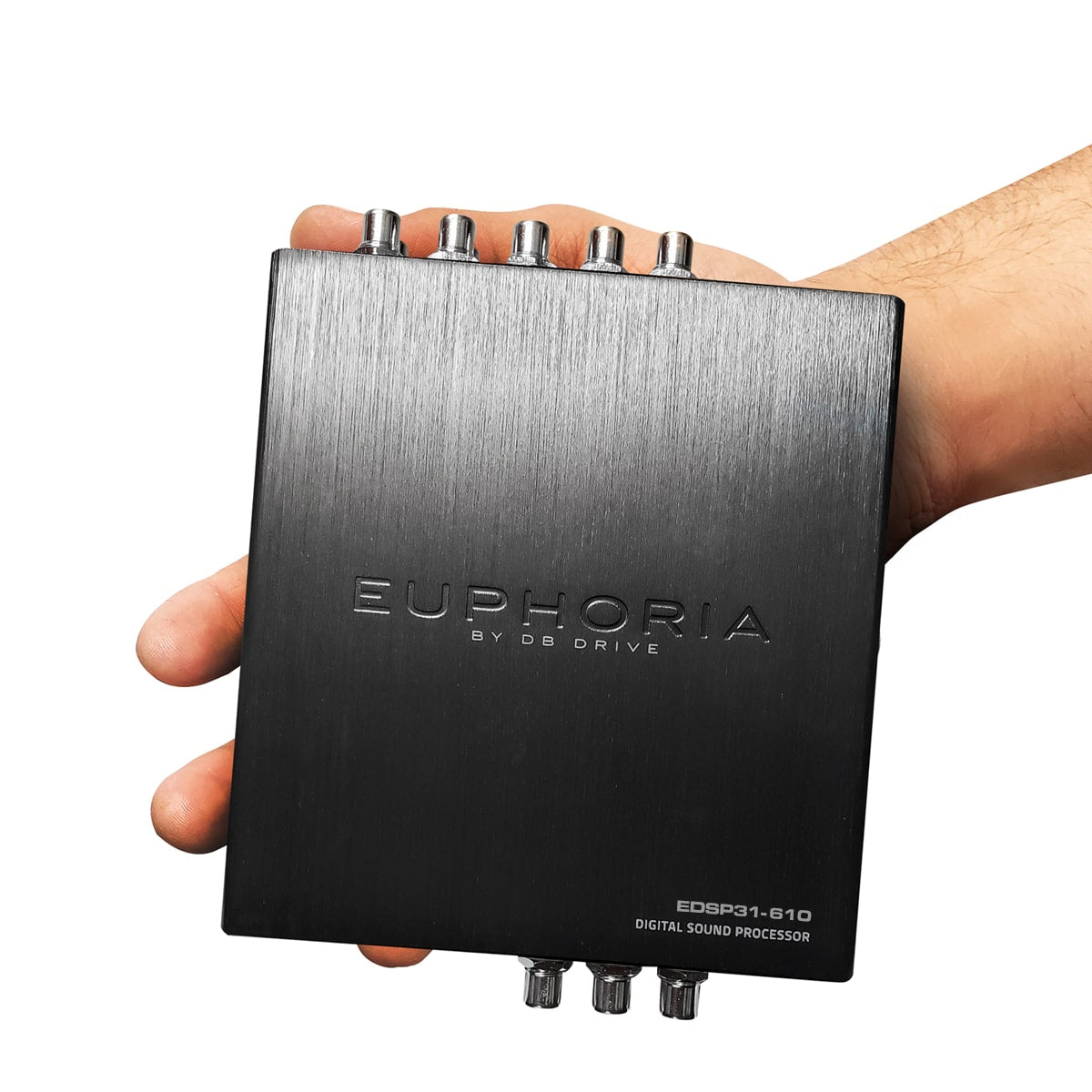

DB Drive Car Audio EDSP31-610
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandDB Drive
- SKUEDSP31-610
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- 31 BAND DIGITAL SOUND PROCESSOR APP INTERFACE DOWNLOAD PC Software Download DOWNLOAD MANUAL California Prop 65 WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov Specifications DSP settings and adjustments made via PC or optional Smart phone app ...
Product description
-
31 BAND DIGITAL SOUND PROCESSOR
APP INTERFACE DOWNLOAD
California Prop 65 WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
Specifications
-
- DSP settings and adjustments made via PC or optional Smart phone app

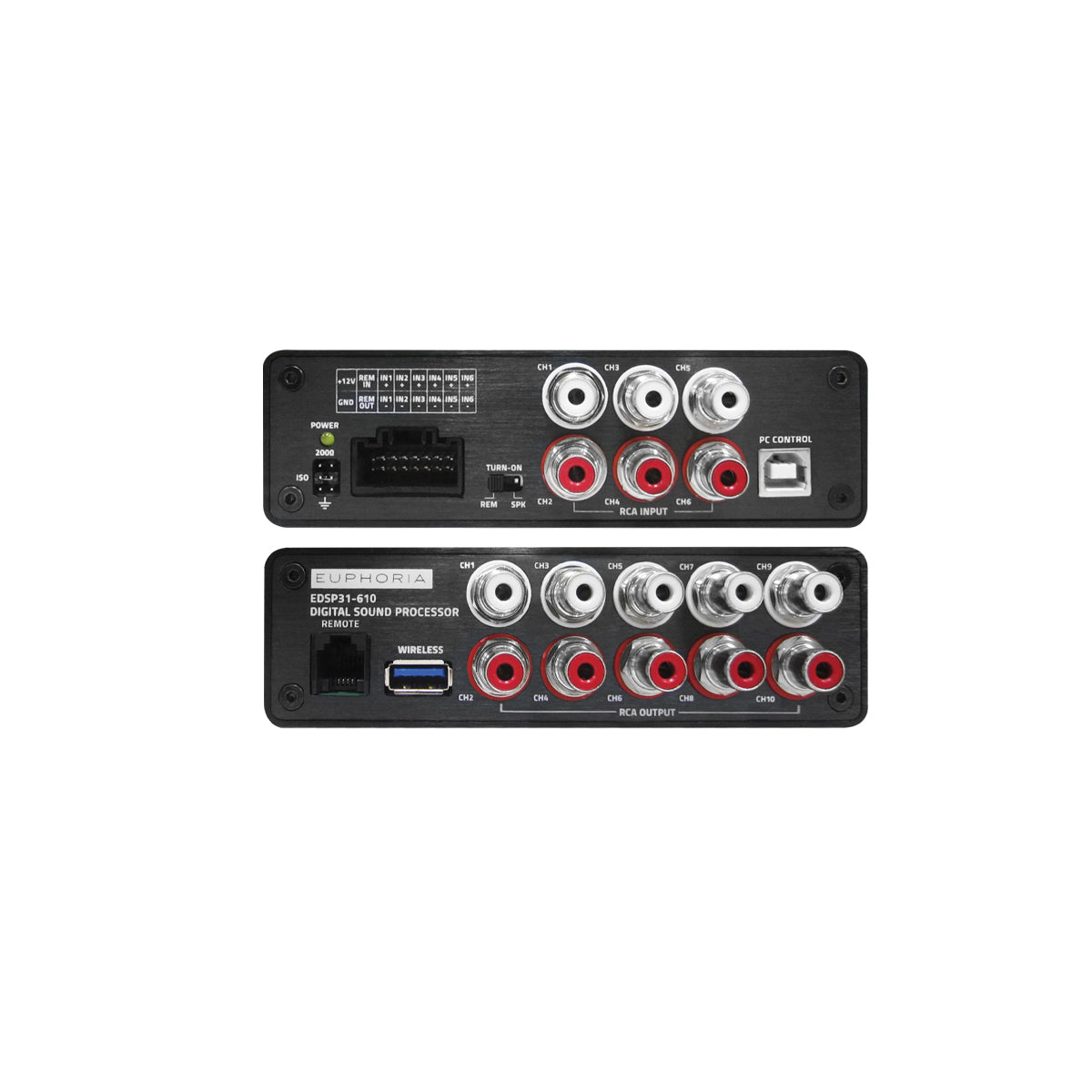

- 6 assignable inputs
- Selectable Audio Input: Front, rear and Subwoofer Low-Level- Front and rear Hi-Level

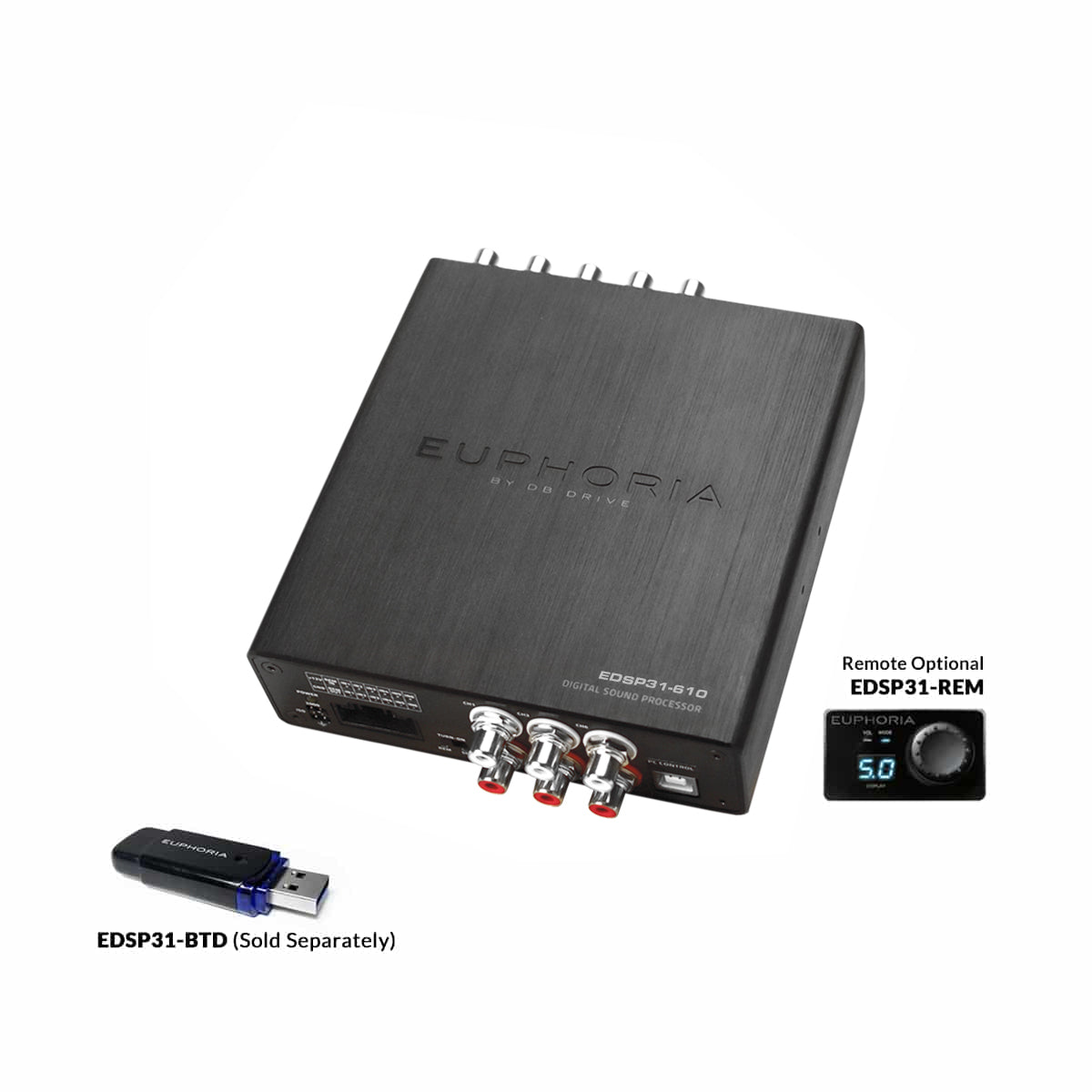

- Optional Wireless Audio Streaming dongle ( sold Seperatly )
- 10 Independently assignable low-level outputs
- Summable Input Channel
- Selectable crossover slopes: ( 6, 12, 18, 24, 30, 36, 42, 48 dB/octave )
- 31 band graphic EQ with fine tuning • Adjustable high, band-pass, or low-pass filters (20KHz-20Hz)
- Adjustable Time alignment per output channel
- Adjustable Q-Factor per frequency
- Phase adjustment: switchable 0/180 degrees on all output channels
- Audio Sensing Auto remote output
- Includes USB cable and software download QR code
- Optional Dash remote with subwoofer control (sold separately)
- Compatible Microsoft Windows® XP SP3 / Vista / 7 / 8 / 8.1 / 10
Dimensions
- 5.66” x 5.27” x 1.57” – L x W x H
- 144 mm x 134 mm x 40 mm – L x W x H
-
