DB Drive Car Audio EW710F
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandDB Drive
- SKUEW710F
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- Euphoria EW7 10F * Shallow mount 10" sub only 3.5" mounting depth! 2.5″ 4 Layer Dual 4 Ohm VC w/ Aluminum Former IMPP Cone with Foam Surround 40 oz. Ferrite Magnet Ultra Thin Stamped Steel Frame Design Blue Zinc Finished Top and Bottom Plates Mixed C Fiber Spider Heavy Ga...
Product description
-

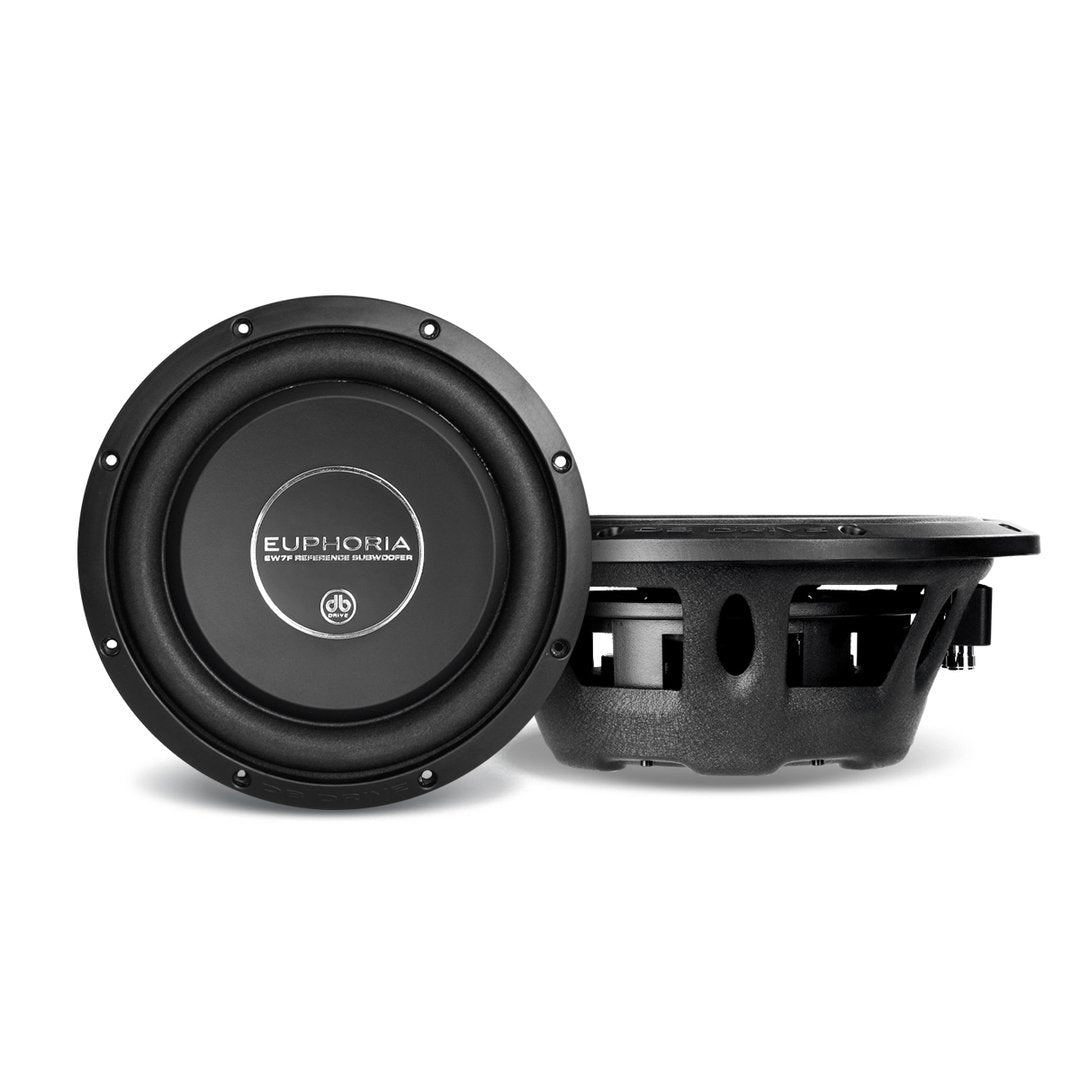

Euphoria EW7 10F
* Shallow mount 10" sub only 3.5" mounting depth!
- 2.5″ 4 Layer Dual 4 Ohm VC w/ Aluminum Former
- IMPP Cone with Foam Surround
- 40 oz. Ferrite Magnet
- Ultra Thin Stamped Steel Frame Design
- Blue Zinc Finished Top and Bottom Plates
- Mixed C Fiber Spider
- Heavy Gauge Spring Terminals
- Radial VC Venting
GENERAL SPECIFICATIONS Structure 10″ (25.4cm) Woofer Dynamic Power Handling 1000 Watts Nominal Power Handling 300 Watts Impedance Dual 4Ω Voice Coil PARAMETERS Sensitivity 1W/1m (SPL) 82.9 dB DC Resistanc (Re) 6.410 Ω Free Air Resonance (Fo) 27.409 Hz Equivalent Stiffeness (Vas) 46.185mM Mechanical Q (Qms) 7.757 Electrical Q (Qes) 0.857 Total Q (Qts) 0.739 Moving Mass (Mms) 124.362 g Motor Force (BL) 13.464 TM Cone Surface Area (Sd) 34.636 mM
