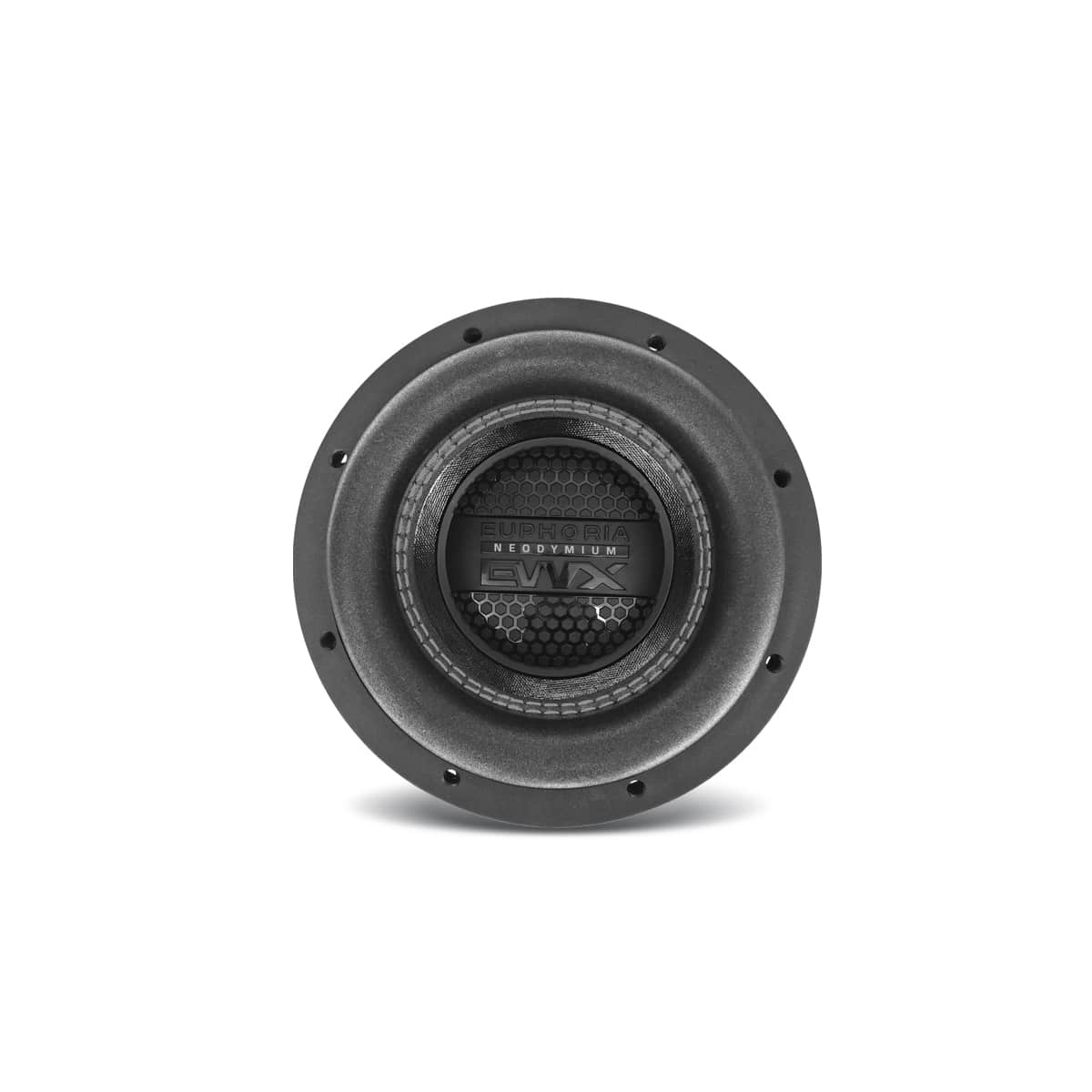

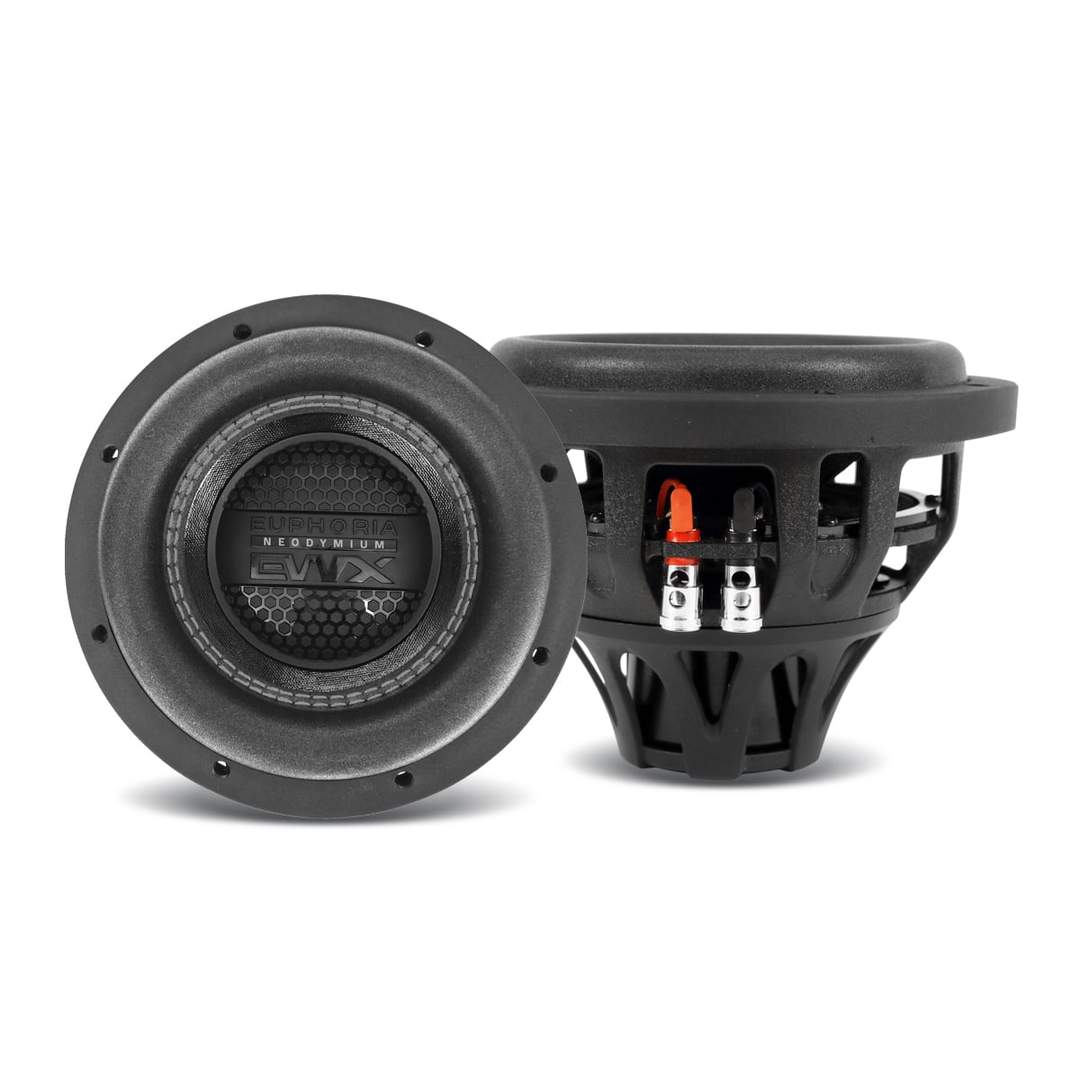

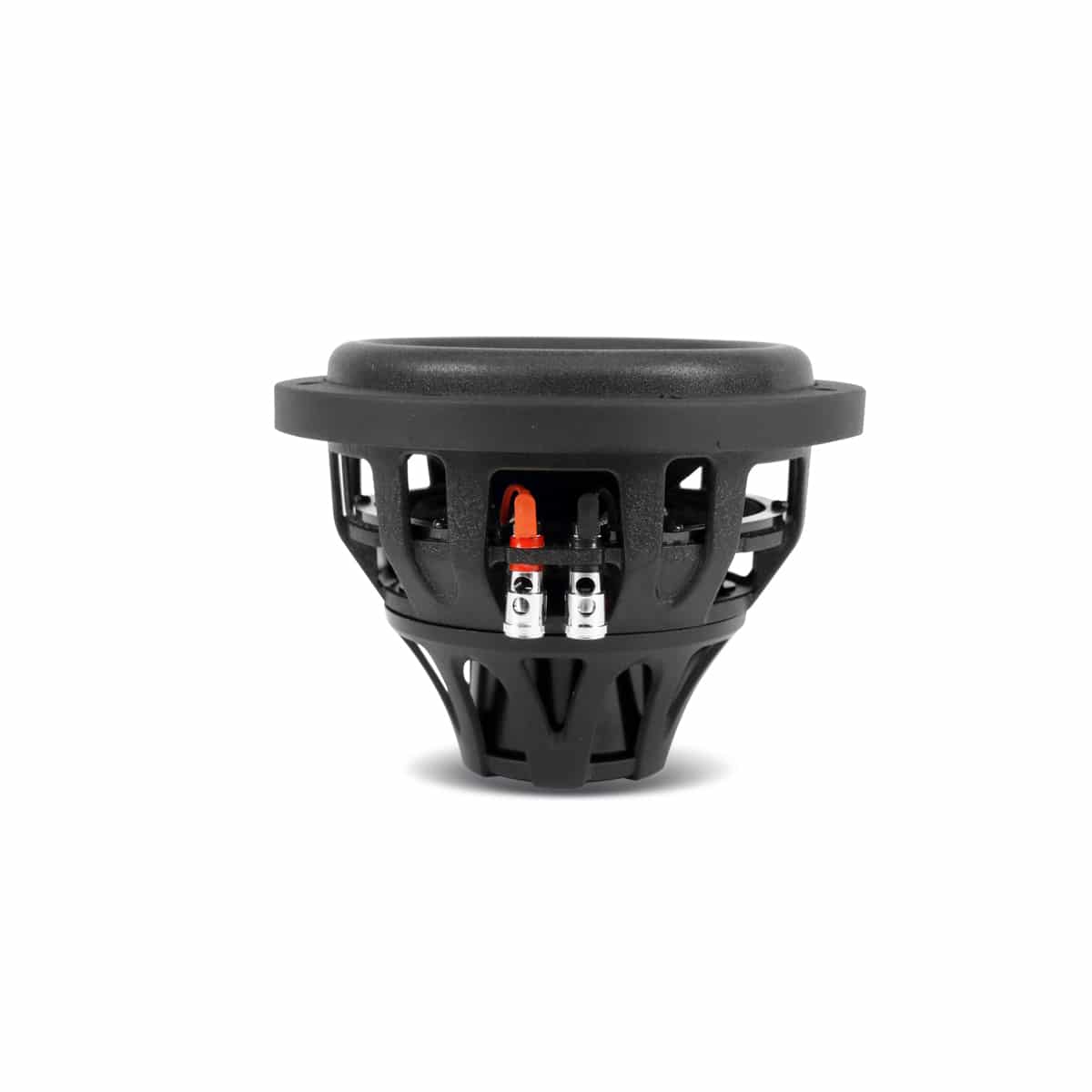

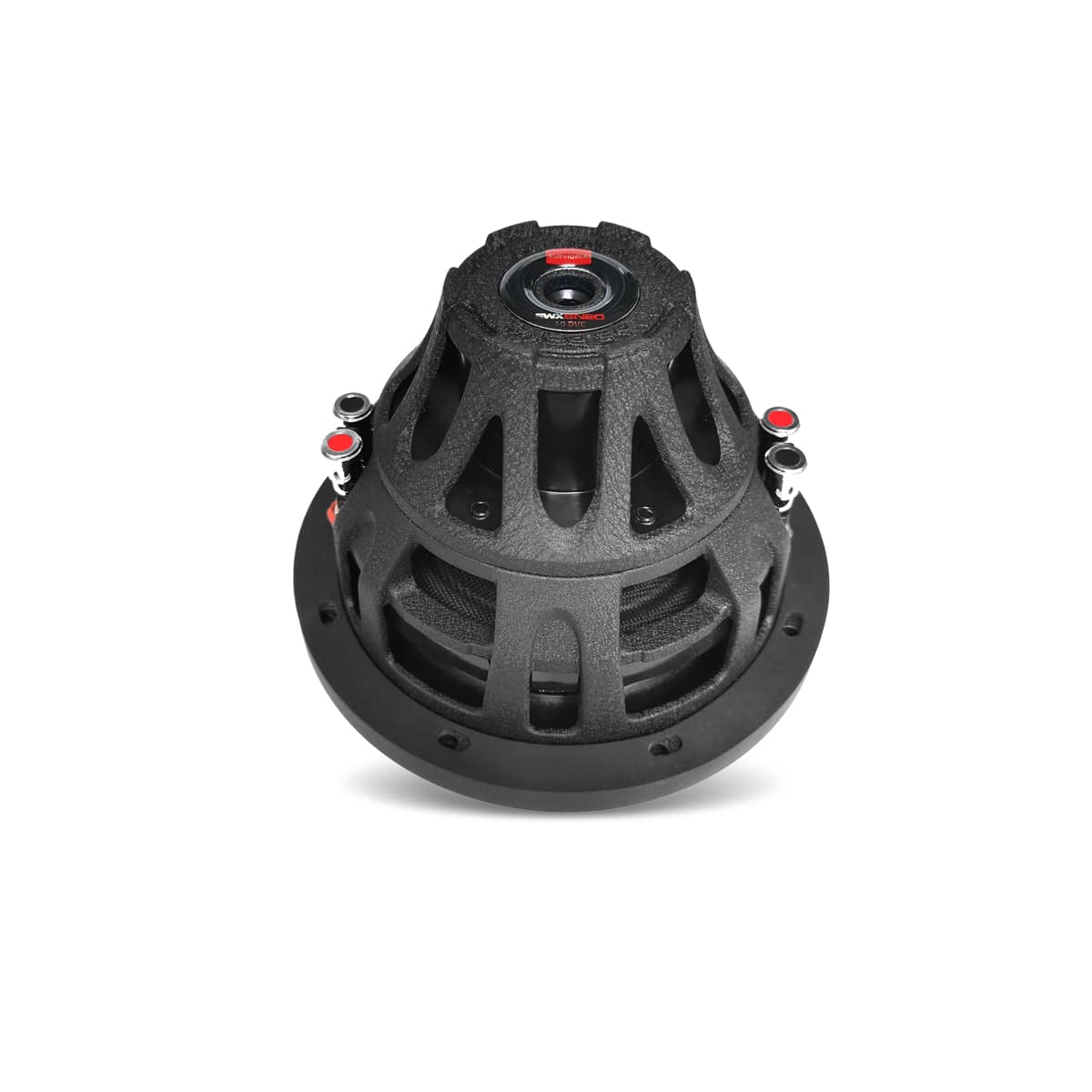

DB Drive Car Audio EWX8-NEO
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandDB Drive
- SKUEWX8-NEO
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double-stitched foam surround along with the die-cast aluminum vented basket allows for maximum excursion while the protective magnet cover gives the woofer a rugged yet st...
Product description
Our engineers at DB Drive have designed this subwoofer from the ground up to shake the ground up. The double-stitched foam surround along with the die-cast aluminum vented basket allows for maximum excursion while the protective magnet cover gives the woofer a rugged yet stylish appearance.
-
- 2″ High-temperature voice coil
- N38 Neodymium Motor Design
- Pulp Fiber Reinforced Cone
- Multi-Layer Foam Surround
- Progressive Dampeners
- 3.2Ω DVC
PHYSICAL STRUCTURE
| Outside Diameter (A) | 8.75″ (222.5mm) |
| Cutout Diameter (B) | 7.17″ (182.3mm) |
| Mounting Depth (C) | 5.06″ (128.6mm) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Structure | 8″ (20.32cm) Woofer |
| Dynamic Power Handling | 600 Watts |
| Nominal Power Handling | 300 Watts |
| Impedance | Dual 3.2Ω Voice Coil |
| PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 50.26Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω + 3.2Ω |
| Mechanical Quality Factor (Qms) | 1.975 |
| Electrical Quality Factor (Qes) | 0.789 |
| Total Quality Factor (Qts) | 0.564 |
| Equivalent Air Volume to Cms (Vas) | 5.248 |
| Mass of Diaphragm/Coil (Mms) | 124.032 g |
| Force Factor (Bl) | 8.911 N/A |
