DB Drive

DB Drive Car Audio EX10NCD

DB Drive Car Audio EX10NCD

$999.98 USD
$999.98 USD
Sale Sold out
WEATHER READY
  • IP RatingsIP52
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

DB Drive Car Audio EX10NCD

WOS Pick What you're getting in 10 seconds — expand for full details.

  • BrandDB Drive
  • SKUEX10NCD
  • IPIP52
Mei says

"Match gear to your install and power budget. Do it once, do it right."

The stuff you'll actually notice
  • California Prop 65 WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov TRUE SOUND. TRUE SOURCE. EX10NCD NEODYMIUM SERIES 10” 2-WAY LOUDSPEAKERS Early on, we have been committed to innovation in all things involving car audio. Experience the passion through...
Product description

  • California Prop 65 WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

    TRUE SOUND. TRUE SOURCE.

    EX10NCD

    NEODYMIUM SERIES 10” 2-WAY LOUDSPEAKERS

    Early on, we have been committed to innovation in all things involving car audio. Experience the passion through audio designed and engineered for that moment you want to raise the bar and set the mood.

    Features

    • 2.5″ (63.5mm) Midrange Voice Coil
    • Neodymium Ring Magnet Assembly
    • Rear Mounted Full Sized Compression Driver
    • IP52 Rateed Paper Cone With Treated Cloth Surround
    • Die-Cast Aluminum Basket With Radial Venting
    • 1.4″ (36mm) Polyester Tweeter Diaphragm
    • Wide Dispersion Conical HF Waveguide
    • 12dB Passive Crossover Included
    • Protective Grills Included

      Specifications

      • Nominal Impedance 5.2Ω
      • Power Handling 500 Watts
      • Dynamic Wattage 1000 Watts

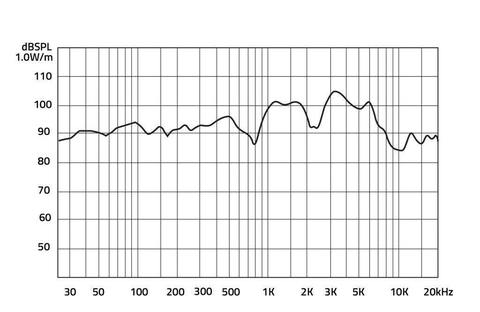

      • Freq Response 70hZ-20kHz
      • Sensitivity (1w/1M) 106.1 DB
      • Voice Coil Diameter 2"
      T/S PARAMETERS
      Resonant Frequency (fs) 54.8Hz
      D.C. Voice Coil Resistance (Re) 3.3Ω
      Mechanical Quality Factor (Qms) 7.18
      Electrical Quality Factor (Qes) 0.41
      Total Quality Factor (Qts) 0.39
      Compliance Equivalent Volume (Vas) 46.9L
      Mechanical Compliance (Cms) 0.27 mm/N
      Efficiency (1W/1M) 106.1 dB
      REPLACEMENT DIAPHRAGM:   EXNCD-RC
      ADDITIONAL SPECS
      Nominal Impedance 5.2Ω
      Power Handling 500 Watts
      Dynamic Wattage 1000 Watts
      Sensitivity (1w/1m) 106.1 dB
      Voice Coil Diameter 2.5″ (63.5mm)

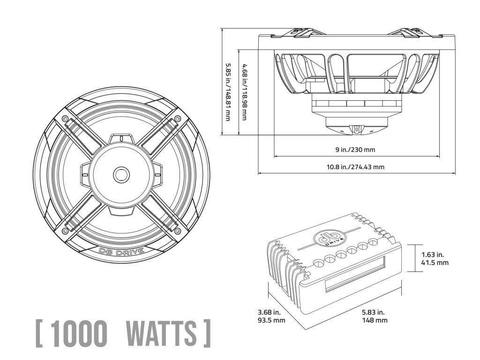

      DIMENSIONS
      Mounting Depth: 4.68″ (118.98mm)
      Mounting Diameter: 9″ (230mm)
        Weather & environment
        IP Ratings IP52
