DB Drive Car Audio EX1K
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandDB Drive
- SKUEX1K
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- TRUE SOUND. TRUE SOURCE. EX1K 1000 WATT FULL RANGE CLASS D MONOBLOCK AMPLIFIER Early on, we have been committed to innovation in all things involving car audio. Experience the passion through audio designed and engineered for that moment you want to raise the bar and set the ...
Product description
TRUE SOUND. TRUE SOURCE.

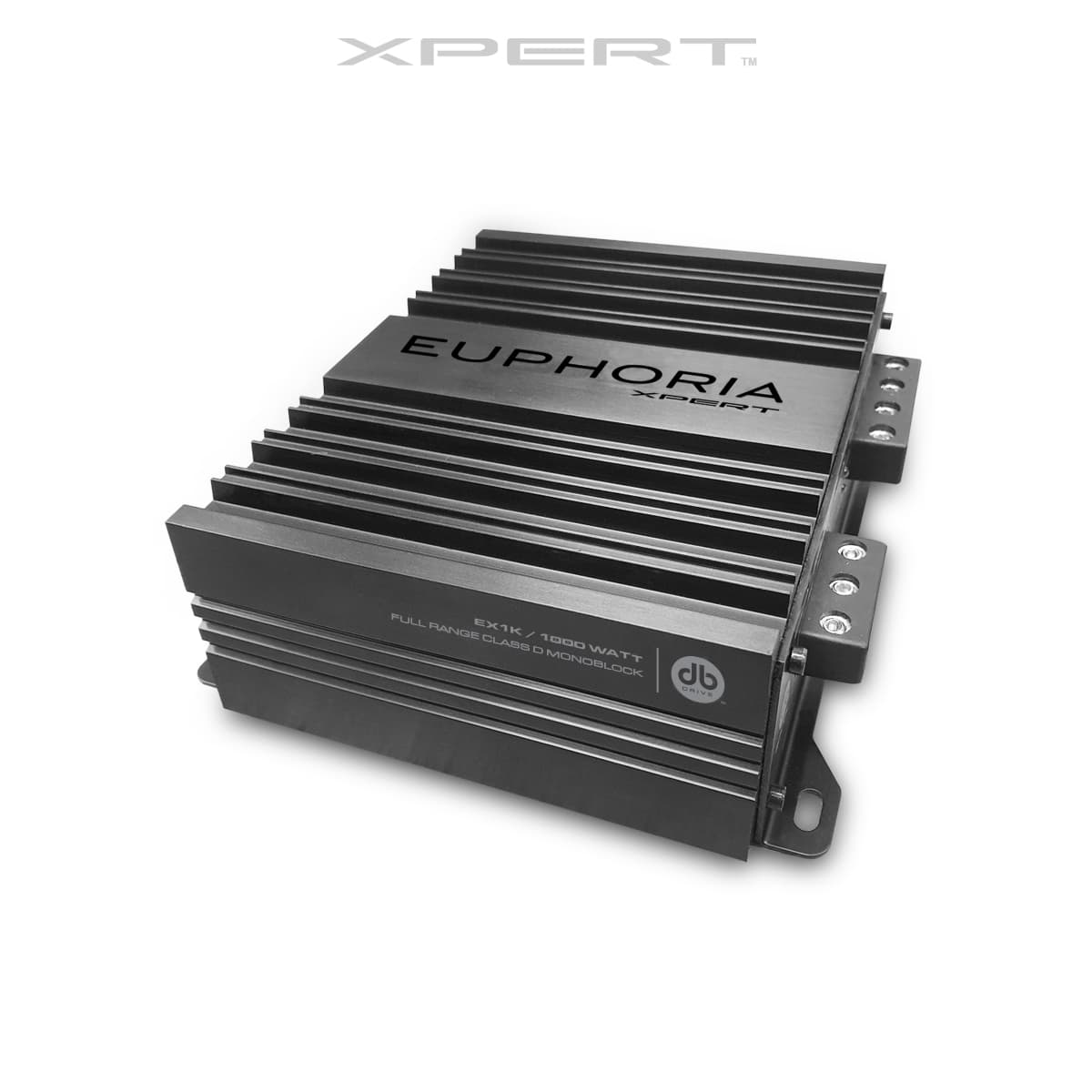

EX1K 1000 WATT FULL RANGE CLASS D MONOBLOCK AMPLIFIER
Early on, we have been committed to innovation in all things involving car audio. Experience the passion through audio designed and engineered for that moment you want to raise the bar and set the mood.
Features

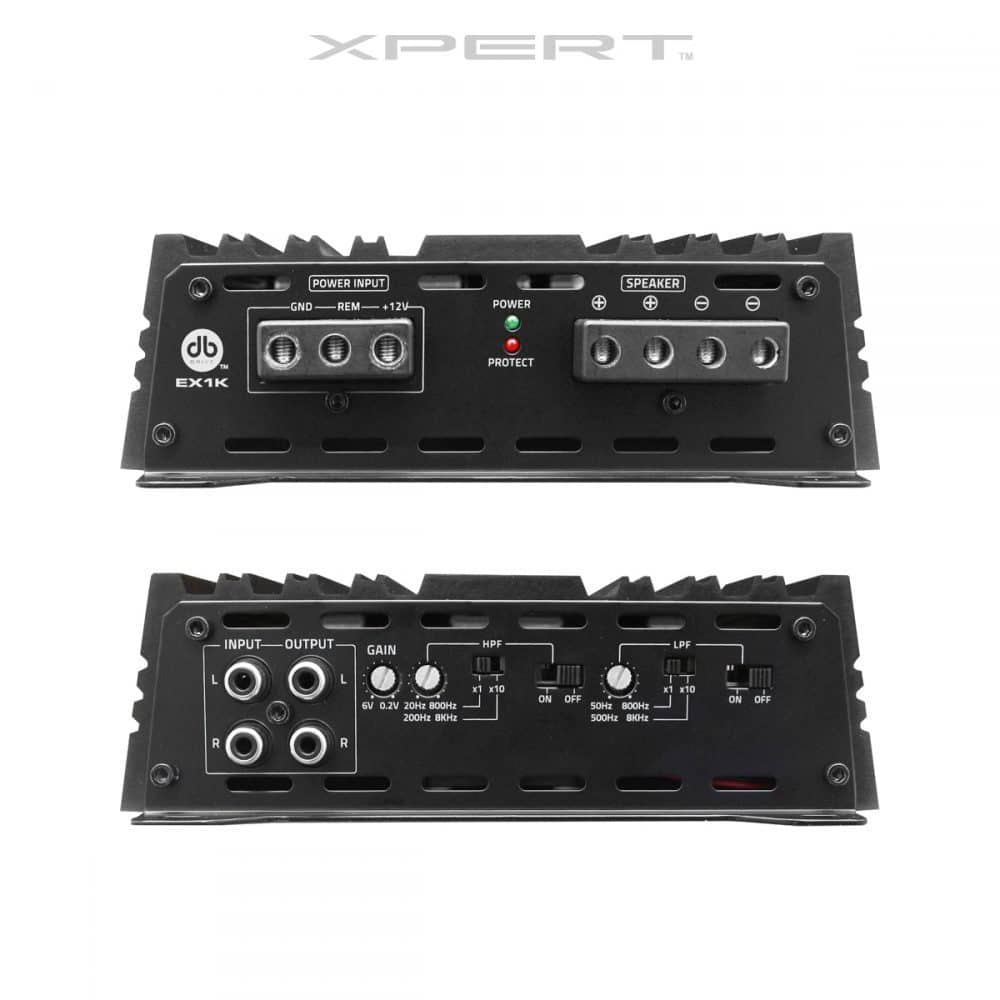

- Audiophile Grade tiffany RCA connectors
- Buffered full range RCA pass through outputs
- High efficiency full range Class D Technology
- Direct Connect Speaker terminals
- Large Gauge Power Wire Inputs
- Speaker Short Circuit Protection
- Conformal coated moisture resistant PCB
Voltage
- 4Ω @ 14.4V: 1x250
- 2Ω @ 14.4V: 1x500
- 1Ω @ 14.4V: 1x1000
Specifications
- Working Voltage: 10-16Volts
- Freq Response 20HZ-35kHz
- Signal to Noise Ration <95dB
- Damping Factor 150 dB<
- Low Level Input 6C-.2V
- HP Filter 20Hz-8kHz
- LP Filter 50Hz- 8kHz
- Min Impedance 1Ω Mono
