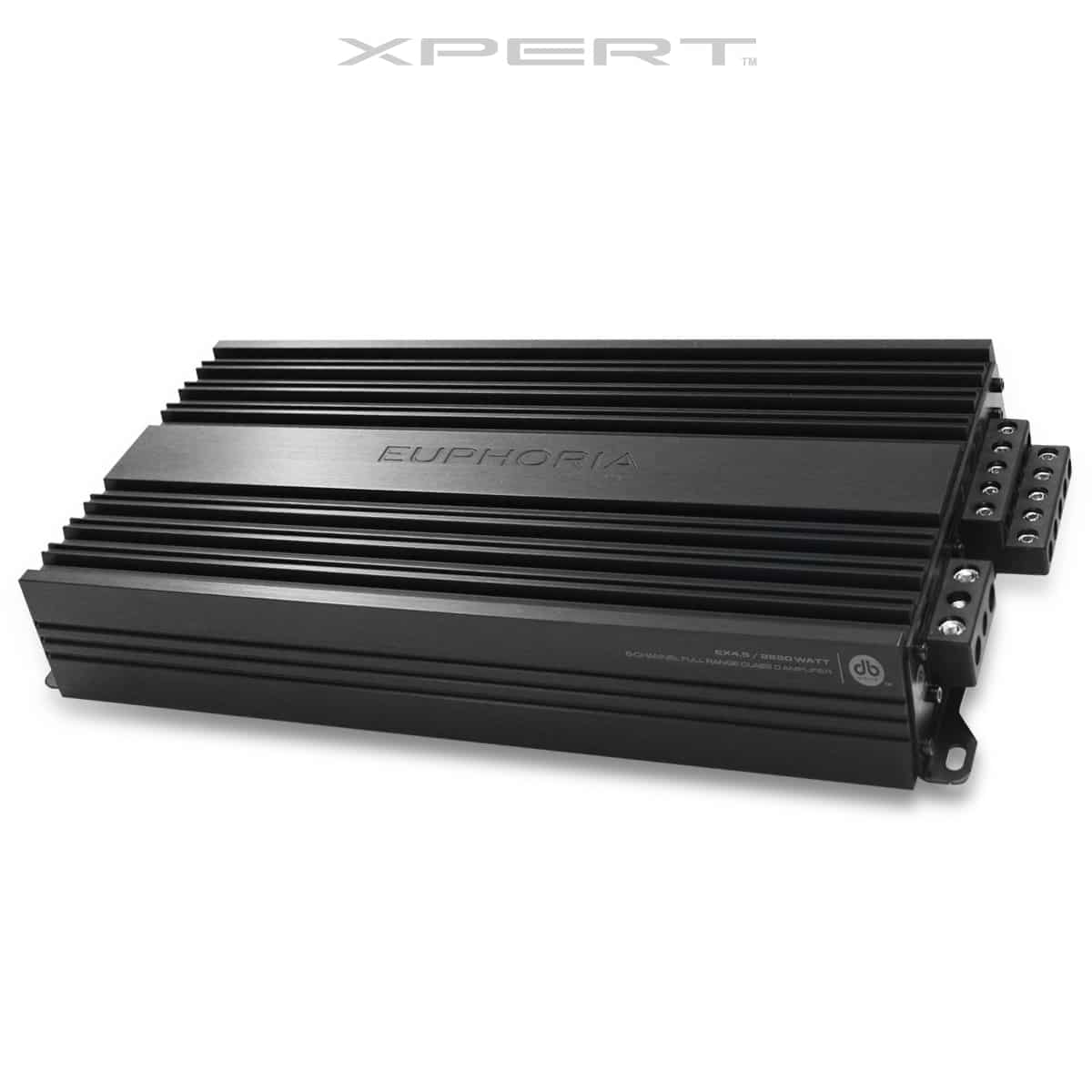

DB Drive Car Audio EX4.5

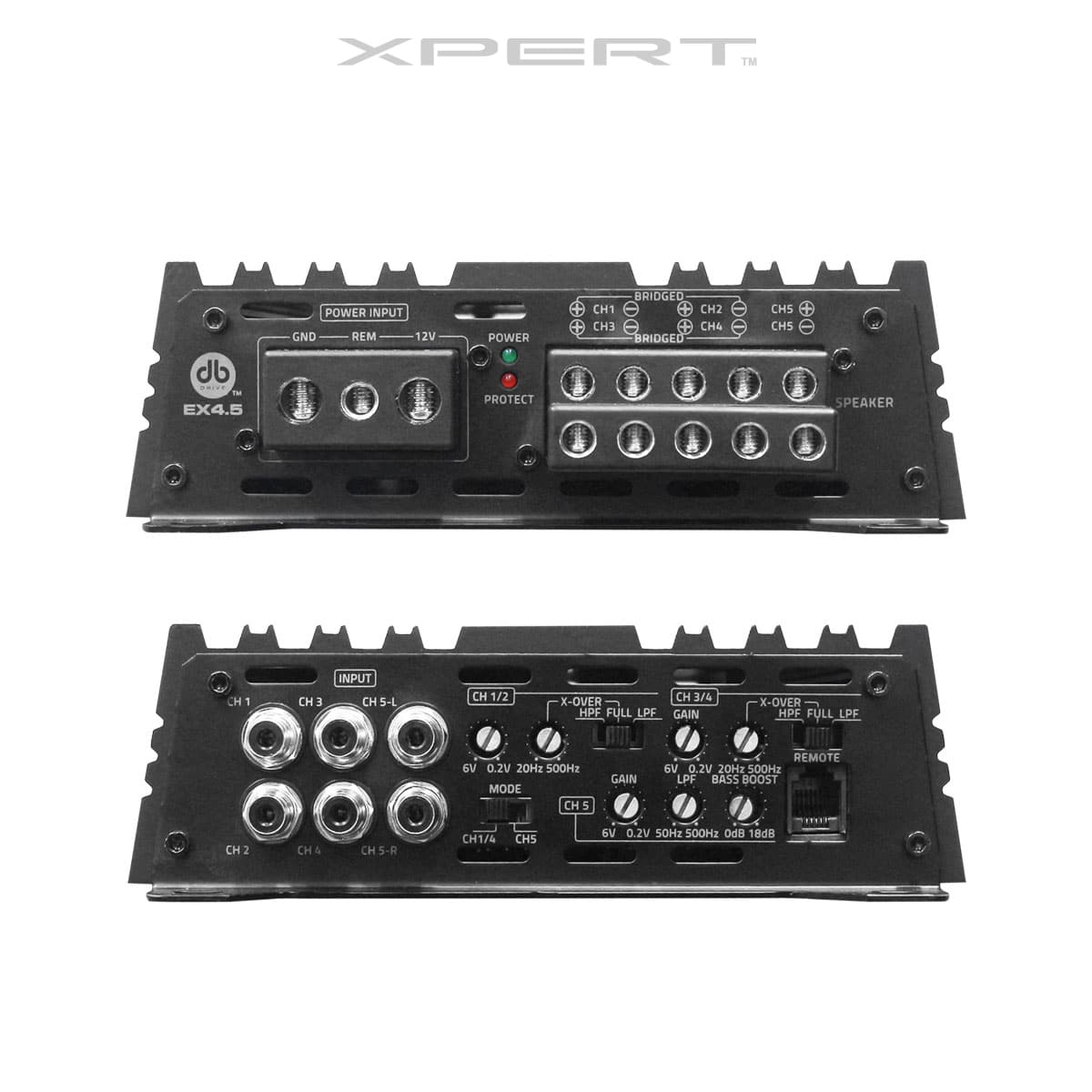

- Audiophile Grade tiffany RCA connectors
- Selectable Low-Pass, Band-Pass or High-Pass x-over
- High efficiency full range Class D Technology
- Direct Connect Speaker Terminals
- Large Gauge Power Wire Inputs
- Speaker Short Circuit Protection
- Conformal coated moisture resistant PCB
PHYSICAL STRUCTURE
| Length (A) | 13″ (330mm) |
| Width (B) | 6.9″ (174mm) |
| Height (C) | 2.11″ (53.6mm) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Rated Power @ 14.4 Volts | 4 x 200 Watts + 1 x 725 @ 4Ω |
| 4 x 400 Watts + 1 x 1000 @ 2Ω | |
| PARAMETERS | |
|---|---|
| Frequency Response | 20Hz ~ 30KHz (CH1-CH4) /50Hz ~ 500HZ (CH5) |
| S/N Ratio | < 62dB |
| Low Level Input | 6V – 0.2V |
| High Pass Filter Variable | 20Hz ~ 500Hz (CH1-CH4) |
| Low Pass Filter Variable | 20Hz ~ 500Hz (CH1-CH4), 50Hz ~ 500HZ (CH5) |
| Working Voltage | 10V ~ 16V |
