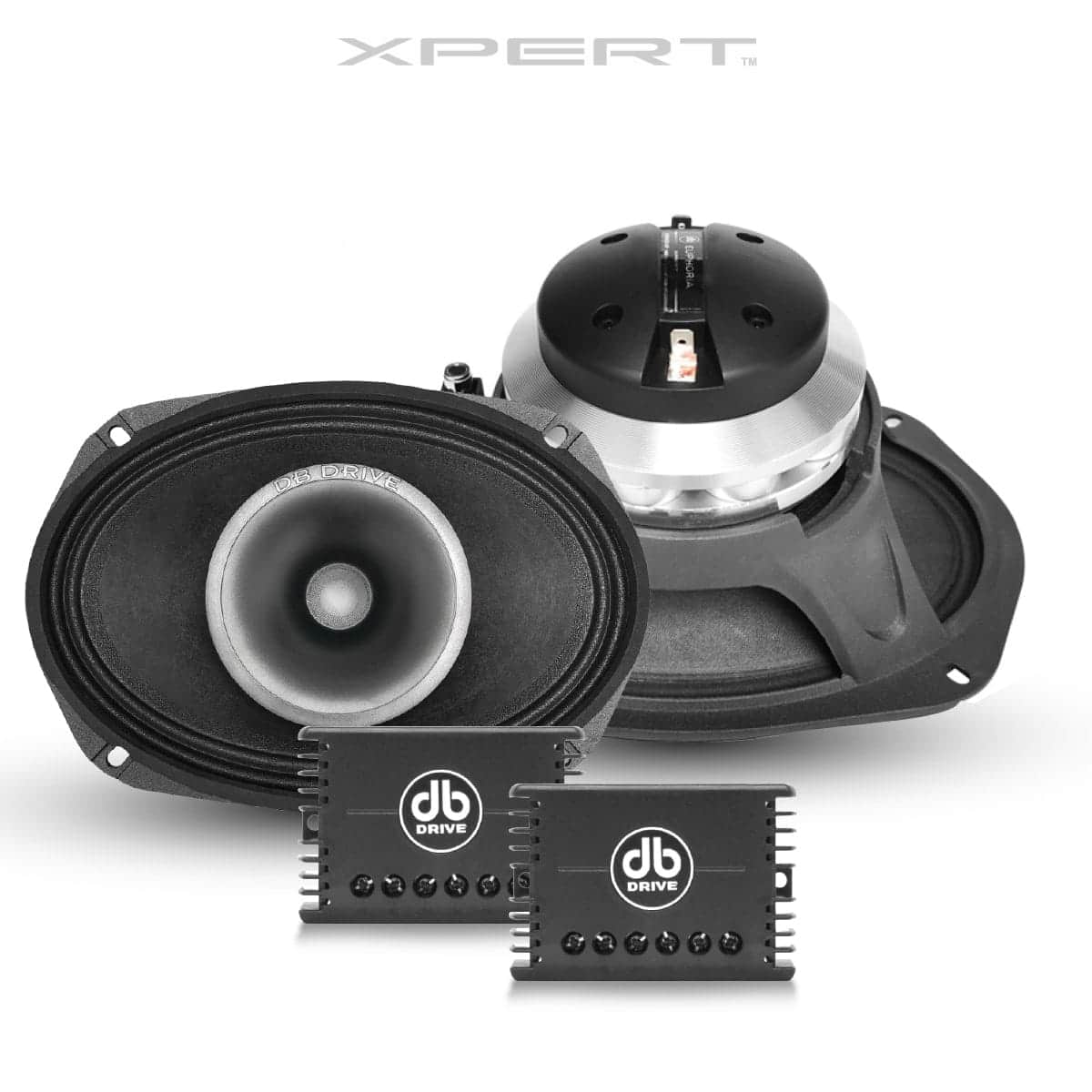

DB Drive Euphoria XPERT EX69NCD6×9″ 2-Way Loudspeaker with Backloaded Compression Driver
Available by special order WOS • Product
Product information console

Know What You’re Installing

Product overview

DB Drive Car Audio EX69NCD6

  • **SOLD IN PAIRS**

    • 6″x9″ 2-Way Loudspeaker
    • 10 Neodymium Ring Magnet Assembly

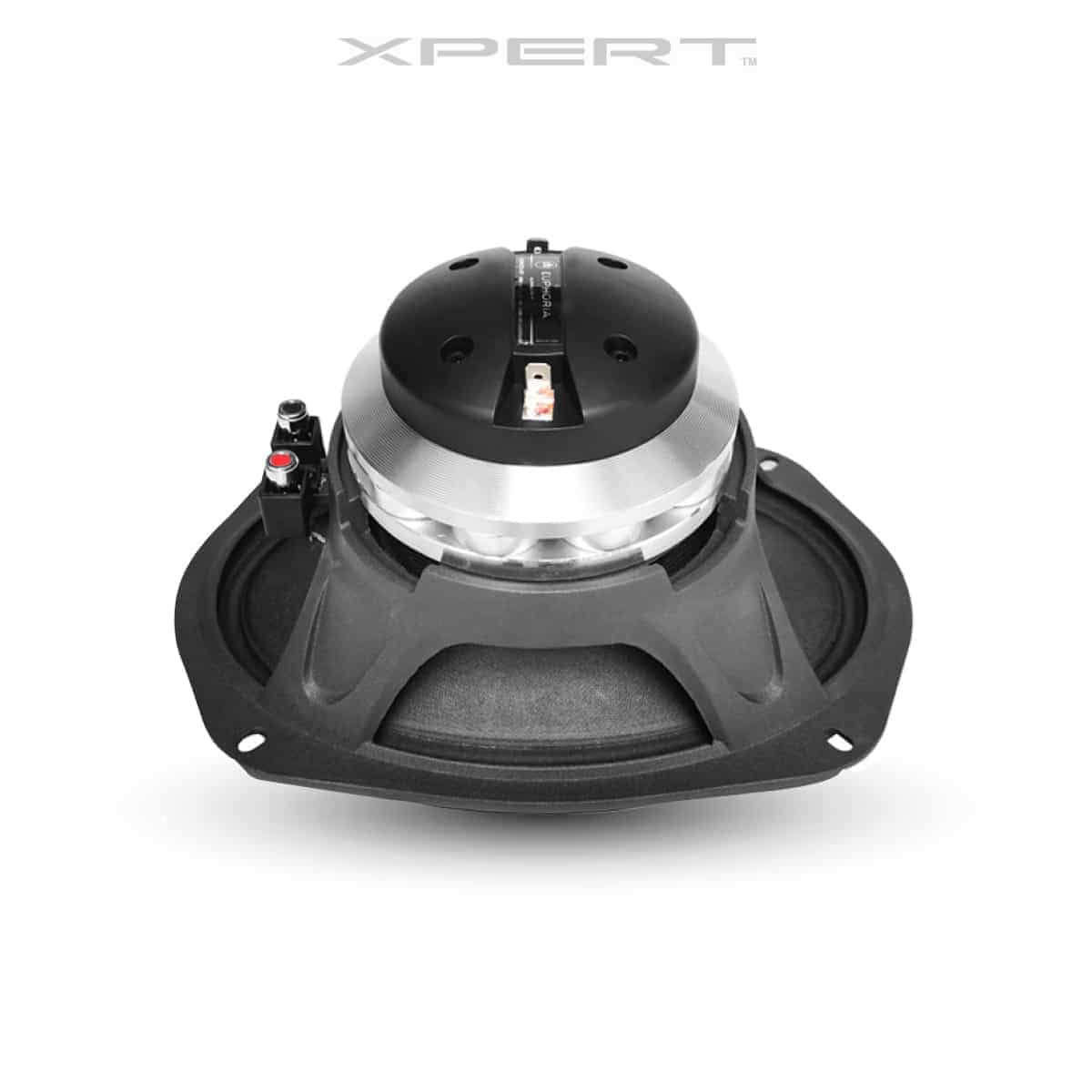

    • Rear Mounted Full Sized Compression Driver
    • IP52 Rated Paper Cone With Treated Cloth Surround
    • Die-Cast Aluminum Basket With Radial Venting
    • 1.4″ (36MM) Polyester Tweeter Diaphragm
    • Wide Dispersion Conical HF Waveguide

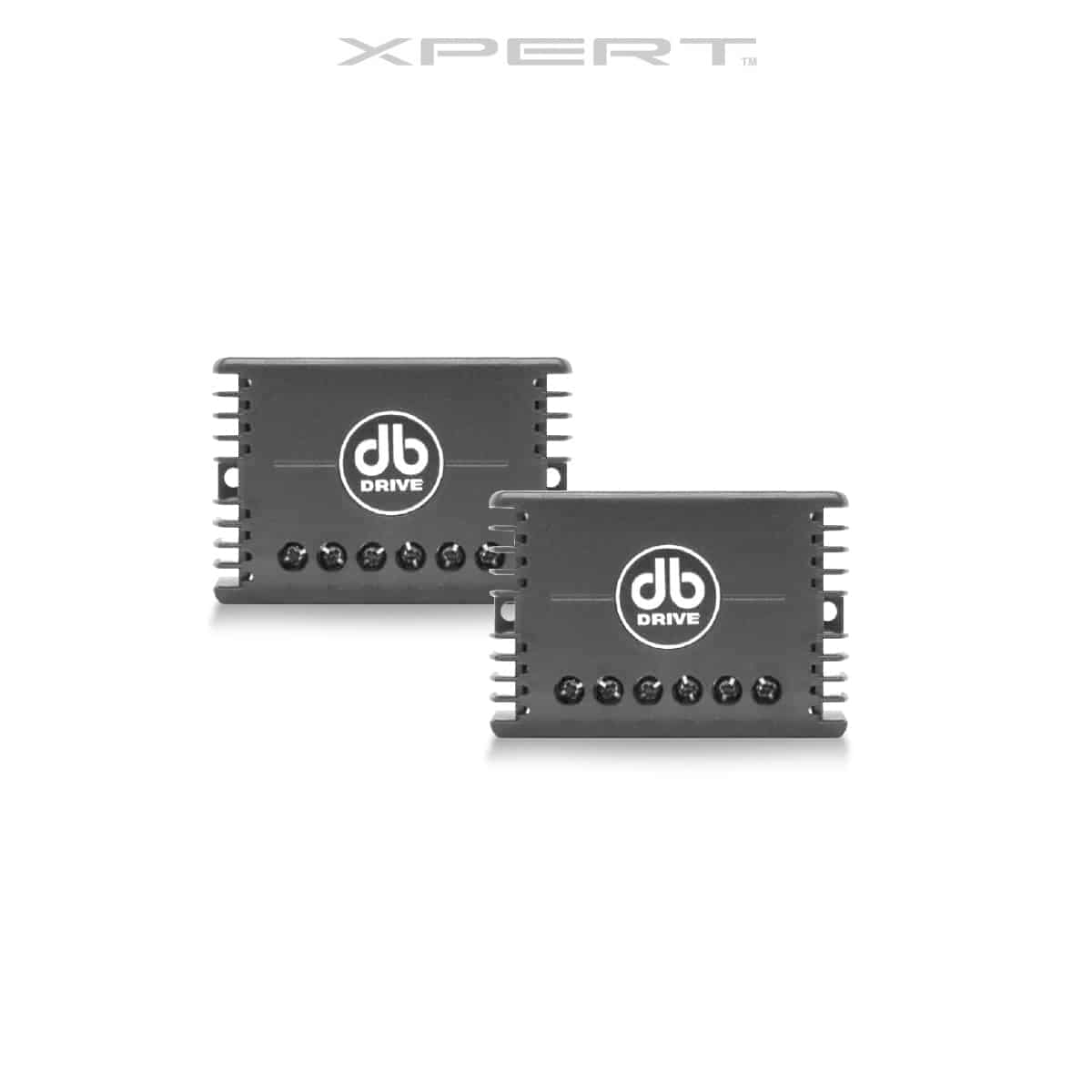

    • 12dB Passive Crossover Included



    T/S PARAMETERS
    Resonant Frequency (fs) 78.1Hz
    D.C. Voice Coil Resistance (Re) 3.2Ω
    Mechanical Quality Factor (Qms) 10.75
    Electrical Quality Factor (Qes) 0.35
    Total Quality Factor (Qts) 0.34
    Compliance Equivalent Volume (Vas) 10.6L
    Mechanical Compliance (Cms) 0156 mm/N
    Efficiency (1W/1M) 93.4 dB



    ADDITIONAL SPECS
    Nominal Impedance 4Ω
    Power Handling 500 Watts
    Dynamic Wattage 1000 Watts
    Sensitivity (1w/1m) 93.4 dB
    Voice Coil Diameter 2.0″ (51mm)



    DIMENSIONS
    Mounting Depth: 4.42″ (112.30mm)
    Mounting Diameter: 5.82 x 8.66″ (148mm x 220.42mm)
