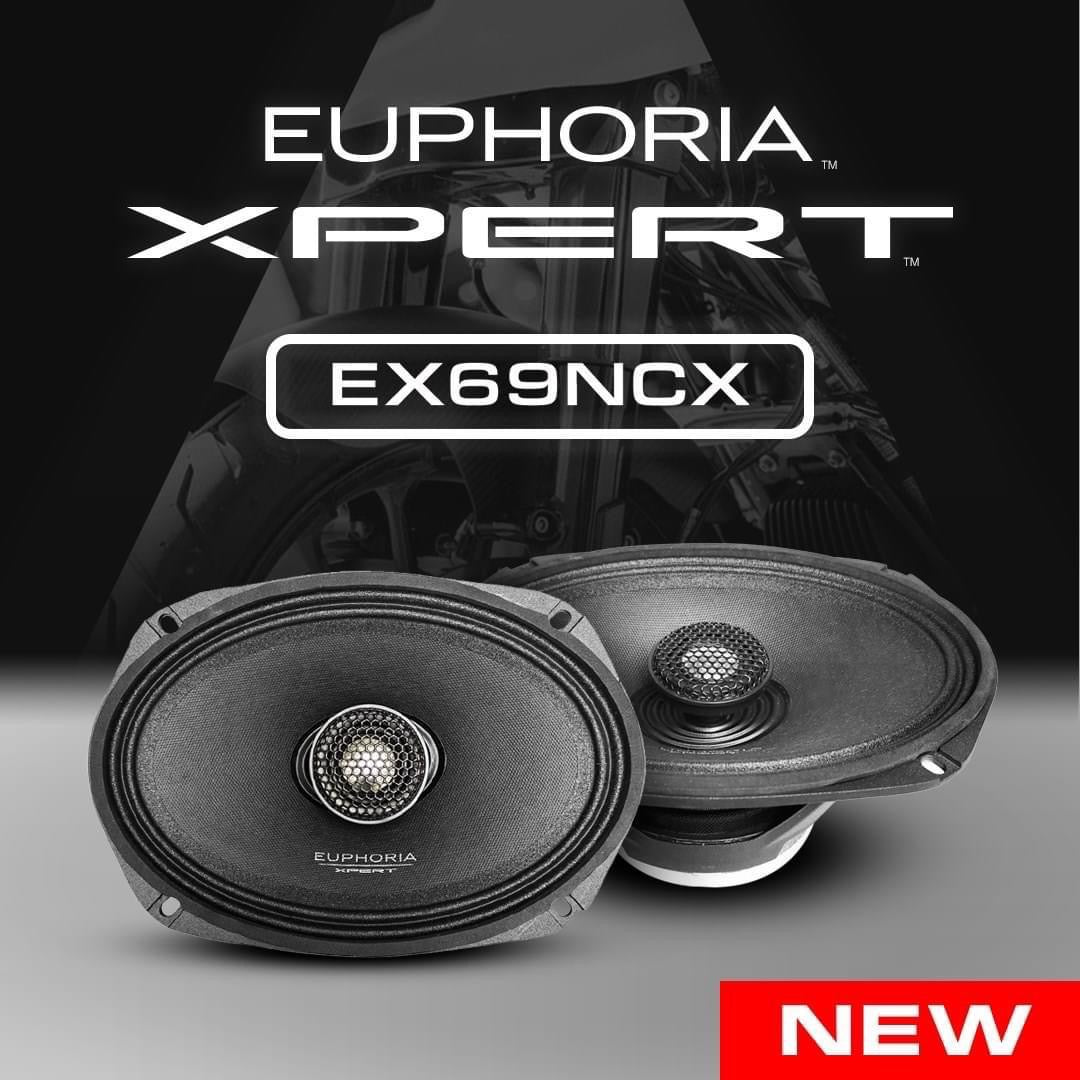

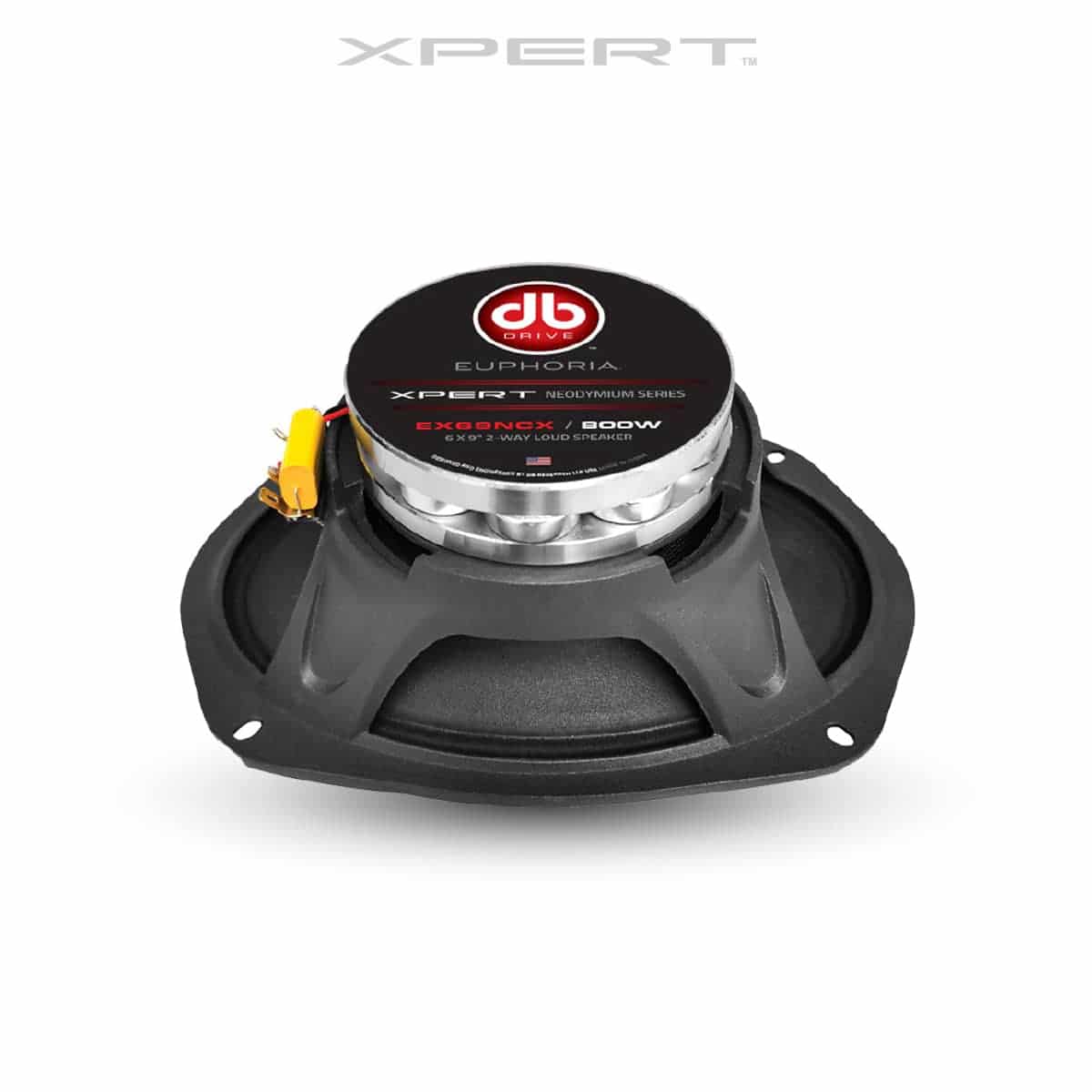

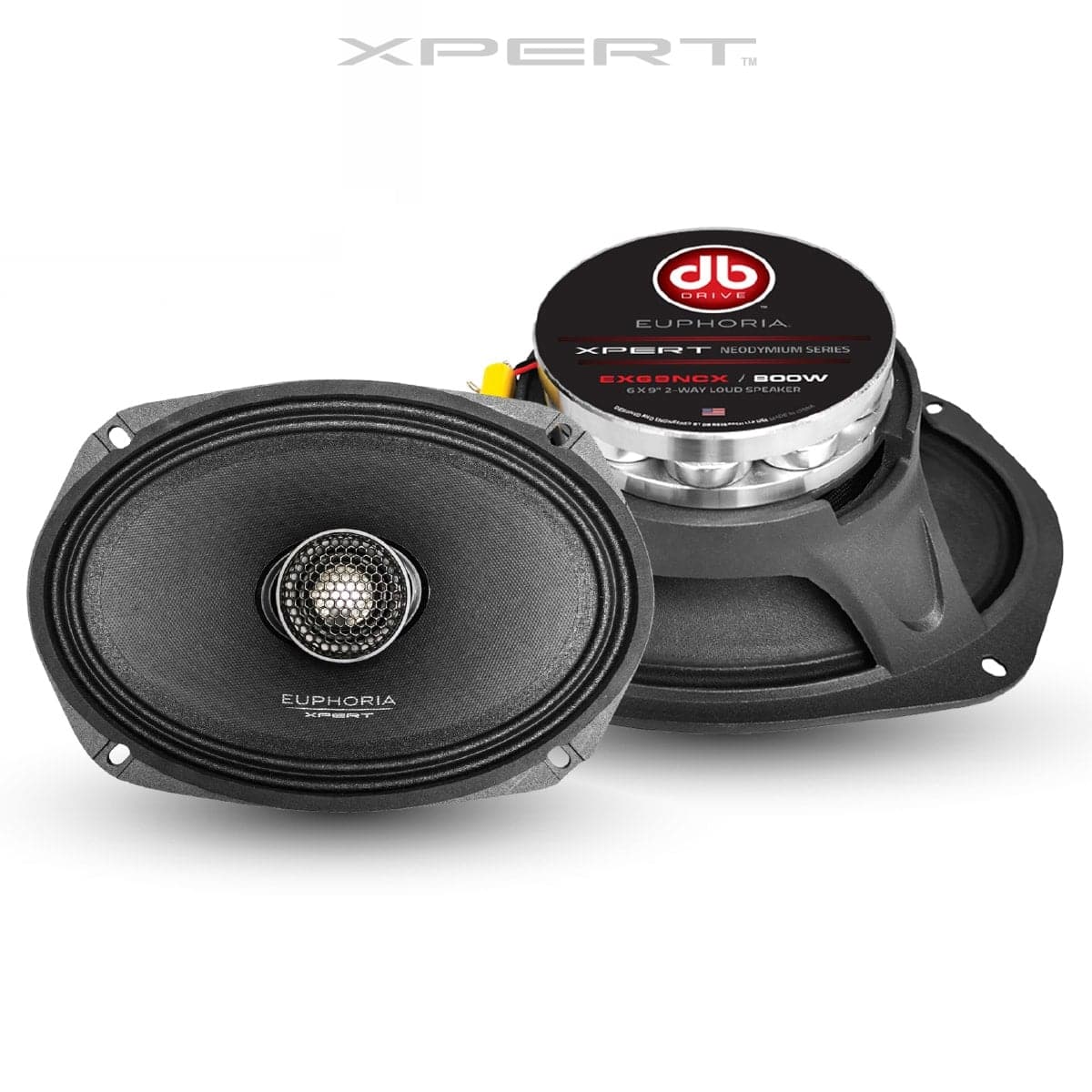

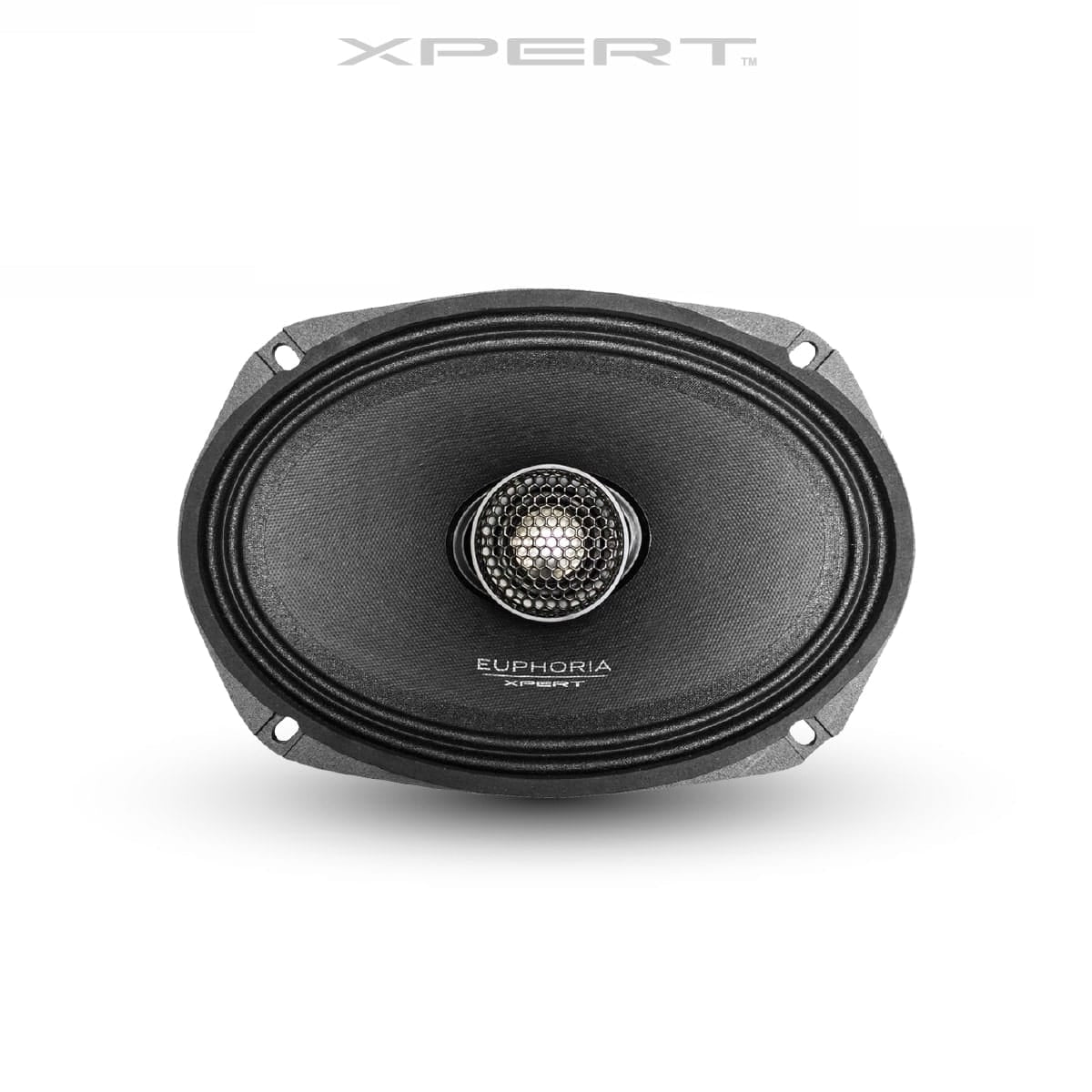

DB Drive Car Audio EX69NCX
- 6″x9″ 2-Way Loudspeaker
- 1.5″ (38.1mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- IP52 Rated Weather Resistant Paper Cone with Cloth Surround
- Die-Cast Aluminum Basket with Radial Venting
- Wide Dispersion 1.25″ (28mm) Aluminum Dome Tweeter
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 92.1Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 5.78 |
| Electrical Quality Factor (Qes) | 0.33 |
| Total Quality Factor (Qts) | 0.31 |
| Compliance Equivalent Volume (Vas) | 12.2L |
| Mechanical Compliance (Cms) | 018 mm/N |
| Efficiency (1W/1M) | 96.5 dB |
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 400 Watts |
| Dynamic Wattage | 800 Watts |
| Sensitivity (1w/1m) | 96.5 dB |
| Voice Coil Diameter | 1.5″ (38.5mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 3.31″ (84.10mm) |
| Mounting Diameter: | 5.81 x 8.56″ (147.57mm x 2170.42mm) |
