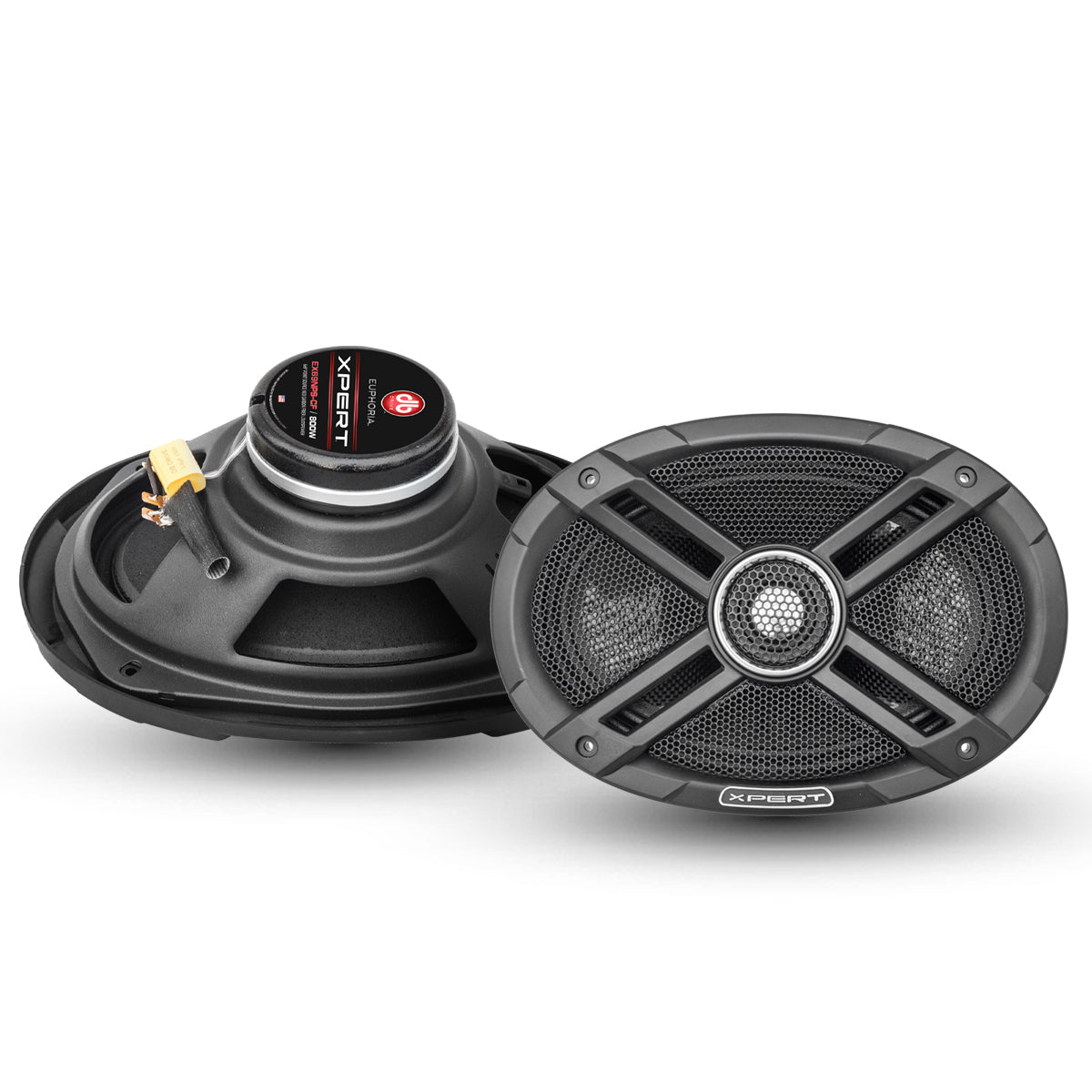

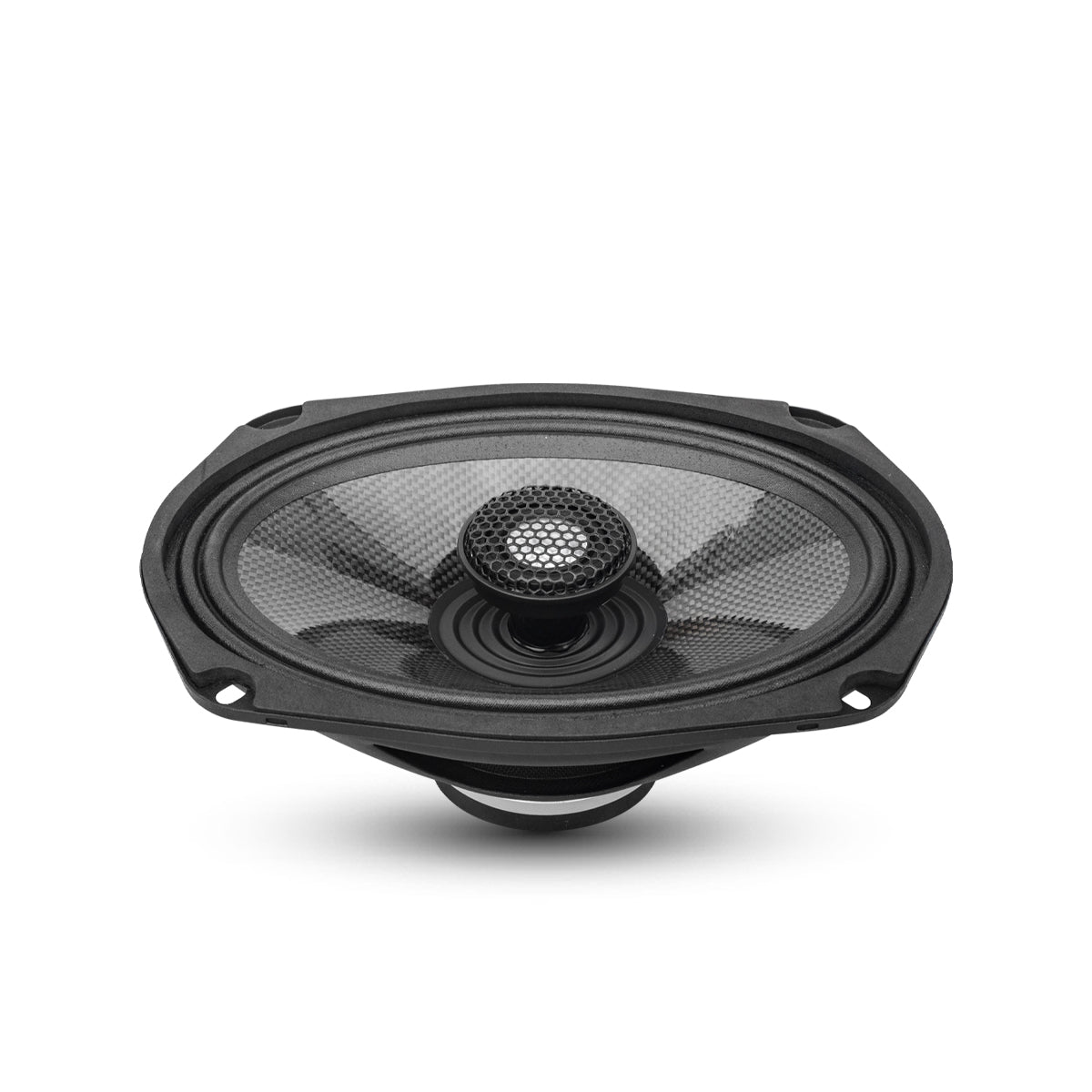

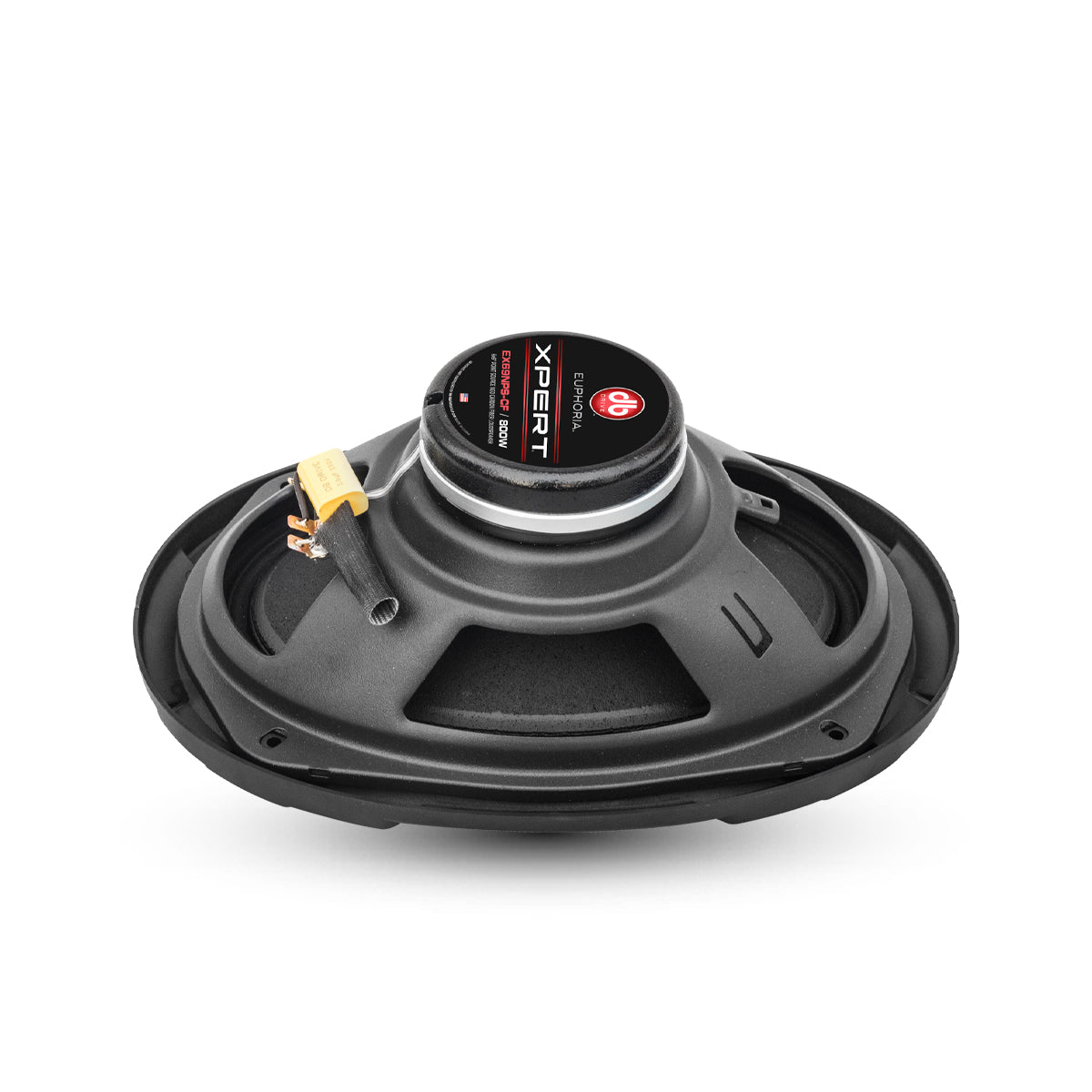

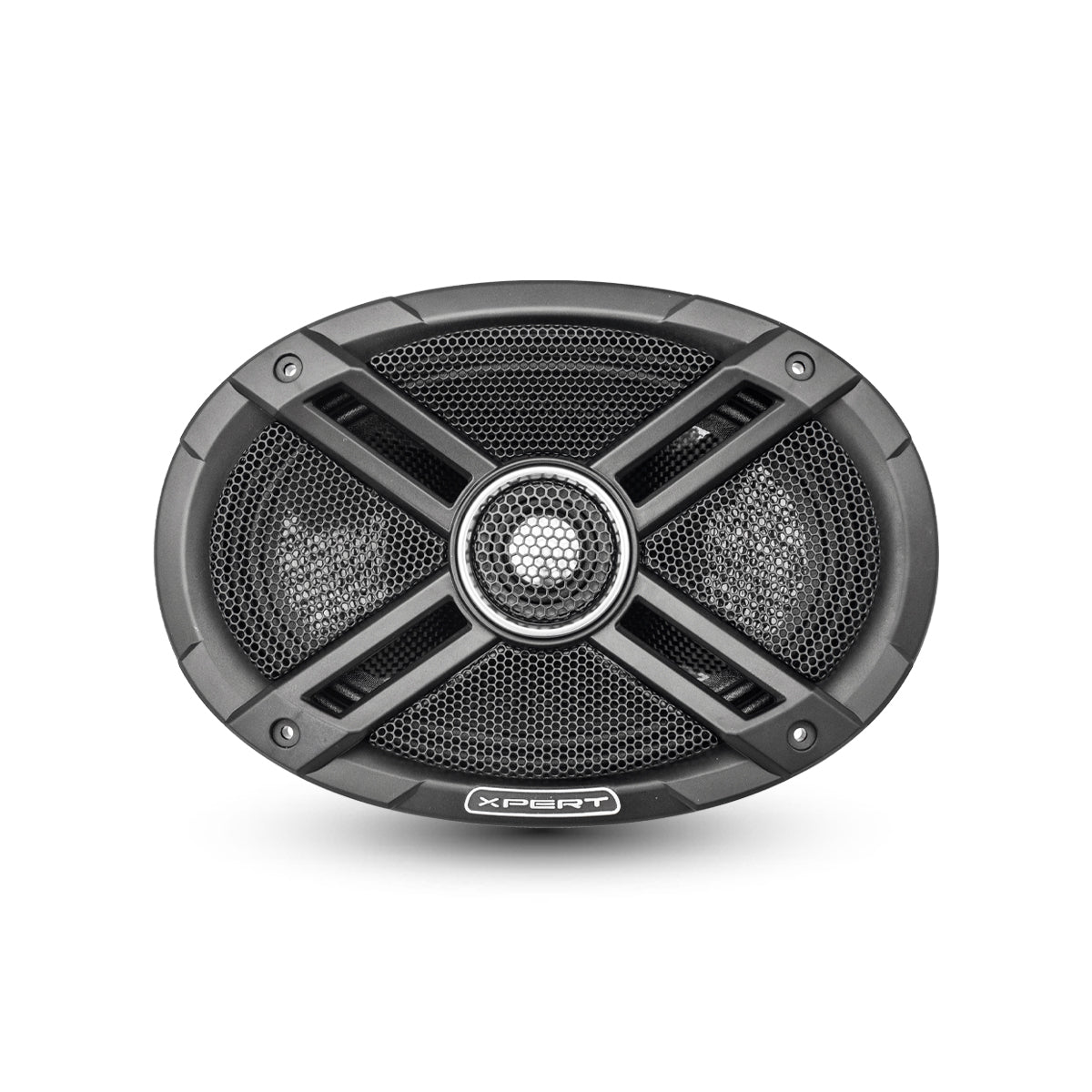

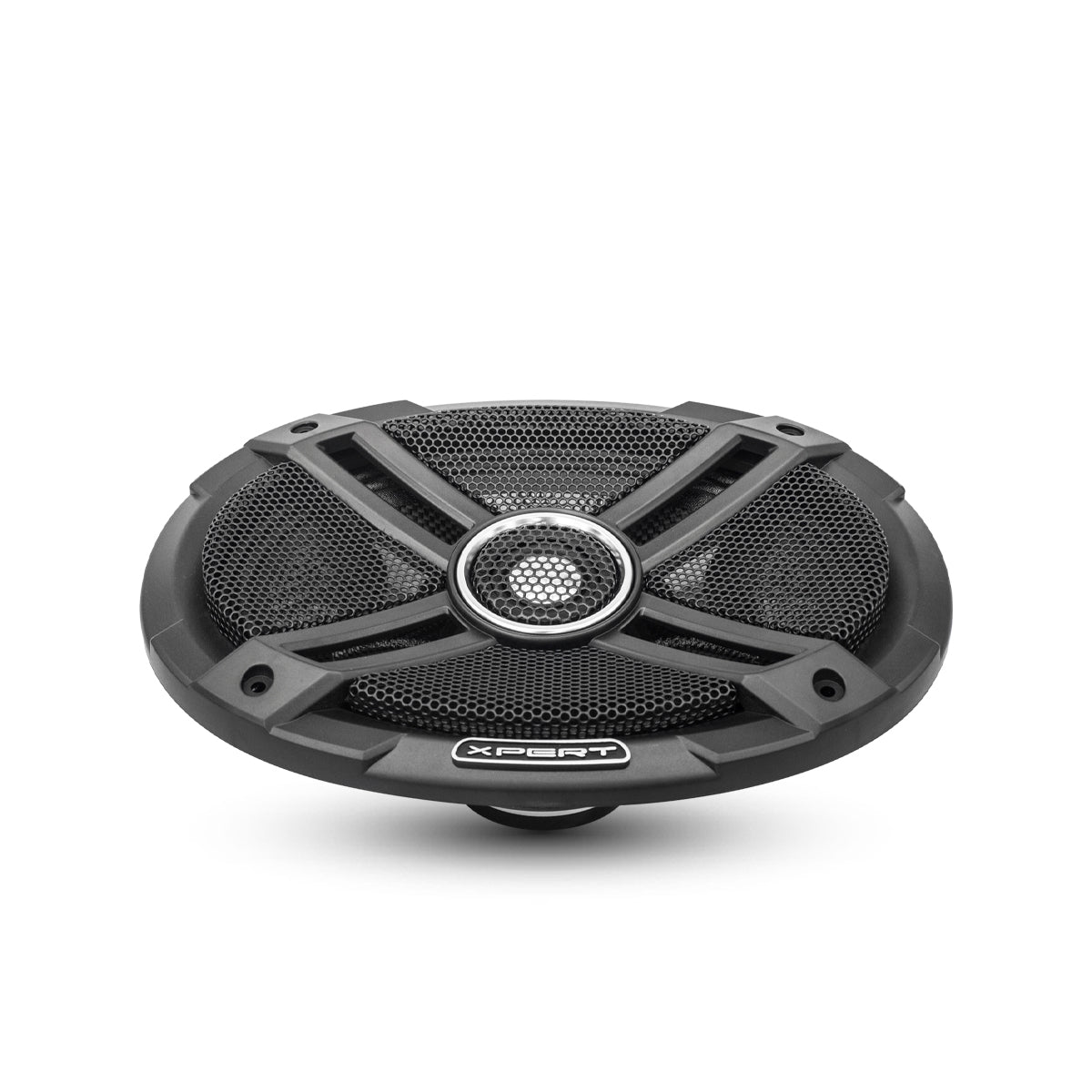

• DB Drive Euphoria XPERT - EX69NPS-CF 6 x 9″ Point Source NEO Carbon Fiber Loudspeaker
  • DB Drive Euphoria XPERT - EX69NPS-CF 6 x 9″ Point Source NEO Carbon Fiber Loudspeaker
  • DB Drive Euphoria XPERT - EX69NPS-CF 6 x 9″ Point Source NEO Carbon Fiber Loudspeaker
  • DB Drive Euphoria XPERT - EX69NPS-CF 6 x 9″ Point Source NEO Carbon Fiber Loudspeaker
  • DB Drive Euphoria XPERT - EX69NPS-CF 6 x 9″ Point Source NEO Carbon Fiber Loudspeaker
1 5

DB Drive

DB Drive Car Audio EX69NPS-CF

DB Drive Car Audio EX69NPS-CF

$549.98 USD
$549.98 USD
Sale Sold out
WEATHER READY
  • IP RatingsIP65
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

DB Drive Car Audio EX69NPS-CF

WOS Pick What you're getting in 10 seconds — expand for full details.

  • BrandDB Drive
  • SKUEX69NPS-CF
  • IPIP65
Mei says

"Match gear to your install and power budget. Do it once, do it right."

The stuff you'll actually notice
  • 1.5″ (38.1mm) Midrange voice coil High-intensity NEO ring magnet IP65 rated weather resistant Carbon fiber cone Cloth surround Stamped steel basket Wide dispersion 1″ aluminum dome tweeter Protective gril T/S PARAMETERS Resonant Frequency (fs) 68.8Hz D.C. Voice Coi...
Product description
  • 1.5″ (38.1mm) Midrange voice coil
  • High-intensity NEO ring magnet
  • IP65 rated weather resistant Carbon fiber cone
  • Cloth surround
  • Stamped steel basket
  • Wide dispersion 1″ aluminum dome tweeter
  • Protective gril
T/S PARAMETERS
Resonant Frequency (fs) 68.8Hz
D.C. Voice Coil Resistance (Re) 3.2Ω
Mechanical Quality Factor (Qms) 9.95
Electrical Quality Factor (Qes) 0.44
Total Quality Factor (Qts) 0.42
Compliance Equivalent Volume (Vas) 14.1L
Mechanical Compliance (Cms) 0.20 mm/N
REPLACEMENT DIAPHRAGM:
ADDITIONAL SPECS
Nominal Impedance 4Ω
Power Handling 400 Watts
Dynamic Wattage 800 Watts
Sensitivity (1w/1m) 92 dB
Frequency Response 77Hz – 19KHz



DIMENSIONS
Mounting Depth: 3.18″ (80.80mm)
Cutout Diameter: 8.66 x 6.45” / 220 x 164mm
Weather & environment
IP Ratings IP65
Support & warranty

Need help choosing or installing?

We build indestructible, IP-rated systems for marine, motorcycle, UTV, and automotive. If you want a matched setup, we’ll guide you to the right gear the first time.
