DB Drive

DB Drive Car Audio EX6NCD

DB Drive Car Audio EX6NCD

$669.98 USD
$669.98 USD
Sale Sold out
WEATHER READY
  • IP RatingsIP52
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

DB Drive Car Audio EX6NCD

WOS Pick What you're getting in 10 seconds — expand for full details.

  • BrandDB Drive
  • SKUEX6NCD
  • IPIP52
Mei says

"Match gear to your install and power budget. Do it once, do it right."

The stuff you'll actually notice
  • *SOLD IN PAIRS* 2″ (51mm) Midrange Voice Coil Neodymium Ring Magnet Assembly Rear Mounted Full Sized Compression Driver IP52 Rateed Paper Cone With Treated Cloth Surround Die-Cast Aluminum Basket With Radial Venting 1.4″ (36mm) Polyester Tweeter Diaphragm Wide Dispe...
Product description

  • *SOLD IN PAIRS*

    • 2″ (51mm) Midrange Voice Coil
    • Neodymium Ring Magnet Assembly
    • Rear Mounted Full Sized Compression Driver
    • IP52 Rateed Paper Cone With Treated Cloth Surround
    • Die-Cast Aluminum Basket With Radial Venting
    • 1.4″ (36mm) Polyester Tweeter Diaphragm
    • Wide Dispersion Conical HF Waveguide

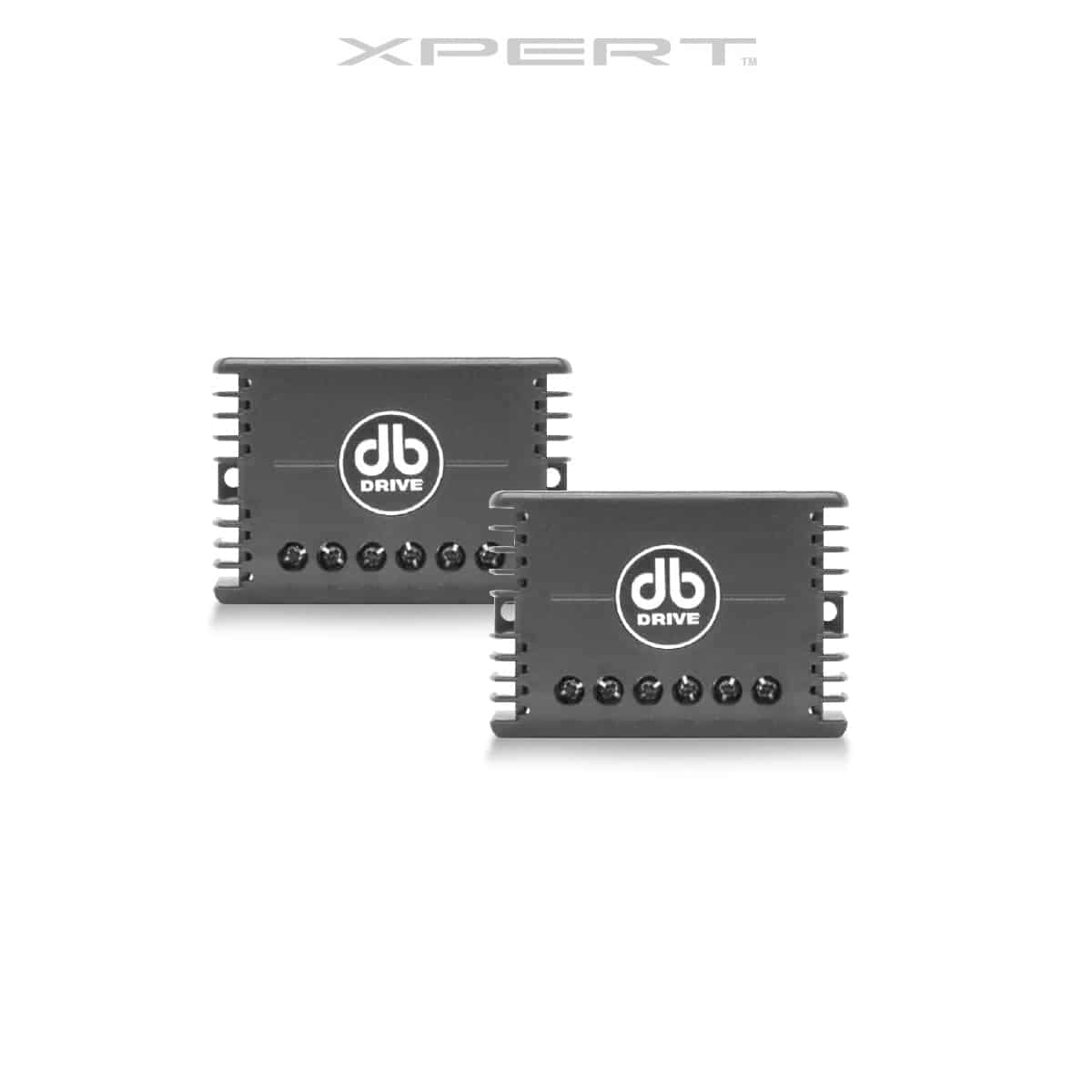

    • 12dB Passive Crossover Included
    • Protective Grills Included



    T/S Parameters
    Resonant Frequency (fs) 61.2Hz
    D.C. Voice Coil Resistance (Re) 5.2Ω
    Mechanical Quality Factor (Qms) 4.82
    Electrical Quality Factor (Qes) 0.32
    Total Quality Factor (Qts) 0.30
    Compliance Equivalent Volume (Vas) 6.3L
    Mechanical Compliance (Cms) 0.28 mm/N
    Efficiency (1W/1M) 105.7 dB



    Replacement Diaphragm:   EXNCD-RC
    Additional Specs
    Nominal Impedance 5.2Ω
    Power Handling 400 Watts
    Dynamic Wattage 800 Watts
    Sensitivity (1w/1m) 105.7 dB
    Voice Coil Diameter 2.0″ (51mm)



    Dimensions
    Mounting Depth: 3.41″ (88.64mm)
    Mounting Diameter: 5.75″ (146mm)



    Weather & environment
    IP Ratings IP52
