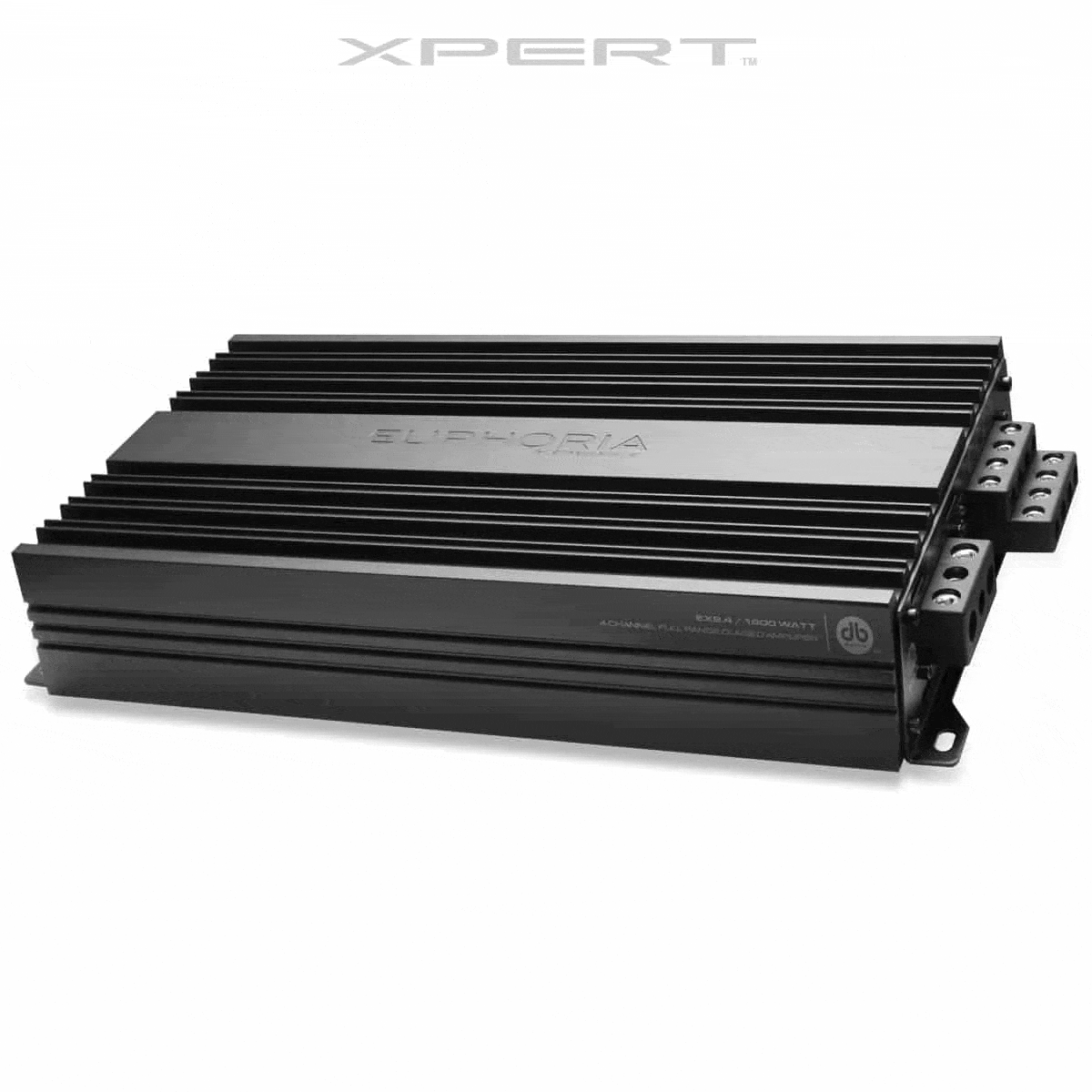

DB Drive Car Audio EX8.4
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandDB Drive
- SKUEX8.4
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- Audiophile Grade tiffany RCA connectors Selectable Low-Pass, Band-Pass or High-Pass x-over High efficiency full range Class D Technology Direct Connect Speaker Terminals Large Gauge Power Wire Inputs Speaker Short Circuit Protection Conformal coated moisture resistant PCB ...
Product description
- Audiophile Grade tiffany RCA connectors
- Selectable Low-Pass, Band-Pass or High-Pass x-over
- High efficiency full range Class D Technology
- Direct Connect Speaker Terminals
- Large Gauge Power Wire Inputs
- Speaker Short Circuit Protection
- Conformal coated moisture resistant PCB
PHYSICAL STRUCTURE
| Length (A) | 11.81″ (299mm) |
| Width (B) | 6.9″ (174mm) |
| Height (C) | 2.11″ (53.6mm) |
| GENERAL SPECIFICATIONS | |
|---|---|
| Rated Power @ 14.4 Volts | 4 x 400 Watts @ 4Ω |
| 4 x 800 Watts @ 2Ω | |
| 2 x 1600 Watts @ 4Ω Bridged |
| PARAMETERS | |
|---|---|
| Frequency Response | 20Hz – 30KHz |
| S/N Ratio | < 100dB |
| Low Level Input | 6V – 0.2V |
| High Pass Filter Variable | 20Hz ~ 5KHz |
| Low Pass Filter Variable | 50Hz ~ 5KHz |
| Working Voltage | 10V ~ 16V |
