DB Drive Car Audio EX8NCD-CF
California Prop 65 WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov
TRUE SOUND. TRUE SOURCE.

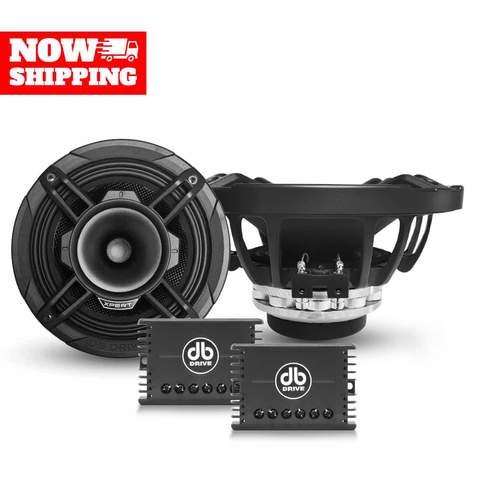

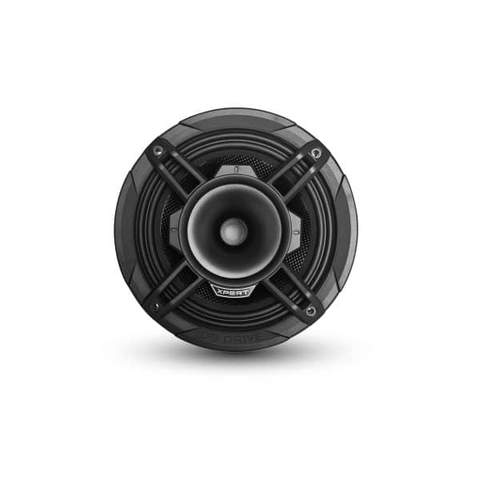

8″ 2-WAY CARBON FIBER LOUDSPEAKER WITH BACKLOADED COMPRESSION DRIVER
Features
- 8″ 2-Way Carbon Fiber Loudspeaker
- 2.0″ (51mm) Midrange Voice Coil
- 10 Neodymium Ring Magnet Assembly
- Rear Mounted Full Sized Compression Driver
- IP54 Rated Weather Resistant Carbon Fiber Cone with Rubber Surround

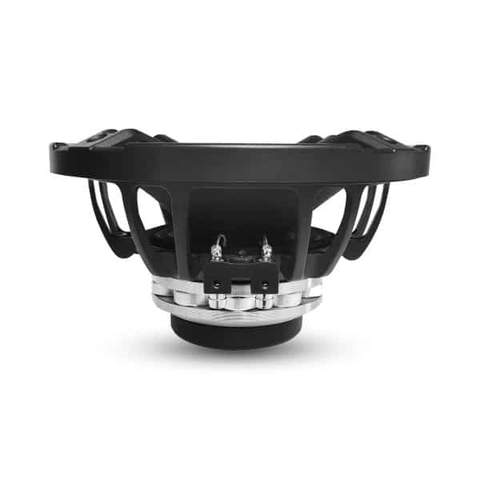

- Die-Cast Aluminum Basket with Radial Venting
- 1.4″(36mm) Polyester Tweeter Diaphragm
- Wide Dispersion Conical HF Waveguide

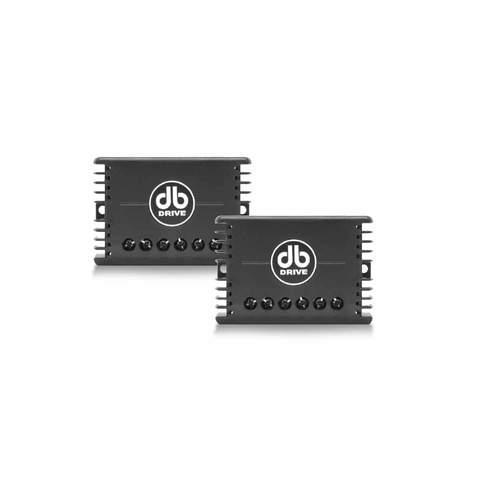

- 12dB Passive Crossover Included
- Protective Grills Included
- Pod Modifiction required
Specifications
- Nominal Impedance 5.2Ω
- Power Handling 450 Watts
- Dynamic Wattage 900 Watts
- Freq Response 80hZ-20kHz
- Sensitivity (1w/1M) 105.7 DB
- Voice Coil Diameter 2"
| T/S PARAMETERS | |
|---|---|
| Resonant Frequency (fs) | 66.2Hz |
| D.C. Voice Coil Resistance (Re) | 3.2Ω |
| Mechanical Quality Factor (Qms) | 6.16 |
| Electrical Quality Factor (Qes) | 0.47 |
| Total Quality Factor (Qts) | 0.44 |
| Compliance Equivalent Volume (Vas) | 18.1L |
| Mechanical Compliance (Cms) | 0.27 mm/N |
| Efficiency (1W/1M) | 98.1 dB |
| REPLACEMENT DIAPHRAGM: EXNCD-RC |
|---|
| ADDITIONAL SPECS | |
|---|---|
| Nominal Impedance | 4Ω |
| Power Handling | 450 Watts |
| Dynamic Wattage | 900 Watts |
| Sensitivity (1w/1m) | 105.7 dB |
| Voice Coil Diameter | 2.0″ (51mm) |
| DIMENSIONS | |
|---|---|
| Mounting Depth: | 4.30″ (109.47mm) |
| Mounting Diameter: | 7″ (179.64mm) |
