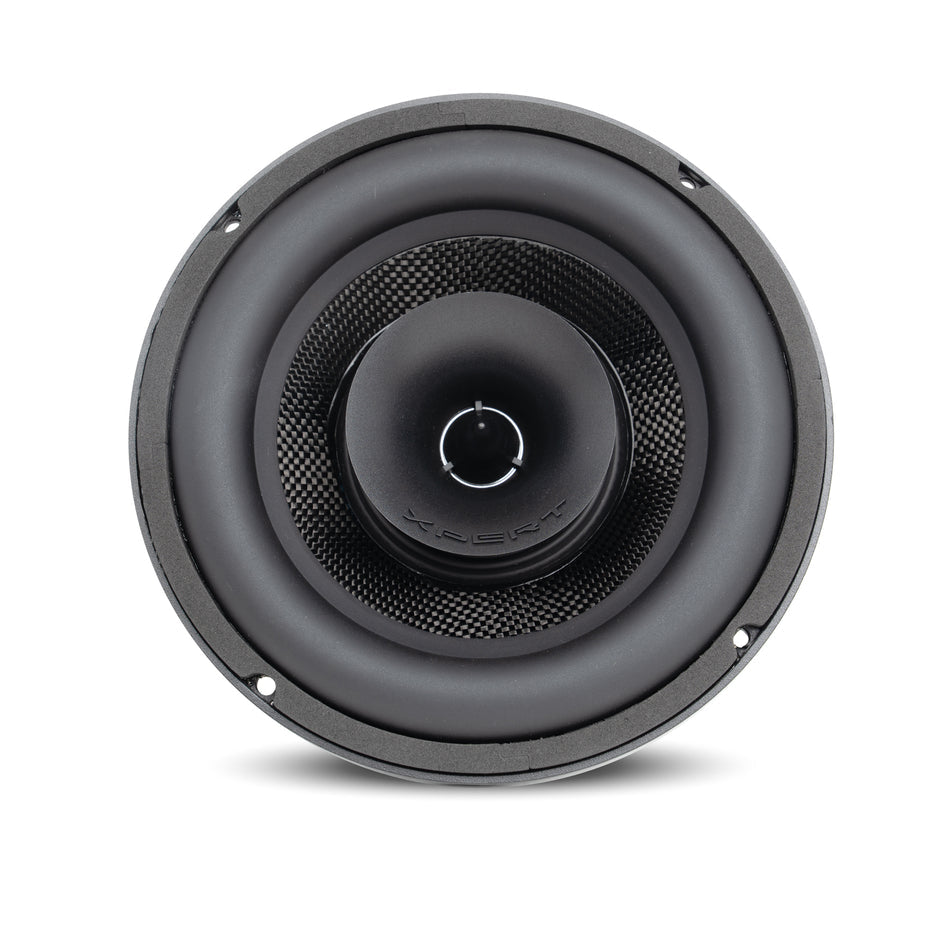

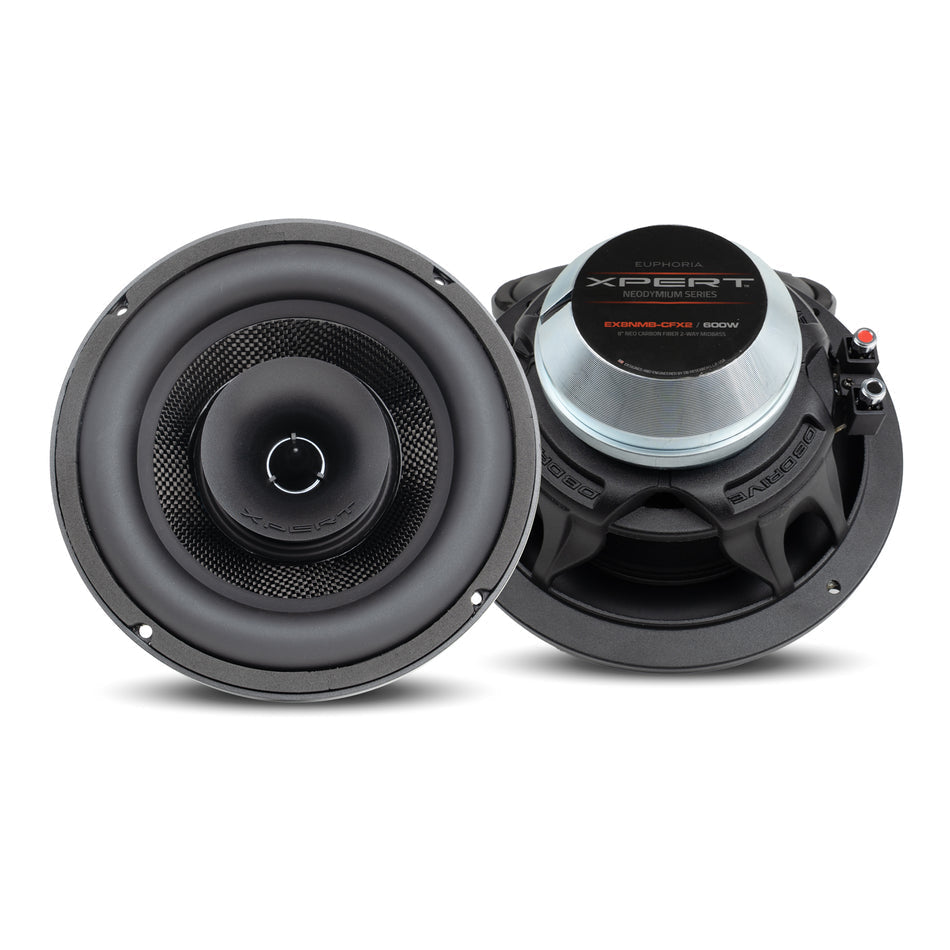

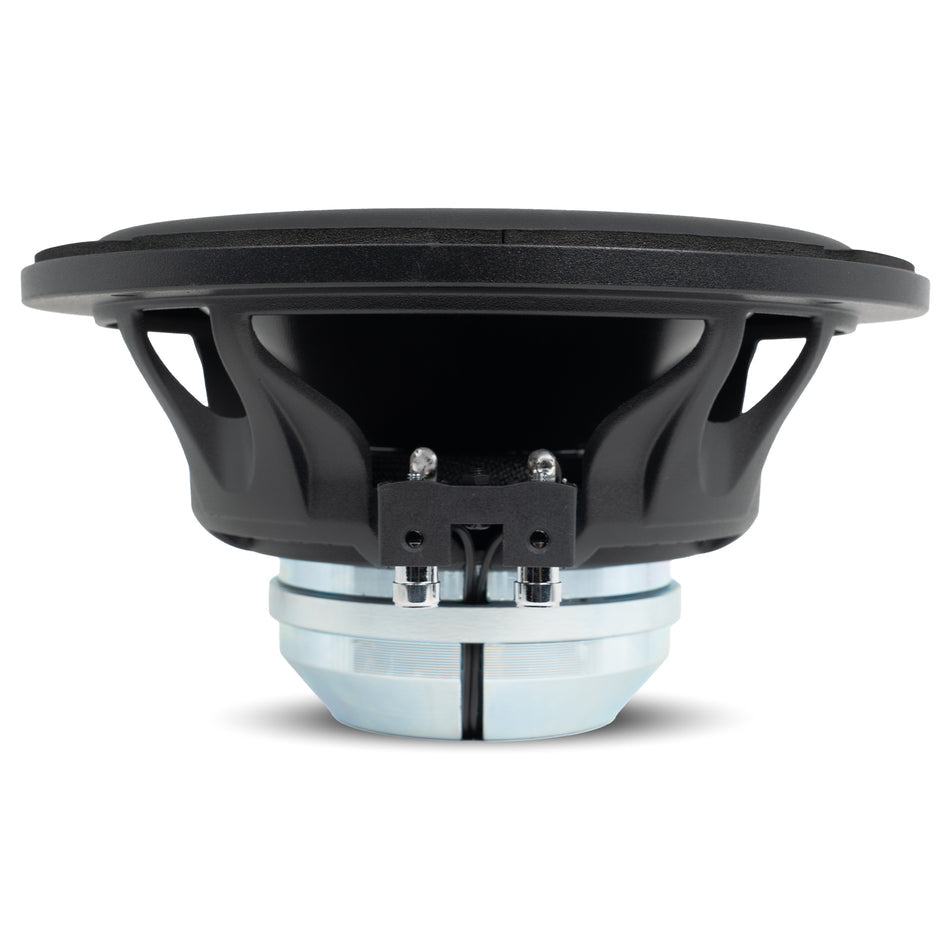

DB Drive Car Audio EX8NMB-CFX2
The XPERT EX8NMB-CFv2 carbon fiber midbass driver is engineered for compact installations with its redesigned single-ring N52 neodymium magnet and custom aluminum die-cast basket. Built with carbon fiber for enhanced outdoor durability, its motor provides an extended bandwidth, making it an ideal match for pairing with midranges and tweeters.
FEATURES:
- 8" Neo Carbon Fiber 2- Way Midbass
- 2.0" (51mm) Midrange Voice Coil
- Neodymium Ring Magnet Assembly
- IP65 Rated Weather Resistant Carbon Fiber Cone
- Die-Cast Aluminum Basket with Radial Venting
SPECIFICATIONS:
| Power Handling | 300 Watts |
| Dynamic Wattage | 600 Watts |
| Resonant Frequency (fs) | 68.074 Hz |
| D.C. Voice Coil Resistance (Re) | 4Ω |
| Mechanical Quality Factor (Qms) | 1.982 |
| Electrical Quality Factor (Qes) | 0.374 |
| Total Quality Factor (Qts) | 0.315 |
| Compliance Equivalent Volume (Vas) | 10.331 L |
| Mechanical Compliance (Cms) | 189.252 mm/N |
| Sensitivity (1w/1m) | 99.3 dB |
| Impedance | 4Ω |
DIMENSIONS:
| Mounting Depth | 3.78"/ 96 mm |
| Cutout Diameter | 7.09"/ 180 mm |
(SOLD IN PAIRS)
