DB Drive

DB Drive Car Audio EXM10SN

DB Drive Car Audio EXM10SN

$269.98 USD
$269.98 USD
Sale Sold out
WEATHER READY
  • IP RatingsIP52
View full details
Mei from Wide Open Sound

Wide Open Sound · Curated gear

DB Drive Car Audio EXM10SN

WOS Pick What you're getting in 10 seconds — expand for full details.

  • BrandDB Drive
  • SKUEXM10SN
  • IPIP52
Mei says

"Match gear to your install and power budget. Do it once, do it right."

The stuff you'll actually notice
  • California Prop 65  WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov Euphoria Xpert EXM10SN The EXM10N is a 10" Midrange from our XPERT SERIES line of high fidelity motorsports audio systems. The die cast aluminum basket makes it lightweight yet sturdy ...
Product description
  • California Prop 65  WARNING: Cancer and Reproductive Harm – www.p65warnings.ca.gov

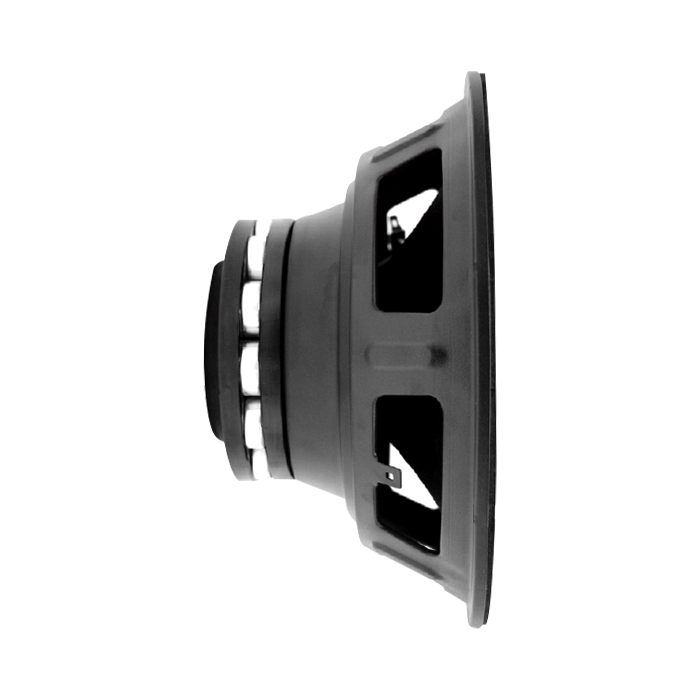

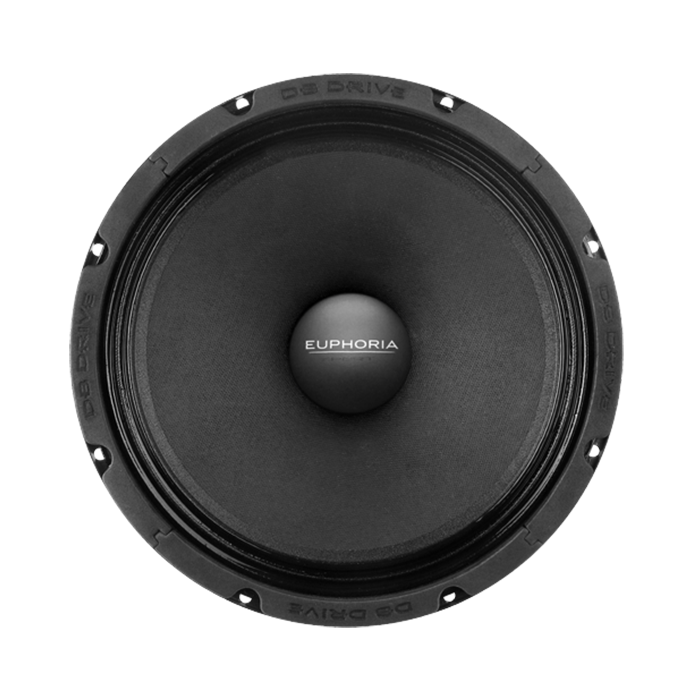

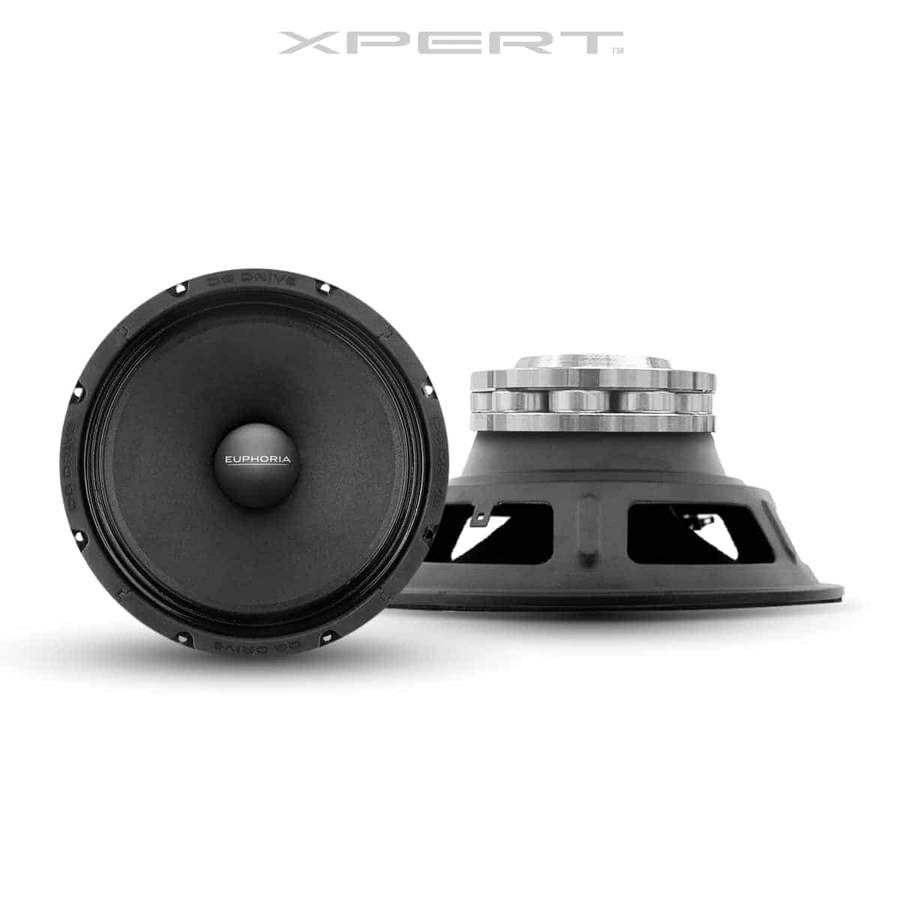

    Euphoria Xpert EXM10SN

    The EXM10N is a 10" Midrange from our XPERT SERIES line of high fidelity motorsports audio systems. The die cast aluminum basket makes it lightweight yet sturdy enough handle life on and off the road.

    • 2.5″ (63.5mm) Voice Coil
    • Neodymium 12 Piece Radially Equalized Magnet Assembly
    • IP52 Rated Paper Cone With Treated Cloth Surround
    • Heavy Gauge Stamped Steel Basket
    T/S PARAMETERS
    Resonant Frequency (fs) 49.4Hz
    D.C. Voice Coil Resistance (Re) 3.2Ω
    Mechanical Quality Factor (Qms) 2.68
    Electrical Quality Factor (Qes) 0.36
    Total Quality Factor (Qts) 0.32
    Compliance Equivalent Volume (Vas) 46.5L
    Mechanical Compliance (Cms) 0.27 mm/N
    Efficiency (1W/1M) 101.8 dB



    ADDITIONAL SPECS
    Nominal Impedance 4Ω
    Power Handling 400 Watts
    Dynamic Wattage 800 Watts
    Sensitivity (1w/1m) 101.8 dB
    Voice Coil Diameter 2.5″ (63mm)



    DIMENSIONS
    Mounting Depth: 4.57″ (116mm)
    Mounting Diameter: 9.29″ (236mm)

    Weather & environment
    IP Ratings IP52
