Dual 8 inch midrange drivers and dual 3.78 inch bullet tweeters deliver loud, clear street style vocals
Full range FRP 1.2K4 amplifier included for a complete plug and play voceteo setup
Side ported 15mm MDF enclosure wrapped in black carpet for durability and strong output
Comes with a 12 foot OFC 4 conductor Speakon cable for fast, clean installation
Wide 80Hz to 20kHz response with a 4 ohm parallel load for high efficiency and sharp performance

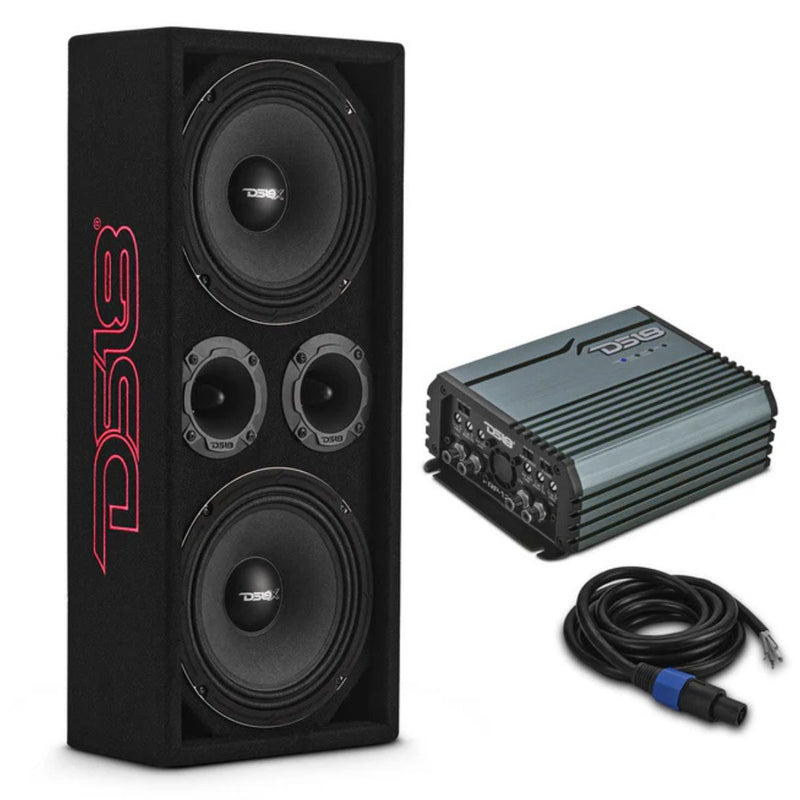

Dual 8 inch 275W RMS Voceteo Enclosure w Tweeters, Amplifier & Speakon Cable

This Listing Includes:

(1) Loaded Voceteo Enclosure with Dual 8 inch Midrange Speakers

(2) 3.78 inch PRO TWX2 Bullet Tweeters

(1) FRP 1.2K4 Full Range Amplifier

(1) 12 ft OFC 4 conductor Speakon Cable

The VOC8LD PK is your plug and play voceteo setup built to get loud right out of the box. You get two 8 inch PRO X8M midrange speakers, two PRO TWX2 bullet tweeters, a matched full range FRP 1.2K4 amplifier, and a 12 foot Speakon cable that keeps the install clean and fast. The enclosure is side ported, made from half inch MDF, and wrapped in black carpet for a solid and durable finish. With 550 watts of midrange power, 240 watts of tweeter power, and a 4 ohm parallel load, this box cuts through traffic and open air with sharp vocals and strong mid punch. The amplifier gives you HPF, LPF, or full range options along with bass boost and flexible tuning so you can dial it in exactly how you like. If you want a street ready voceteo system with maximum output and zero guesswork, this package gets it done.

Specifications:

Speaker Configuration: Dual 8 inch Midrange (PRO X8M) + Dual 3.78 inch Tweeters (PRO TWX2)

Total Impedance: 4 Ohm

Total RMS Power: 275W

Total MAX Power: 550W

Sensitivity: 97 dB

Frequency Response: 80Hz to 20kHz

Recommended High Pass: 120Hz

Enclosure Type: Side Ported

Material: 15mm MDF

Internal Volume: 11.6L / 0.41 ft3

Port Tune: 120Hz

Finish: Black Carpet

Load Configuration: Parallel

F3: 80Hz

Amplifier FRP 1.2K4 RMS Power:

4 Ohm: 4 x 120W

2 Ohm: 4 x 200W

1 Ohm: 4 x 300W

Bridged 4 Ohm: 2 x 350W

Bridged 2 Ohm: 2 x 500W

Amplifier Audio Specs:

Frequency Response: 10Hz to 20kHz

Signal to Noise Ratio: 90 dB

Efficiency: 97 percent at 4 Ohm

Input Impedance: 10k

THD: 0.5 percent

Low Level Input: 400mV to 6V

Selectable X Over: HPF, FULL, LPF

Filter Range: 10Hz to 2kHz

Bass Boost Frequency: 50Hz

Bass Boost Range: 0 to 12 dB

Channel Separation: 50 dB

Speakon Cable:

Length: 12 ft

Material: OFC Copper

Conductors: 4

Gauge: 14 AWG

Outer Diameter: 8 mm

Construction: Stranded Multi Twist

Shield: PVC Black

Dimensions:

Height: 22.25 in

Width: 9.5 in

Depth: 5.25 in

This voceteo kit is designed for high volume street performance, so use proper wiring and tuning to protect your equipment and get the best results.
