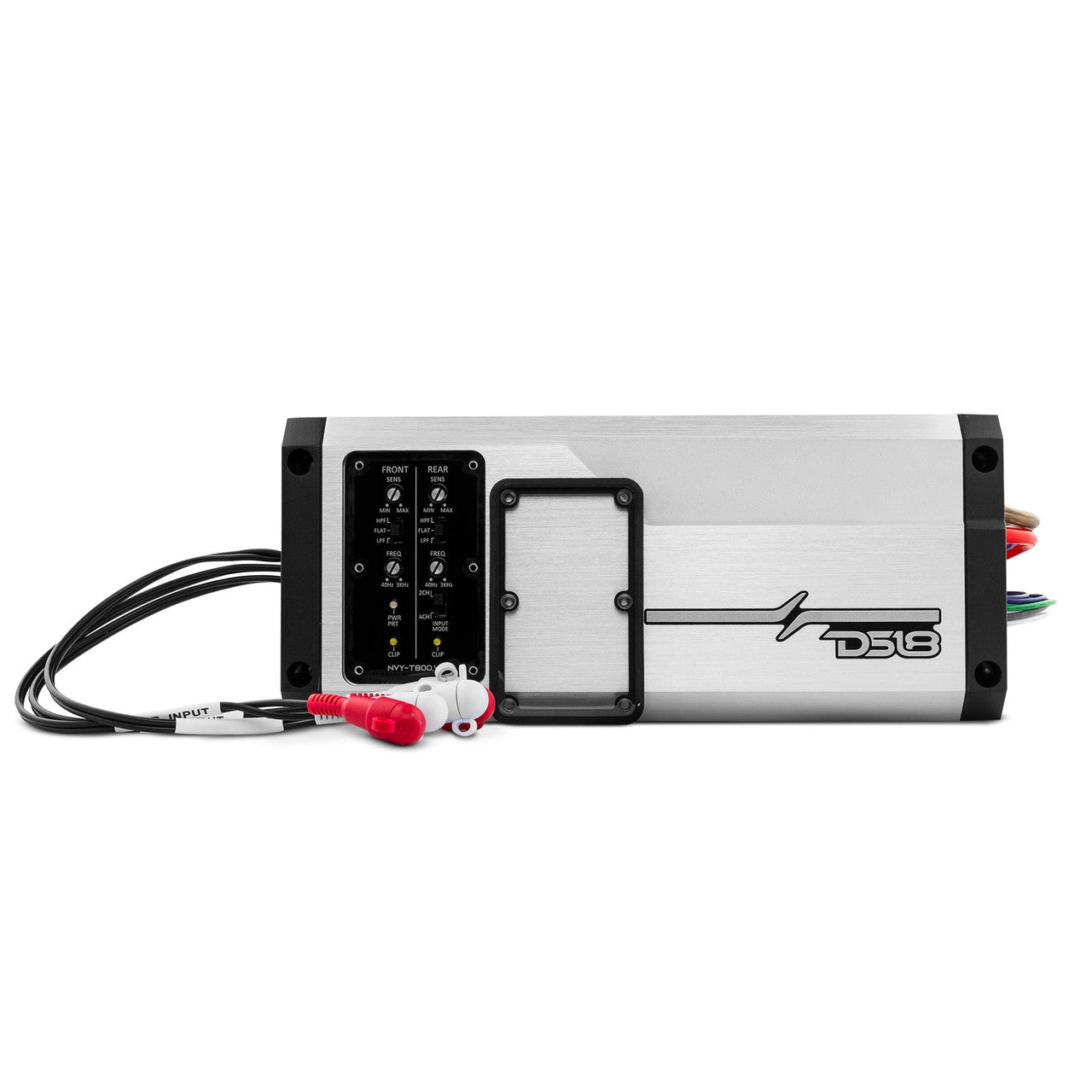

DS18 Marine amplifier NVY-T8004D

Product Description
DS18 NVY-T800.4D 4-Channel Marine Waterproof Amplifier
Class D Full-Range @4 Ohm 200 Watts x 4 RMS
Introducing the NVY-T800.4D: a versatile 4-channel amplifier designed for high quality audio reproduction and unbreakable durability.
The NVY-T800.4D was designed to withstand the harshest elements: it’s IP67 waterproof rating and UV/SALT/Fog Protection, paired with it’s surface mount component technology and direct harness design allows this amplifier to be installed anywhere easily without sacrificing space!
The NVY-T800.4D also features a 2CH/4CH Input Selector so you can use 2 RCAs or 4 depending on your setup.
It’s wide range of protection features, including thermal protection, over-load protection, short circuit output protection, and voltage input protection reinforced by power, protection, and clipping indicators ensures the safety and longevity of the NVY-T800.4D.
Equipped with selectable HPF, LPF, and FULL crossover filters; the NVY-T800.4D allows you to customize your sound to your liking.
This stereo full range amplifier covers ranges from 20Hz-20KHz and has a signal-to-noise ratio of >80dB for crisp and clear audio with minimal distortion.
With a peak power output of 2400W and RMS power of 4 x 200W @ 4 ohm, 4 x 300W @ 2 ohm, and 2 x 600W @ 4 ohm bridge, the NVY-T800.4D is perfect for powering any speakers in your marine audio system.
Be prepared for everything with the NVY-T800.4D!
Highlights

High Power Output
2CH / 4CH Input Selector
Stereo Full Range Amplifier
Customizable Sound With Selectable Crossover Filters
High Quality Protection Features
UV/SALT/FOG Protection
Direct Harness Design With 8Ga Marine Grade OFC Tinned Wires and Waterproof Fuse Holder
Latest Digital Amplifier Design with SMC Technology
Durable design suitable for use in harsh environments

Great For

Marine Audio
Powersports Audio

 Download NVY-T800.4D Product Manual

SPECIFICATIONS

POWER


Total Watts (Peak)
2400W

RMS Power @ 4 ohm
4 x 200W

RMS Power @ 2 ohm
4 x 300W

RMS Power @ 4 ohm Bridge
2 x 600W

AUDIO


Frequency Response
20Hz-20KHz

Signal to Noise Ratio
>80dB

Efficiency @ 4ohm
0.85

Damping Factor
>100

Input Impedance
20Kohms

Channel Separation
>55dB

Total Harmonic Distortion (THD)
0.0005

Low Level Input Range
200mV-5V

Selectable X-Over
HPF/LPF/FLAT

X-Over Filter Range
40Hz-3KHz

FEATURES


Amplifier Class
Digital

Amplifier Type
Stereo Full Range

Number of Channels
4

Minimum Impedance
2 Ohms (Stereo) / 4 Ohm (Bridge)

Led Indicator
Power / Protection / Clip

Power Input Terminal Size
8GA Tinned OFC

Recommended Fuse Size
80A

Thermal Protection
Yes (76.4°C)

Over-Load Protection
Yes

DC Output Protection
Yes

Short Circuit Output Protection
Yes

Voltage Input Protection
Yes

Clipping Protection
Yes

Body Color / Finish
Brushed Aluminum

MEASUREMENT


Overall Length
11.6" / 295mm

Overall Wide
4.9" / 125mm

Overall Height
1.8" / 47mm

Heatsink Length
10.2" / 261mm

Gross Single Unit Weight
2.86Kg
