DS18 Marine amplifier NXL-X3602D

Product Description

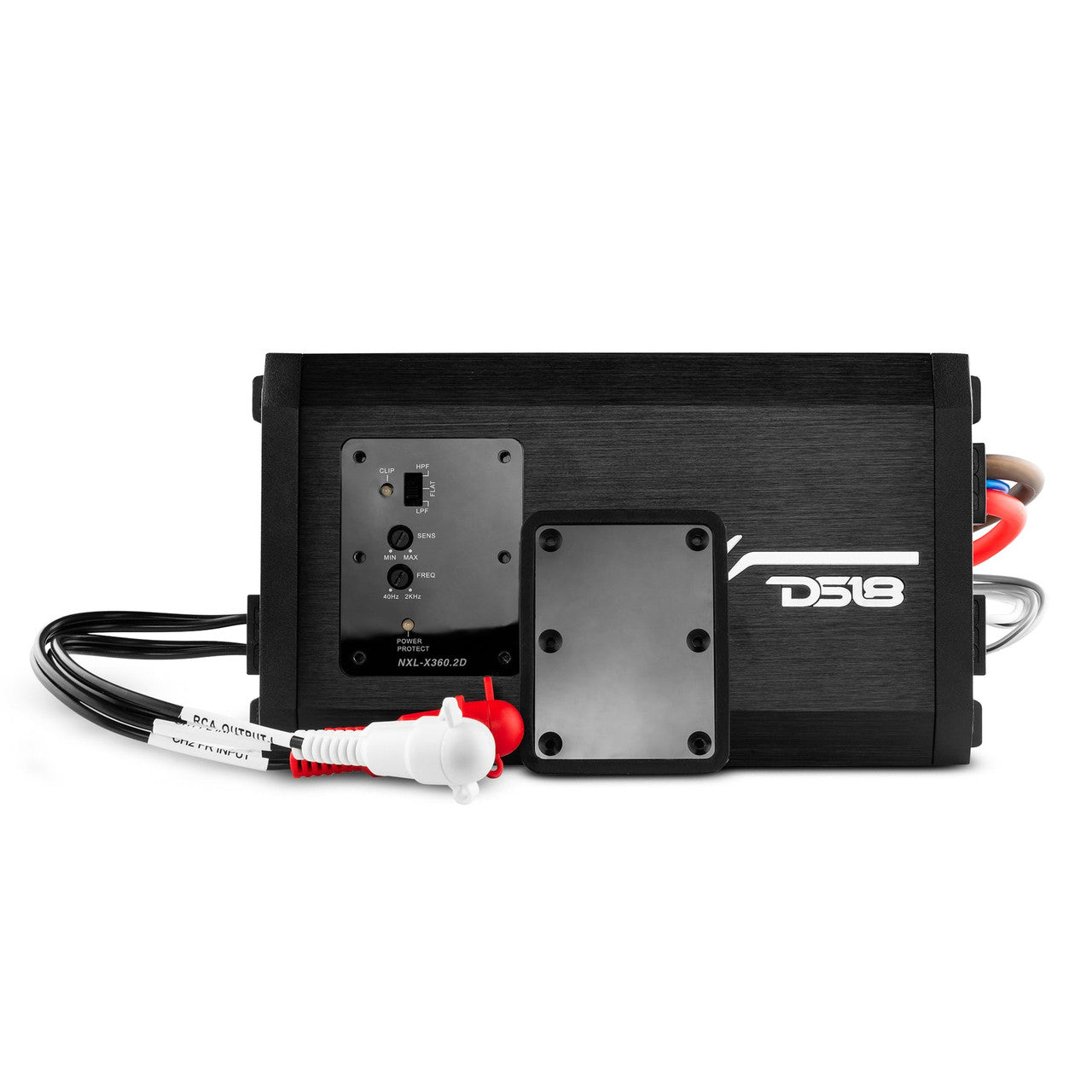

DS18 HYDRO NXL-X360.2D 2 Channel Marine Waterproof Amplifier
Class D 180 x 2 Watts @ 4-Ohm 1000 W Peak
DS18 designed the NXL-X360.2D for customers looking for a compact and waterproof amplifier with exceptional power output and prioritizes boosting sound.
The NXL series impressive power output is supplemented by its outstanding efficiency, and its durability in harsh conditions makes it a favorite among customers in need of a waterproof amplifier to be the powerhouse of their system.
The NXL-X360.2D comes in a 2-channel configuration making it great for powering one set of speakers or bridging the power to supercharge a subwoofer.
The high pass and low pass filters will help you tune your speaker choice accurately so you can obtain crystal clarity from low volume levels all the way to maximum for the ultimate audio experience.
All NXL units have stable and reliable 4-layer PCB layouts, IP67waterproof rating for power sports, has an ultra-compact size for easy installation, and has audio precision quality control verification.
The NXL Marine Amplifier series is perfect for outdoor enthusiasts looking for a durable, waterproof amplifier with intense power for their marine vehicle's audio system. This series is best used in various rugged and wet environments, such as on trails or at the lake.
 AMPLIFIERS ARE NOT FOR SUBMERSIBLE USE, WILL VOID WARRANTY
Highlights

The included a marine grade fuse and fuse holder that is connected inline with your main power wire will help with ultimate protection against the elements.
IP67 Waterproof Rating
UV, Salt and Fog Protection
Direct Power Harness Design with Marine Grade OFC Tinned Wires
Latest Digital Amplifier Design With SMC Technology
Maximum output of 500W bridged at 4-Ohms, 180W x 2CH at 4-Ohms, and 250W x 2CH at 2-Ohms

Great For

Marine
Off Road
DIY Projects

Specifications

POWER


Total Watts (Peak)
1000W

RMS Power @ 4 ohm
2 x 180W

RMS Power @ 2 ohm
2 x 250W

RMS Power @ 1 ohm
-

RMS Power @ 4 ohm Bridge
500W

AUDIO


Frequency Response
10Hz-20KHz

Signal to Noise Ratio 1W@4Ω
> 82dB

Efficiency @ 4ohm
0.84

Input Impedance
20KΩ

Channel Separation
60dB

Total Harmonic Distortion (THD)
< 0.03%

Low Level Input Range
200mV-5V

Selectable X-Over
Yes (HPF/Full/LPF)

X-Over Filter Range
40Hz-2KHz

Bass Boost Range
N/A

Bass Boost Frequency
N/A

Infrasonic Filter
No

Phase Selector
No

FEATURES


Amplifier Class
Digital

Amplifier Type
Stereo Full Range

Number of Channels
2

Minimum Impedance
2 Ohms (Stereo) / 4 Ohm (Bridge)

Led Indicators
Power / Protection / Clip

Power Input Size
8GA Tinned OFC

Fuse Size
2 x 25A (50A)

Thermal Protection
Yes (75°C)

Over-Load Protection
Yes

Short Circuit Output Protection
Yes

Voltage Input Protection
Yes (7-16V)

Body Color / Finish
Black Brushed Aluminum

MEASUREMENT


Overall Length
8.3" / 211mm

Overall Wide
4.4" / 112mm

Overall Height
1.77" / 45mm

Heatsink Length
6.7" / 171mm

Gross Single Unit Weight
1.6Kg
