DS18 Marine amplifier X1

Product Description

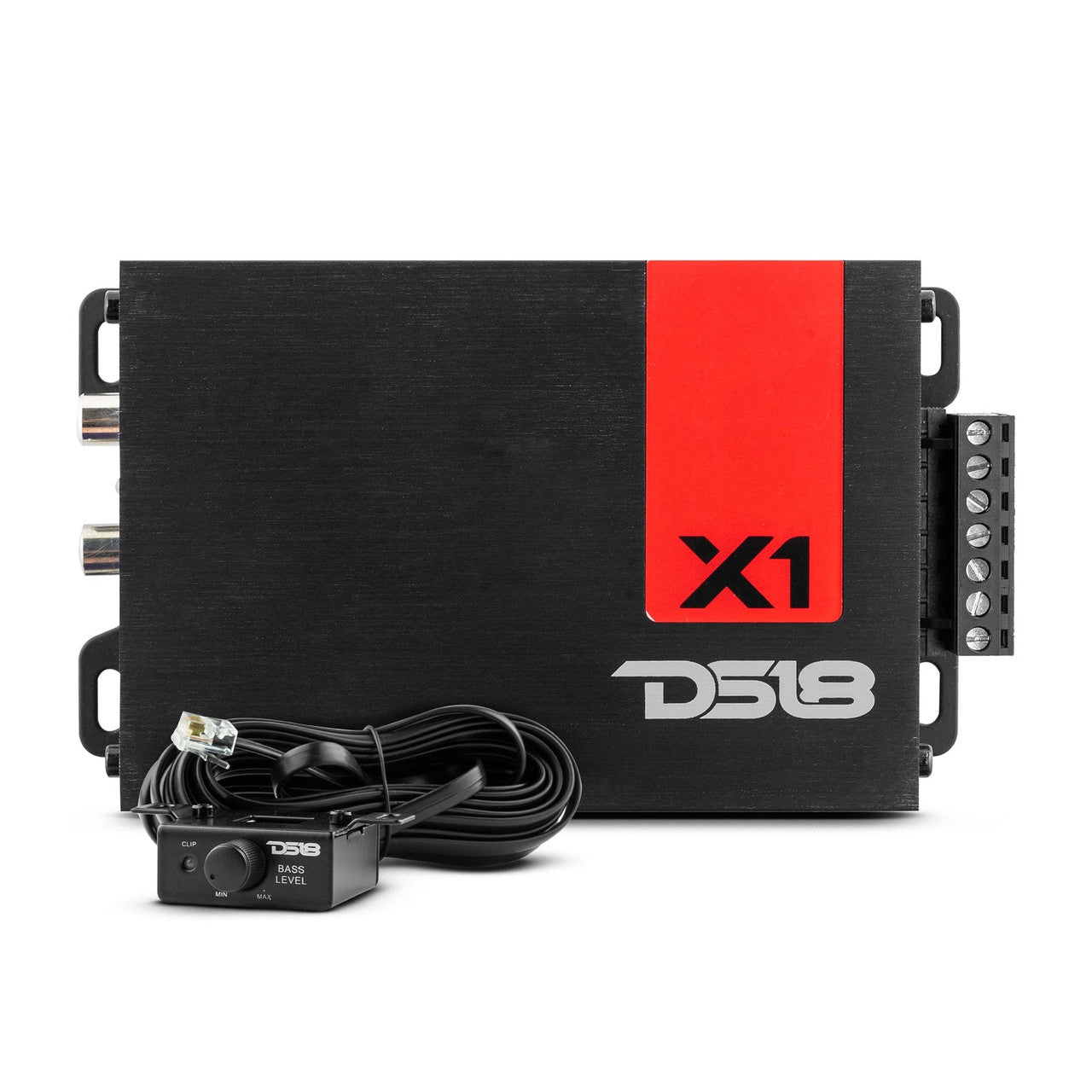

DS18 X1 Ultra Compact Class D 1-Channel Car Amplifier
900 Watts Max 1-Ohm
Amazing power and an amazing small footprint is what the DS18 X1 amp is all about. This tiny amp packs a powerful punch all while fitting in the palm of your hand! It is a perfect selection for audiophiles cramming audio in tight spaces. For example, you can fit multiple X series amps in most motorcycle fairings powering an entire system all while safely tucked away.
Small enough to fit in your hand but powerful enough to power four high powered speakers, this bass amp little powerhouse pumps out 140 watts RMS at 4 ohms, 220 watts RMS at 2 ohms and 300 watts RMS at 1 ohm which is enough to get super loud sound with great clarity.
Highlights

Huge power for such a small size giving it high versatility in applications in which it can be used.
Fits in most tight spaces and a high power per size ratio.
2 and 4 ohms stable pumping out 140 watts RMS at 4 ohms, 220 watts RMS at 2 ohms and 300 watts RMS at 1 ohm.
Easily adjustable filters making tuning for mids or tweeters easy.

Great For

Motorcycle Audio
Pro Audio
Car Audio
Marine Audio
Powersports Audio
Jeep Audio

                       X1 Product Manual

CLASS
CLASS-D

AMPLIFIER TYPE
MICRO MONOBLOCK AMP

CHANNELS
1

TOTALWATTS (PEAK)
900W

RMS POWER @ 4 OHMS
140W x 1CH

RMS POWER @ 2 OHMS
220W x 1CH

RMS POWER @ 1 OHM
300W x 1CH

RMS POWER @ 4 OHMS BRIDGE
-

FREQUECY RESPONSE
20Hz - 500Hz

SIGNAL/NOISE RATIO
>90 dB

EFFICIENCY @ 4 OHMS
>80%

DAMPING FACTOR
>200

THD %
<0.2%

LOW LEVEL INPUT RANGE
0.2-5V

SELECTABLE X-OVER
FIXED LPF

X-OVER FILTER RANGE
50Hz - 250Hz

BASS BOOST RANGE
0 - 18 dB

BASS BOOST FREQUENCY
40Hz

INFRASONIC FILTER
10 - 55Hz

PHASE SELECTOR
0 - 180 DEGREES

MINIMUM IMPENDANCE
1 OHM

LED INDICATOR
POWER/PROTECTION

POWER INPUT SIZE
12GA

FUSE RATING
30A

REMOTE LEVEL CONTROL
YES - DASH MOUNT

THERMAL PROTECTION
YES

OVER-LOAD PROTECTION
YES

DC OUTPUT PROTECTION
YES

SHORT CIRCUIT OUTPUT PROTECTIONVOLTAGE INPUT PROTECTION
YES

VOLTAGE INPUT PROTECTION
YES

DIMENSIONS LxWxH (INCHES)
5.54 x 3.24 x 1.37"

HEATSINK LENGTH
4.75"

COMPACT SIZE TO EASY INSTALLATION FOR ANY APLICATIONS
YES

STABLE/RELIABLE FOUR LAYERS TRACES PCB DESIGN
YES

SURFACE MOUNT COMPONENT TECHNOLOGY
YES

AUDIO PRECISION QUALITY CONTROL VERIFICATION
YES

CONFIGURATION 2CH/4CH INPUT SELECTOR
NO
