DS18 Car Audio Loudspeaker PRO-CF8.4NR

DS18 PRO-CF8.4NR 8" Mid-Bass Loudspeaker with Water Resistant Carbon Fiber Cone And Neodymium Rings Magnet 600 Watts 4-Ohm

Neodymium is known for being the best option for magnets in your speaker motors which give the loudest and most efficient speaker.

DS18 has an amazing line of loudspeakers that are not only water resistant, they are centered around a Neodymium magnet, with super strong rubber surround, and high tech carbon fiber cones that gives not only great looks, but very high sensitivity levels for an amazing water resistant speaker that you can play loud and clear out in the elements.

This super loudspeaker can be used for many applications,  It can be used in motorcycles, cars, motorsports, home, and marine applications alike!

The PRO-CF8.4NR handles great power; rated at 300 watts RMS and 600 watts max, you know this powerhouse of a speaker can get loud and clear!

Highlights

• Awesome power handling and efficiency with the Neodymium motor structure that the pros use.
• Useable in a wide array of applications that need high powered water resistant speakers.
• Amazing looks with the carbon fiber cone that comes held by a super strong rubber surround that will last all your tests!

Key Features

• 8" Neodymium Water Resistant Loud Speaker
• Max Power Handling: 600 watts
• RMS Power Handling: 300 watts
• Frequency Response: 63Hz-12Khz
• Voice Coil Diameter: 2"
• Voice Coil Material: CCAW
• Impedance: 4-Ohms
• Sensitivity: (1W/1M) 99dB
• Magnet Weight: 0.3 Kg
• Magnet Material: Neodymium
• Mounting Depth: 3.2"

Great For:

• Marine Applications
• Off Road Applications
• Home Studios
• Bookshelf Speakers
• Satellite
• Surround Sound
• Hi-Fi Installation
• Car Audio
• DIY Projects

Technical Details

                                                                                                                  PRO-CF8.4NR Product Manual

SPECIFICATIONS
Nominal Diameter	8" / 203mm
Nominal Impedance	4 ohms
RMS Power Handling	300W
MAX Power Handling	600W
Sensitivity (1w/1m)	99dB
Frequency Response	63Hz-12KHz
Recommended HI Pass Crossover	80Hz
Pair or Single	Single
Grill Included	No
MOTOR
Voice Coil Diameter	2" / 50mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Cone Material	WP Carbon Fiber
Dust Cap Material	WP Carbon Fiber
Surround Material	Rubber
Basket Material	Steel
Basket Color/Finish	Gloss Black
Magnet Material	Neodymium Rings
Magnet Weight	0.3Kg

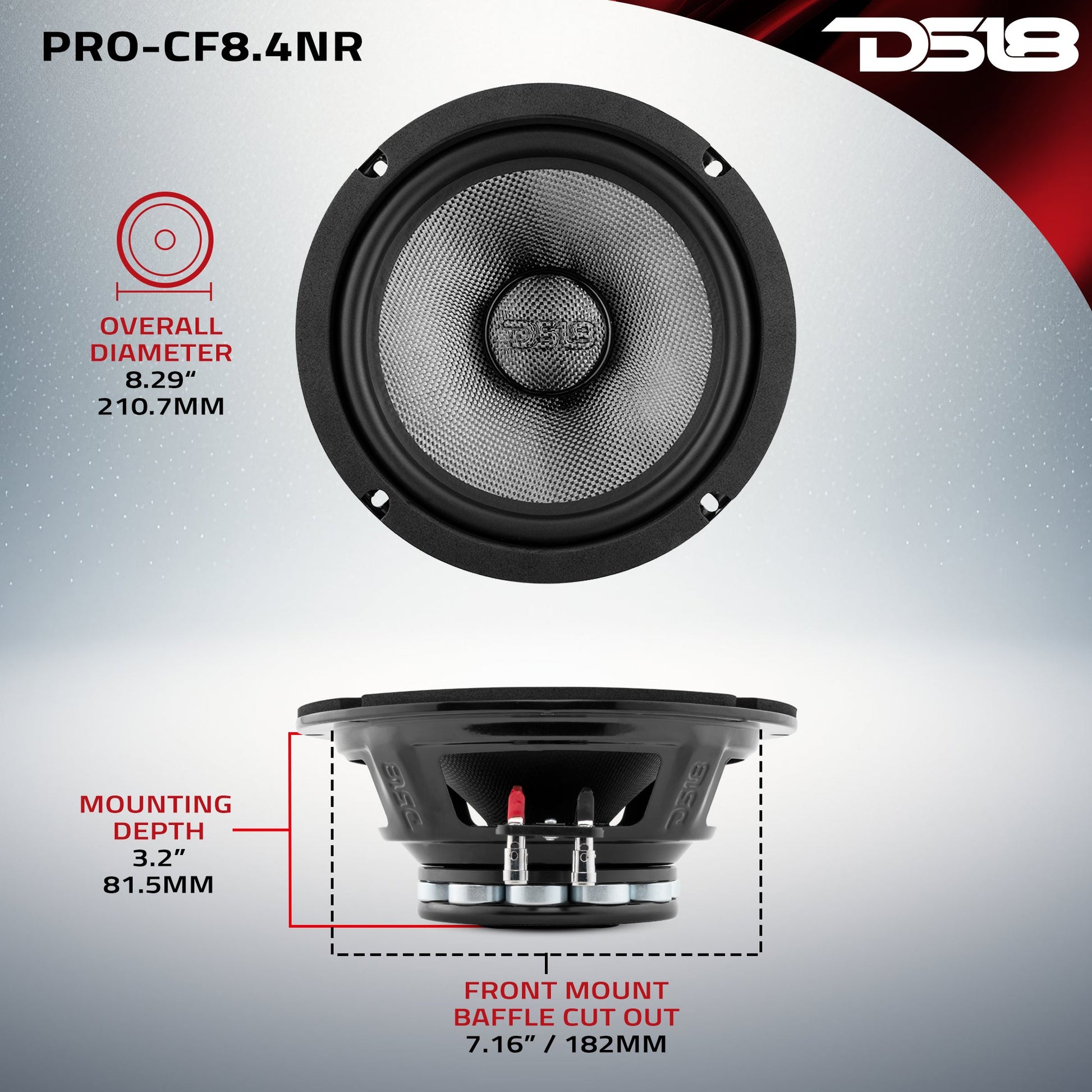

MEASUREMENT
Overall Diameter	8.29" / 210.7mm
Overall Depth	3.38" / 86mm
Front Mount Baffle Cutout	7.16" / 182mm
Mounting Depth	3.2" / 81.5mm
Motor Diameter	4.45" / 113mm
