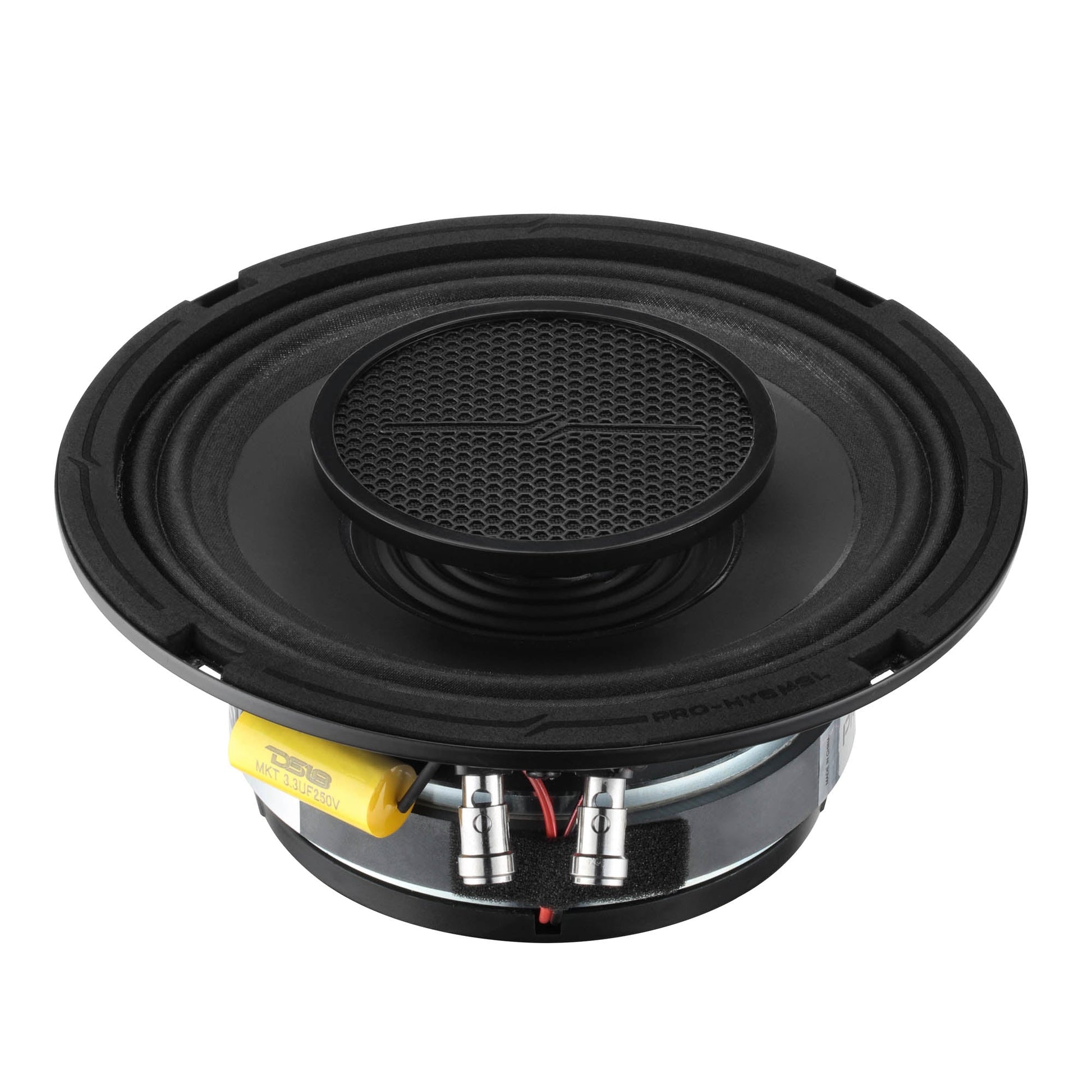

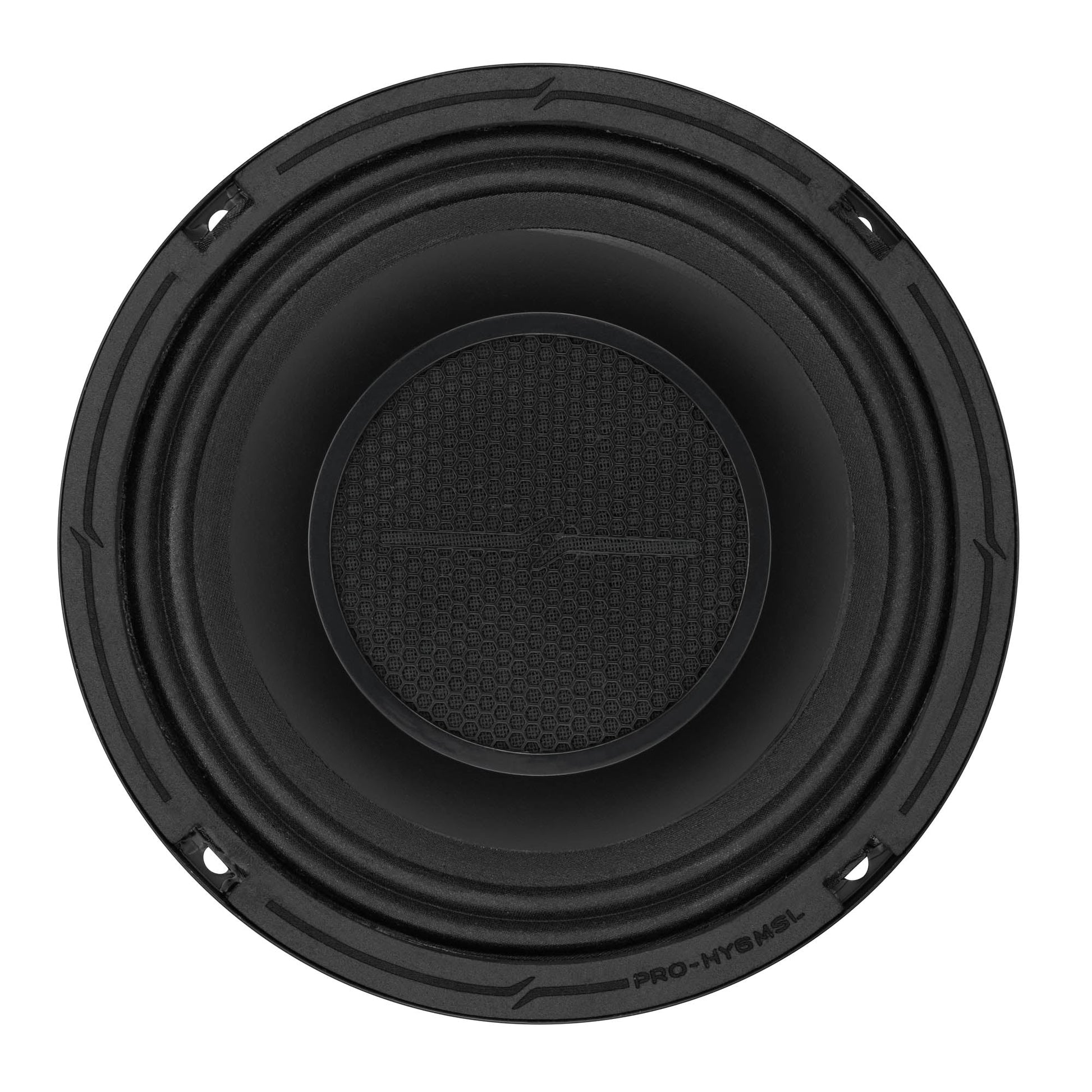

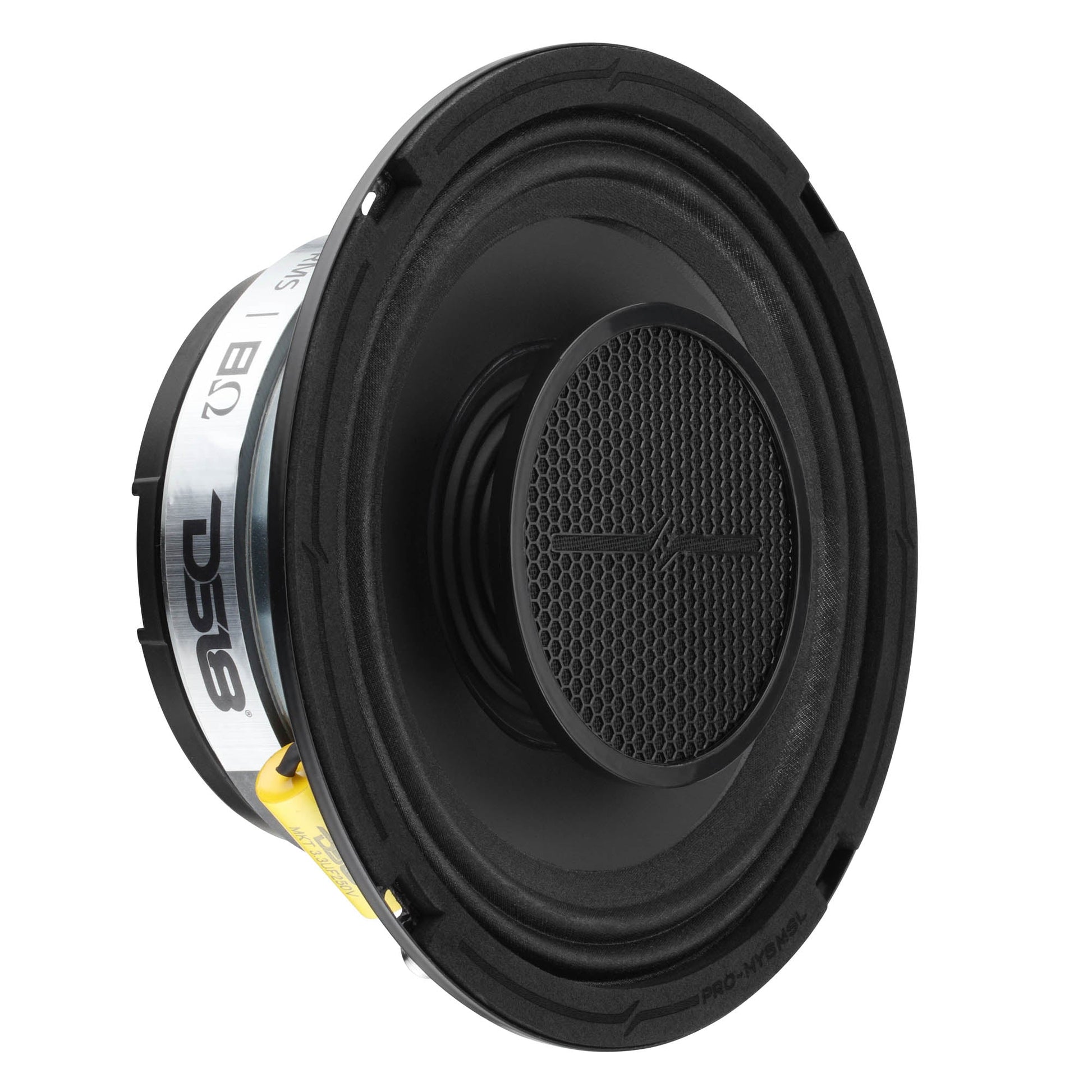

DS18 Car Audio Loudspeaker PRO-HY6MSL

DS18 PRO-HY6MSL PRO 6.5" Shallow Hybrid Mid-Range Ferrite Loudspeaker with Built-in Neodymium Driver 300 Watts 8-Ohm - Grill Included

Your search for the best high-powered audio speakers comes to an end with the DS18 Hybrid Speakers!

These compact Speakers combine the best of both worlds! We have emphasized and carefully combined both our Pro-Audio midrange and a high intensity driver all in a slim package for an endless amount of applications that need Pro-Audio sound in tight spaces where traditional drivers wouldn't fit.

This high-quality, durable, and innovative design perfectly blends a high-volume Speaker with a high wattage driver. These Speakers are the ultimate choice for extreme loudness with amazing clarity at high volumes.

Be sure no other brand can match up to this powerful and durable 6.5" Pro-Audio Speaker and Driver Hybrid. If you are looking for a high-powered Audio Speaker for your car or any other application, this completely customized Speaker will give you the output you need to get the job done.

Highlights:

• With 150 watts RMS Power Handling and 300 watts MAX Power Handling, and a frequency response of 120Hz-20Khz, this is the best Car Audio Loudspeaker you can find that is compact yet getting amazing and rich musical response.
• With an Overall size of 6.92 inches in width and 2.77 inches of mounting depth, this is that you can use in a huge amount of applications with ease.
• Made of titanium, neodymium, ferrite, and featuring a glossy red basket color, this revolutionary Hybrid Loudspeaker is going to last you years!

Key Features

• 6.5" Inch Hybrid Pro-Audio Driver / Speaker Hybrid
• RMS Power Handling: 150W
• MAX Power Handling: 300W
• Frequency Response: 120Hz-20KHz
• Voice Coil Diameter: 1.5"
• Voice Coil Material: KSV
• Impedance: 8-Ohms
• Sensitivity: 93dB
• Magnet Weight: 17.5 Oz
• Magnet Material: Ferrite
• Mounting Depth: 2.77"
• Recommended High Pass: 140Hz

Great For:

• Car Audio
• Pro Audio
• Home Audio
• Satellite Speakers
• Bookshelf Speakers
• Hi-Fi Installation
• DIY Projects

Technical Details

                                                                                                                        PRO-HY6MSL Product Manual

SPECIFICATIONS
Nominal Diameter	6.5" / 165.1mm
Nominal Impedance	8 ohms
RMS Power Handling	150W
MAX Power Handling	300W
Sensitivity (1w/1m)	93dB
Frequency Response	120Hz-20KHz
Recommended HI Pass Crossover	140Hz
Number of ways	2 ways
Pair or Single	Single

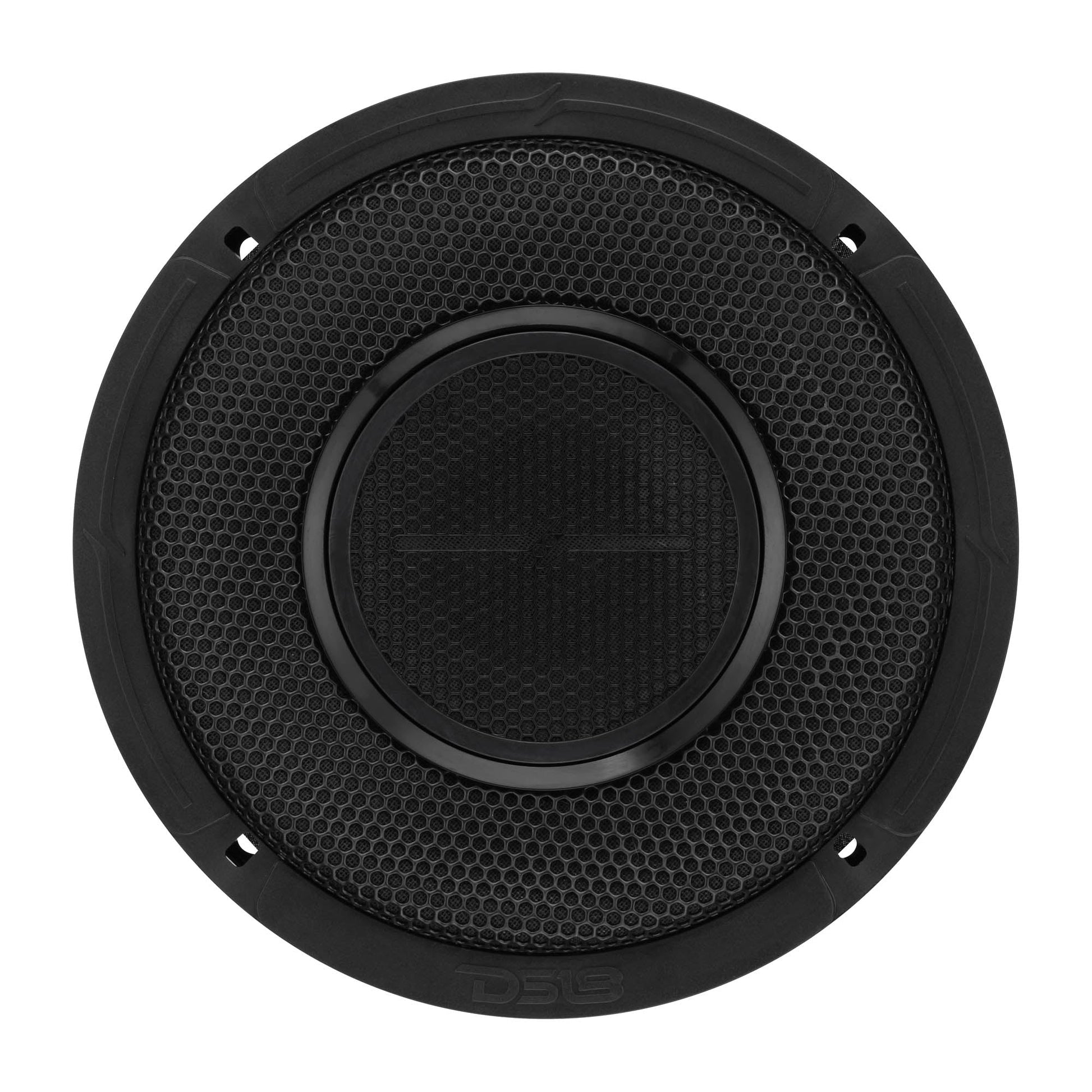

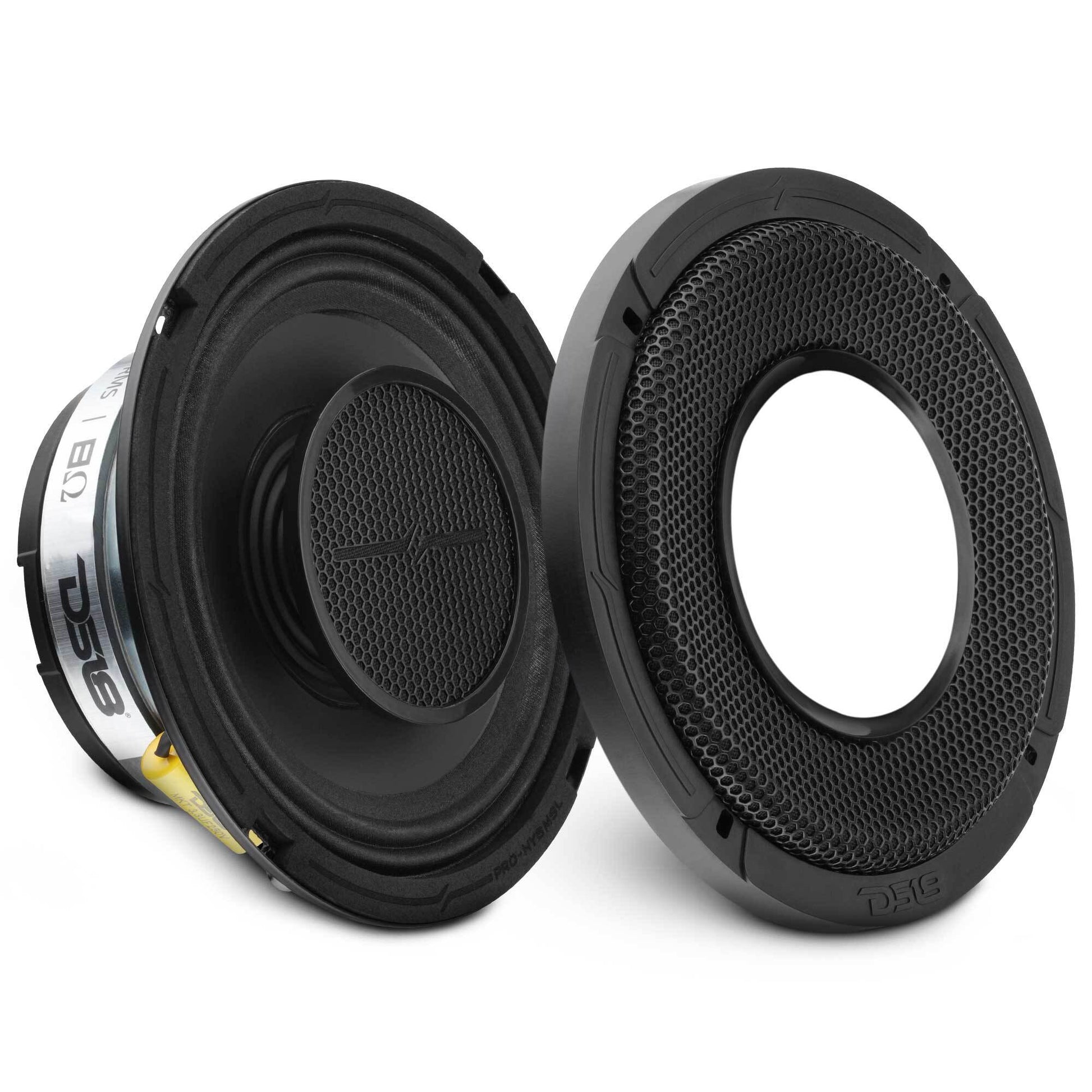

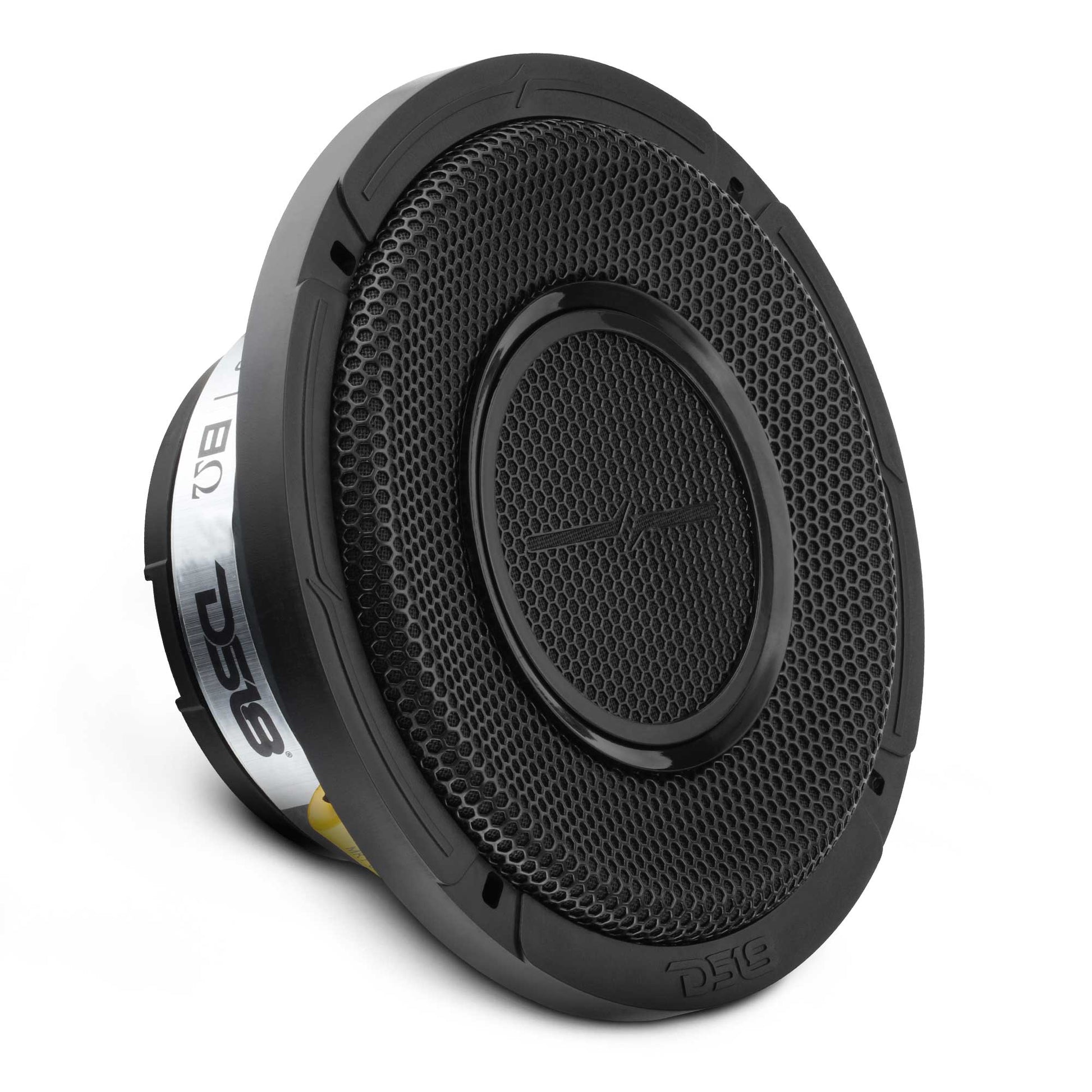

Grill Included	Yes
WOOFER SPECIFICATIONS
Voice Coil Diameter	1.5" / 38.6mm
Voice Coil Former Material	KSV
Winding Material	CCAW
Cone Material	Paper
Surround Material	Cloth
Basket Material	Steel
Basket Color/Finish	Glossy Red
Magnet Material	Ferrite
Magnet Weight	17.5 Oz

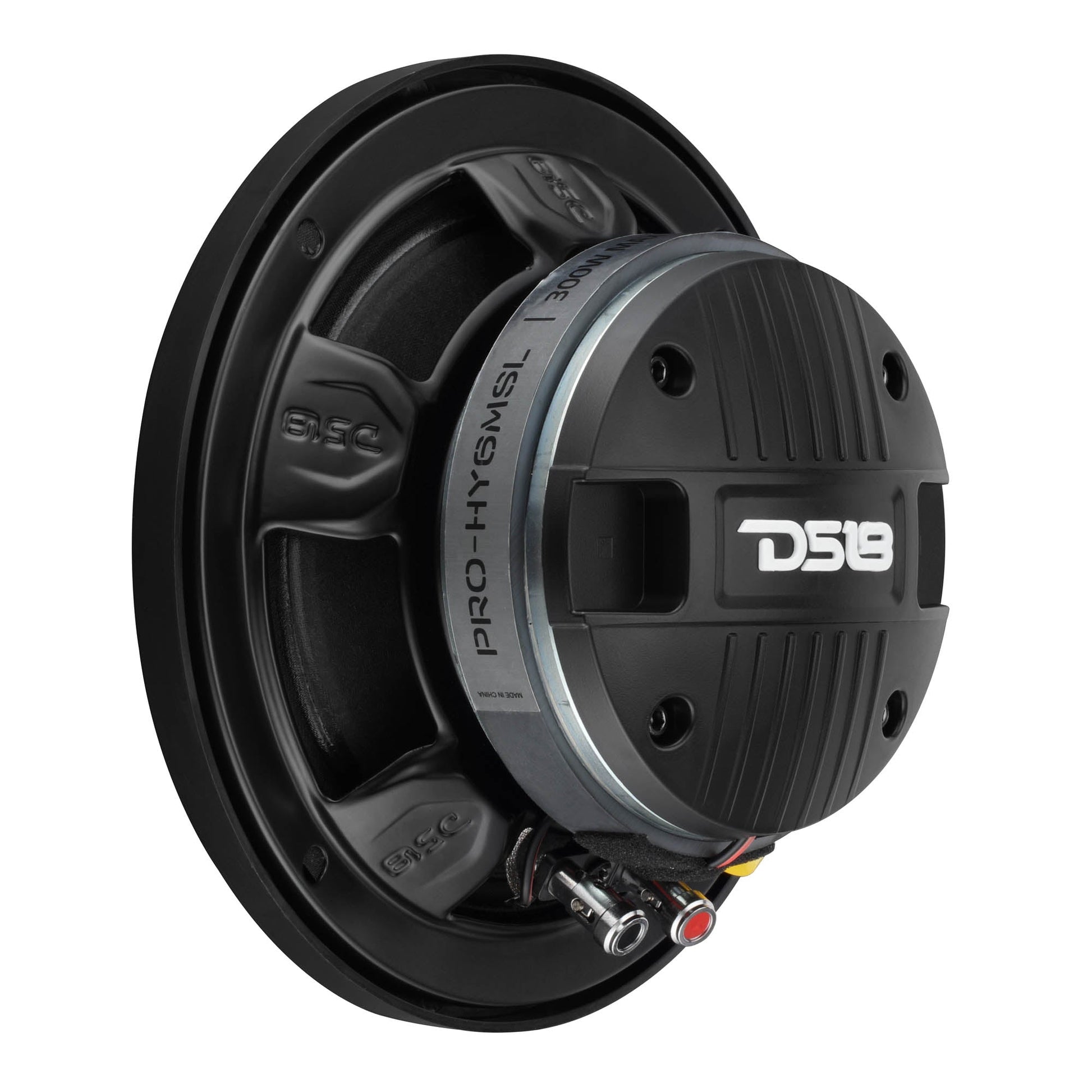

DRIVER SPECIFICATIONS
Voice Coil Diameter	1" / 25.4mm
Voice Coil Former Material	Kapton
Winding Material	CCAW
Diaphragm Material	Titanium
Magnet Material	Neodymium
Horn Diameter	3" / 76.2mm
SPEAKER MEASUREMENT
Overall Diameter	6.92" / 176mm
Overall Depth	3.52" / 89.5mm
Front Mount Baffle Cutout	5.6" / 142mm
Mounting Depth	2.77" / 70.5mm
Motor Diameter	4.33" / 110mm
