DS18
DS18 Car Audio Loudspeaker PRO-HY8.4B
DS18 Car Audio Loudspeaker PRO-HY8.4B
- Cone MaterialWater Resistant Paper
Couldn't load pickup availability
Wide Open Sound · Curated gear
DS18 Car Audio Loudspeaker PRO-HY8.4B
WOS Pick What these speakers do in 10 seconds — expand for full specs.
- BrandDS18
- SKUPRO-HY8.4B
- RMS250
- Ohms4
Mei says"Speakers are where the sound actually happens. Right size + power match = instant upgrade."
The stuff you'll actually notice
- RMS: 250.
Product description

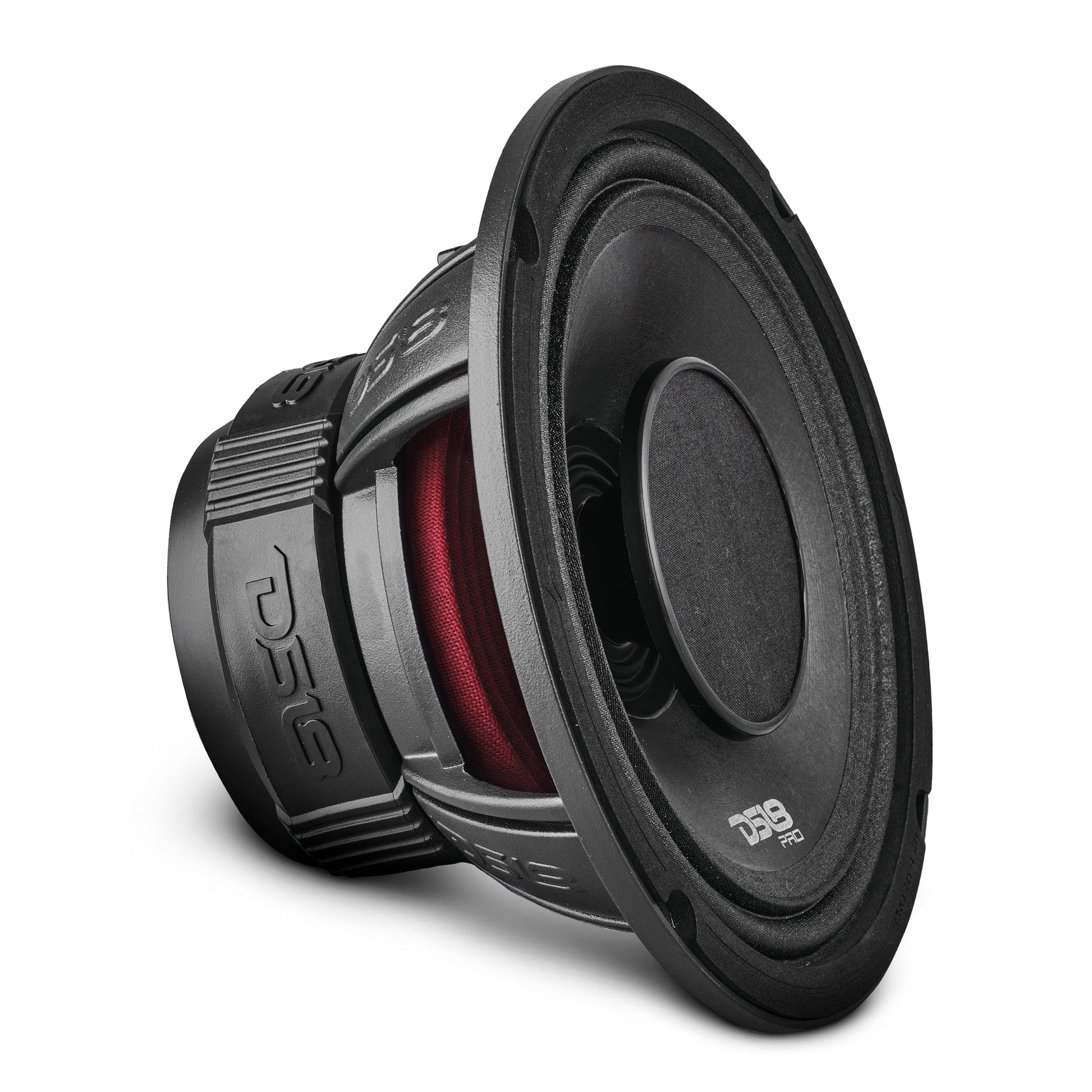

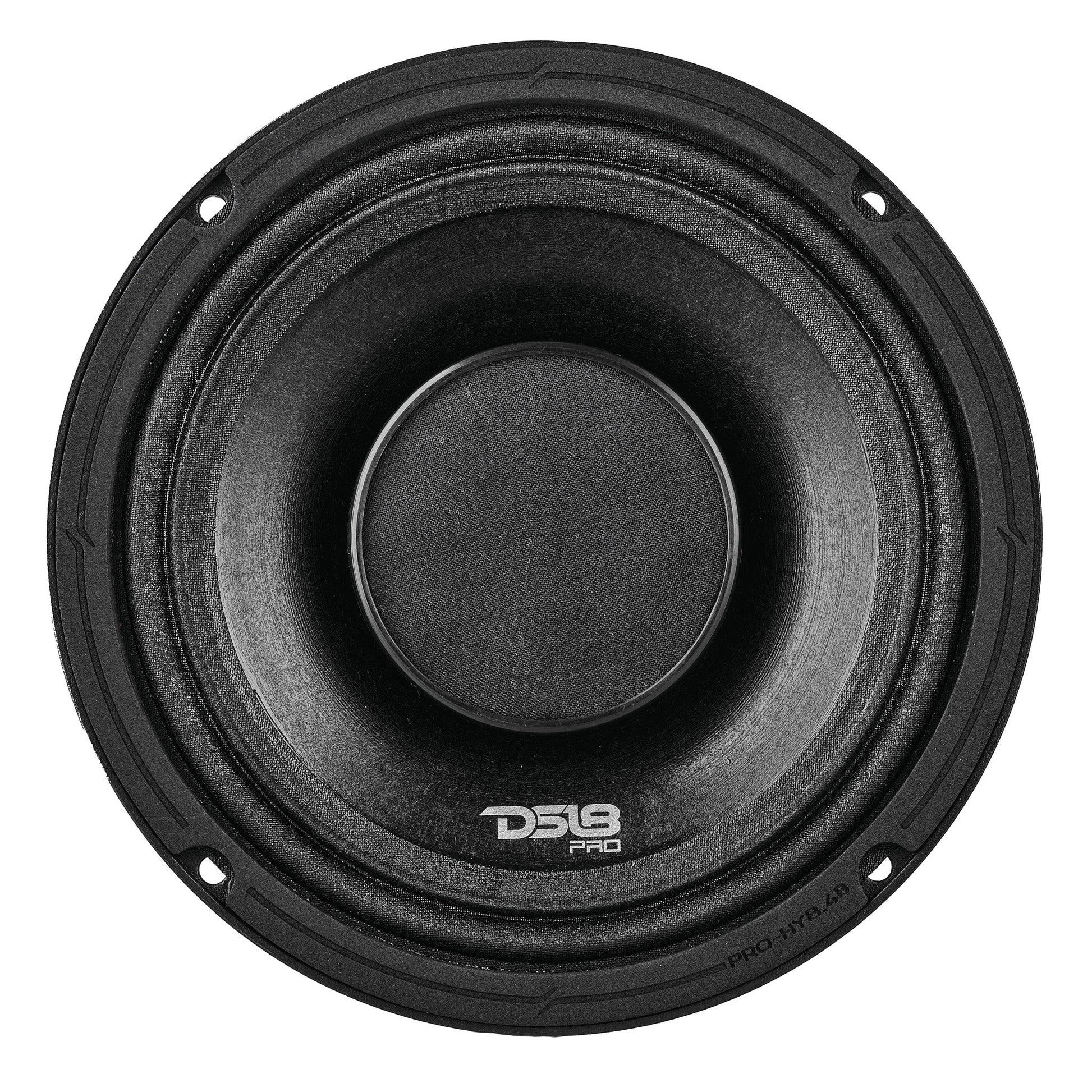

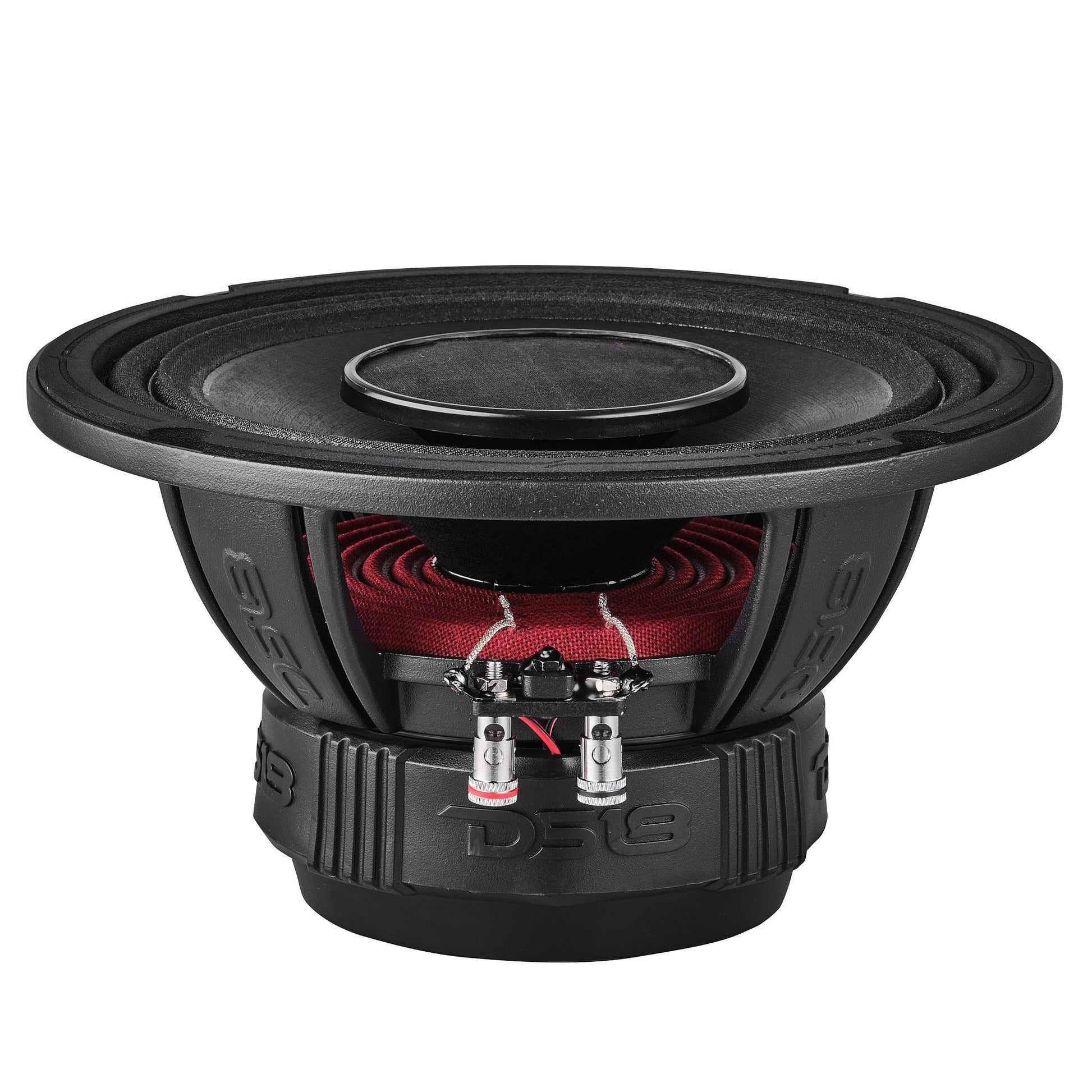

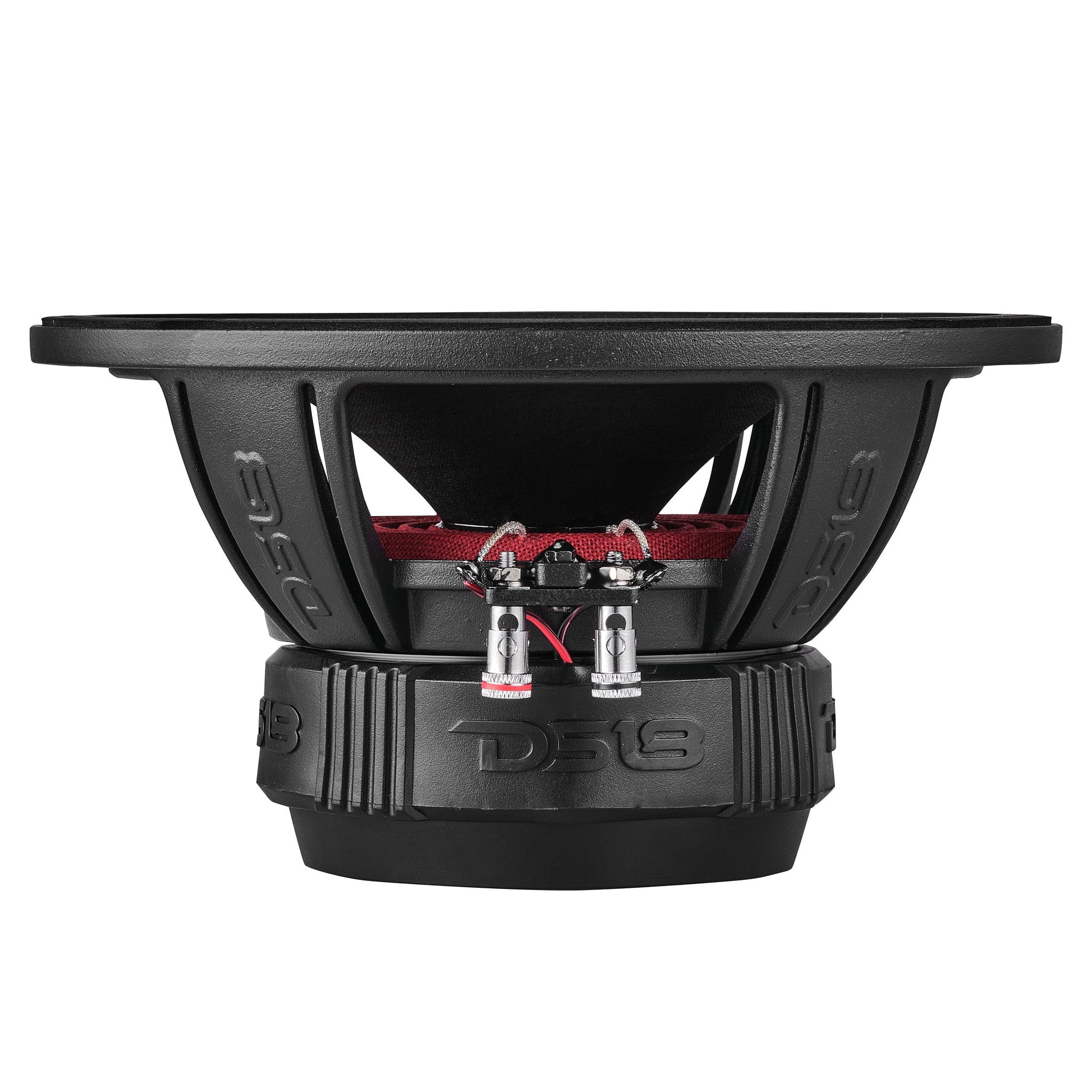

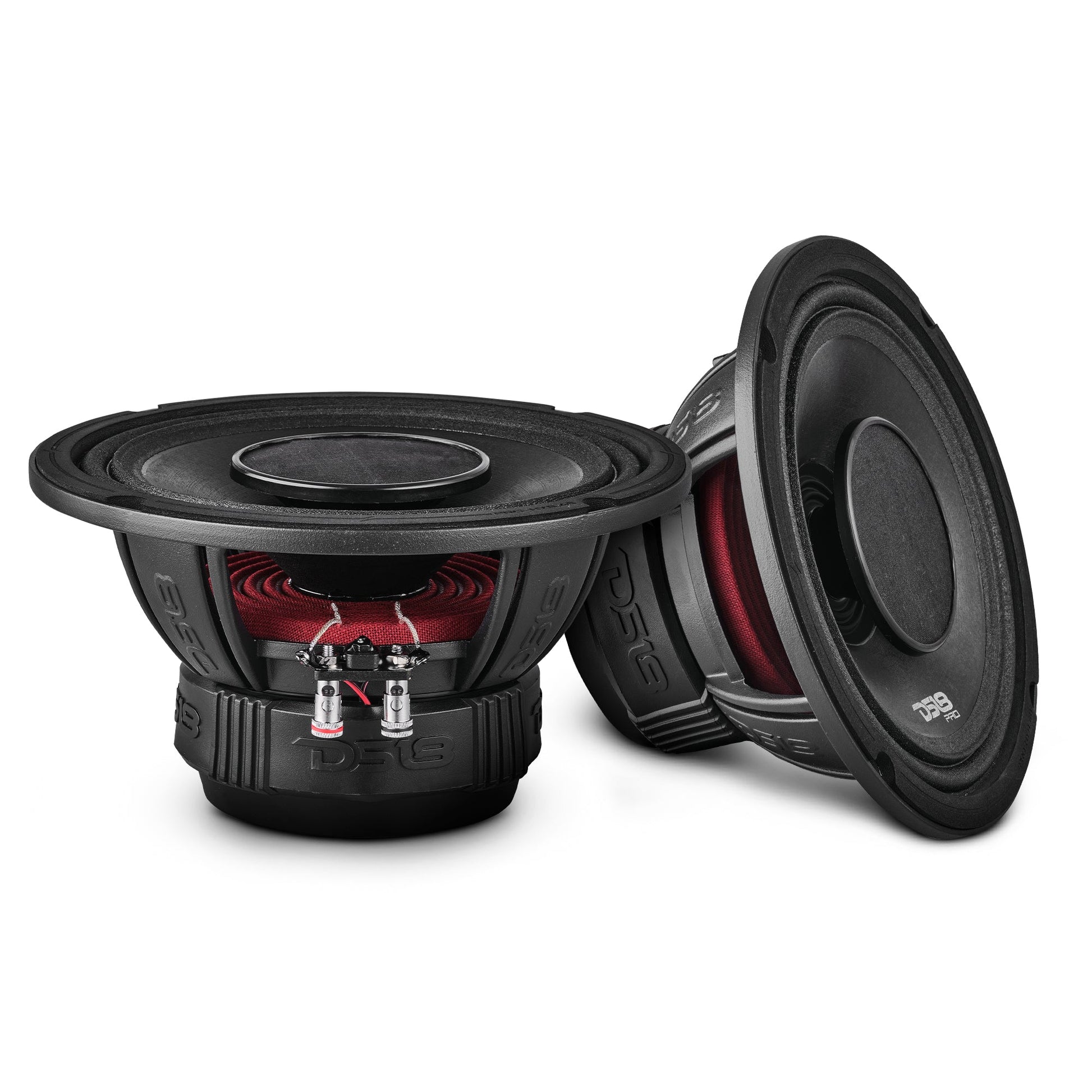

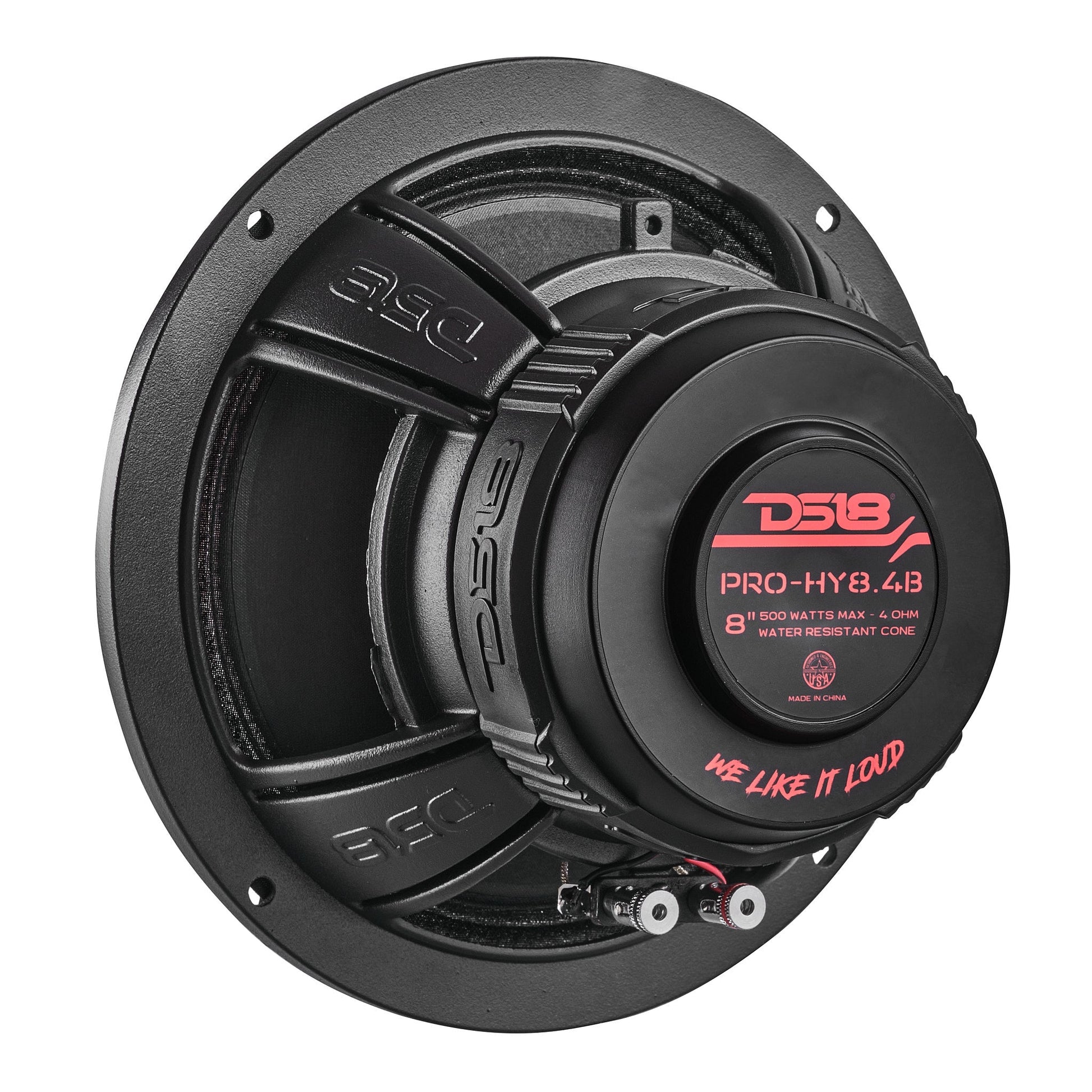

DS18 PRO-HY8.4B 8" Water Resistant Mid-Range Loudspeaker with Built-in Driver 500 Watts 4-Ohm
DS18's HYBRID speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered pro audio mega speaker combines both a 8" high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver.
Highlights
- Hybrid design combines high wattage midrange and driver together in one beautiful frame.
- High volume 8" and 1" driver rated at 250w RMS and 500 Max for crazy loud volume in a full range of frequencies.
- Water resistant cone to help battle elements and moisture making them great for motorcycles, boats, and regular vehicles too!
Technical Details
| SPECIFICATIONS | |
| Nominal Diameter | 8” |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 250W |
| MAX Power Handling | 500W |
| Sensitivity (1w/1m) | 97dB |
| Frequency Response | 80Hz-20KHz |
| Recommended Hi Pass Crossover | 100 Hz |
| Number of Ways | 2 |
| Pair or Single | Single |
| MID-RANGE SPECIFICATIONS | |
| Voice Coil Diameter | 1.5” / 38.6 mm |
| Voice Coil Former Material | Glass Fiber |
| Winding Material | CCAW |
| Cone Material | Water Resistant Paper |
| Surround Material | Cloth |
| Basket Material | Aluminum |
| Basket Color/Finish | Glossy Red |
| Magnet Material | Ferrite |
| Magnet Weight | 27 oz |
| Displacement volume | 0.051L |
| THIELE & SMALL PARAMETERS | |
| Equivalent Volume | Vas 10.048L |
| Excursion (one way) | Xmax 9.2 mm |
| Free Air Resonance | FS 135Hz |
| Mechanical Factor | Qms 5.96 |
| Electrical Factor | Qes 1.321 |
| Total Factor | Qts 1.011 |
| Mechanical Mass | Mms 9.69g |
| Mechanical Compliance | Cms 137.345 mm/N |
| BL Factor | BL 4.58 |
| Voice Coil Inductance | Le 4.22mH |
| Cone Area | Sd 226.98 Cm2 |
| DC Resistance | Re 3.4 ohms |
| Mechanical Mass w/o Air | Mmd 7.724g |
| DRIVER SPECIFICATIONS | |
| Voice Coil Diameter | 1” / 25.4 mm |
| Voice Coil Former Material | Kapton |
| Winding Material | CCAW |
| Diaphragm Material | Titanium |
| Magnet Material | Neodymium |
| Horn Diameter | 3.26" |

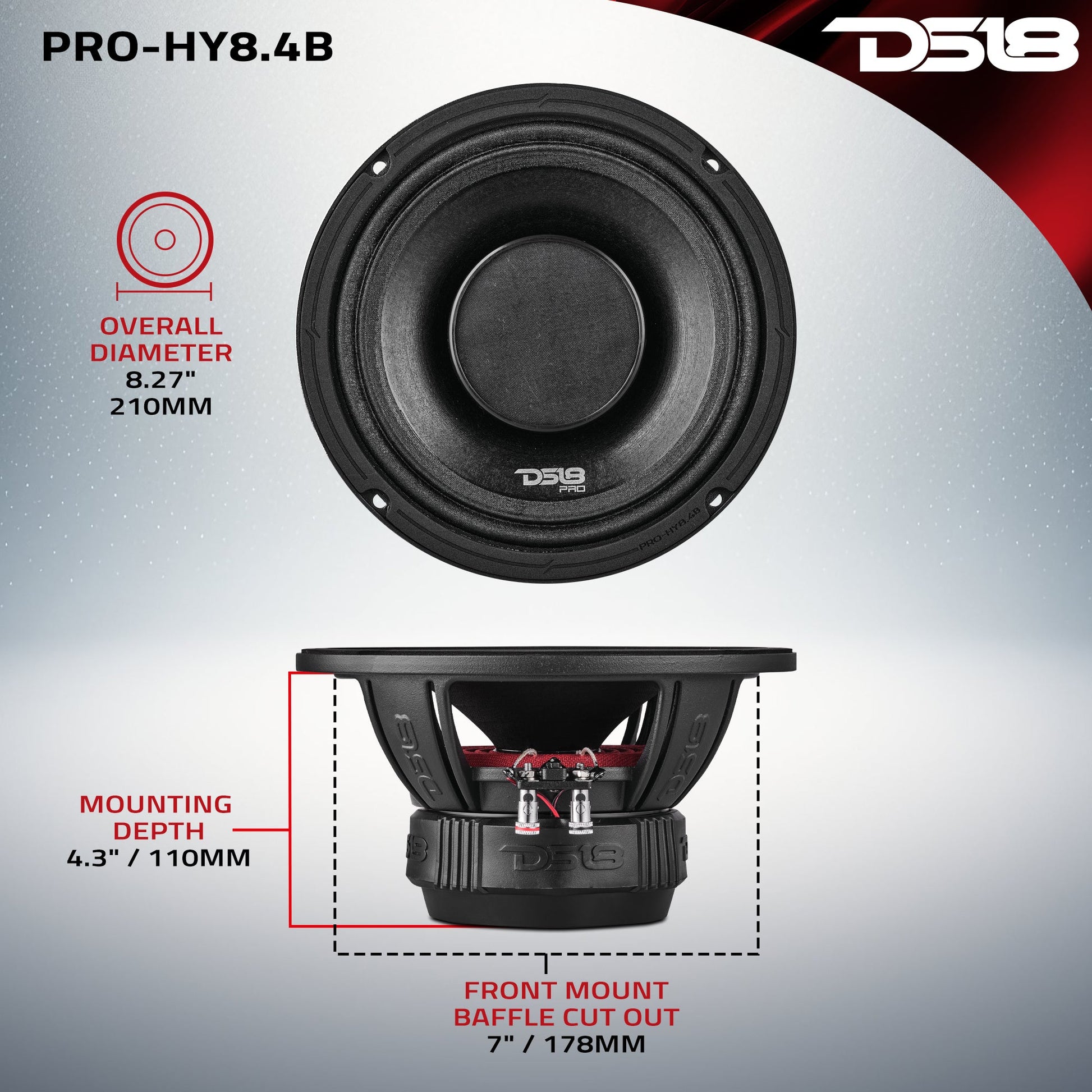

| MEASUREMENTS | |
| Overall Diameter | 8.31" / 211mm |
| Overall Depth | 4.65" / 118.2mm |
| Front Mount Baffle Cutout | 7.1" / 180.3mm |
| Mounting Depth | 4.29" / 109mm |
| Motor Diameter | 4.59" / 116.6mm |
Speaker specs
| Speaker Size (Mid) | 8" |
|---|---|
| Impedance | 4 |
| Sensitivity | 97dB |
| RMS Power | 250 |
Build & install
| Cone Material | Water Resistant Paper |
|---|
Weather & environment
