Hertz UTV Head Unit HMR 20
WOS Pick What you're getting in 10 seconds — expand for full details.
- BrandHertz
- SKUHMR 20
Mei says"Match gear to your install and power budget. Do it once, do it right."
The stuff you'll actually notice
- Hertz HMR 20 - 3" Color TFT IPS, 4 Preset EQ Marine Digital Media Receiver We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order! What's Inside? • Gauge-style marine receiver (...
Product description

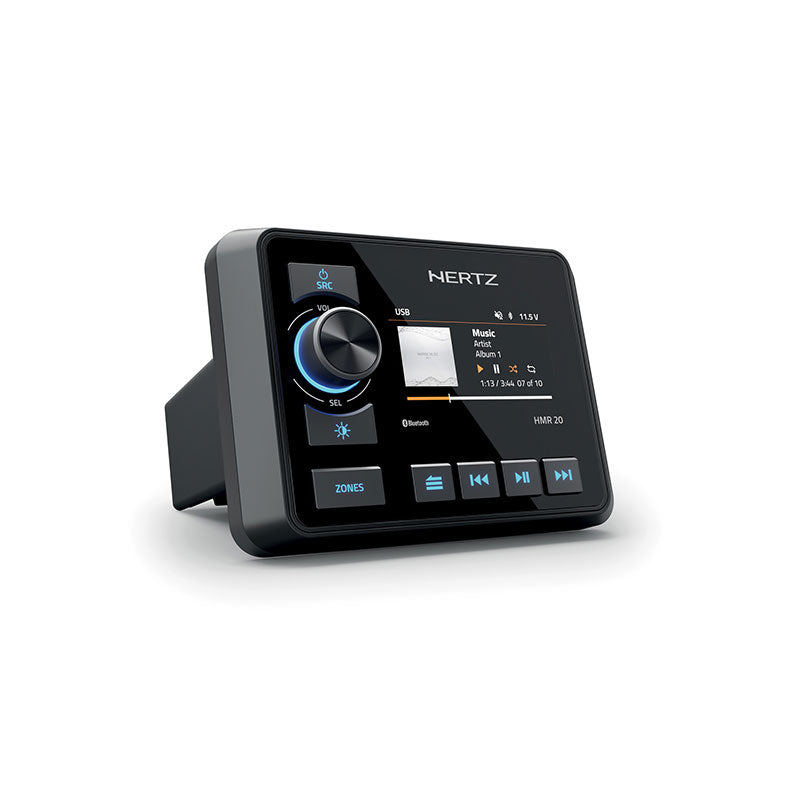

Hertz HMR 20 - 3" Color TFT IPS, 4 Preset EQ Marine Digital Media Receiver
We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!
What's Inside?
• Gauge-style marine receiver (15A fuse)
• Trim-ring
• Wiring harness
• 59" USB extension cable
• Rubber front-panel cover
• (4) Screws
• Owner's Manual
Rugged 3" Color TFT Display Receiver
Delivers peak power handling of 200?W and continuous 100W with hi-pass filtering at 150Hz for clean, dynamic sound. Covers a wide frequency range of 100Hz to 20kHz with 96.5dB sensitivity for detailed audio reproduction. Designed with a 165mm (6.5") woofer to provide punchy, precise midrange performance.
Versatile Multi-Zone Audio Output
Supports 2 independent zones for customized audio distribution. Features 2 line outputs (1×L+R per zone) for easy system expansion. Includes a dedicated subwoofer output with selectable low-pass at 60, 80, or 100Hz for deep, controlled bass.
Smart Audio Control Features
Includes a 1×L+R auxiliary input for flexible device connectivity. Equipped with a 4-preset equalizer for quick sound customization. Built-in battery voltage gauge keeps you informed for safe and reliable operation.
SPECIFICATIONS
Maximum Power : 50 Watts
Satellite Radio Ready : Yes
Bluetooth : Yes
Aux Input : Yes
Rear USB Input : 1
FEATURES
Specifications:
display: 3” color tft ips
peak power @ 4 ω: 4 x 50 w
front panel ipx rating: ip66
multi-zone: 2
line out: 2 (1 x l + r per zone)
subwoofer out: 1 (low pass 60-80-100 hz)
aux input: 1 x l + r
equalizer: 4 preset
camera in: -
battery voltage gauge: yes
Sources
tuner: am/fm with rds (where available)
usb: yes
ipod/iphone: -
dab+ ready: yes
siriusxm ready: -
nmea 2000 ready: -
bluetooth: 4.2, audio streaming with id3 tag display, - -
Size & Mounting
unit size mm (in.): w 146 (5.75) x h 105 (4.13) x d 132 (5.2)
mounting hole size mm (in.): w 120 (4.72) x h 50 (1.97)
mounting depth mm (in.): 98 (3.86)
mounting method: screw
UPC: 8018823133630
Weight: 6
Authorized Internet Dealer
Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
Do you own this product?
Write a review!
Been using it for more than 2 months now on my boat and I can truly say that it does not have any problems getting wet. The only concern about this product is that the Bluetooth connection can be a little limited when it comes to distance, but I have no qualms with its sound quality though.
Dale
11/3/2023
3" Color TFT IPS Display4 Preset EQ SettingsDigital Media Receiver
3" Color TFT IPS Display
3" Color TFT IPS Display4 Preset EQ SettingsDigital Media Receiver
3" Color TFT IPS Display
