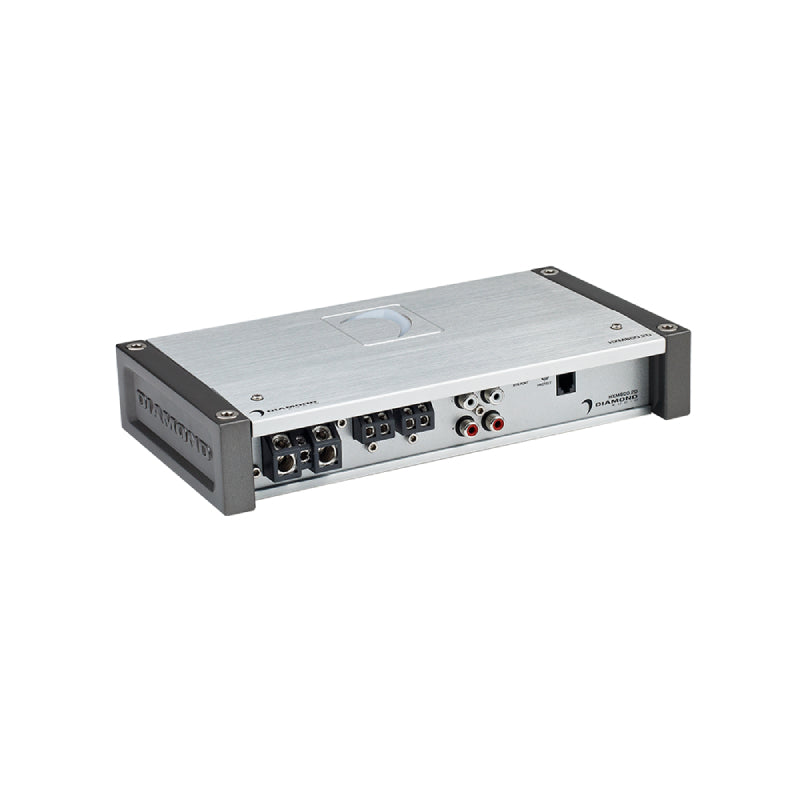

Diamond Audio MOTORSPORT Hex Series 300WX2 @4Ohms Full Range Class D 2-Channel Marine Amplifier

We are a Hertz authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

•

SPECIFICATIONS

Maximum Power : 1600 Watts

Low Frequency Response : 40-400 Hz

High Frequency Response : 40-400 Hz

Number of Channels : 2

Built In Crossovers : Yes

RMS Power Output : 400x2 Watts

Channel Separation : Yes

Amplifier Class : D

FEATURES

Features:

300 W x 2 @ 4Ω
400 W x 2 @ 2Ω
800 W x 1 @ 4Ω bridged
S/N: ≤ 98.9 dBA / THD: .05%
Dimensions:
9.74 x 5.28 x 1.75 inches
247 x 134 x 45 mm
Remote Level Control Included


Specifications:

RMS Power (2 Ω): 400W X 2
RMS Power (4 Ω): 300 W X 2
Bridged (mono 4 Ω): 800 W X 1 (4Ω Only)
Topology: Full-Range Class D
Power Supply: Full PWM
Power Supply Threshold: 10.0DVC – 17.0DVC
Idle Current: (0.7A)
THD 4 (1KHz @4Ω): 0.05%
S-N Ratio (A-weighted @ 1W): -77.2dBA
S-N Ratio (A-weighted @ 1W): -98.9dBA
Input Sensitivity – Low Input Level: 0.2mV – 10.0V
Input Sensitivity – High Input Level: YES- UP to 25 W RMS
Input Impedance – Low Input Level: 22 KΩ
Impedance – High Input Level: N/A
Output Impedance: 0.047Ω
Damping Factor (50Hz @ 4Ω): >250
Bandwidth (-3dB): 10Hz-350Hz
Crossover (-12 dB/ Oct) – Variable High Pass: 40Hz-400Hz
Crossover (-12 dB/ Oct) – Variable Low Pass: 40Hz-400Hz
Crossover (-12 dB/ Oct) – Variable Sub-Sonic: N/A
Fuse Rating (ATC): N/A
Dimentions- Length x Width x Height (inches): 9.74″ x 5.27″ x 1.75″
Dimentions- Length x Width x Height (mm): 247.6 x 133.9 x 44.5 mm

UPC: 0847169024184
Weight: 7
