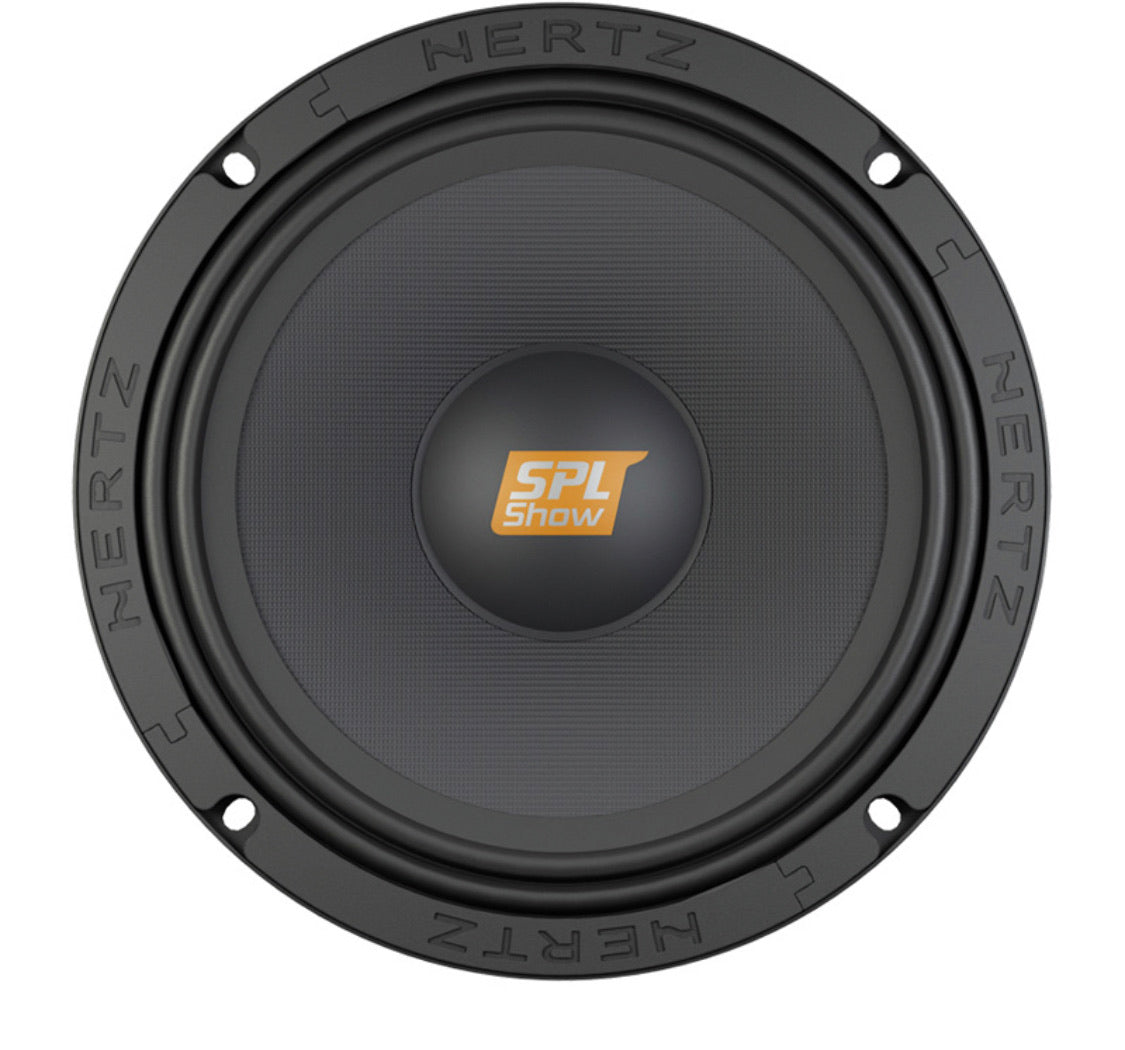

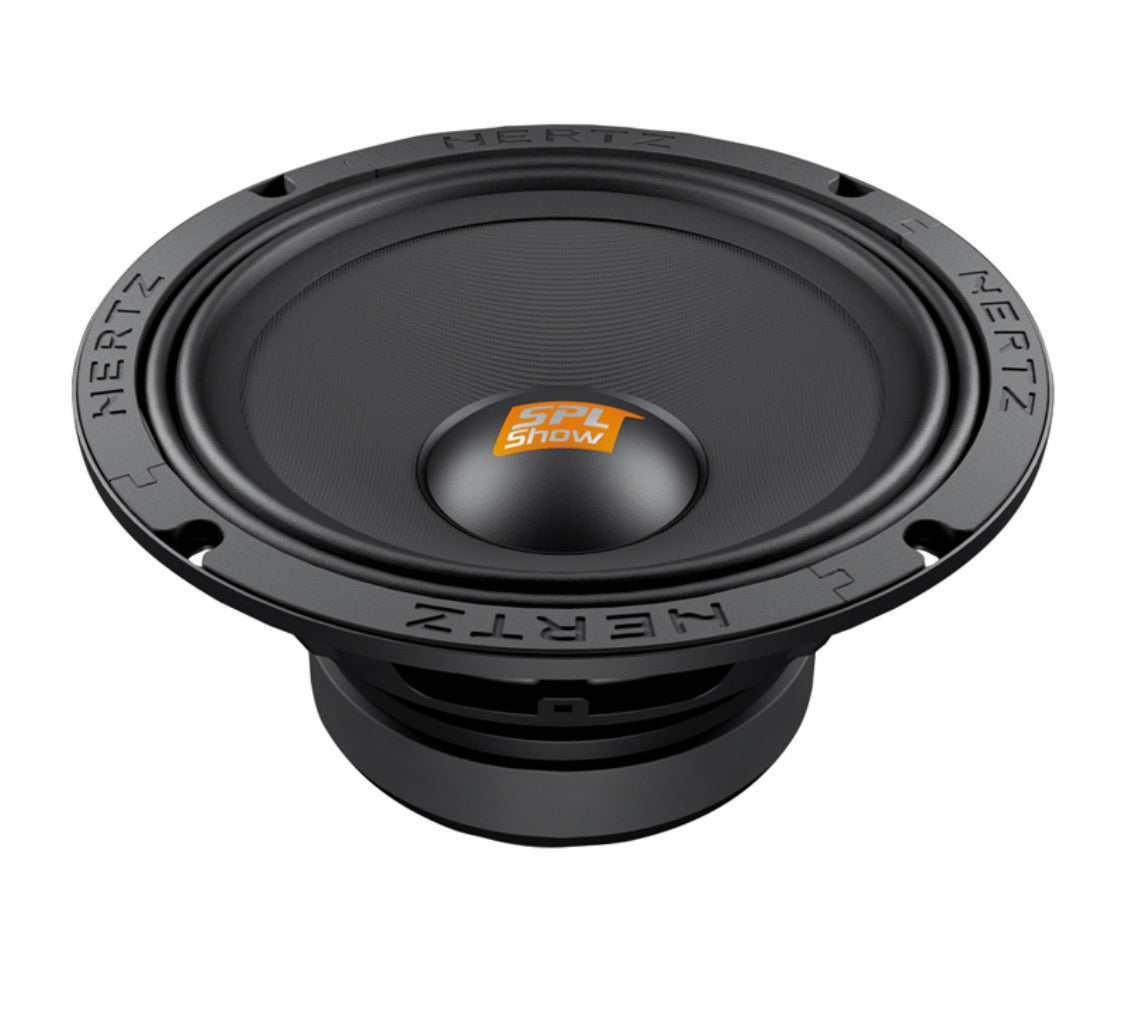

SV 200.1 8" SPL Midrange Speakers
The SV 200.1 car audio midrange is the 200 mm (8 in.) midrange designed for SPL competitions. Like the SX subwoofers, the SV 200.1 features a solid, robust structure and, like all the other SPL Show components, it employs a copper voice coil wound on a two-layer KSV former, for unheard-of thermal and mechanical capability also in extreme circumstances. The cone features a water repellent pressed paper membrane and paper dust caps, both robust and light weight, as well as double-wave damped fabric surrounds to ensure linearity even under extreme conditions, contributing to high SPL scores.
| Component |
SPL Midrange |
|
Size mm (in.) |
200 (8) |
|
Power Handling - Continuous W |
200 |
|
Power Handling - Peak W |
500 |
|
Impedance Ohm |
4 |
| Voice Coil Ø |
38 (1.5) |
|
Frequency Response Hz |
100 ÷ 9k |
|
Magnet size D x d x h mm (in.) |
80 x 50 x 6 (3.15 x 1.97 x 0.24) |
|
Weight of one speaker kg (lb.) |
1,2 (2.65) |
| Magnet |
High density flux ferrite |
| Cone |
Ultra light pressed paper |
Technical Specs
|
D mm |
168 |
|
Re Ohm |
3,2 |
|
Fs Hz |
103 |
|
Le mH |
0,06 |
|
Vas I |
8,1 |
|
Mms g |
19,9 |
|
Cms mm/N |
0,12 |
|
BL T*m |
8,8 |
| Qts |
0,52 |
| Qes |
0,55 |
| Qms |
7,4 |
|
Spl dB |
100 |
