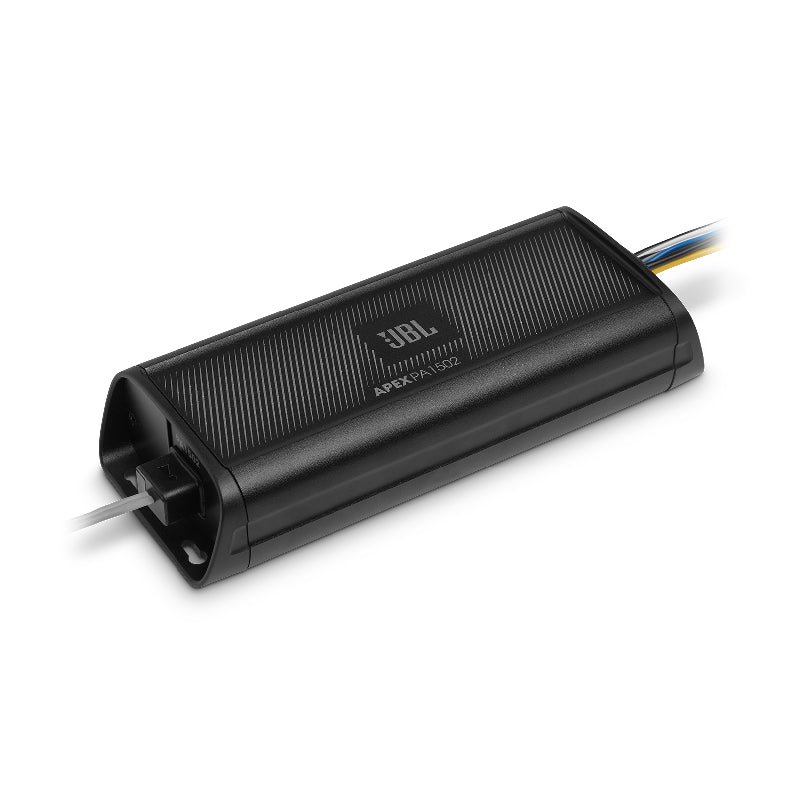

JBL Marine amplifier APEX PA1502

JBL APEX PA1502 Apex Series 150W x 2 @2Ohms, 750W Max Power Class D 2-channel Weather-Resistant and High-Performance Amplifier

We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• (2)-Channel amplifier
• (2) Speaker to RCA adapters
• (2) 25-amp ATO fuses (1 installed/1 spare)
• (4) 5/8" Screws
• (4) 5" Zip ties
• (2) Window stickers
• Owner's manual (English/ French/ Spanish/ Portuguese/ Chinese/ Japanese/ Korean)

Ultra-compact Aluminum Chassis

JBL Apex powersports amplifiers feature an ultra-compact aluminum chassis and small footprint design to allow for installation almost anywhere.

Conformal-Coated PCB

JBL Apex powersports amplifiers are engineered to withstand harsh conditions, with fully “marinized” circuit boards to ensure flawless power delivery, year after year.


Big Dynamic Power

Dynamic Class D output power is perfectly matched to meet the needs for your JBL car, marine and powersports products.

Full-Range Outputs and Selectable Crossovers

The Apex PA1502 amplifier features selectable all-/hi-/lo-pass crossover filters, with selectable 12dB per octave electronic crossover slopes from 60-, 80-, 120Hz to allow for quick and easy installation.


High- and low-level inputs

Speaker-level and low-level inputs let JBL Apex amplifiers integrate with just about any audio input.

Harman Standard Reliability Testing

JBL Apex amplifiers have to go through environmental testing that would destroy other amplifiers. JBL freezes them, bakes them, shakes them, blasts them with ultraviolet light & salt spray and drives them at full power for days at a time.


JBL Industrial Design

JBL engineers every product with a high level of design. In applications where the Apex PA1502 will be visible, it will enhance the vehicles aesthetic not take away from it.

SPECIFICATIONS

Maximum Power : 750 Watts

Number of Channels : 2

Frequency Response : 20-20000 Hz

Built In Crossovers : Yes

RMS Power Output : 150x2 Watts

Channel Separation : Yes

Amplifier Class : D

Fuse Rating : 25 A

FEATURES

Features:

Ultra-compact Aluminum Chassis
Conformal-Coated PCB
Big Dynamic Power
Full-Range Outputs and Selectable
Crossovers
High- and low-level inputs
Harman Standard Reliability


Specifications :

Max Power: 750W peak
RMS Power Output @ 2Ω (full-range): 150W x 2, <1% THD+N
RMS Power Output @ 4Ω (full-range): 100W x 2, <1% THD+N
RMS Power Output @ 4Ω Bridged (full-range): 300W x 1, <1% THD+N
Selectable all-/hi-/lo-pass filter: 60-, 80-, 120Hz @ 12dB/octave
Selectable bass boost: 0-, 6-, 12dB @45Hz
Frequency Response: 20Hz – 20kHz
Signal-to-Noise Ratio (full-range): >75dB (ref 1W output @ 4Ω)
Fuse rating: 25A

UPC: 050036359115
Weight: 10
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
