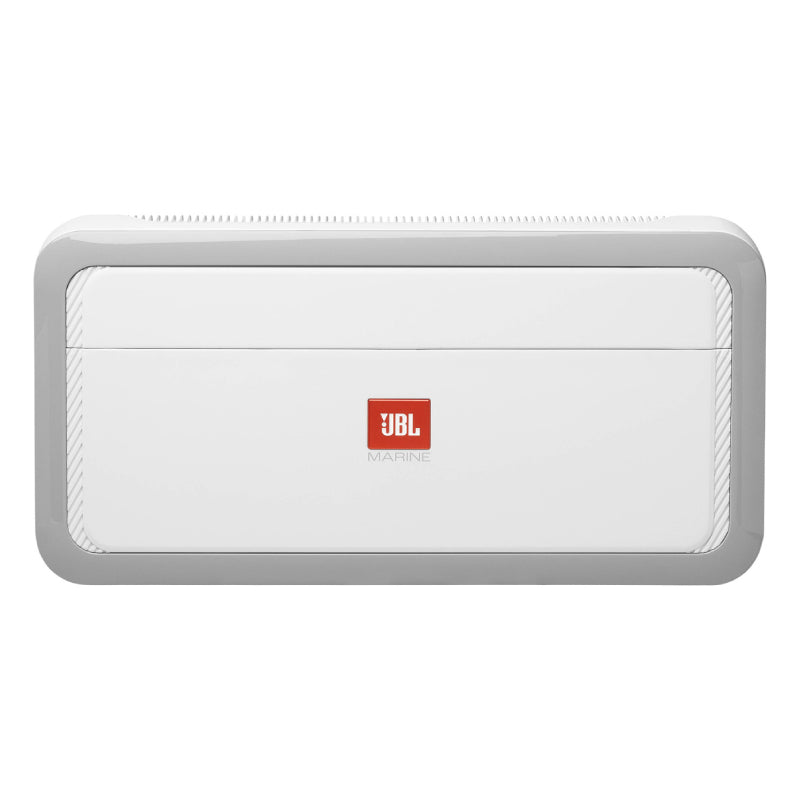

JBL Marine amplifier Marine A1504

JBL Marine A1504 Marine Series 4-Channel 225W RMS x 4 at 2 Ohm, Class-D Full Range Marine Amplifier

We are a JBL authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 4-Channel Class-D Full Range Marine Amplifier (three installed 35A ATO fuses)
• 3 Spare 35A fuses
• 4 Speaker wire-to-RCA adapters
• Four 2-1/8" screws
• JBL Logo badge with adhesive backing
• QR Code for owner's manual
• Owner's Manual

Clear Audio for Your Boat

Boost your system with the Marine A1504 amplifier, offering 150 watts RMS per channel, 225 watts at 2 Ohms, and 450 watts in bridged mode. With Class D efficiency, precise 32-320 Hz crossovers, and easy integration via speaker-level inputs and preamp outputs, it delivers powerful, clear audio in a compact, fan-free design.

Bridging Options for Full Range or Subwoofer

Experience powerful sound with 150 watts RMS delivered to each front and rear speaker, plus versatile bridging options—450 watts RMS in 2-channel mode for subs or 3-channel mode to drive both full-range speakers and a subwoofer for an immersive audio experience.


Perfect Tuning with Speaker-Level Inputs and Crossovers

Easily integrate the amplifier into any system, including your Marine’s factory radio, with speaker-level inputs, while separate high-pass and low-pass crossovers allow for precise sound tuning. Fine-tune the roll-off to perfectly match your speaker placement and cabin acoustics for a truly customized audio experience.

SPECIFICATIONS

Low Frequency Response : 32-320 Hz

High Frequency Response : 32-320 Hz

Number of Channels : 4

Frequency Response : 20-20000 Hz

Built In Crossovers : Yes

RMS Power Output : 4x225 Watts

Channel Separation : Yes

Amplifier Class : D

FEATURES

Features:

Power Output: Delivers 150 watts RMS to each front and rear speaker
Bridging Options: Can be bridged to 2-channel mode for 450 watts RMS to drive subs or 3-channel mode for full-range speakers and a subwoofer
Speaker-Level Inputs: Integrates into almost any system, including those with your Marine’s factory radio
Crossovers: Separate high-pass and low-pass crossovers on the front and rear channels for optimal sound tuning
Customizable Sound: Allows fine-tuning of roll-off to suit speaker placement and cabin acoustics


Specifications:

RMS Power Output: 150 watts x 4 channels
Frequency Response at Rated RMS Power: Not specified
THD at Rated RMS Power: Not specified
Signal to Noise Ratio: 80 dB
Input Voltage: 14.4v
Peak Power Output: Not specified
Power at 2 Ohms: 225 watts x 4 channels
Bridged Power: 450 watts x 2 channels
Minimum Impedance (Bridged): 4 Ohms
Minimum Impedance (Unbridged): 2 Ohms
Amplifier Class: D
Low-Pass Crossover Frequency: 32-320 Hz
Low-Pass Slope: 12 dB/octave
High-Pass Crossover Frequency: 32-320 Hz
High-Pass Slope: 12 dB/octave
Bass Boost: No
Bass Boost Frequency: N/A
Fan Cooled: No
Fuse Rating: 105A
Speaker Level Inputs: Yes
Preamp Outputs: 2
Height: 2-1/16 inches
Width: 14-3/16 inches
Depth: 7 inches

UPC: 050667380595
Weight: 11
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for replacement within 2 Year(s) from the original date of purchase with proper return authorization.
