JBL High-Power, 2-Way Passive AW526-LS

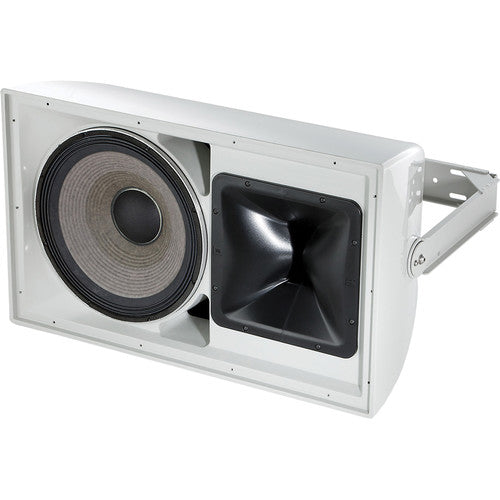

Part of JBL’s AE Series, the AW526 is a versatile loudspeaker that's ideal for a wide range of applications. This high power, 2-way full-range loudspeaker system is comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 2265H 380 mm (15") low-frequency driver and 2432H high-frequency 38 mm (1.5") exit, 75 mm (3") voice-coil compression driver. The large format Progressive Transition waveguide provides excellent 120° x 60° coverage, and the speaker can used in either a vertical or horizontal orientation.

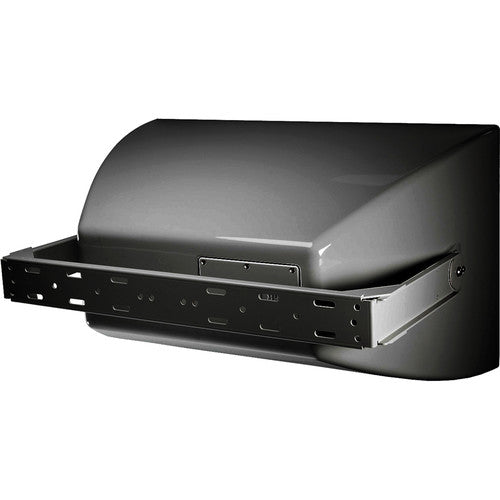

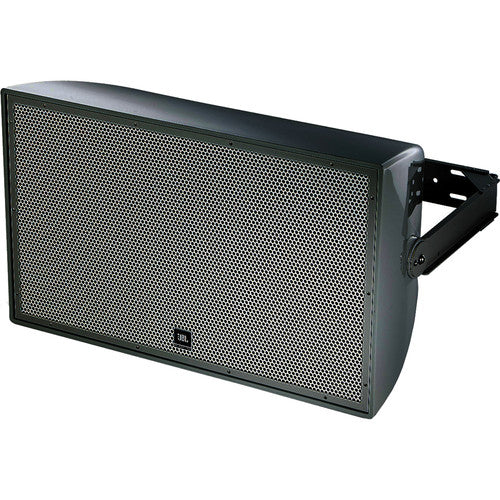

The enclosure is constructed of multi-layer glass composite and is heavily braced to maximize low frequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The system is also equipped with a 400W, 70 / 100V transformer, and the included heavy-duty stainless steel U-type mounting bracket allows for easy installation on flat surfaces or in 90° corners.

The Life Safety (LS) models are EN54-24 compliant with all parts sealed, making them well-suited for any life safety application.

Applications

• Sports facilities
• Themed entertainment venues
• Outdoor entertainment centers
• Cruise ships
• Water parks

Features

• Weather-resistant, all fiberglass enclosure
• 120° x 60° coverage
• 2265H-1 Differential Drive low frequency driver
• 2432H high frequency compression driver
• Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
• Available in Gray or Black finish
• 400W, 70 / 100V transformer Included
• U-type mounting bracket included

Specifications

• Frequency Range (-10 dB):
  • AW526: 35 Hz - 20 kHz
  • AW526-LS: 39 Hz - 20 kHz
• Frequency Response (±3 dB):
  • AW526: 55 Hz - 17 kHz
  • AW526-LS: 86 Hz - 17 kHz
• Coverage Pattern: 120° x 60° rotatable waveguide
• Directivity Factor (Q): 7.9
• Directivity Index: 9 dB
• Crossover Frequency: 1.1 kHz
• Long-Term System Power Rating (IEC):
  • AW526: 600W (2400W peak), 100 hrs
  • AW526-LS: 400W (1600W peak), 100 hrs
• Maximum SPL:
  • AW526: 128 dB SPL (134 dB peak)
  • AW526-LS: 127 dB SPL (133 dB peak)
• System Sensitivity (1W @ 1 m): 100 dB
• 70V / 100V Transformer Taps:
  • 70V: 400W, 200W, 100W
  • 100V: 400W, 200W
• Low Frequency Driver:
  • Nominal Impedance: 8 Ω
  • Sensitivity (1W @ 1 m): 98 dB SPL
• High Frequency Driver:
  • Nominal Impedance: 8 Ω
  • Sensitivity (1W @ 1 m): 113 dB SPL
• Waveguide: PT-H126HF-1
• Enclosure: Hand-laminated fiberglass, gray or black gelcoat
• Suspension Attachment: 2 x M10 for Included U-bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety
• Input Connector: CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (0.375") spade lugs
• Dimensions (H x W x D in horizontal orientation): 19.1" x 31.9" x 18.8" (485 x 810 x 478 mm)
• Net Weight: 62.5 lbs. (28.3 kg)
