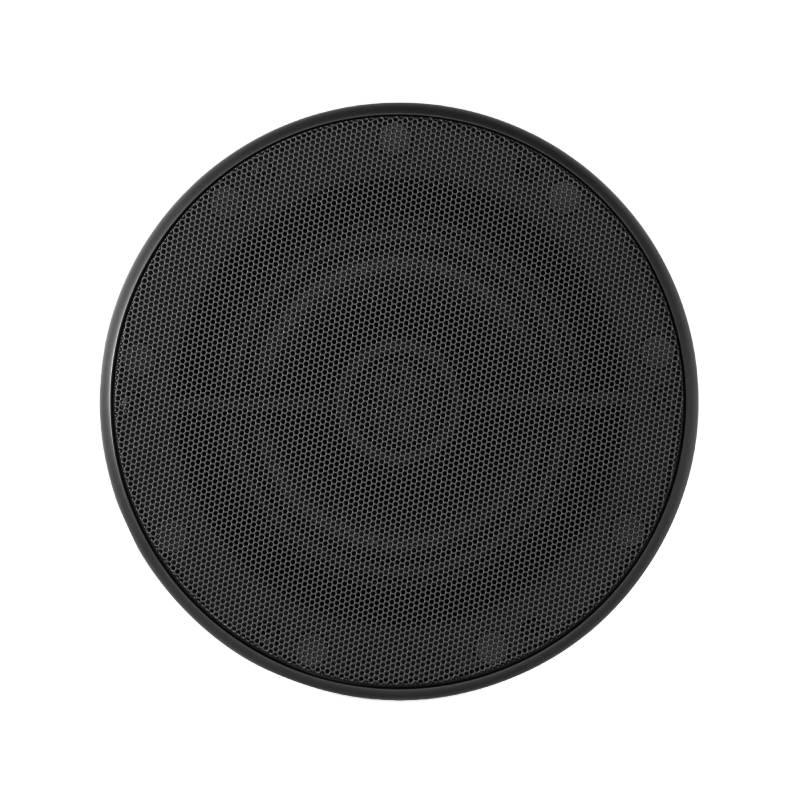

JL Audio Marine Speakers M6-770X-L-SbSb-Single

JL Audio M6-770X-L-SbSb-Single M6 Luxe Series 7.7" 100W RMS (200W Peak Power Handling) 4 Ohms, Marine Coaxial Car Speaker Black Grille (Single)

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• 7.7" M6 Luxe Series Marine Coaxial Speaker
• (2) marine coaxial loudspeakers
• (2) grilles
• (12) stainless steel mounting screws
• (12) stainless steel screws washers
• Grille removal tool (Luxe models only)
• Mounting template
• Owner's Manual





Premium Sound and Sleek Design for Luxury Marine Installations

The M6 Luxe speakers are expertly crafted to deliver exceptional audio performance and long-lasting durability in luxury marine environments. Designed with the finest marine installations in mind, these speakers combine cutting-edge sound technology with a sleek, low-profile design. Featuring a refined mounting bezel with an integrated tweeter bridge and a fine mesh grille, they ensure minimal protrusion while blending seamlessly into your vessel’s sophisticated surroundings. Whether you're cruising or hosting guests, the M6 Luxe offers premium sound without compromising the aesthetic of your boat.

Unmatched Clarity and Power for High-Speed Marine Adventures

The M6 Luxe speakers feature an oversized 7.7-inch coaxial design, engineered to maximize efficiency and output, delivering loud, clear sound that cuts through wind and engine noise, even at high speeds. Paired with a premium 1-inch pure silk dome tweeter, specially treated for the harsh marine environment, these speakers ensure crisp, detailed high frequencies that remain clear and articulate, even at elevated volumes. Whether you're out on the open water or cruising at full speed, the M6 Luxe speakers provide exceptional sound performance that elevates your marine experience.

Precision Engineering for Reliable, High-Performance Sound

The M6 Luxe speakers are built for ultimate reliability and precision, featuring an advanced multi-order, true 2-way passive crossover integrated directly into the woofer chassis. This innovative design ensures optimal audio performance while being fully protected from vibration and corrosion, making it perfect for the marine environment. Additionally, the automatic tweeter protection circuit safeguards your speakers by reducing the risk of damage, ensuring that your high frequencies remain crisp and clear over time. With these intelligent features, the M6 Luxe speakers are built to perform, no matter the conditions.

SPECIFICATIONS

Diameter : 7.7 Inch

Sensitivity : 91 dB

Impedance : 4 Ohm

Frequency Response : 45-25000 Hz

Peak Power Handling : 200 Watts

Color : Black

RMS Power Handling : 100 Watts

FEATURES

Features:

Purpose-Built for Luxury Marine Installations: Designed for top-tier audio performance and durability in premium marine environments.
Sleek, Low-Profile Design: Features a low-profile mounting bezel with integrated tweeter bridge and fine mesh grille for minimal protrusion and discreet appearance.
Oversized 7.7-Inch Coaxial Design: Increases efficiency and output, ideal for loud and clear performance in powerboats at high speeds.
High-Quality Tweeter: 1-inch pure silk dome tweeter, specially treated for marine environments, providing clean, articulate high-frequency response even at higher volumes.
Advanced Crossover Network: Multi-order, true 2-way passive crossover integrated into the woofer chassis, shielded from vibration and corrosion.
Tweeter Protection Circuit: Automatic protection to minimize the risk of tweeter failure.
Flexible Power Handling: Optimal performance with amplifiers between 40-200 W continuous power per channel.
Made in the USA: Manufactured at JL Audio’s Miramar, Florida facility using high-quality global components and materials.


Specifications:

Continuous Power Handling (RMS): 100 W
Recommended Amplifier Power (RMS): 40 - 200 W / Ch.
System Efficiency: 91.0 dB @ 1 W / 1 m
System Nominal Impedance: 4 Ω
System Frequency Response: 45 Hz - 25 KHz ± 3 dB
Frame Outer Diameter (A): 9.13 in / 232 mm
Bolt Hole Circle Diameter (B): 8.18 in / 208 mm
Frontal Grille Protrusion (C): 0.38 in / 10 mm
Mounting Hole Diameter (D): 7.50 in / 191 mm
Mounting Depth (E): 4.26 in / 108 mm



UPC: 699440937672
Weight: 10
Authorized Internet Dealer




Warranty: 2 Year(s) Warranty.This item is accompanied by a manufacturer's warranty. If it is found to be defective, it may be returned to OnlineCarstereo.com for repair within 1 year from the original date of purchase with proper return authorization.
