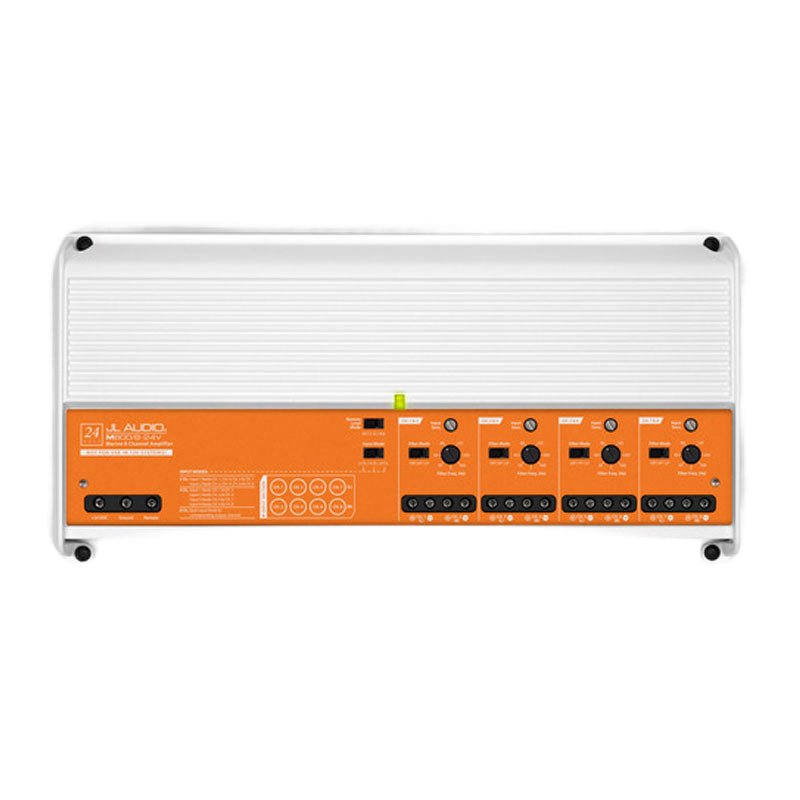

JL Audio Marine amplifier M800/8-24V

JL Audio M800/8-24V M Series 8-Channel 800W Class D Full-Range Marine Amplifier, For 24V Systems

We are a JL Audio authorized dealer so you get up-to-date, fully warrantied products. Shipping is free to the lower 48 states on everything you order!

What's Inside?

• M Series 8-Channel Class D Full-Range Marine Amplifier
• Owner's Manual



Delivers a Staggering 100 watts

This incredibly flexible amplifier packs a serious full-range punch and delivers a staggering 100 watts to each of its eight channels into 2 ohms (28.8V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is JL Audio's NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

SPECIFICATIONS

Maximum Power : 800 Watts

Low Frequency Response : 12 Hz

High Frequency Response : 22000 Hz

Number of Channels : 8

RMS Power Output : 200 Watts

Amplifier Class : D

FEATURES

Features:

Channel Input Mode Switch: Yes (2/4/6/8 ch.)
Rated Continuous (RMS) Power @ 25 V: @ 4 O 60 W RMS x 8 / @ 2 O 90 W RMS x 8 / Bridged @ 4O 180 W RMS x 4
Remote Level Modes: 2 or 4 or All Channels
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Filter Defeat Function: Yes
Source Channel Selection for PreOuts: N/A
Frequency Response: 12 Hz - 22 kHz (+0, -1dB)
Filter Mode(s): Low-Pass or High-Pass
S/N Ratio, referred to highest rated power: >104 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Detented, Calibrated Filter Freq. Potentiometers: Yes
Filter Frequency Range: 50 Hz - 500 Hz
Pass-Through Preamp Output: None
Damping Factor @ 4 O: >150 / 50 Hz
Fuse Rating: 40 A (AFS, AGU or MaxiFuse™)
Damping Factor @ 2 O: >75 / 50 Hz
Rated Continuous (RMS) Power @ 28.8 V: @ 4 O 75 W RMS x 8 / @ 2 O 100 W RMS x 8 / Bridged @ 4O 200 W RMS x 4
S/N Ratio, referred to 1 W: >84 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
THD+N @ Rated Power: <1% @ 2 O per Ch.
Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
Filter Slope(s): 12 dB/octave
Remote Level Control: Optional (HD-RLC)

UPC: 699440983594
Weight: 10
